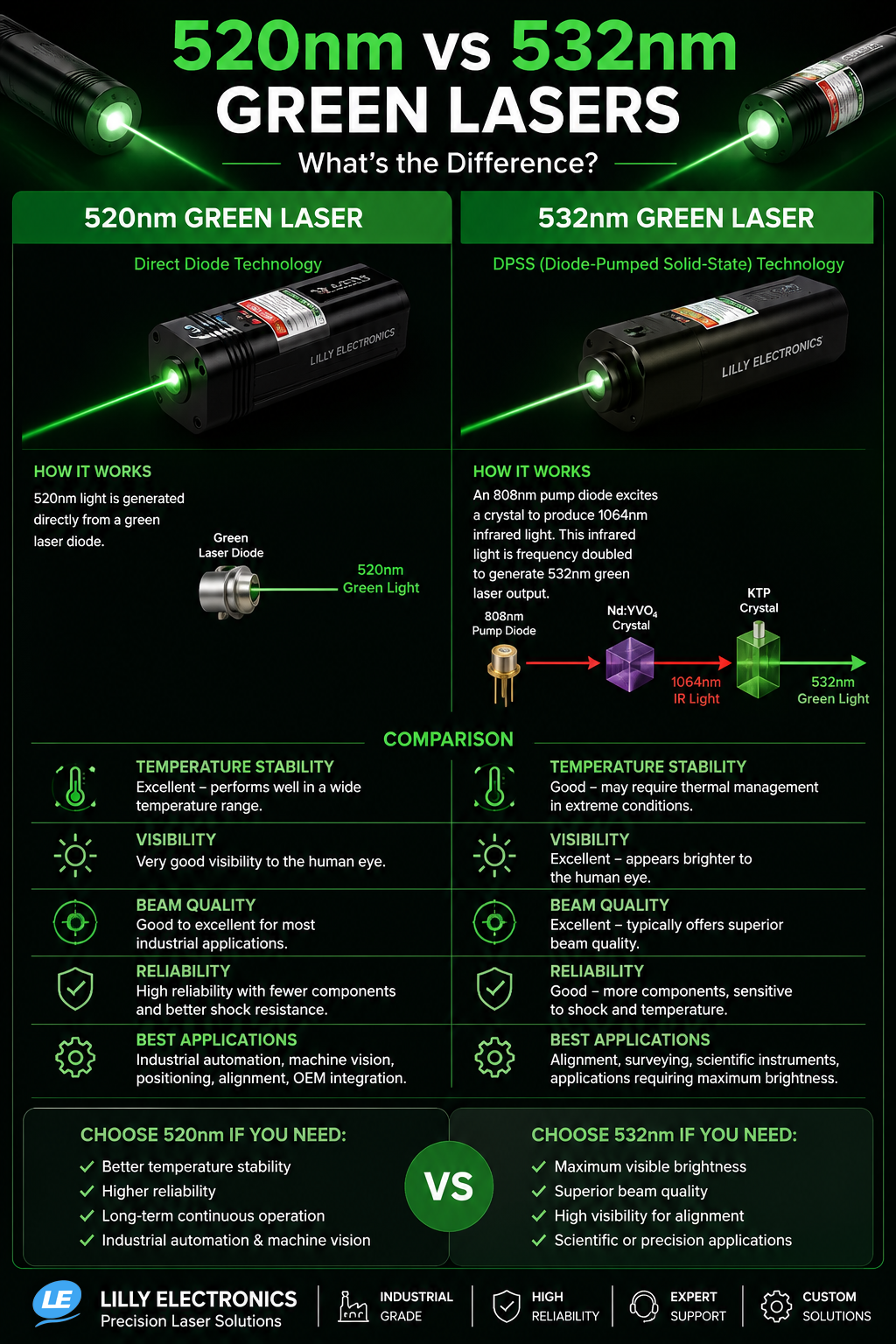

520nm vs 532nm Green Lasers: What's the Difference?
Share
Green lasers are widely used in industrial positioning, machine vision, alignment, inspection, and scientific applications. While both 520nm and 532nm lasers appear green to the human eye, they are produced using different technologies and offer different performance characteristics.
If you're selecting a laser module for an industrial application, understanding the differences between these two wavelengths can help you choose the most suitable solution.
Understanding the Basics
What Is a 520nm Green Laser?
A 520nm laser is typically generated directly from a semiconductor laser diode. Because the laser beam is produced directly by the diode, these systems are commonly referred to as direct diode green lasers. Direct diode technology generally offers excellent temperature stability, durability, and reliability.
What Is a 532nm Green Laser?
A 532nm green laser is typically generated using DPSS (Diode-Pumped Solid-State) technology. In a DPSS laser, an 808nm pump laser diode excites a neodymium-doped crystal, such as Nd₄ or Nd, which generates 1064nm infrared light. The 1064nm light is then passed through a frequency-doubling crystal, commonly KTP, to produce 532nm green laser output.
This technology has been widely used for many years because of its excellent brightness, beam quality, and visibility. However, the crystal-based design can be more sensitive to temperature changes compared to direct-diode 520nm green lasers.
Color Difference
Although both wavelengths are classified as green lasers, there is a noticeable visual difference.
- 520nm appears slightly deeper and more emerald or grass-green.
- 532nm appears brighter and more yellow-green.
Since 532nm is closer to the wavelength where human vision is most sensitive, it often appears brighter at the same optical power level.
Visibility Comparison
For applications where visibility is important, such as laser alignment and positioning systems:
532nm Advantages
✅ Appears brighter to the human eye
✅ Easier to see at longer distances
✅ Excellent for visible alignment applications
520nm Advantages
✅ Highly visible while offering better system stability
✅ Consistent performance over varying temperatures
For pure visual brightness, 532nm often has a slight advantage.
Temperature Stability
Temperature performance is one of the biggest differences between these technologies.
520nm Direct Diode Lasers
- Operate reliably across a wider temperature range
- Faster startup
- Less affected by cold environments
- More stable output power
532nm DPSS Lasers
- Crystal-based conversion process can be temperature sensitive
- Output may fluctuate in very cold or very hot environments
- May require thermal stabilization for optimal performance
For industrial automation and machine vision systems operating continuously, 520nm often provides greater stability.
Beam Quality
Beam quality is another important factor.
532nm Lasers
Traditionally provide:
- More circular beam profiles
- Excellent beam quality
- Lower divergence in many designs
520nm Lasers
Provide:
- Reliable performance
- Modern diode technology
- Excellent quality for most industrial applications
Some DPSS 532nm systems can produce cleaner beam profiles than direct diode designs.
Reliability and Maintenance
520nm Direct Diode
Advantages include:
✅ Fewer internal components
✅ More resistant to vibration and shock
✅ Longer operational life
✅ Reduced maintenance requirements
532nm DPSS
Advantages include:
✅ Mature technology
However:
- More complex internal optical design
- Crystal alignment can be affected by shock or temperature changes
For demanding industrial environments, direct diode 520nm lasers are often preferred.
Industrial Applications
Best Applications for 520nm Lasers
- Machine vision systems
- Industrial automation
- Production line positioning
- OEM integration
- Long-term continuous operation
Best Applications for 532nm Lasers
- Alignment systems
- Surveying equipment
- Scientific instruments
- Applications requiring maximum visible brightness
Quick Comparison
| Feature | 520nm Green Laser | 532nm Green Laser |
|---|---|---|
| Technology | Direct Diode | DPSS |
| Color | Emerald Green | Yellow-Green |
| Visibility | Very Good | Excellent |
| Temperature Stability | Excellent | Moderate |
| Reliability | Excellent | Good |
| Shock Resistance | Excellent | Moderate |
| Beam Quality | Good to Excellent | Excellent |
| Industrial Automation | Excellent | Good |
| Alignment Applications | Excellent | Excellent |
Which Green Laser Should You Choose?
If your priority is industrial reliability, temperature stability, and long-term performance, a 520nm direct diode laser is often the preferred choice.
If your application requires maximum visible brightness and premium beam quality, a 532nm DPSS laser may be the better option.
The right choice ultimately depends on your application's environment, operating conditions, and performance requirements.
