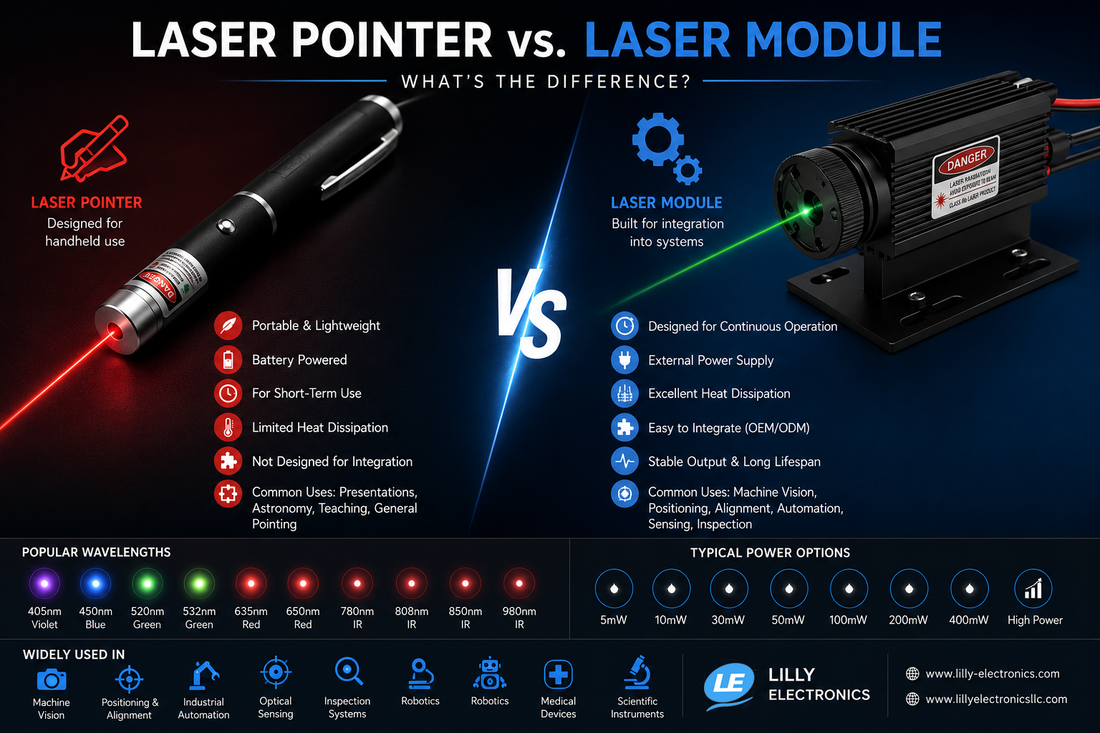

Laser Pointer vs. Laser Module: What's the Difference?
Share
Introduction
The terms laser pointer and laser module are often used interchangeably, but they are designed for very different purposes.
While handheld laser pointers are commonly used for presentations, astronomy, and educational demonstrations, laser modules are engineered for industrial automation, machine vision, positioning, alignment, inspection, and sensing applications.
Understanding the differences between these two types of lasers can help engineers, OEM manufacturers, and system integrators choose the right solution for their project.
What Is a Laser Pointer?
A laser pointer is a portable laser device that usually operates on batteries and is intended for handheld use.
Typical applications include:
- Presentations
- Classroom teaching
- Astronomy
- Construction alignment
- General pointing
Most laser pointers are available in visible wavelengths such as:
- 405nm Violet
- 450nm Blue
- 520nm Green
- 532nm Green
- 635nm Red
- 650nm Red
Infrared laser pointers are also available for specialized applications such as night vision equipment and optical testing.
What Is a Laser Module?
A laser module is designed to be integrated into equipment rather than held in the hand.
Laser modules typically include:
- Laser diode
- Driver circuit
- Heat sink
- Optical lens
- Power input
- TTL or Analog modulation (optional)
They are built for continuous operation and can be installed in industrial machines and automation systems.
Common applications include:
- Machine vision
- Industrial positioning
- Optical sensing
- Factory automation
- Robotics
- Inspection equipment
- Medical devices
- Scientific instruments
Laser Pointer vs. Laser Module
| Feature | Laser Pointer | Laser Module |
|---|---|---|
| Portable | ✔ | Usually fixed installation |
| Power Source | Battery | External DC power |
| Continuous Operation | Limited | Designed for long operation |
| Industrial Integration | Limited | Excellent |
| Heat Dissipation | Basic | Professional heat sinking |
| OEM Applications | Rare | Ideal |
Choosing the Right Wavelength
Different wavelengths serve different purposes.
405nm Violet
Suitable for fluorescence and specialty applications.
450nm Blue
High visibility with good beam quality.
520nm Green
Excellent visibility for alignment.
532nm Green
Extremely bright to the human eye.
635nm / 650nm Red
Cost-effective for positioning and alignment.
780nm / 808nm Infrared
Common in optical sensing and research.
850nm Infrared
Popular for machine vision with IR cameras.
980nm Infrared
Ideal for machine vision, industrial automation, optical sensing, and positioning systems where visible light is not desired.
Power Levels
Laser modules are available in many output powers, including:
- 5mW
- 10mW
- 30mW
- 50mW
- 100mW
- 200mW
- 400mW
- High-power industrial modules
Selecting the correct power depends on working distance, ambient lighting, target material, beam size, and application requirements.
Typical Industrial Applications
Laser modules are widely used in:
- Machine vision systems
- Industrial positioning
- Robotic guidance
- Packaging equipment
- Textile machinery
- Semiconductor manufacturing
- Inspection systems
- Medical equipment
- Laboratory instruments
- Optical measurement systems
Why Engineers Choose Laser Modules
Compared with handheld laser pointers, industrial laser modules provide:
- Continuous-duty operation
- Better thermal management
- Stable output power
- Compact OEM integration
- Multiple mounting options
- Adjustable focus options
- TTL and analog modulation
- Higher reliability
These advantages make laser modules the preferred choice for professional and industrial applications.
Explore Lilly Electronics Laser Modules
Lilly Electronics offers a wide range of laser solutions, including:
- Laser pointer modules
- Dot laser modules
- Line laser modules
- Cross laser modules
- Green laser modules
- Infrared laser modules
- Adjustable-focus laser modules
- OEM laser modules
Whether you need a compact positioning laser or a high-power industrial module, we provide solutions for automation, sensing, and machine vision applications.
Browse our collections:
🌐 https://www.lilly-electronics.com
🌐 https://www.lillyelectronicsllc.com
Conclusion
Although laser pointers and laser modules both generate laser beams, they are designed for different purposes.
Laser pointers are best suited for handheld pointing and demonstration tasks, while laser modules are engineered for integration into industrial systems where reliability, stability, and continuous operation are essential.
Understanding these differences helps engineers and equipment designers select the right laser technology for their applications.
As industrial automation and machine vision continue to grow, laser modules remain one of the most versatile optical components available for modern manufacturing and sensing systems.
