Φ6×10mm 520nm Small‑Sized Dot Green Laser Module, 0.5mW 1mW 5mW 10mW Multi‑Power Laser Diode Module
Φ6×10mm 520nm Small‑Sized Dot Green Laser Module, 0.5mW 1mW 5mW 10mW Multi‑Power Laser Diode Module
Verfügbarkeit für Abholungen konnte nicht geladen werden
Product Overview

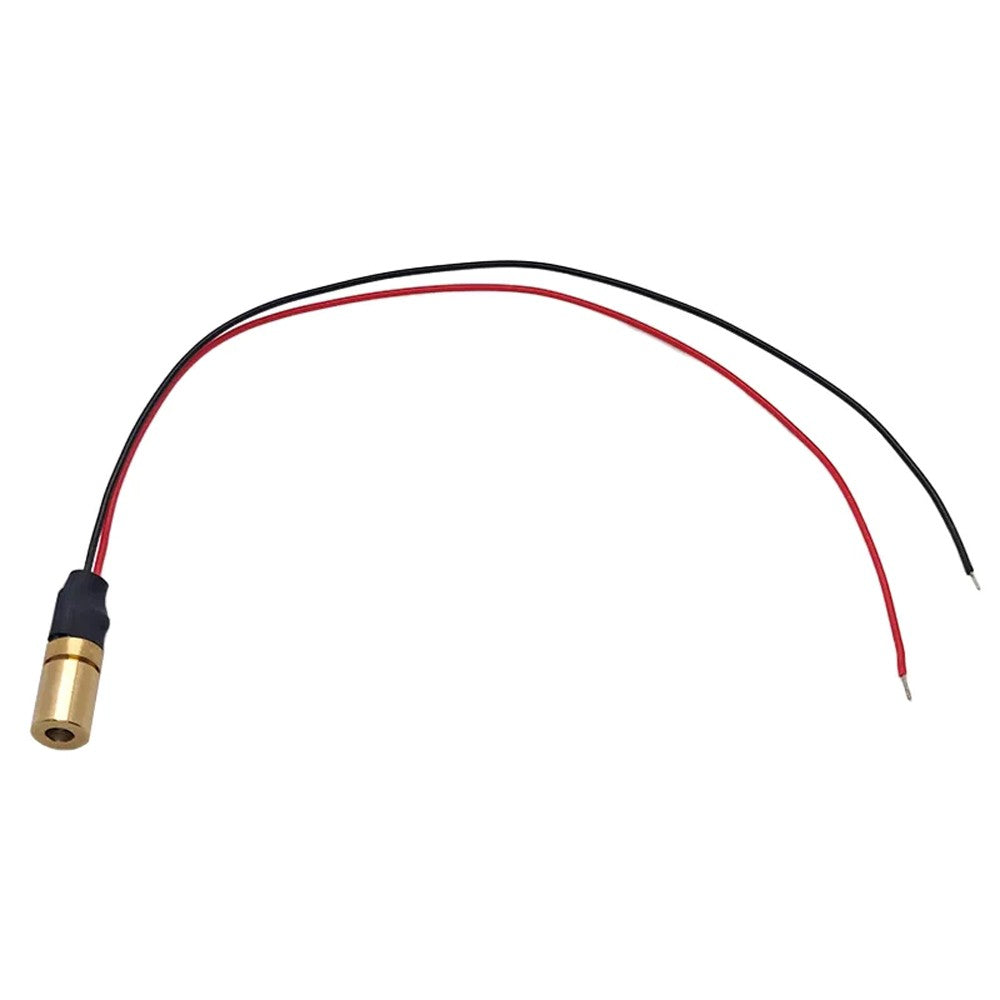

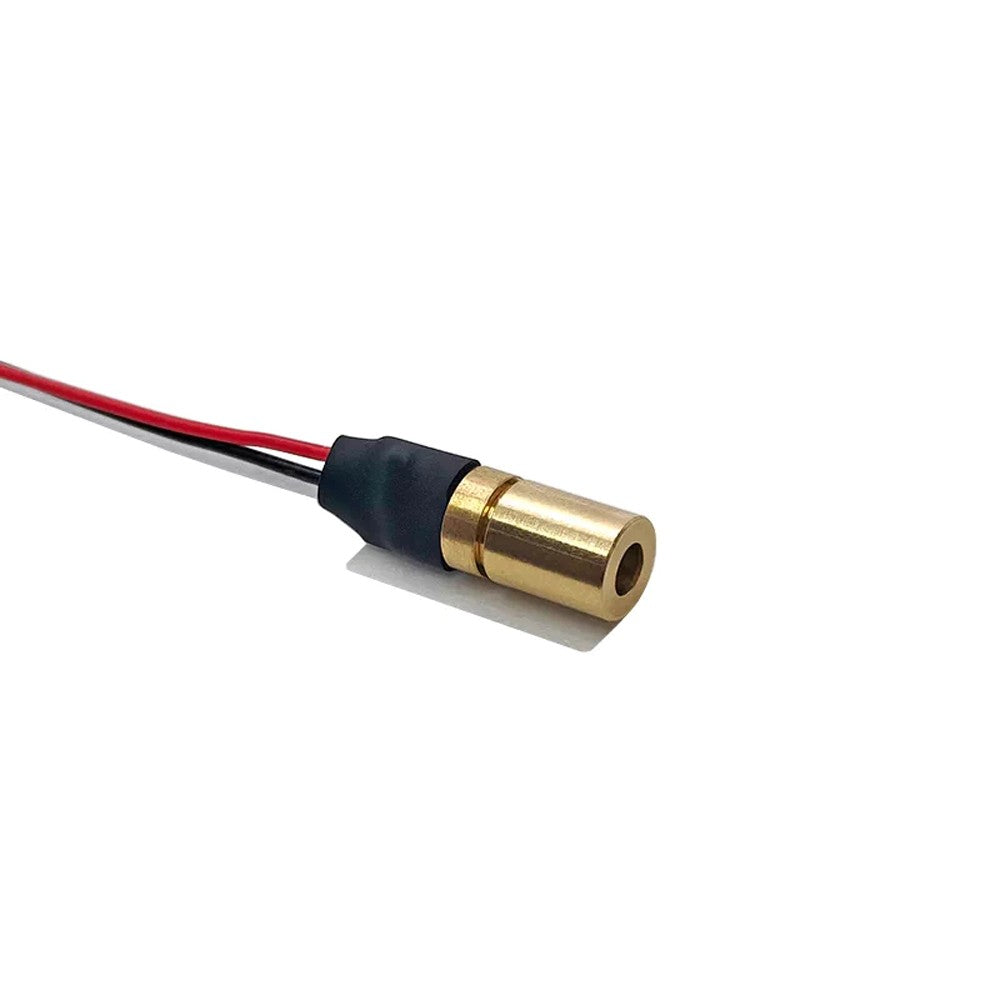

Compact Φ6×10mm 520nm green dot laser module with full copper‑aviation aluminum metal housing. Multiple power options: 0.5mW /1mW /5mW /10mW. Built‑in APC circuit ensures stable output. Adjustable/fixed‑focus optional, dot or elliptical beam available. 2.8‑5.2VDC input, long‑life >10000‑hour continuous operation. Custom sizes are supported. Laser safety notice: Class II for 0.5/1mW; Class IIIA for 5mW. Avoid direct eye exposure.
⚠️ Laser Safety Warning0.5mW / 1mW version: Class II laser; 5mW version: Class IIIA laser. Do not stare directly into the laser beam. Avoid direct eye exposure. Not for laser pointer consumer use. For industrial & laboratory integration only.
Specifications
| Parameter | Details |
|---|---|

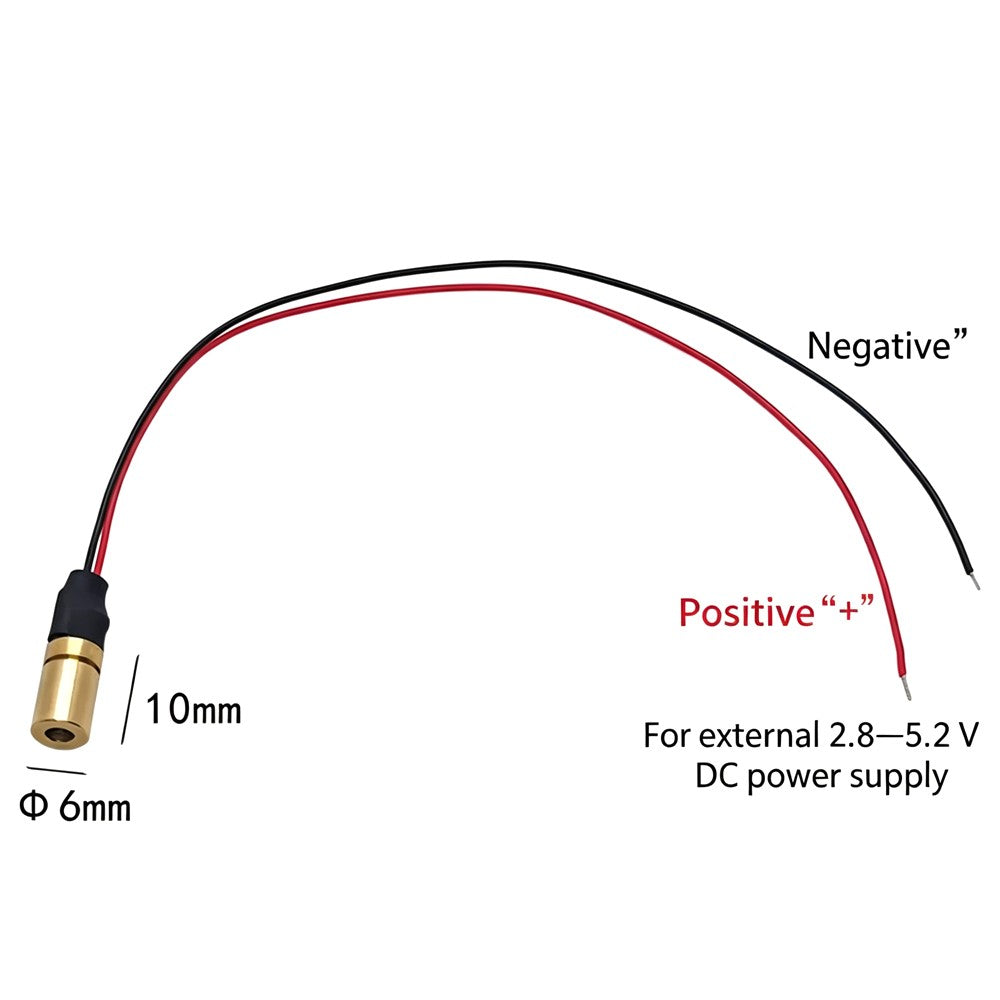

| Module Size | Φ6×10mm, custom sizes available |
| Housing Material | Copper & Aviation Aluminum, full metal shell |

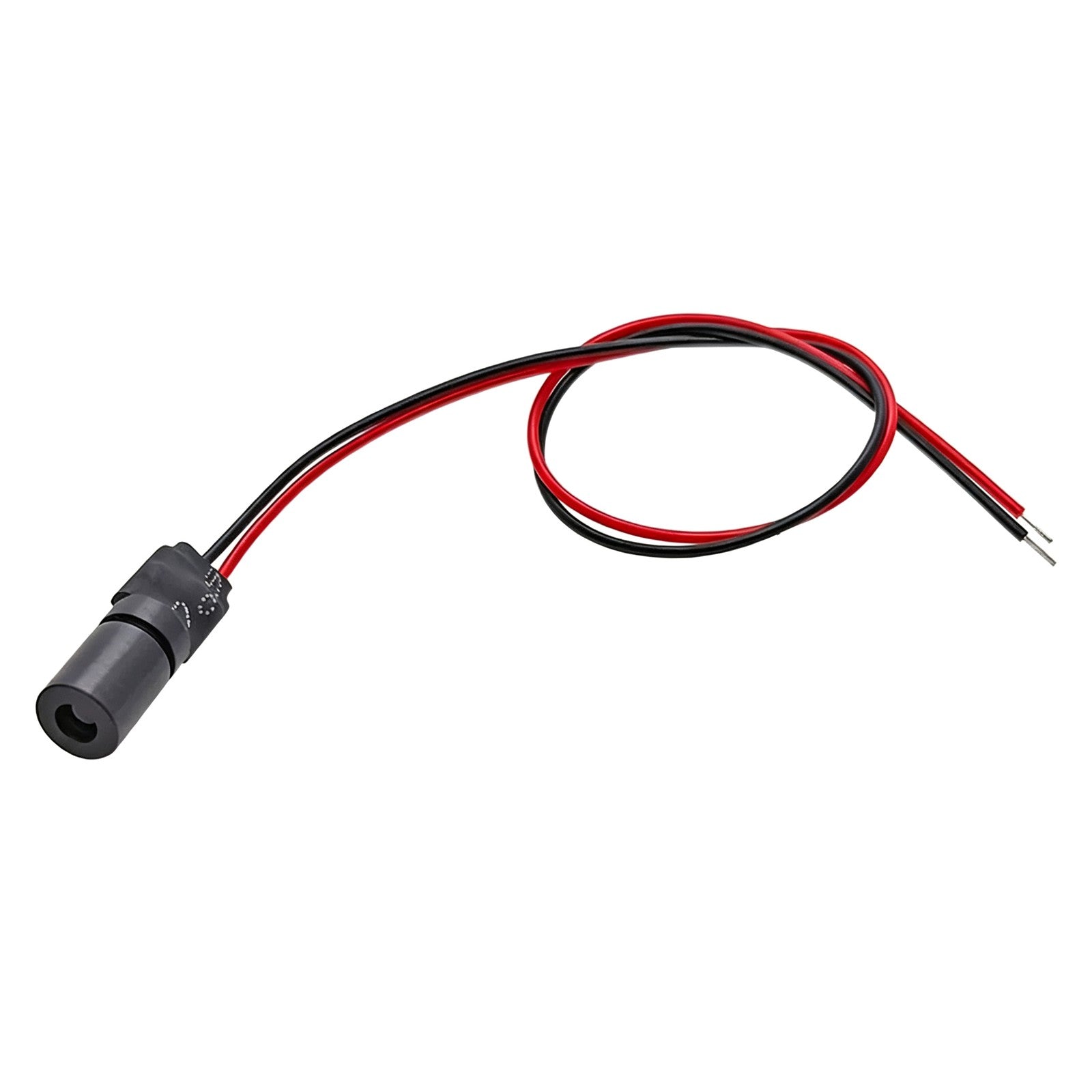

| Surface Finish | Brass natural color / Matte black oxidation with surface insulation |
| Wavelength | 520nm ±10nm |
| Output Power | 0.5mW / 1mW / 5mW /10mW (optional) |
| Effective Range | Up to 100 meters (indoor; subject to ambient‑light interference) |

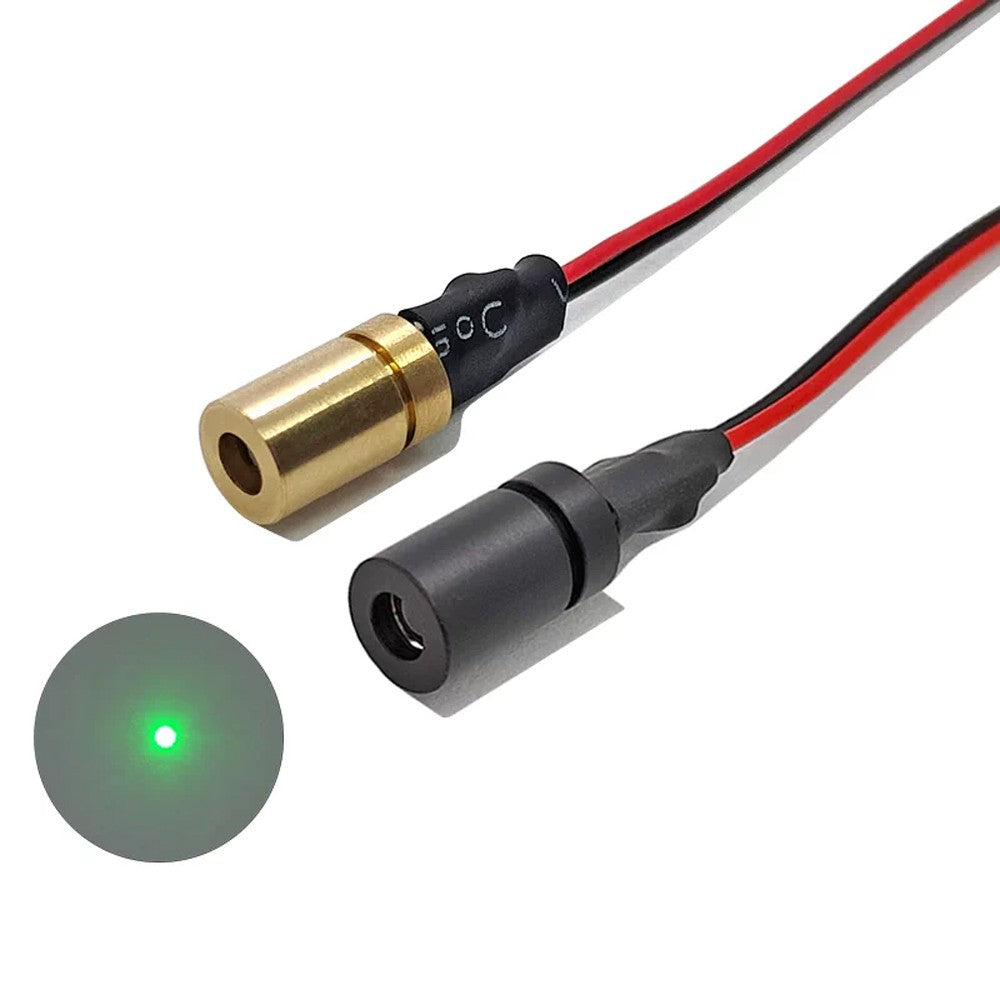

| Spot Shape | Dot / Elliptical spot |

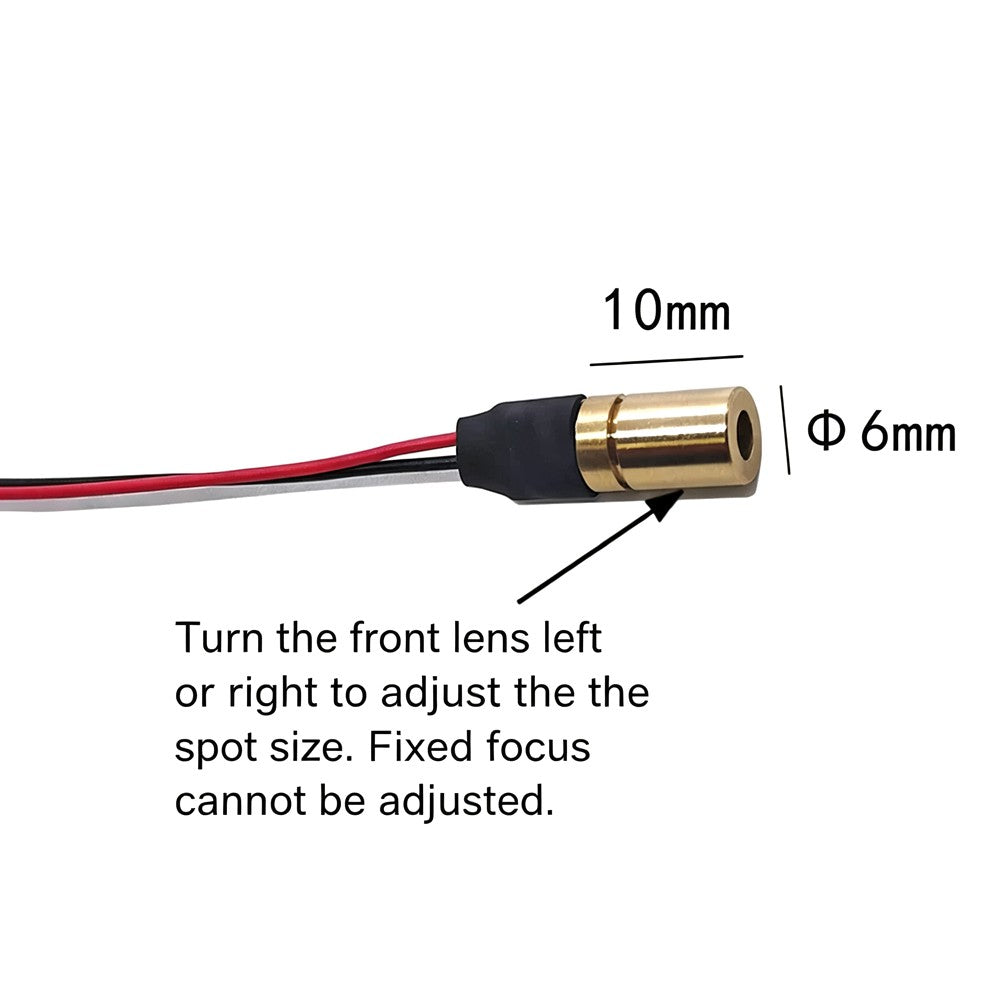

| Focus Mode | Adjustable focus or Fixed‑focus (optional; default: adjustable focus) |
| Control Circuit | APC (Automatic Power Control) Circuit |
| Operating Voltage | 2.8‑5.2VDC |
| Operating Current | ＜80mA(0.5mW), 100mA(1mW), 150mA(5mW) |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Service Lifetime | ＞10000 hours continuous operation |
| Laser Safety Class | Class II (0.5mW,1mW); Class IIIA (5mW) |
Typical Applications
‑ Industrial positioning & alignment ‑ Laboratory optical experiments ‑ Machine‑vision auxiliary light source ‑ OEM equipment integration projects
Note
Product performance will be affected by ambient light conditions. Specifications subject to technical improvement without prior notice. Custom requirements are welcome.
