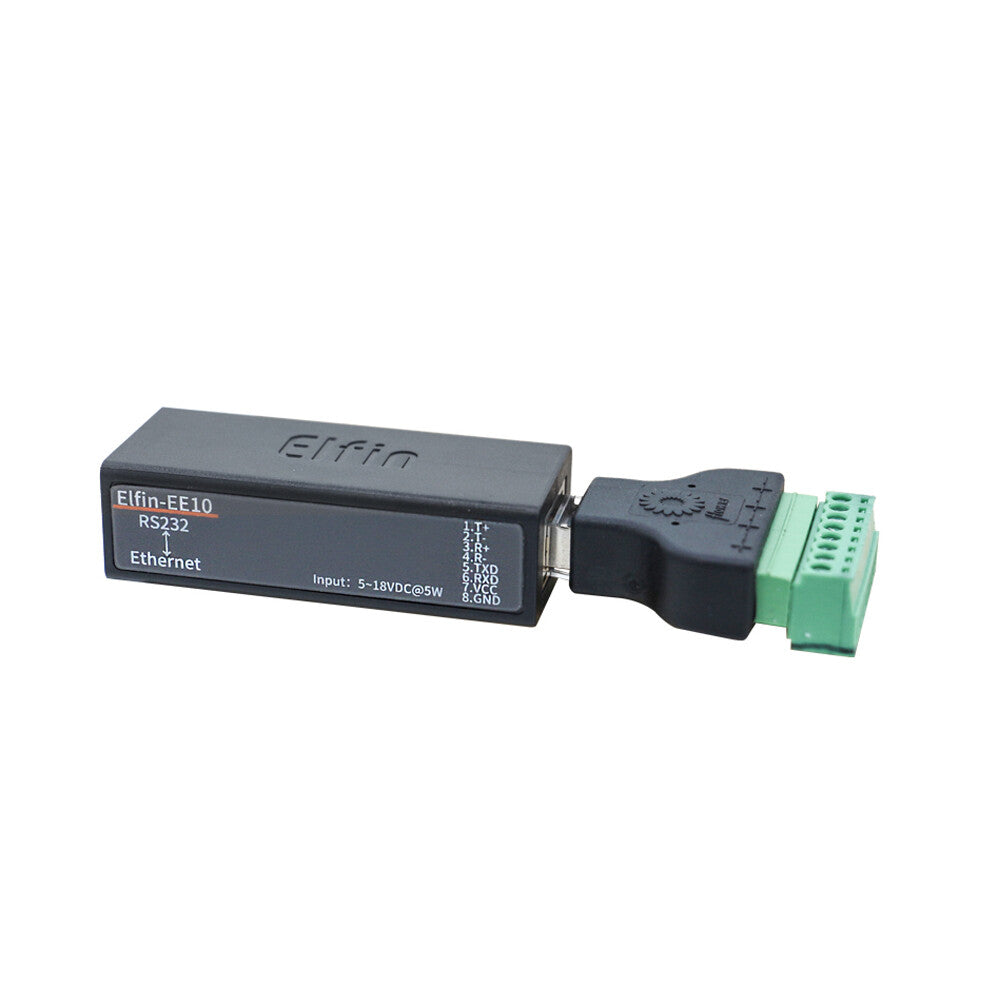

Elfin-EE10 Wireless Networking Device TCP IP Function RJ45 RS232 To Ethernet

Product Parameters

Product: Elfin-EE10

Function: Serial to Ethernet

Core Resources

Processor: Cortex-M3

Main Frequency: 96MHZ

Operating System: FreeRTOS

Flash Resources: 2MB

RAM: 128KB

Network Interface Parameters

Ethernet Interface Parameters: 802.3

Ethernet Interface Form: 1 RJ45 with LED

Interface Standard: 10/100 Base-T Auto-negotiation

Network Protocol: IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,APP,BOOTP,AutoIP,ICMP,Telnet,uPNP

Security Protocol (Data Communication): TLSv1.2, AES-128Bit, DES3, SSL

Network port protection: 2KV electromagnetic isolation

Network transformer: integrated

Maximum Number of Connections: 5socket

IO Interface Parameters

Serial Port Number: 0

IO Voltage Range: /

Reload Reset Interface: No

Serial Interface Parameters

Serial Port Number: 1

Interface Standard: EE10:RS232

Baud Rate: 2400~460800bps

Serial Port Protection: Yes

Product Features

Configuration Method: WEB page, Cli command, XML file import, Telnet configuration, IOTService software

WEB Webpage: Standard or custom page

IP Acquisition Method: DHCP or static IP, AutoIP

Virtual Data Channel: Support

Firmware Upgrade: WEB Page, IOTService software

Registration Package Function: Support

Heartbeat Package Ffunction: Support

Custom Scripting: Support

Packet filtering: Support

Serial Port Automatic Framing: Support

Modbus RTU to Modbus TCP: Support

NTP Function + Time Zone Setting: Support

Parameter Import and Export: Support

Provide SDK: Support

Mechanical Properties

Protection Level: IP-30

Size (mm): 61*26*17.8

Weight (g): 20

Environmental Parameters

Operating Temperature: -45~85℃

Save Environment: -50~90℃, 5~95%RH (Non-condensing water)

Power Parameter

Input Voltage: 5~18VDC

Interface Form: RJ45 WAN

Power Protection: Yes

Other Information

Certificate: 3C/FCC/CE/RoHS

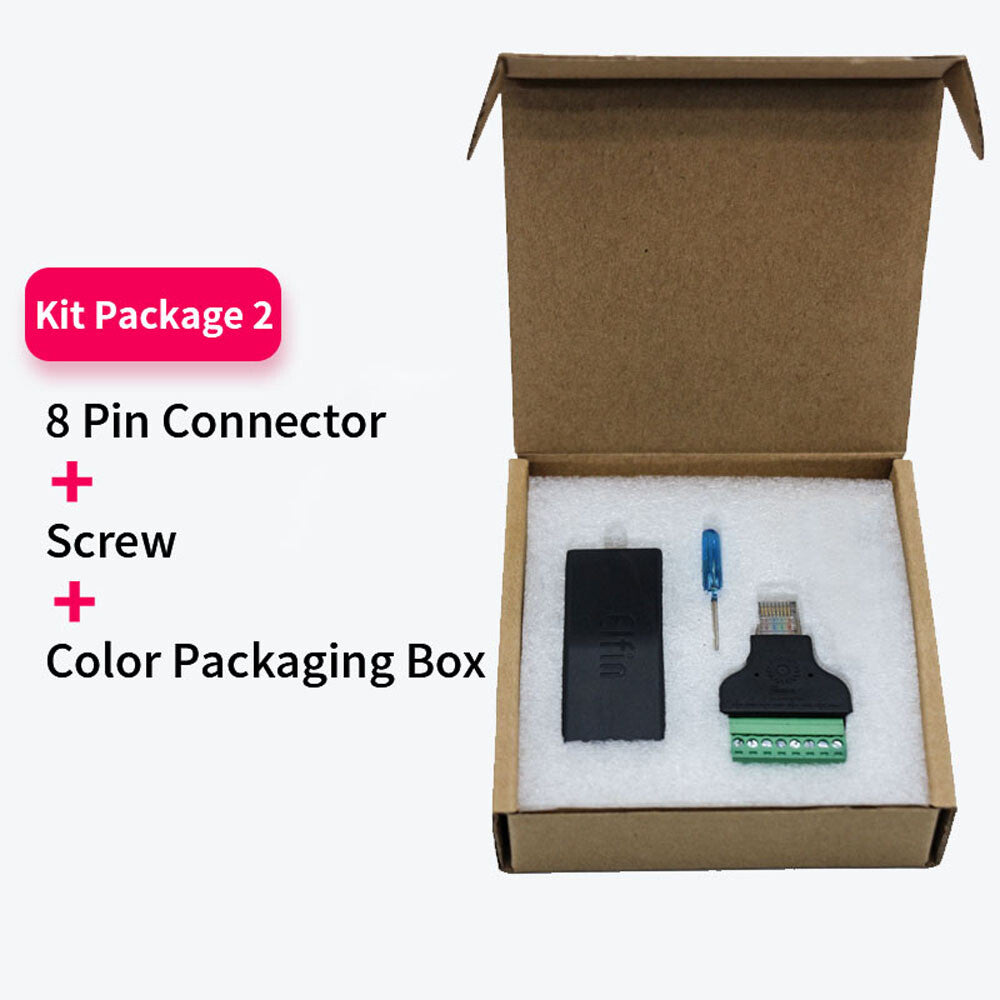

Package:
1pc EE10 Module
