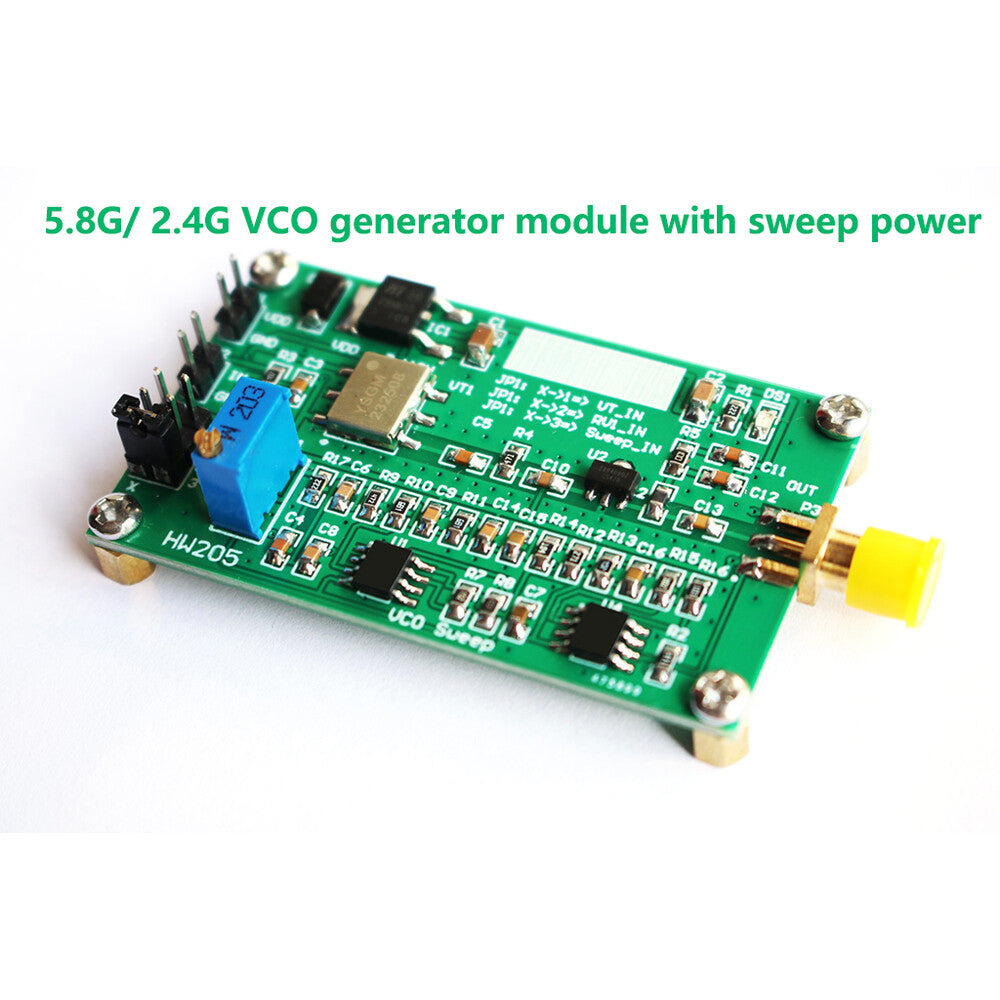

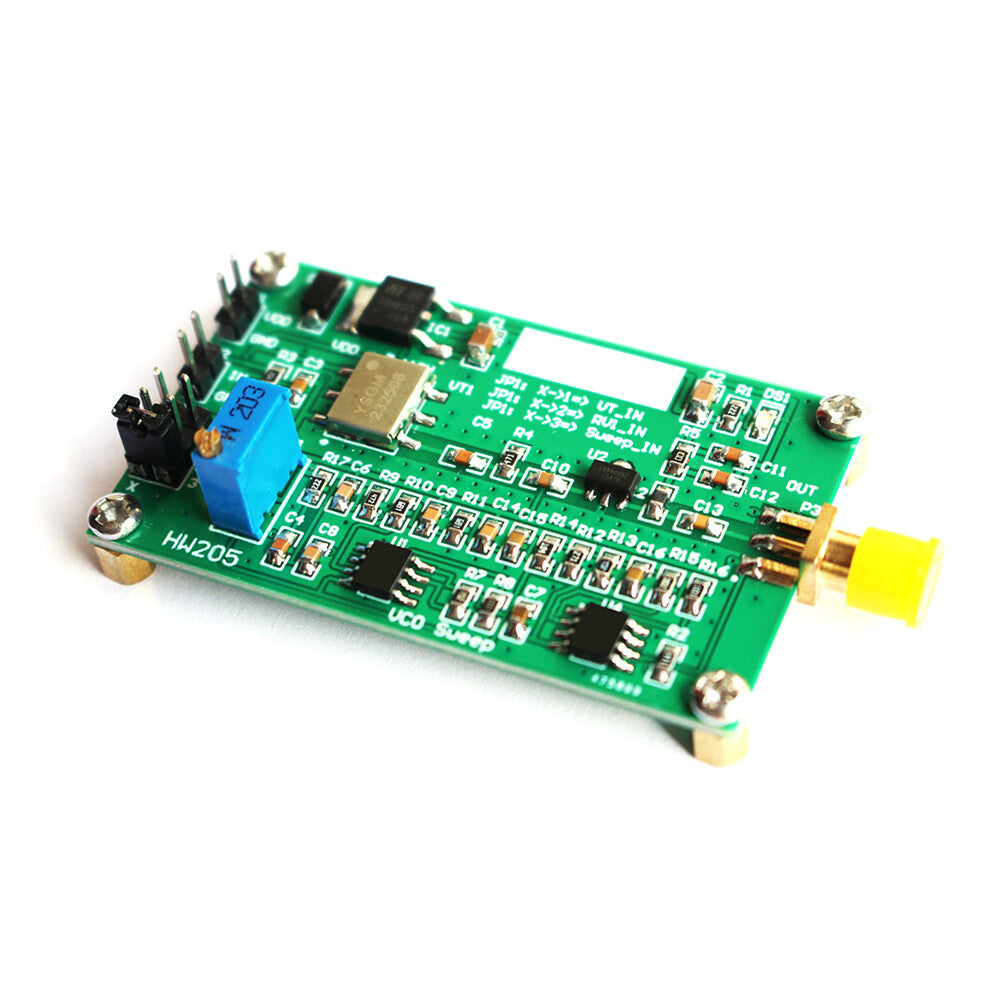

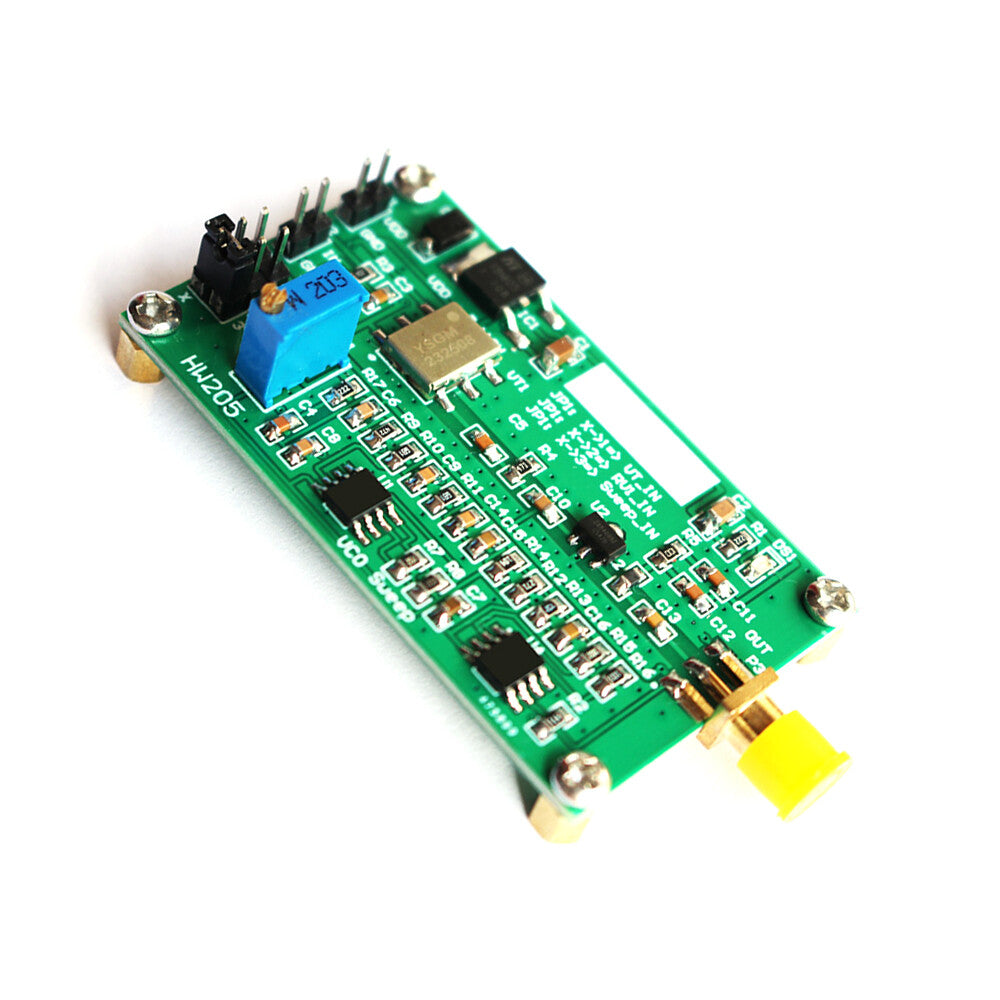

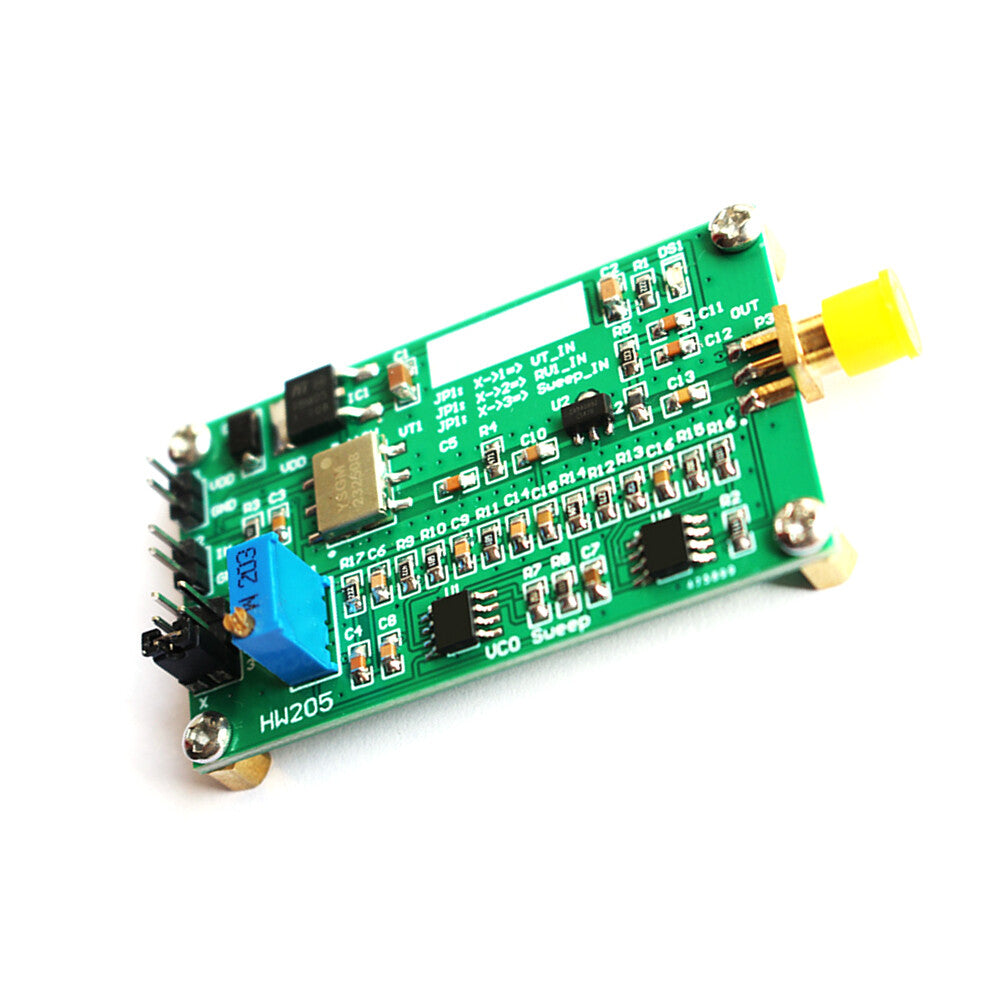

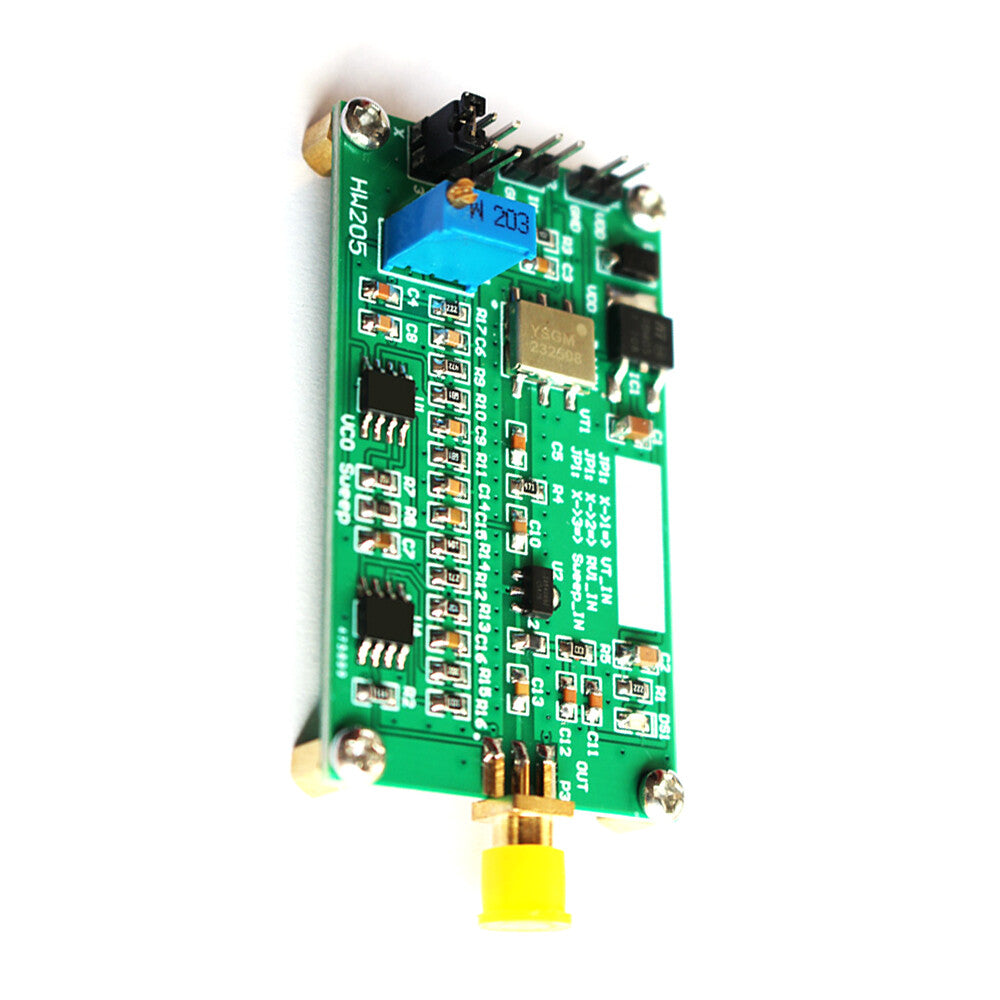

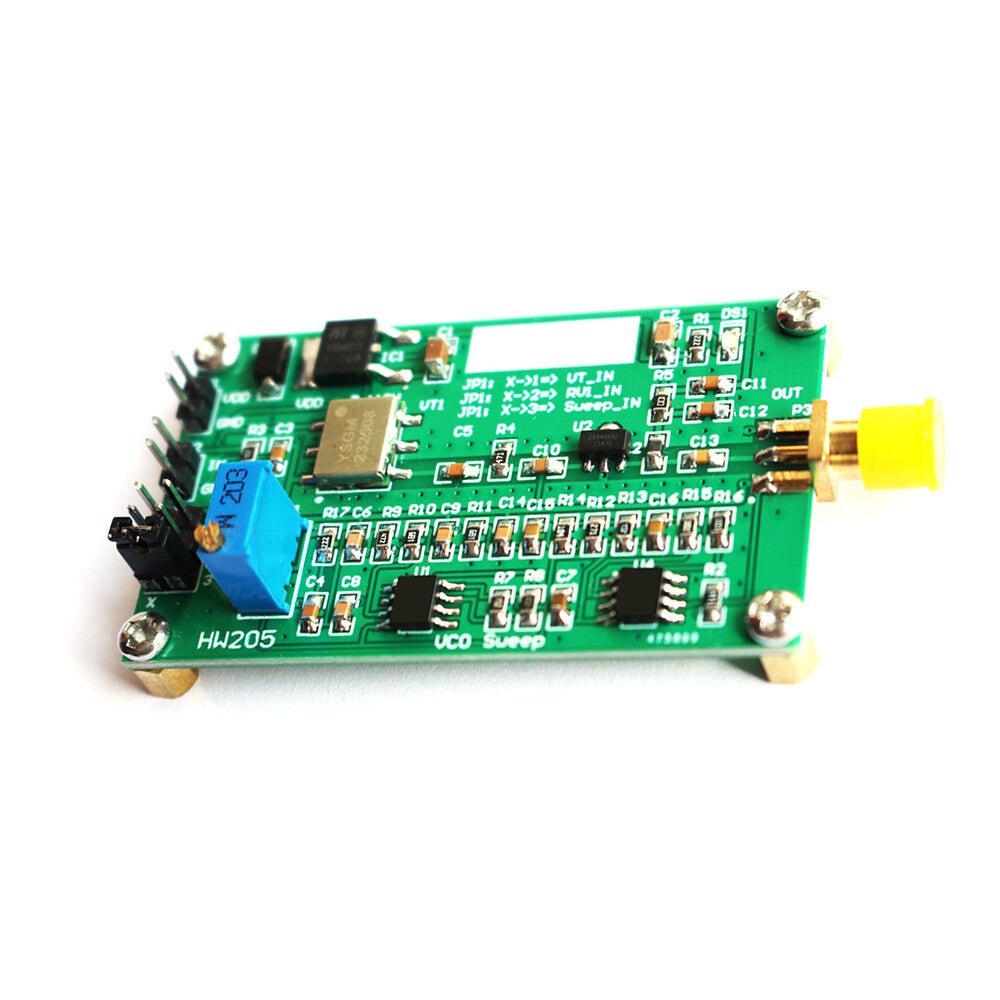

HW205 VCO Generator Module 2.4G & 5.8GHz Sweep Signal Source

**Specification**:

Output frequency range: 5725~5850 MHz

Output frequency range: 2300~2485 MHz

Maximum output amplitude: <15dBm

Working voltage: 7~12 V

Size: 60*35 mm

**Interface Description**:

P1 interface: VDD: positive power supply; GND: negative pole of power supply;

P2 interface: VT_IN: Input tuning voltage (VCO) signal (0~9V). GND: The negative pole of the power supply.

P3 interface: output signal. (RP SMA KE KHD outer screw inner hole)

JP1 jumper: select external or internal (potentiometer) or sweep frequency input tuning voltage,

JP1: x->1 => VT_IN;

JP1: x->2 => RV1_IN;

JP1: x->3 => Sweep_IN;

RV1: Internal (potentiometer) input tuning voltage; The sweep frequency is about 30KHz.

**Package**:

1*VCO Generator Module
