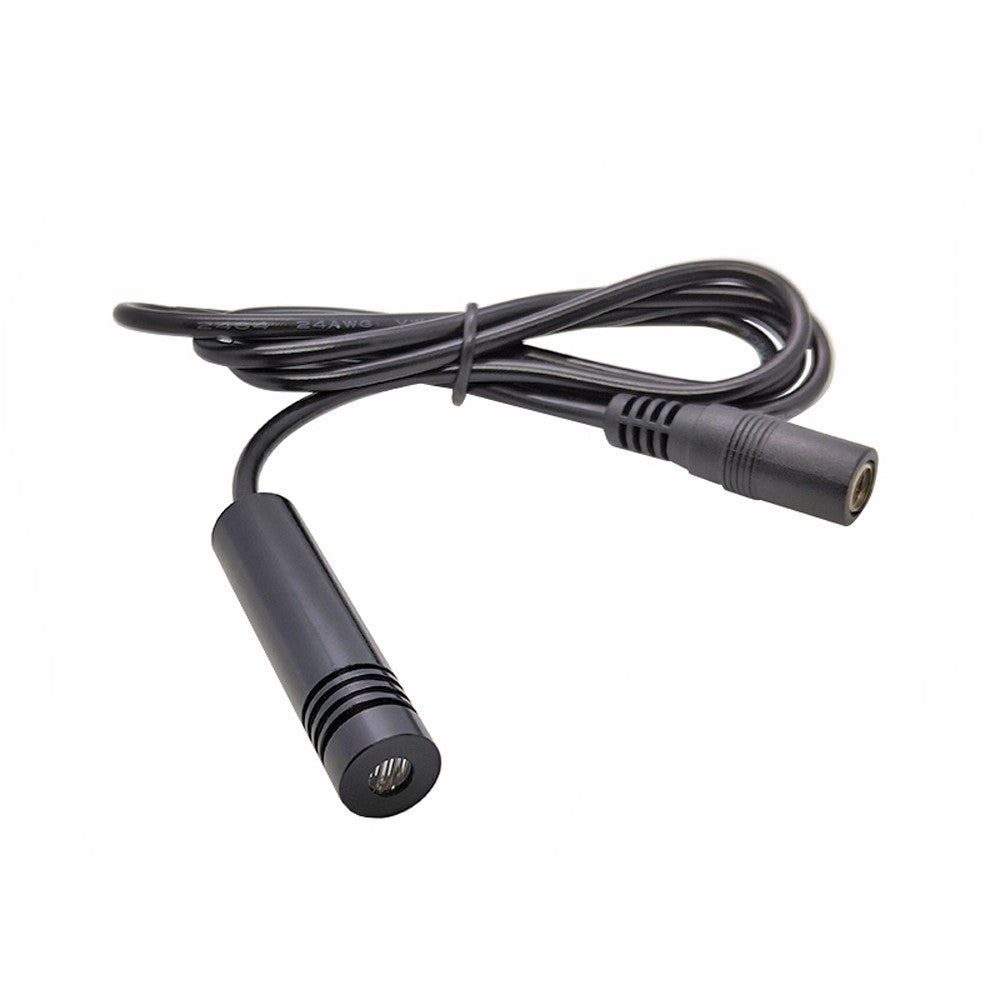

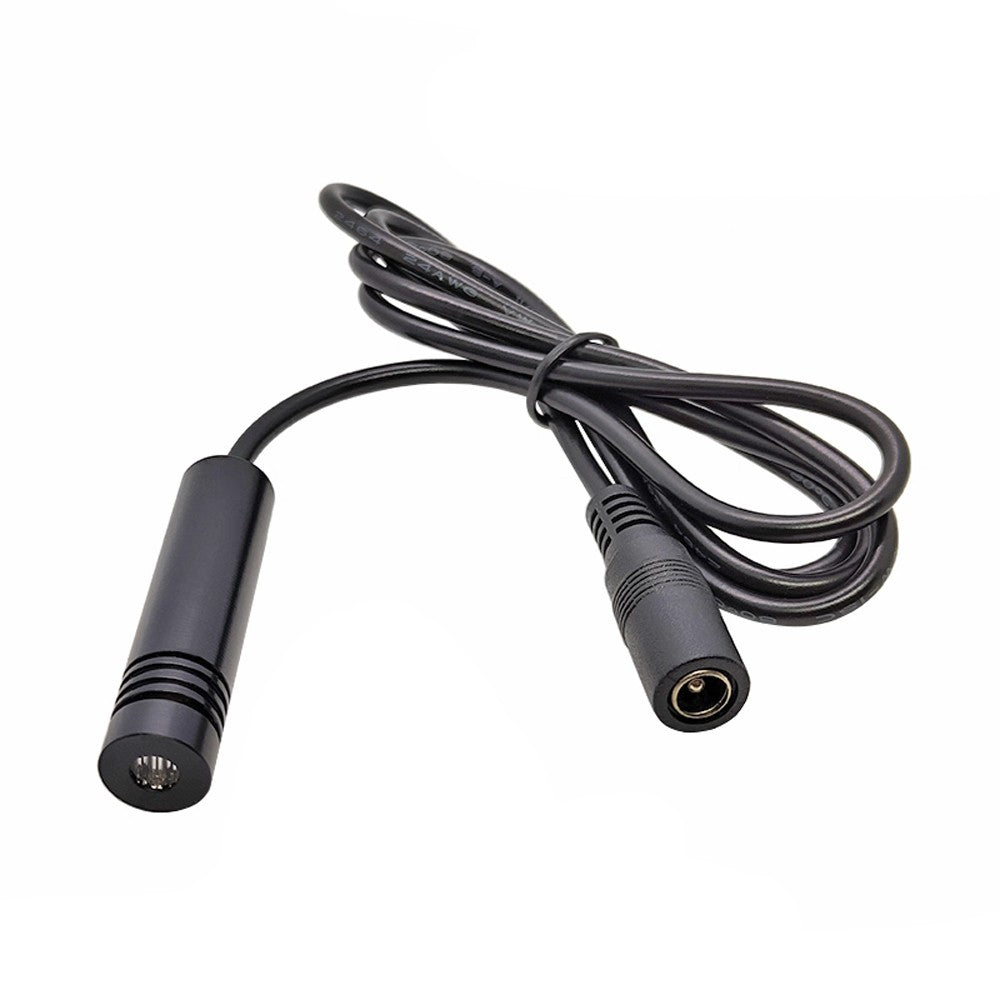

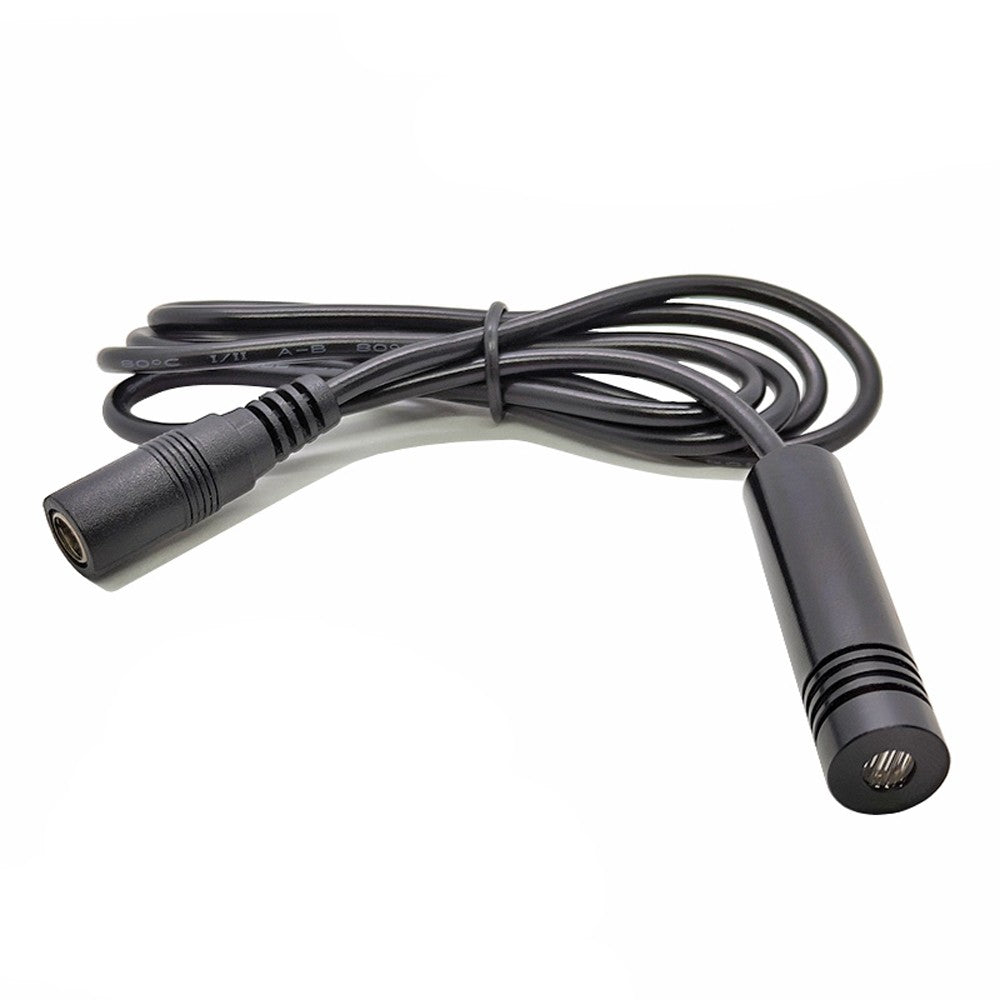

Φ12×50mm 520nm Adjustable Focus Green Line Laser Module, 35mW 50mW 85mW 135mW Line Positioning Laser Light with Power Supply & Holder

Product Overview

This 520nm green line laser positioning module comes with Φ12×50mm aviation aluminum all-metal housing, processed with matte black oxidation insulation treatment for superior heat dissipation and long-term stability. Built-in ACC constant current circuit ensures consistent laser output, continuous service life reaches more than 8000 hours. Featuring adjustable focus to freely modify line thickness with default 90° fan angle. Multiple power grades available, matched with power supply and mounting bracket, ideal for industrial alignment, machinery positioning and auxiliary marking.

Key Features

✅ Φ12×50mm aviation aluminum full metal shell, durable & excellent heat dissipation
✅ Matte black oxidation surface with insulation treatment
✅ ACC constant current driving circuit for stable continuous operation
✅ Adjustable focus design, flexible control of laser line thickness
✅ 90° line emission angle
✅ Wide input voltage DC9~25V, adaptable to various industrial power systems
✅ Complete accessories: power supply + fixing bracket, ready to install

Specifications

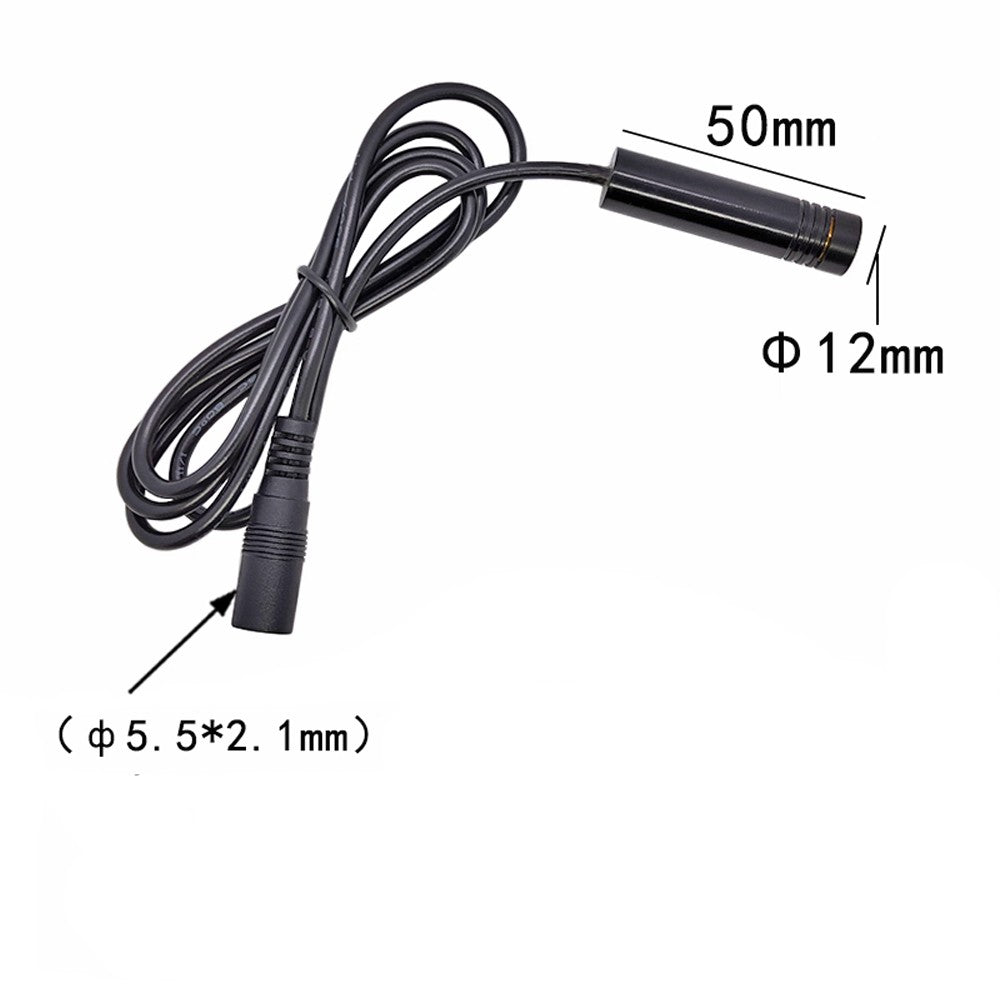

• Dimension: Φ12×50mm
• Material: Aviation Aluminum, All Metal Shell
• Surface Treatment: Matte Black Oxidation with Surface Insulation
• Continuous Service Life: ＞8000 Hours
• Wavelength: 520nm±10nm
• Output Power: ＜35mW / ＜50mW / ＜85mW / ＜135mW Optional
• Effective Distance: Up to 5 Meters (Indoor; working distance affected by ambient light)
• Laser Shape: Single Line Beam, Adjustable Line Thickness
• Diffusion Angle: 90°
• Circuit Control: ACC Constant Current Circuit
• Working Voltage: DC 9V~25V
• Working Current: • 35mW: ＜280mA • 50mW: ＜400mA • 85mW: ＜580mA • 135mW: ＜650mA
• Operating Temperature: -10℃ ~ +50℃
• Storage Temperature: -20℃ ~ +70℃

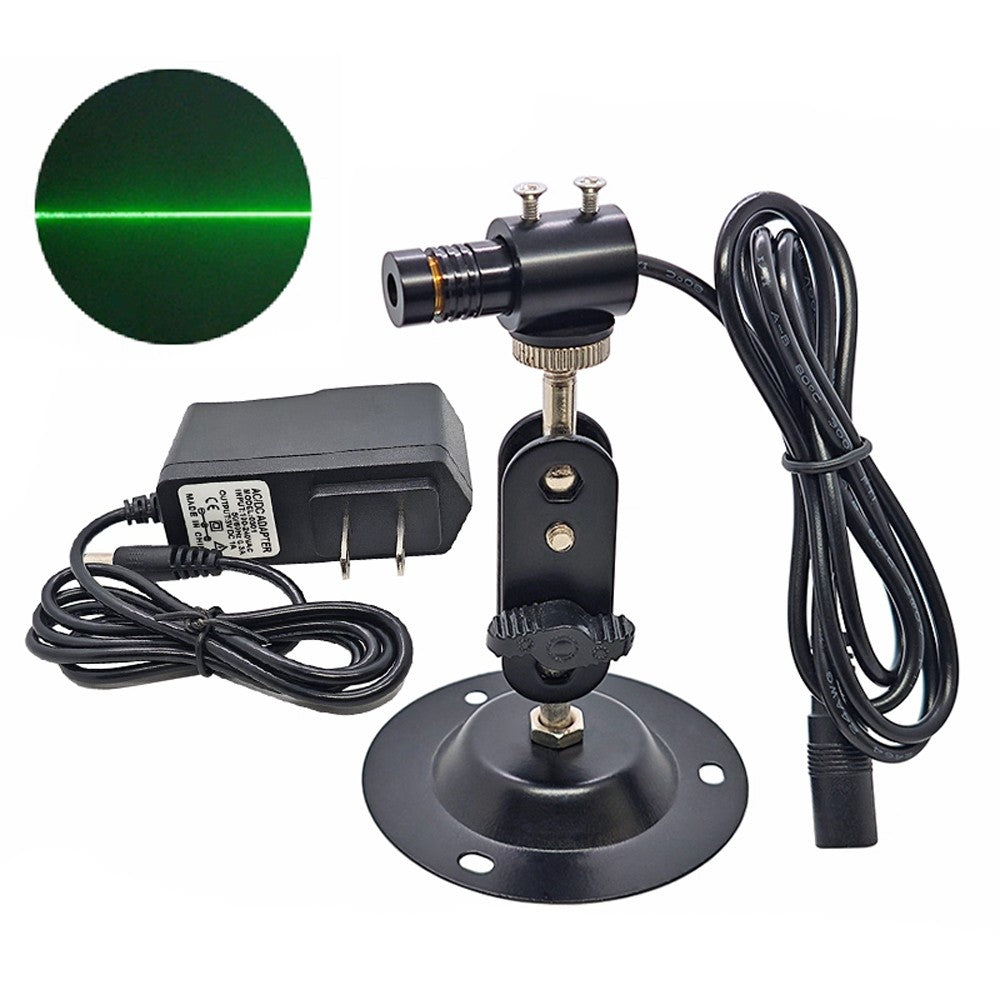

Package Includes

1 × 520nm Green Line Laser Module
1 × Power Supply
1 × Mounting Bracket

Application Scenarios

Woodworking cutting positioning, mechanical equipment calibration, automated assembly alignment, stone processing marking, textile positioning, construction auxiliary line marking and other industrial alignment applications.

⚠️ Important Safety Warning

Laser radiation. Do NOT stare directly into the laser beam.Not a toy. Keep away from children. For professional industrial use only. Laser protective goggles are strongly recommended during operation.
