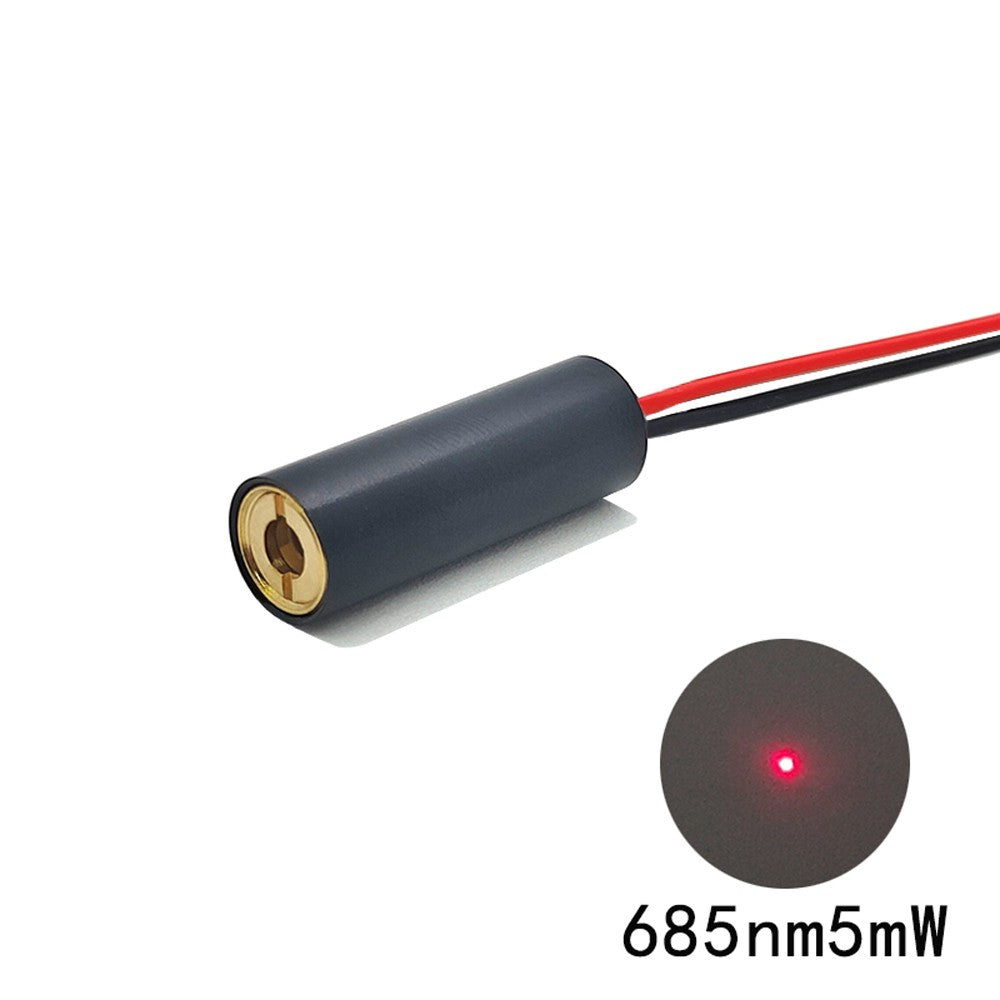

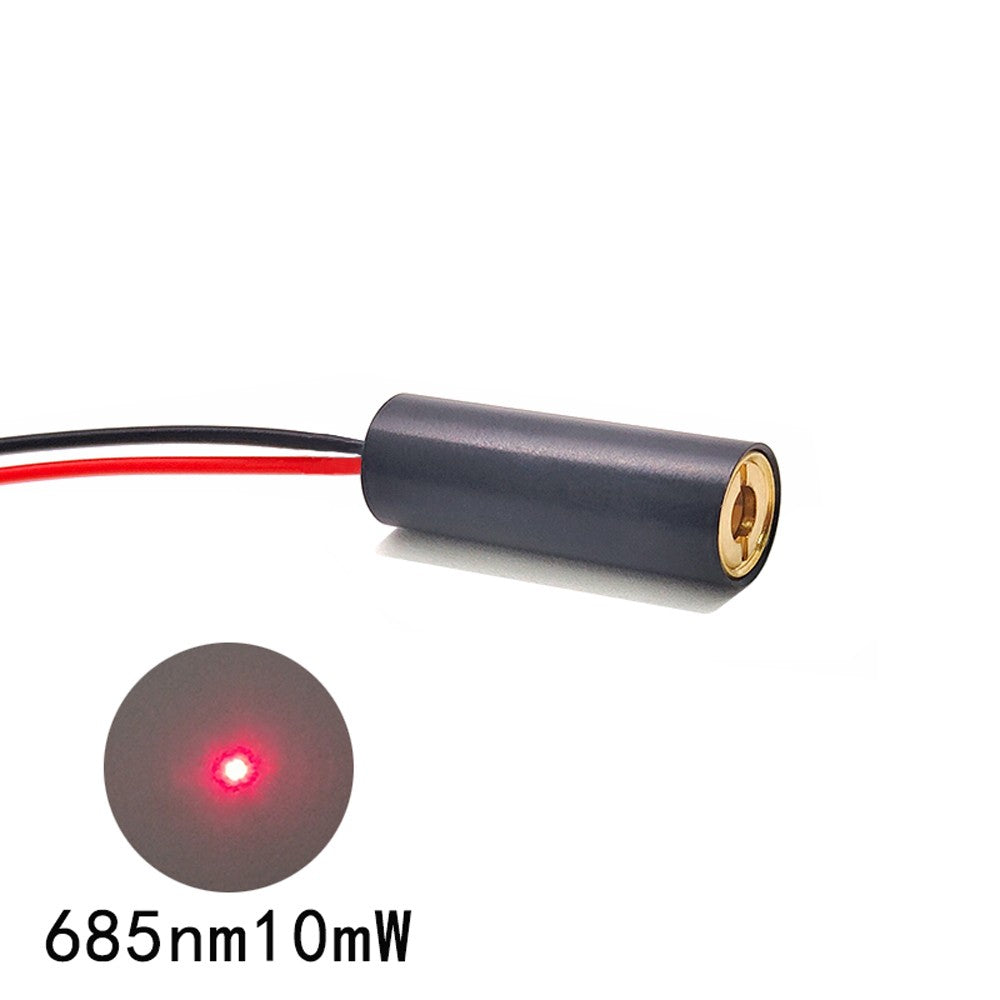

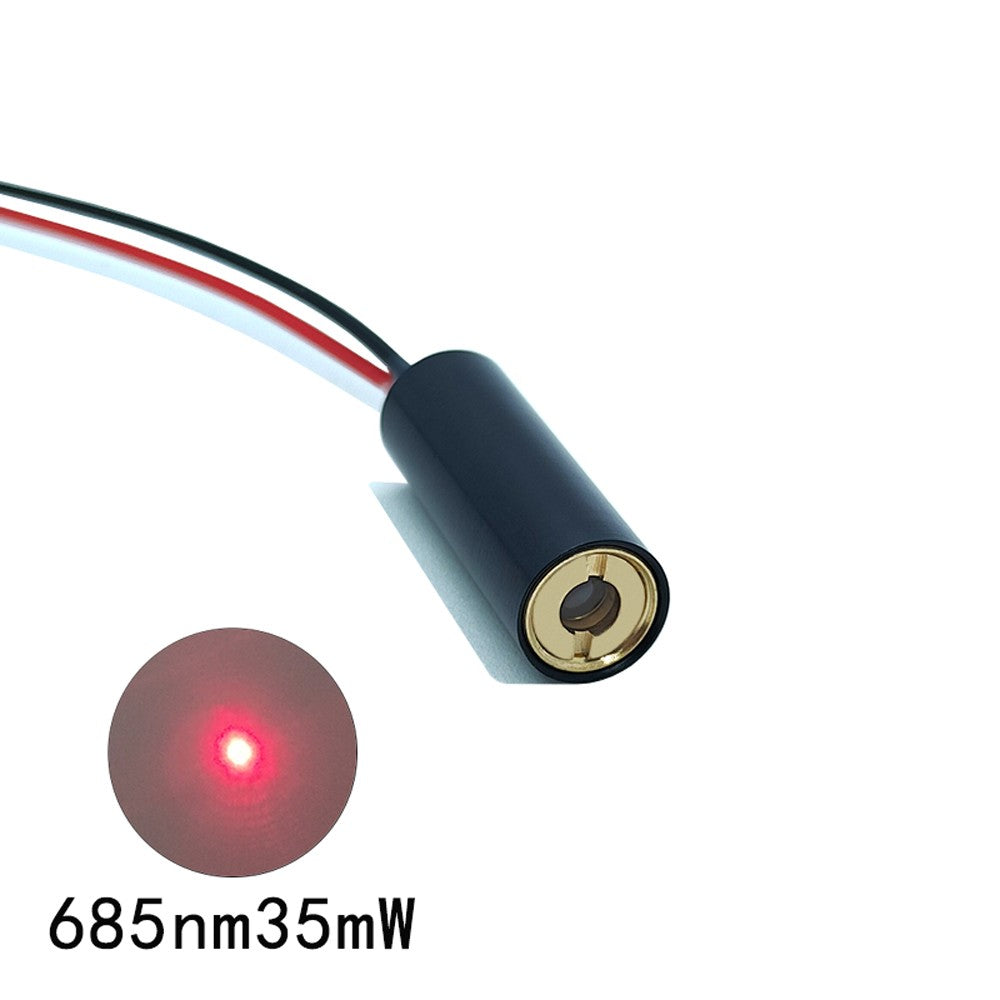

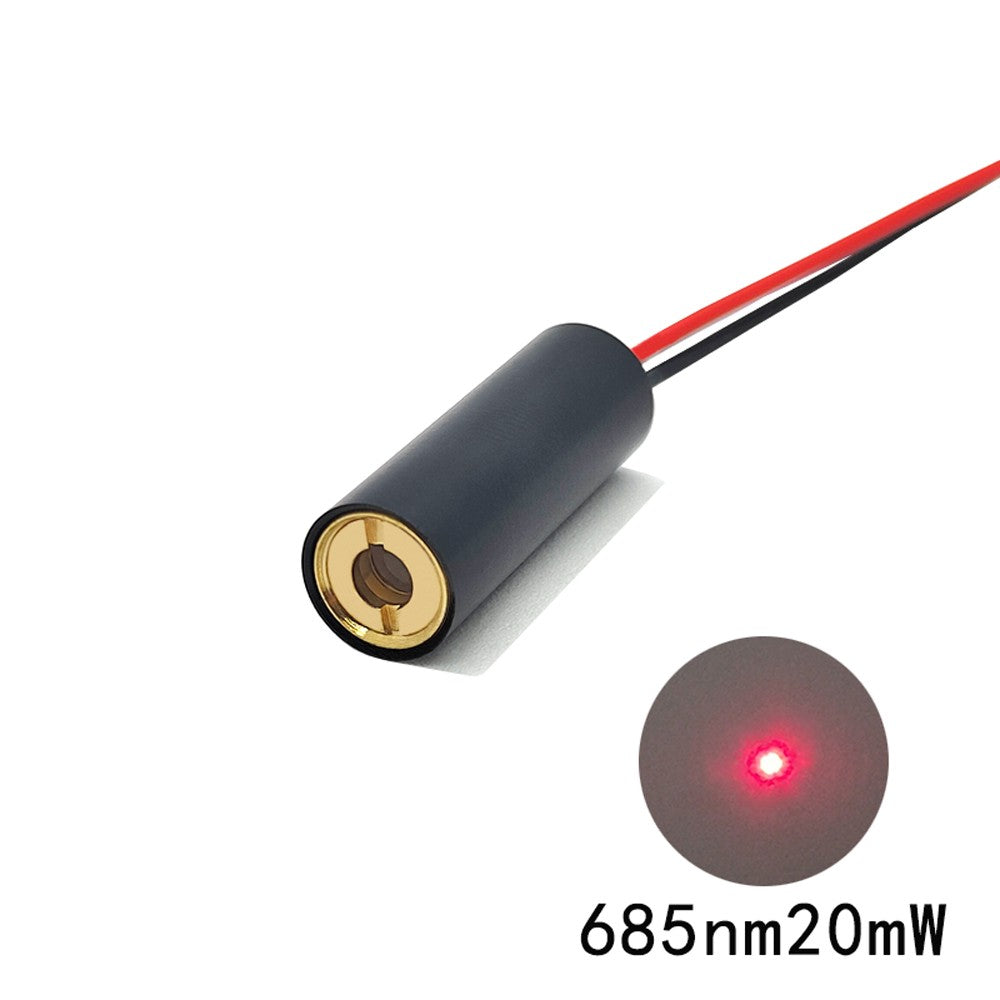

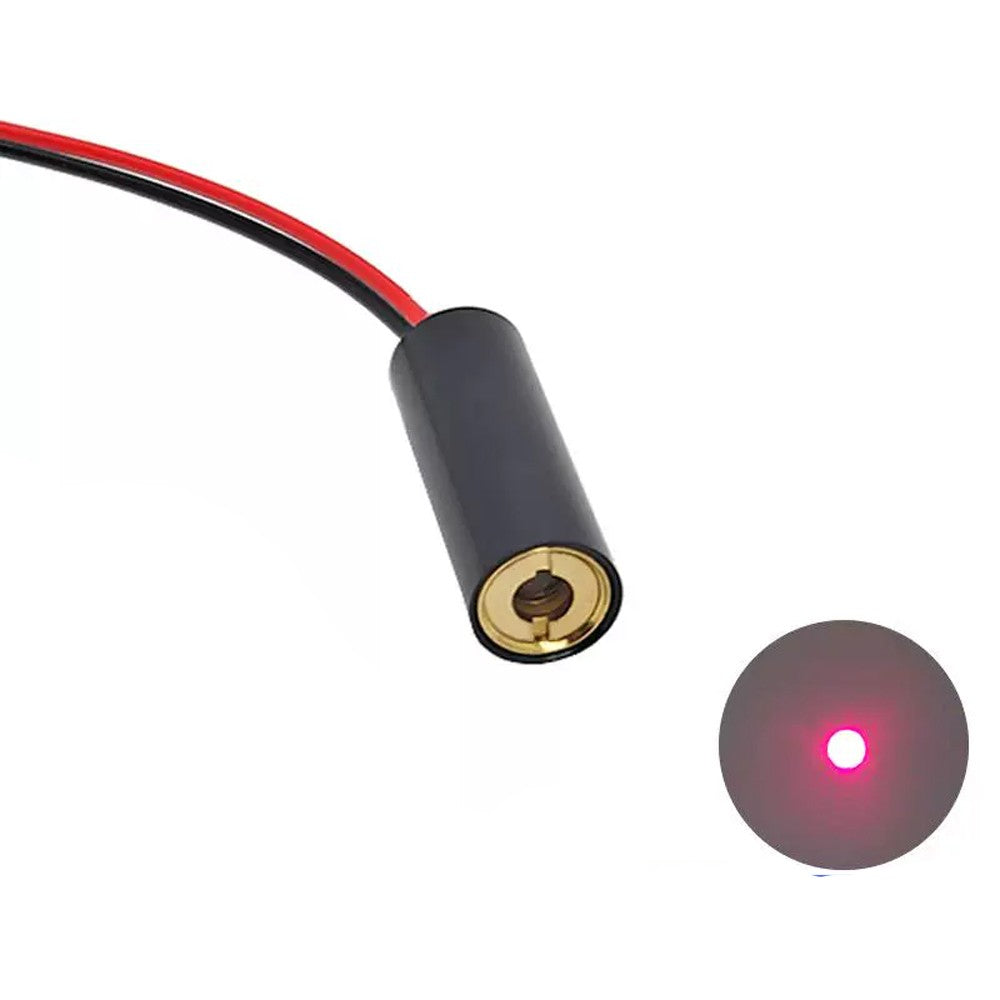

Φ9mm 685nm 690nm 5mW 10mW 20mW 35mW Red Light Laser Module Dot Positioning Light
Specifications:

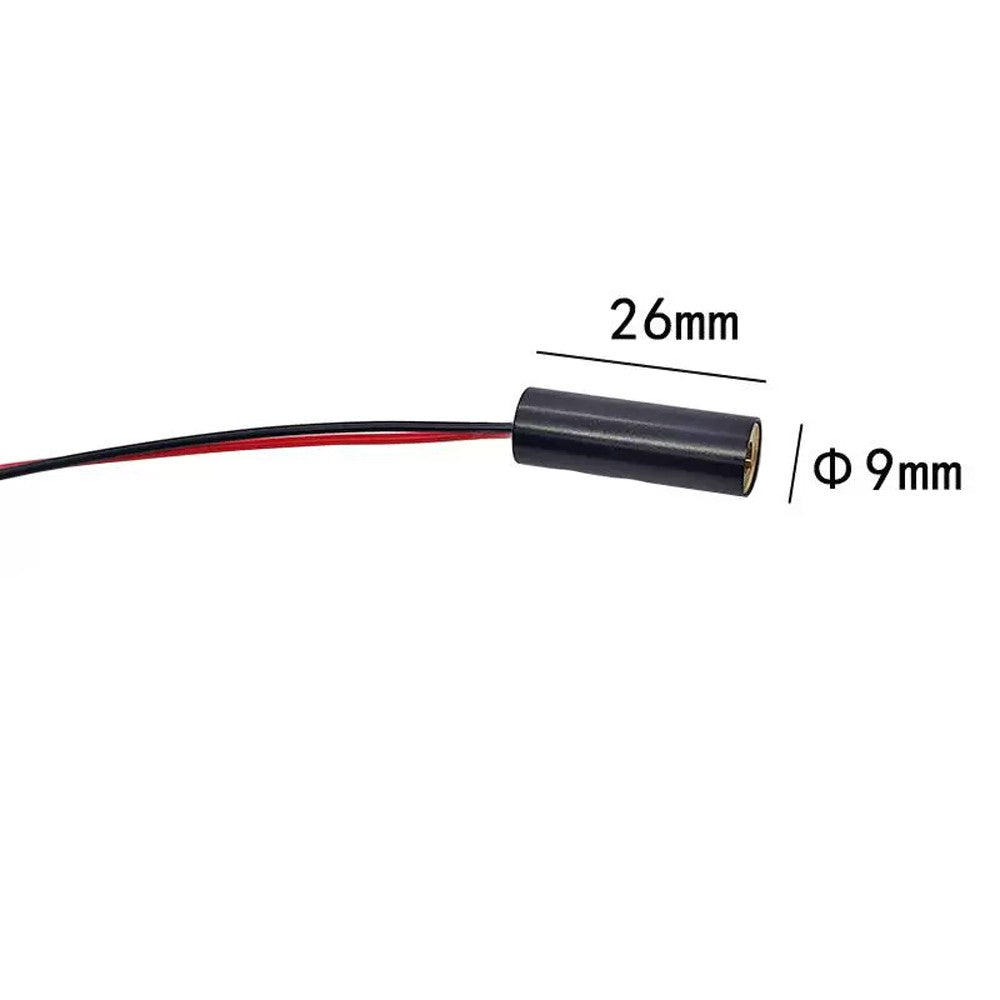

Size: 9X26mm
Material: Aviation aluminum (all metal shell)
Surface treatment/color: Black shell, surface insulation, oxidation mist black treatment
Wavelength: 685nm ± 10nm
Exit pupil power:<5mW,<10mW,<20mW,<35mW (optional)
Range:<450 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Spot shape and size: Point like light, elliptical,<15mm at 10 meters)
Focusing method: adjustable focus or fixed focus (optional, default adjustable focus)
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current:<50mA (5mW),<60mA (10mW),<80mA (20mW),<100mA (35mW)
Working temperature: -10C~+50C
Storage temperature: -20 ° C~+70 ° C
Service life: Continuous output/usage>10000 hours
Safety level: Class IIIA (5mW), Class IIIB (10-35mW)
Package：
1* Laser Module
