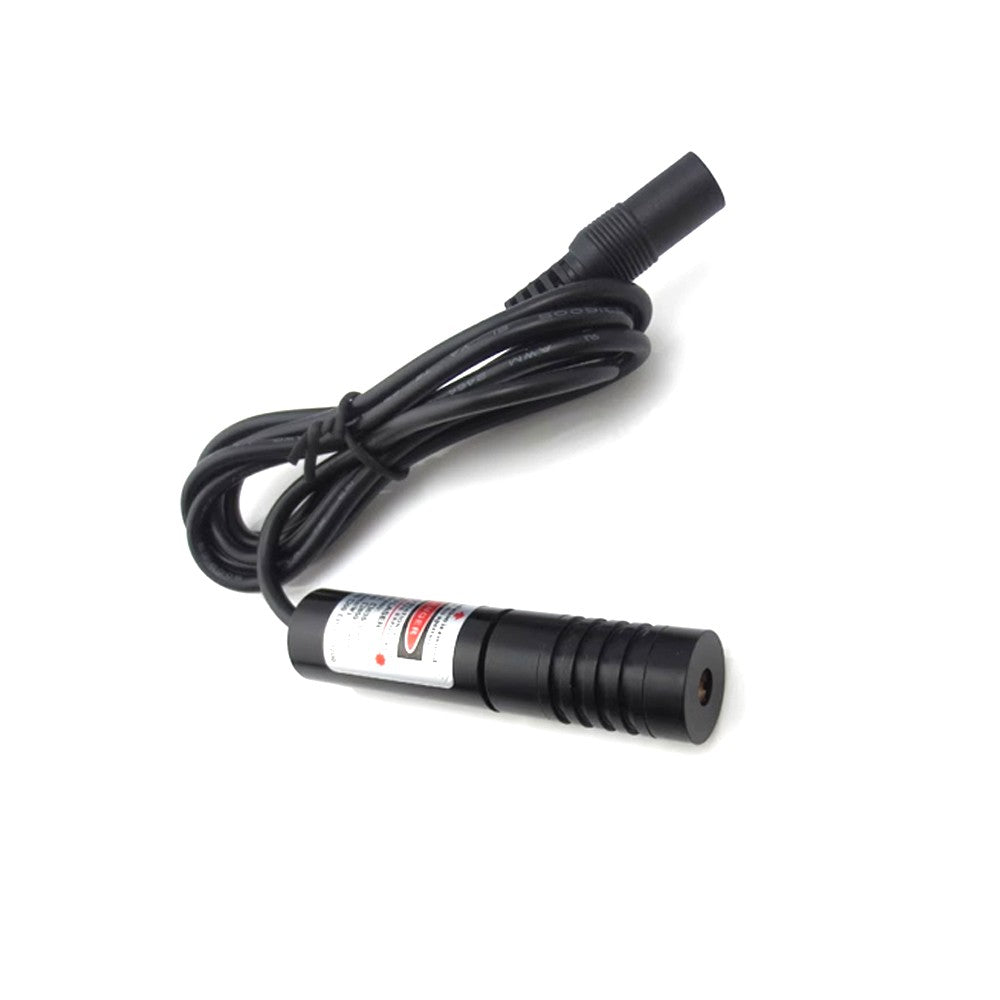

650nm 300mW Adjustable Red Light Laser Dot/Cross/Line Positioning Laser Module

650nm 300mW Adjustable Red Light Laser Dot / Cross / Line Positioning Light Laser Module

Specifications:

Wavelength: 650nm

Core power: 300mW

Voltage: DC2.8-3.2V

Operating current: ≤300mA

Spot pattern: Dot/Line/Cross

Line Width: Adjustable

Dimension: φ16*70mm

Output Band: Visible Laser

Operation method: continuous laser

Dot shape:

0-2200m indoor during the day

0-600m outdoor during the day

Can hit 0-3200m in dark environment

Line shape: (installation height 0 m - 10 m can be used)

Up to 18m in indoor working environment

Up to 9 m in semi-outdoor (non-direct solar) working environments

Up to 3 m in all outdoor (direct solar) working environment

Cross shape: (installation height 0 m - 10 m can be used)

Up to 14 m in indoor working environment

Up to 7 m in semi-outdoor (non-solar direct) working environment

Up to 2m in all outdoor (direct solar) working environment

Package:

1*650nm Red Light Module + Bracket + Power Supply
