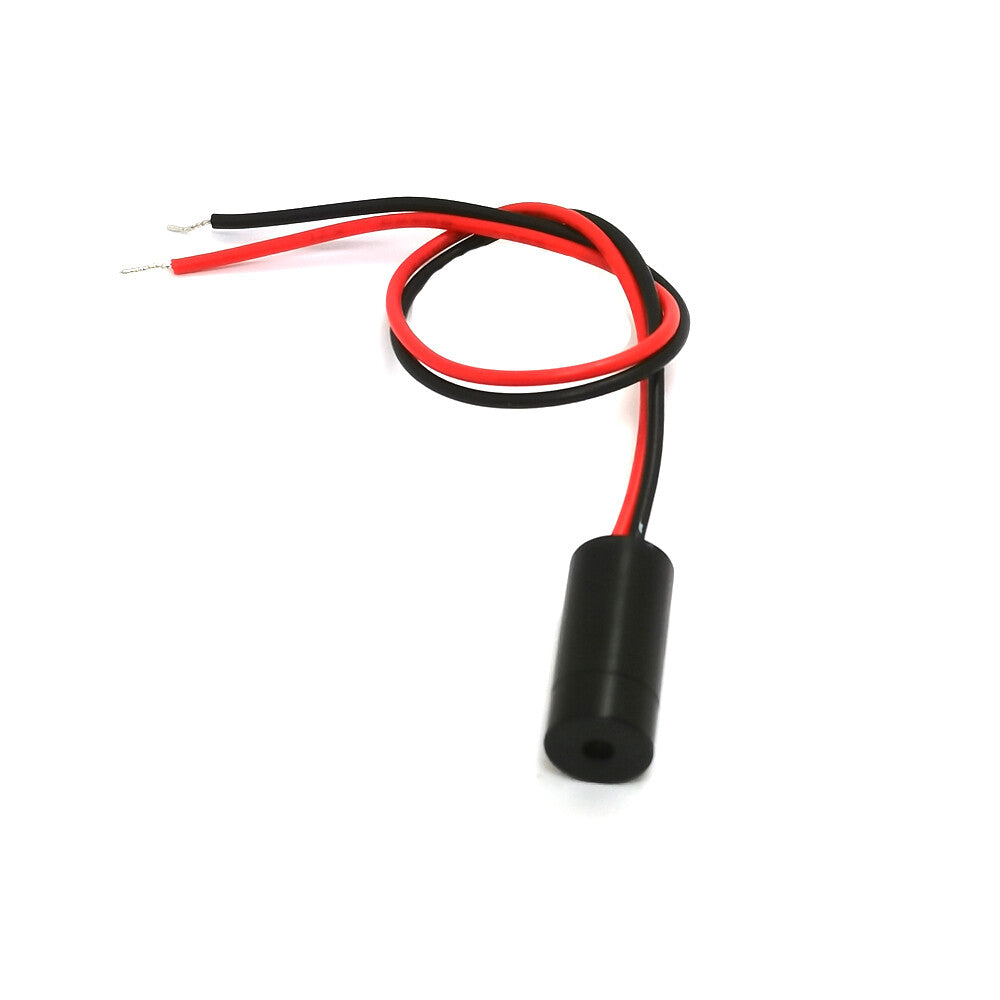

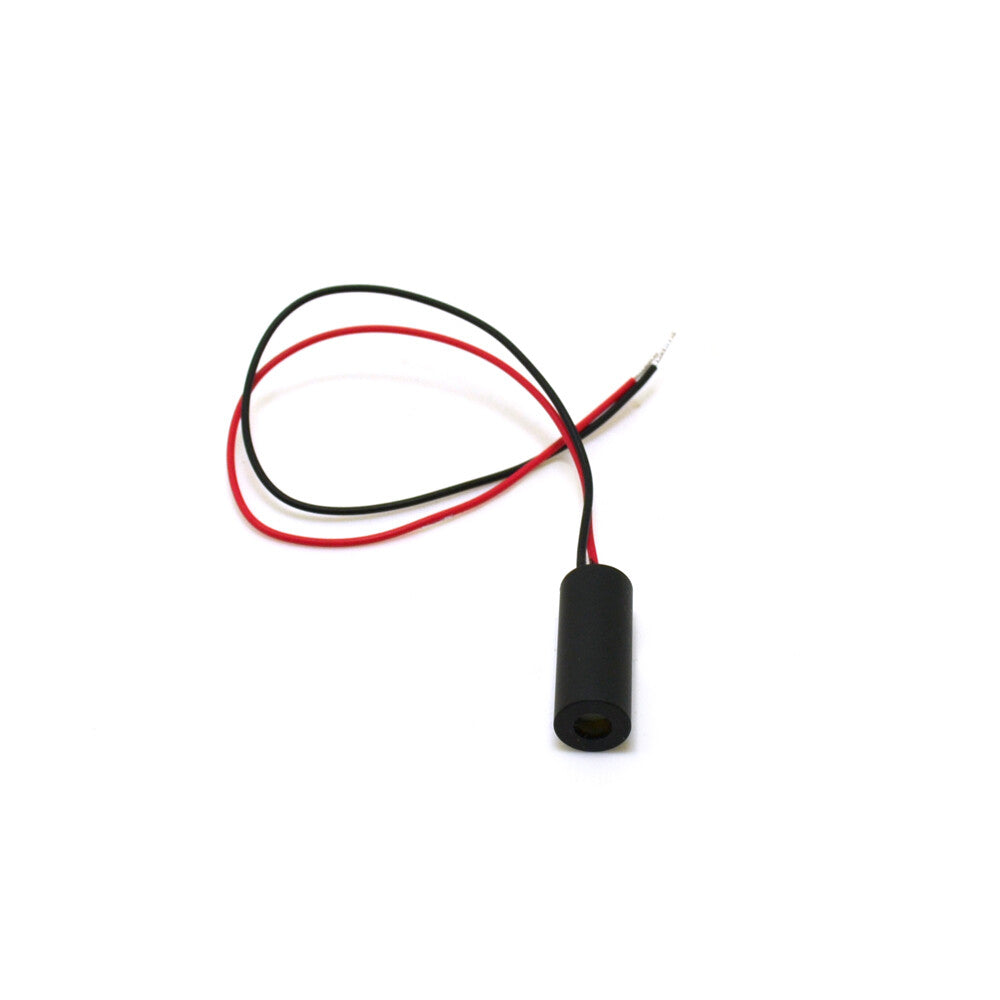

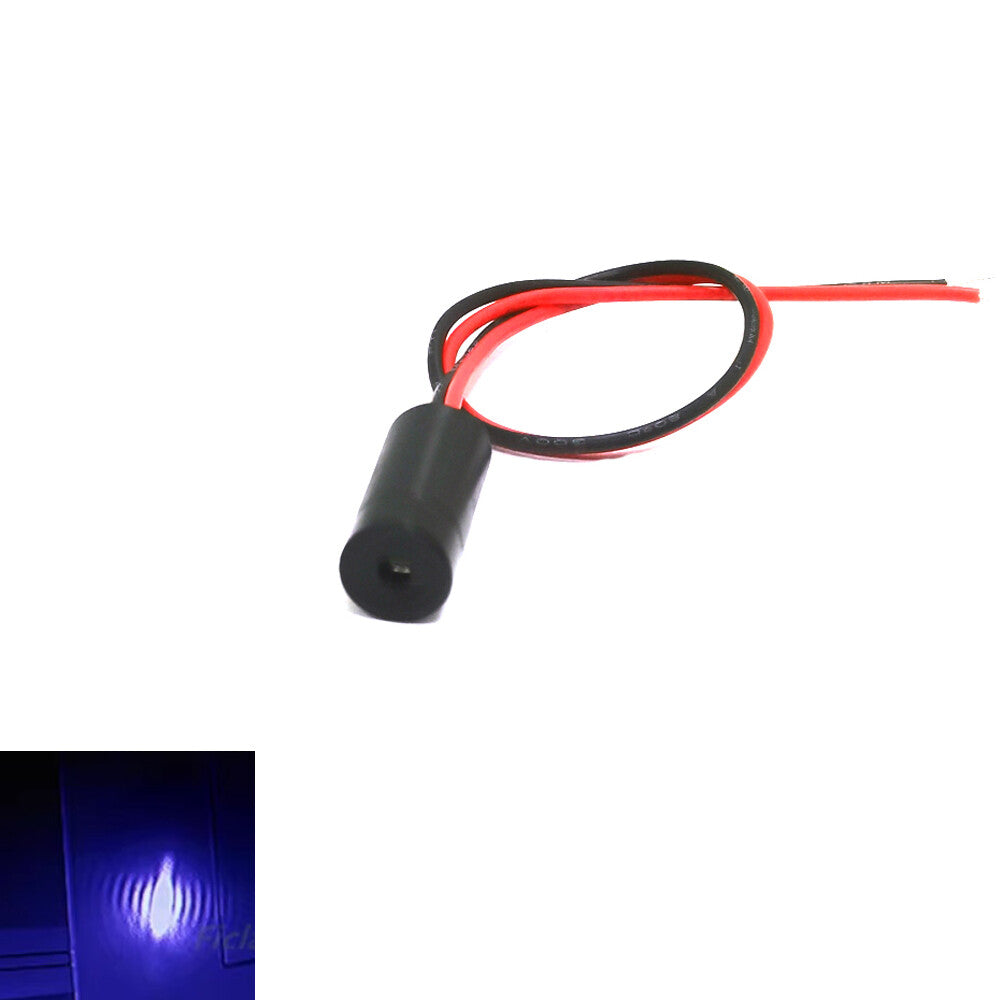

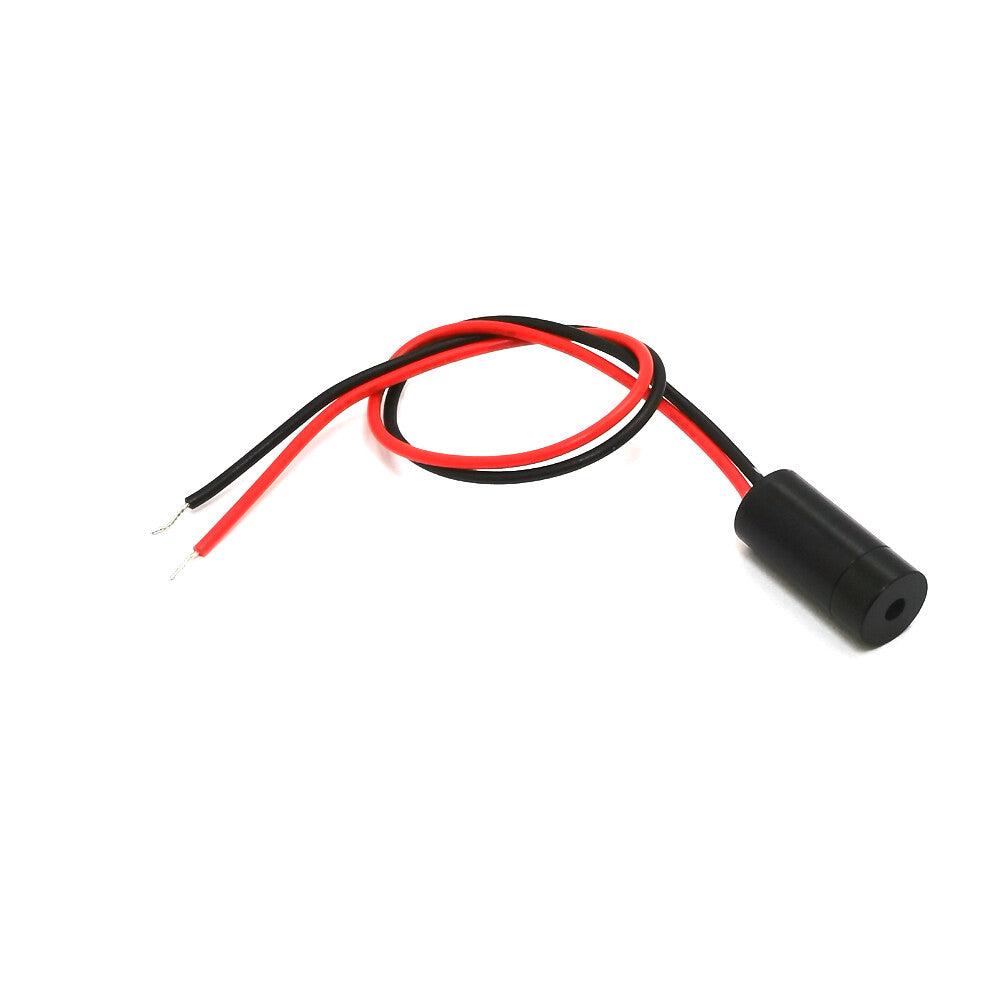

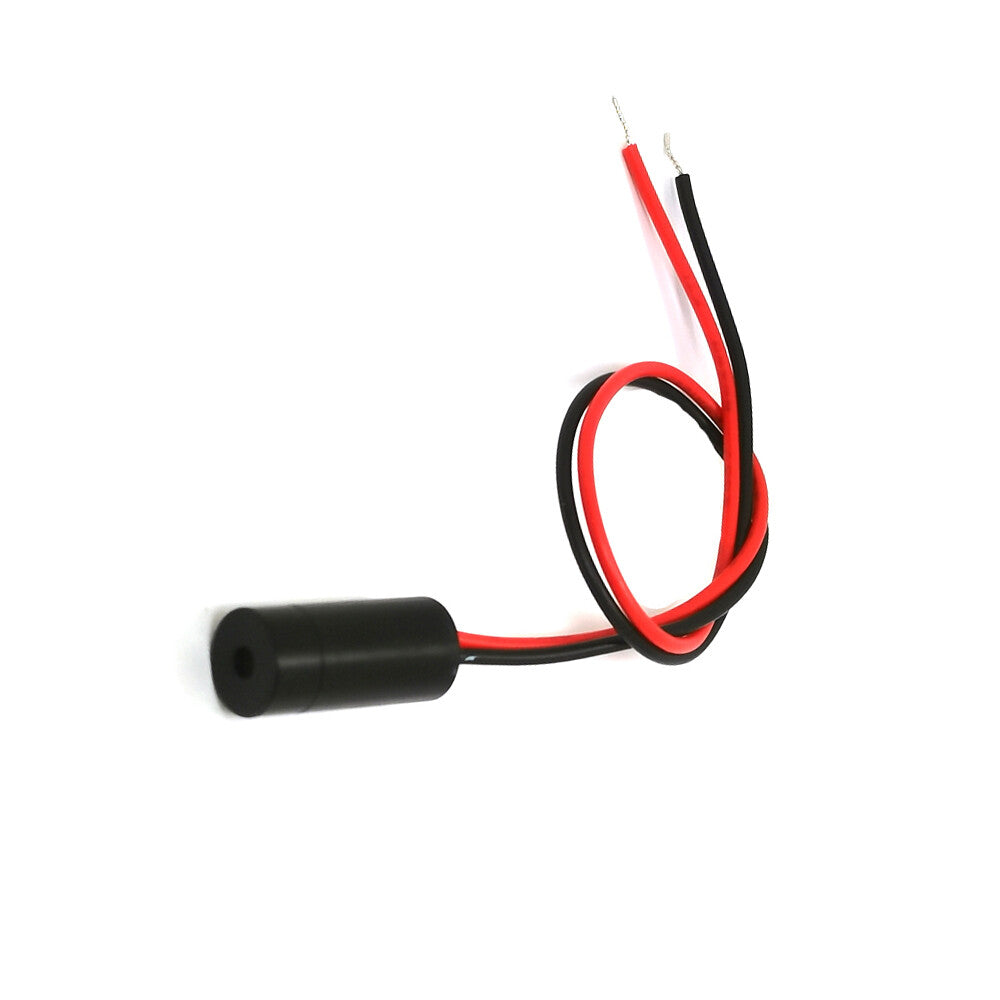

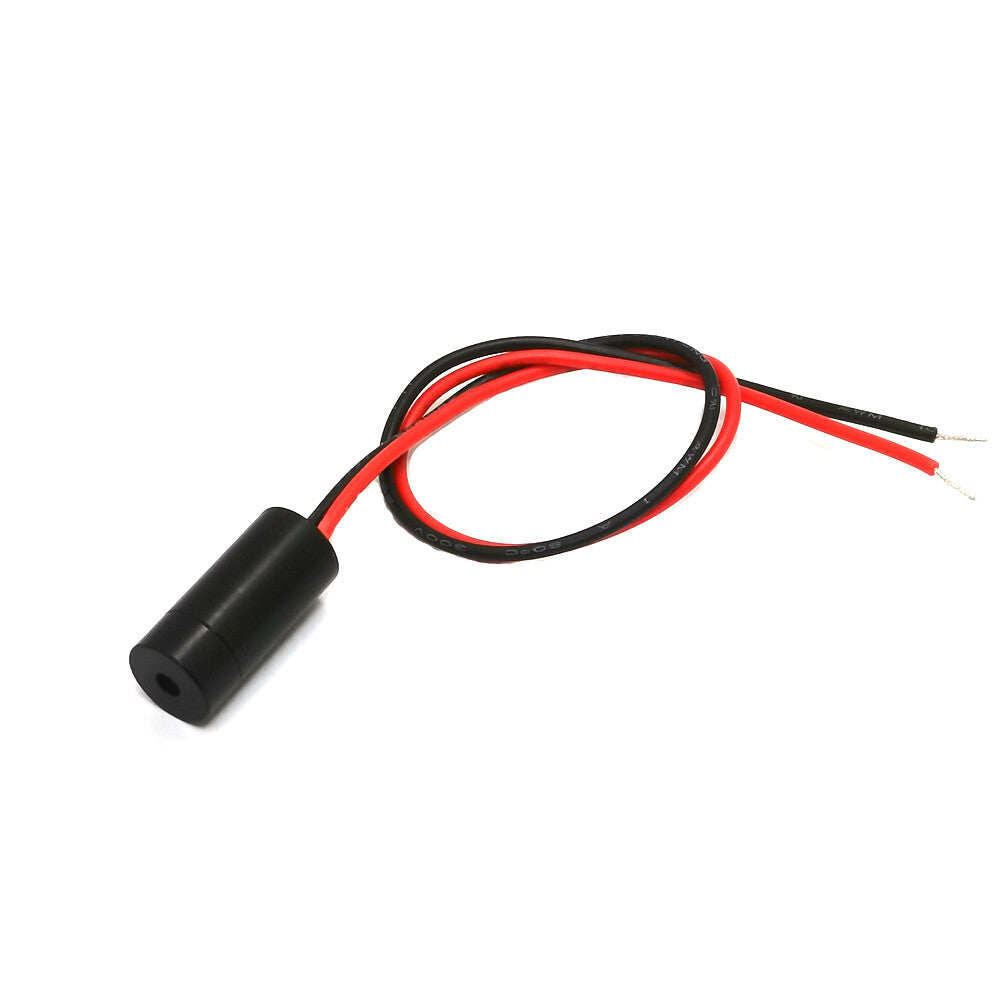

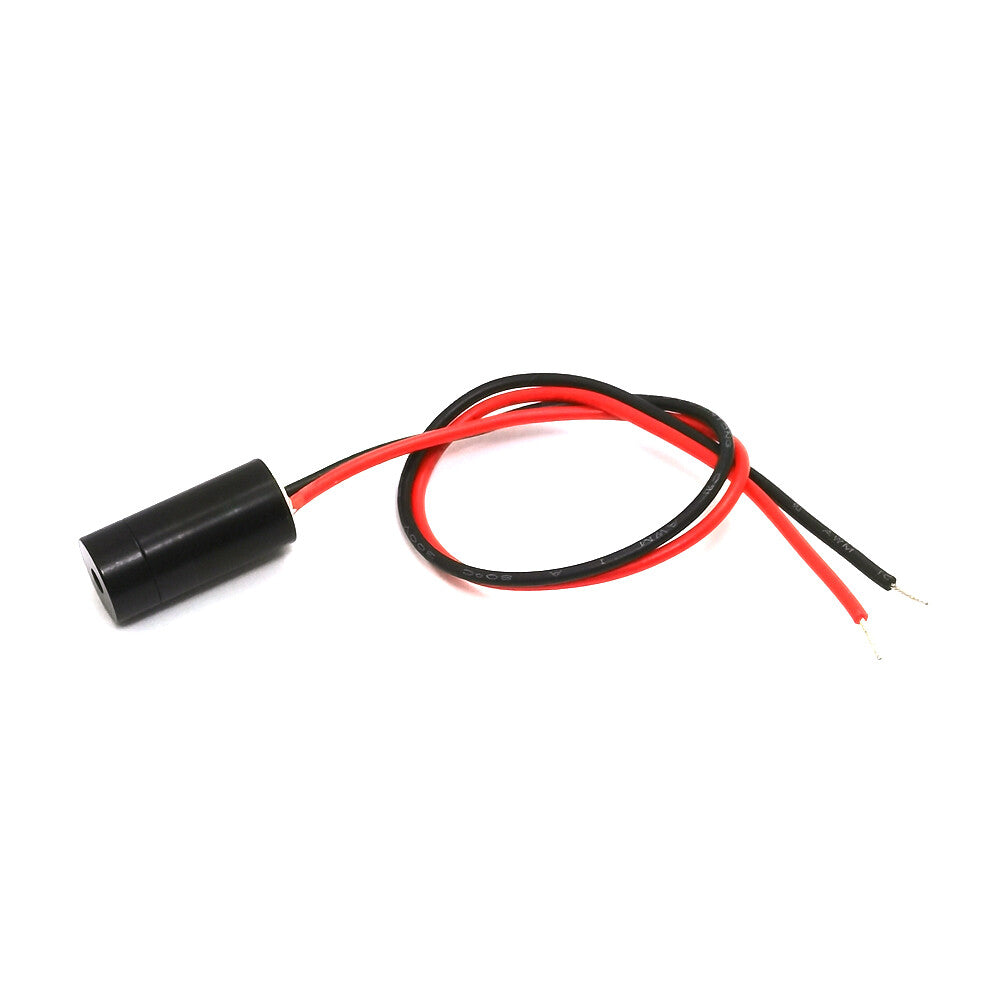

780nm 5mW Fixed Focus Dot Infrared Laser Module Φ8mm IR Laser Positioning Lamp

780nm 5mW Fixed Focus Dot Infrared Laser Module Φ8mm IR Laser Positioning Lamp DIY

Specification:
Circuit Mode: CW
Wavelength: 780nm

Output Power: <5mW
Working Voltage: 2.8-5V

Working Current: ＜30mA
Working Temperature: -10 ° C ~ + 50 ° C

Storage Temperature: -40 ° C ~ + 85 ° C
Shell Material: Environmentally Aluminum

Service Life: > 8000H
Laser Rating: Class ⅢA

Spot Size: 10 Meters <12 * 15 mm
Dimensions: 8 * 17 mm

Divergence Angle： <1mard
Lens： PMMA

Package:

1 * 780nm 5mW IR Laser Module
