Full Detailed Description
Product Introduction
This is a high power laser diode with typical wavelength 784nm, specially developed for MAX ×48 speed CD-R writing and CD-RW drive equipment.
✅ Continuous Wave(CW) max optical output: 200mW
✅ Pulse maximum optical output: 425mW (Pulse width:0.1μs, Duty:50%)

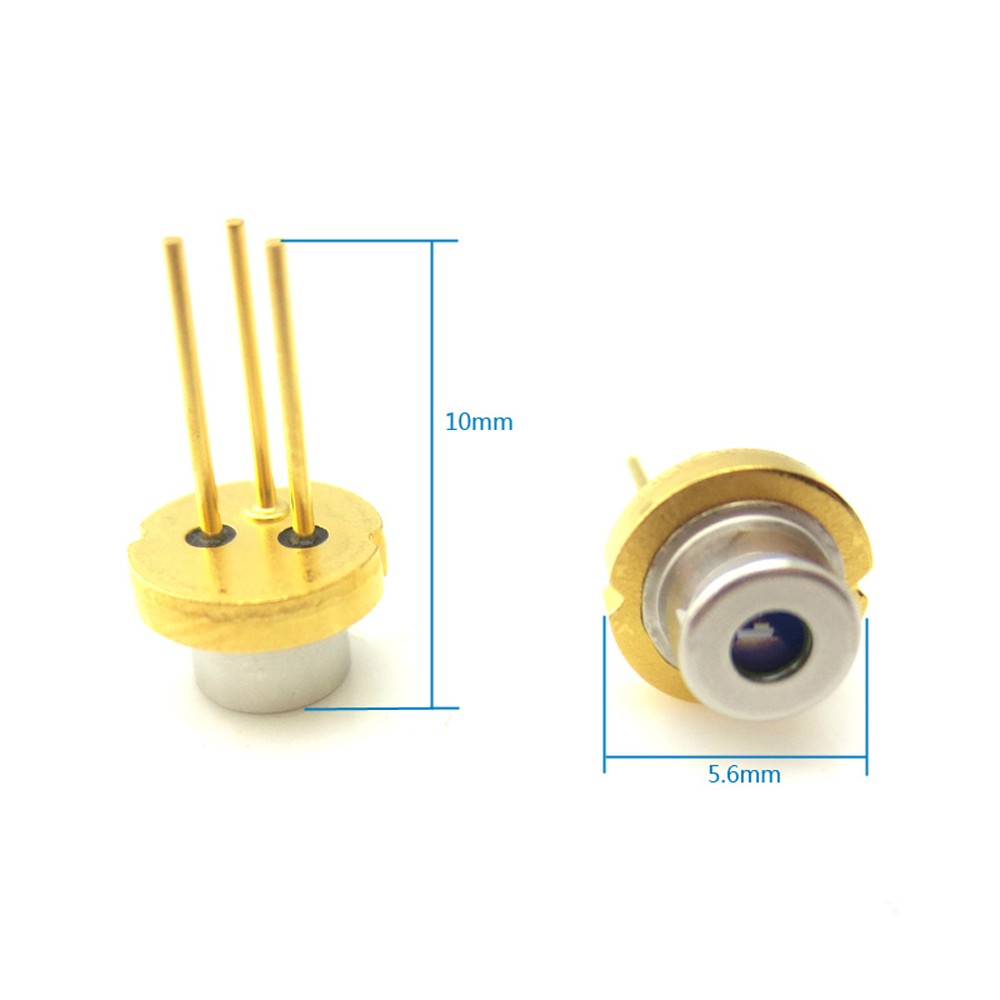

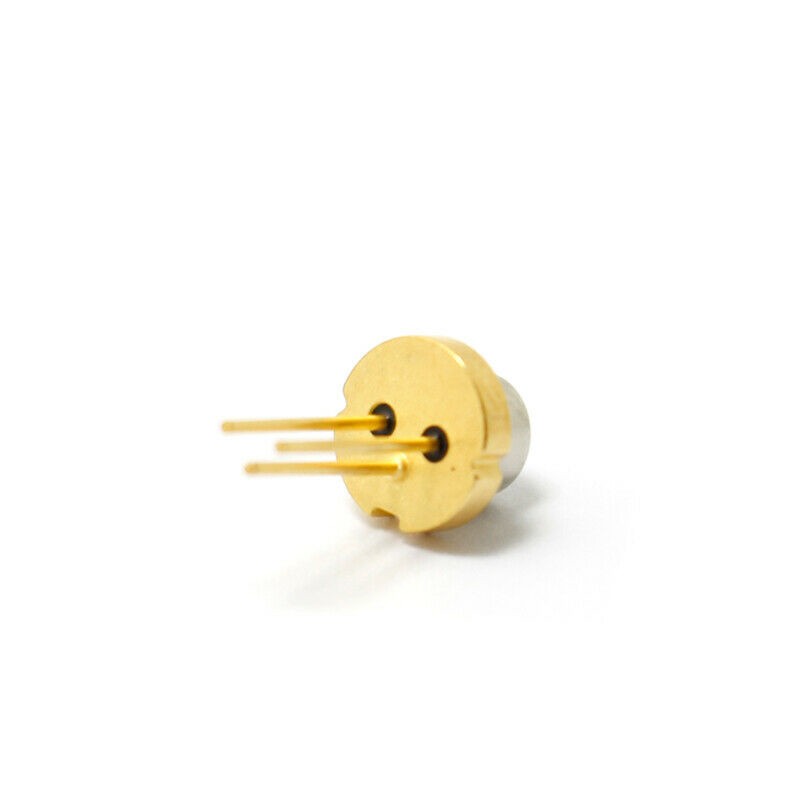

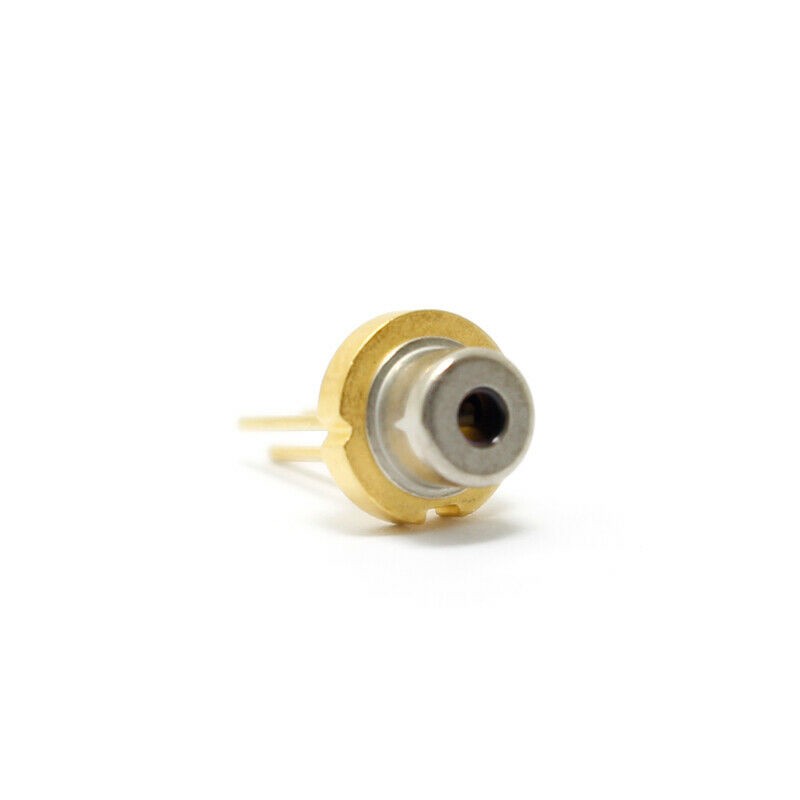

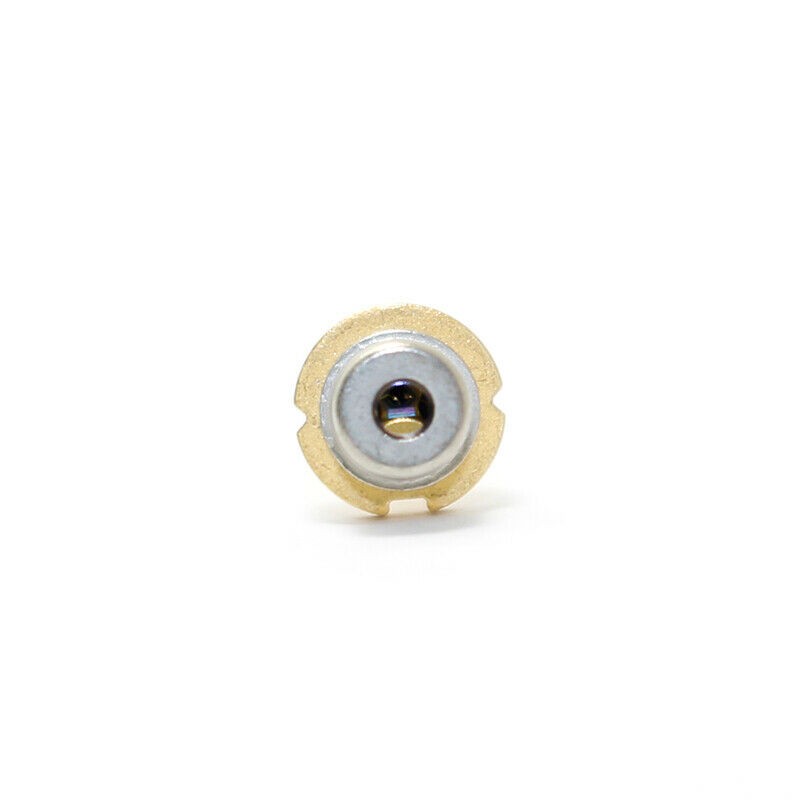

✅ Package: φ5.6mm TO metal can
✅ Typical Wavelength: 784nm
✅ High optical coupling efficiency, ellipticity close to 1

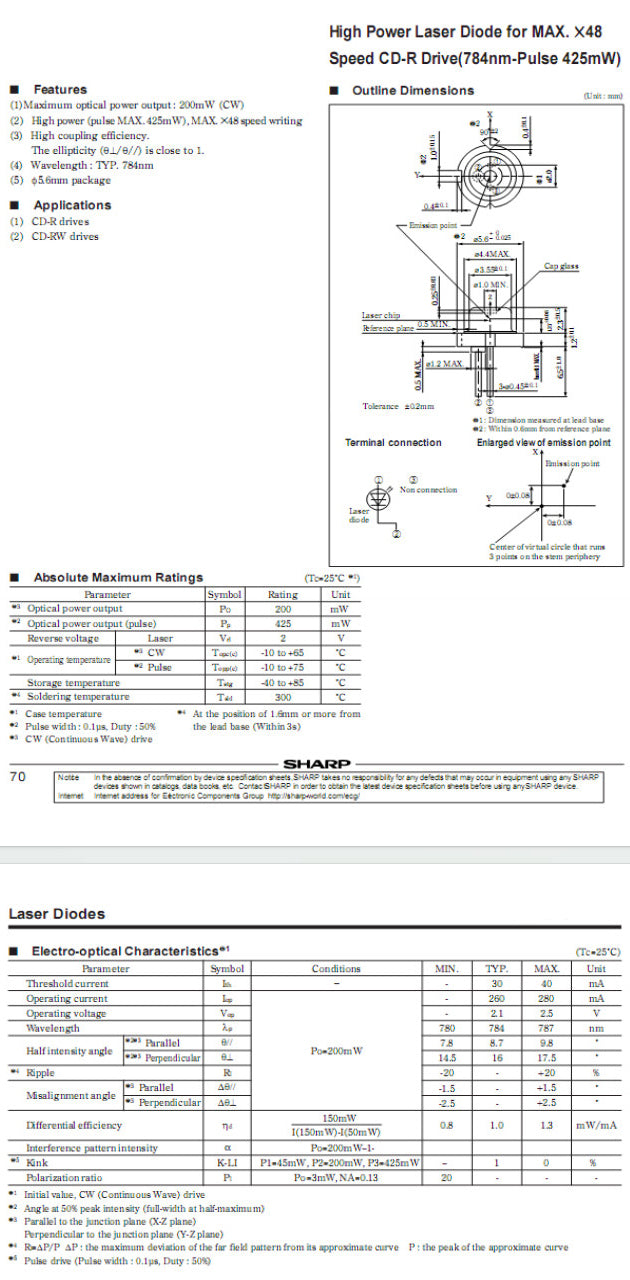

Electrical & Optical Specs (Tc=25℃)
Threshold Current: Typ 30mA, Max 40mA
Operating Current: Typ 260mA, Max 280mA (Po=200mW CW)
Operating Voltage: 2.1V ~ 2.5V
Parallel Half intensity angle: 7.8°~9.8°
Perpendicular Half intensity angle:14.5°~17.5°
Application
CD-R Drives
CD-RW Drives
Notice
Absolute maximum ratings cannot be exceeded, please operate within specified working temperature range.
Laser product, please take proper anti-laser radiation protection during operation.
Soldering temperature should not exceed 300℃ within 3 seconds.
