DC3V Red Laser 635nm 0.3mW 1mW 5mW 10mW Adjustable Focus Light Module Locator

DC3V Φ10X35mm 635nm 0.5mW 1mW 5mW 10mW Red Laser Light Module Positioning Locator

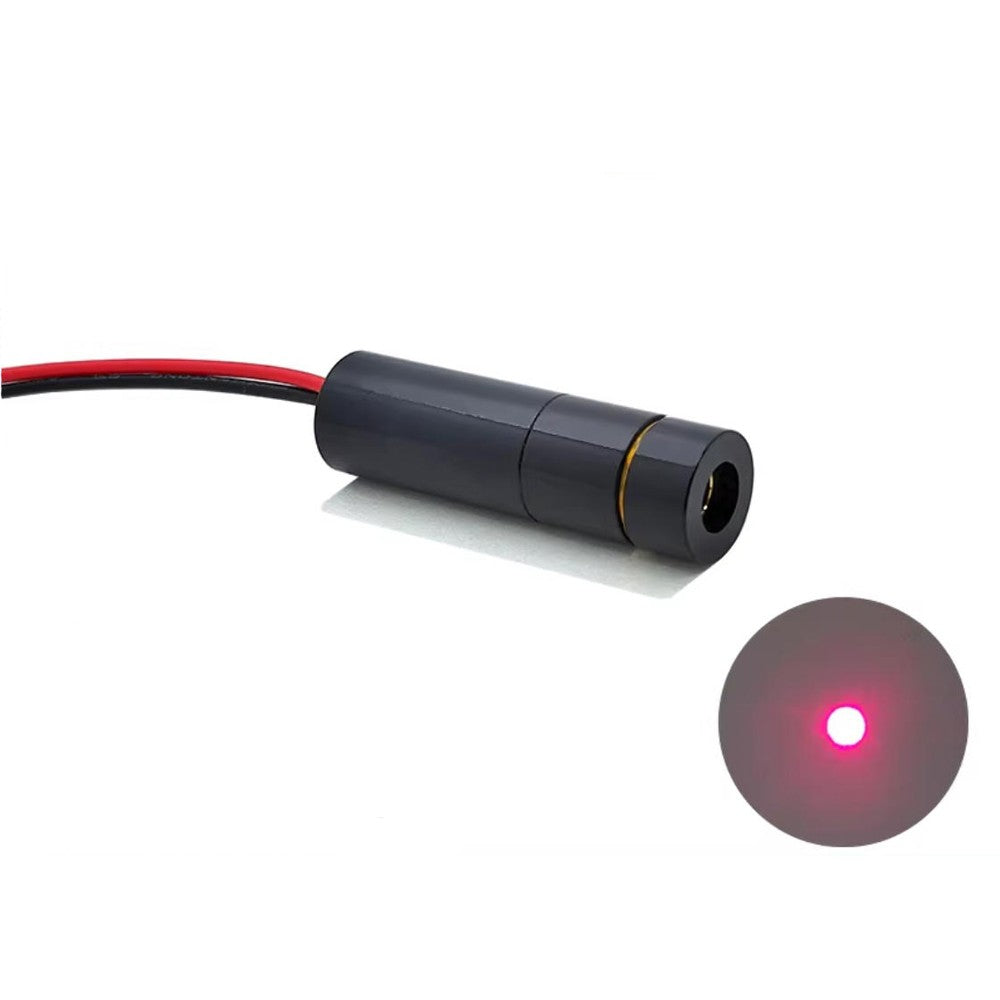

Dot Laser Specification:

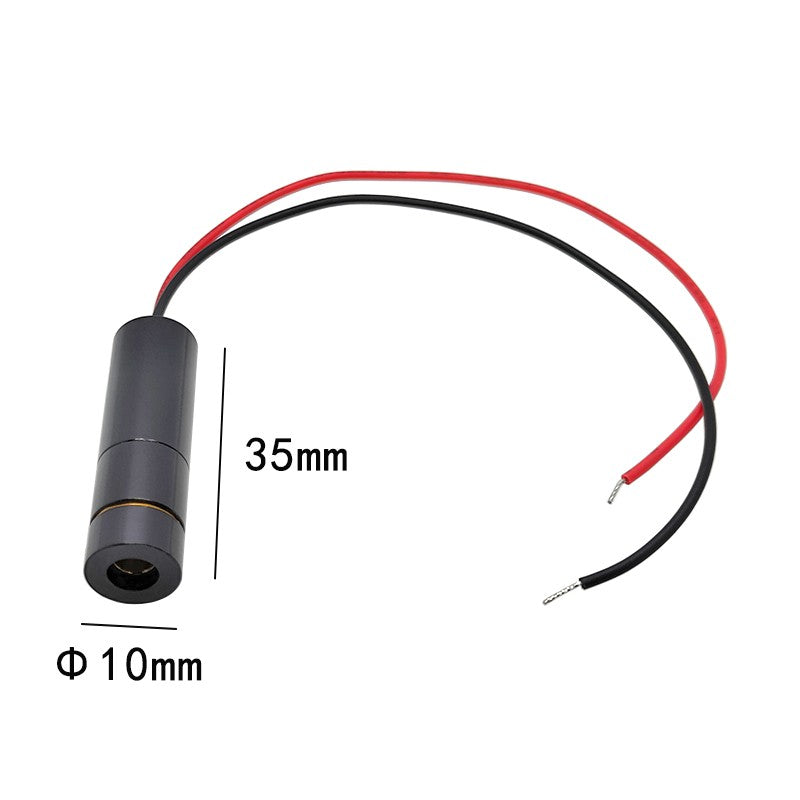

Size: Φ 10X35mm

Materia: Aviation aluminum (all metal shell)

Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment

Service life: Continuous output, continuous service life>8000 hours

Output wavelength: 635nm±10nm

Output Power: <0.3mW,＜1mW,＜5mW,＜10mW

Range:<200 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

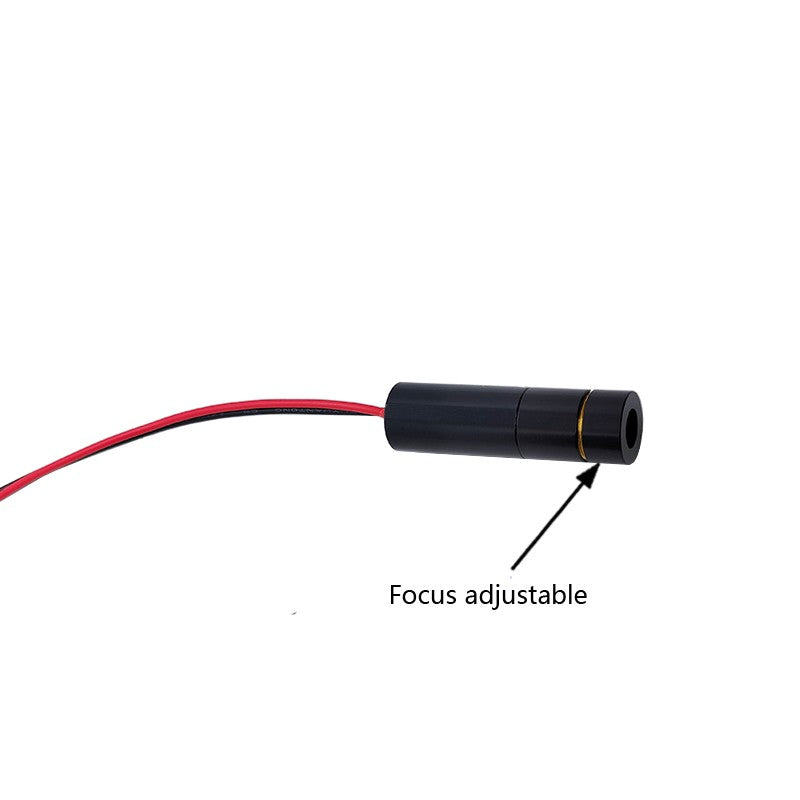

Spot shape/diameter: Dot, elliptical, spot size<Φ 12mm at 10m (adjustable focus)

Circuit Control: ACC Circuit

Working voltage: DC2.8~5.2V

Working current: I<30mA(0.3mW),<40mA(1mW)，< 50mA(5mW)，<70mA(10mW)

Working temperature: -10 ℃ to+40 ℃

Storage temperature: -20 ℃ to+70 ℃

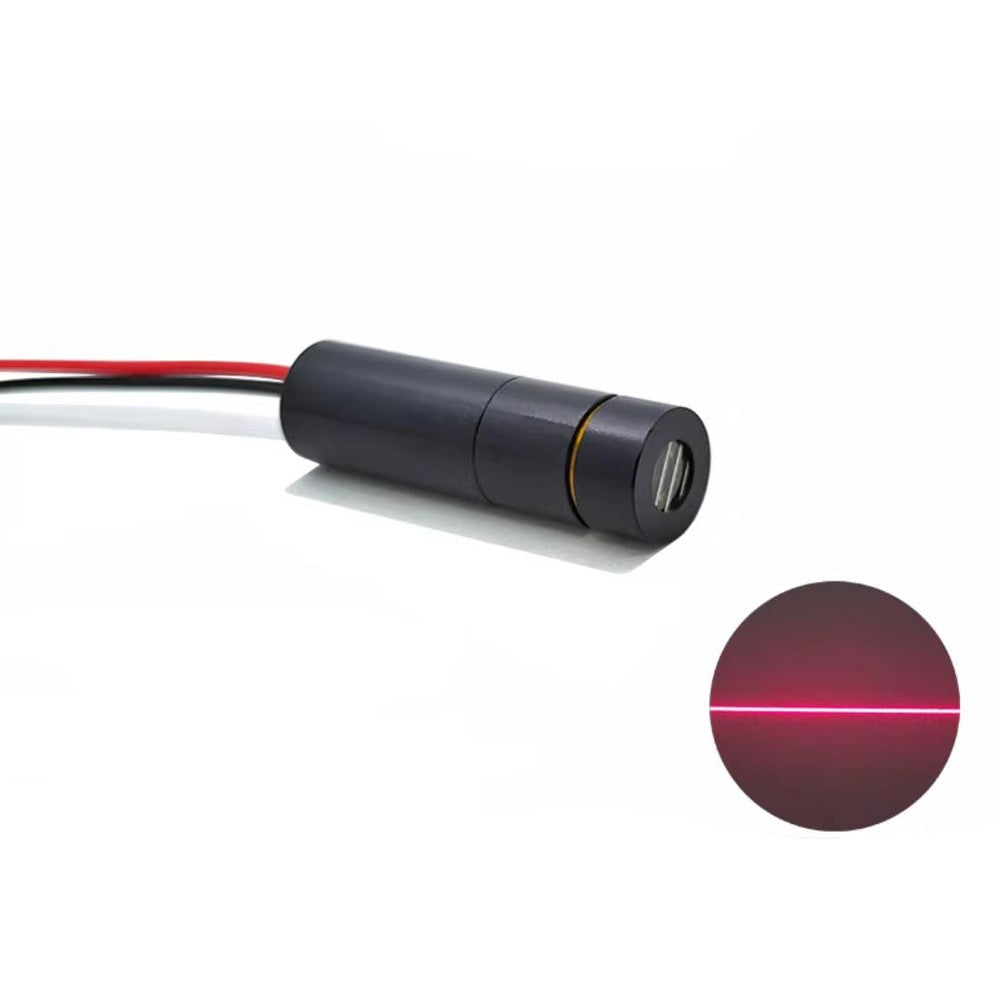

Line Laser Specification:

Size: Φ 10X35mm

Materia: Aviation aluminum (all metal shell)

Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment

Service life: Continuous output, continuous service life>8000 hours

Output wavelength: 635nm±10nm

Output Power: ＜1mW,＜5mW,＜10mW

Range:<5 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

Spot shape/diameter: Line(Line width can be adjustable)

Light diffusion angle: 5°,15°,30°,45°,60°,90°,110°,130°(Optional) Default 90 °

Circuit Control: ACC Circuit

Working voltage: DC2.8~5.2V

Working current: I<30mA(1mW),< 50mA(5mW)，<60mA(5mW)

Working temperature: -10 ℃ to+40 ℃

Storage temperature: -20 ℃ to+70 ℃

Packing:
1* 635nm Red Laser Module
