24V DC Brushless High Temperature Circulation Water Pump 1750L/H 13M Head IP68 – ZC-T50

$65.00

~~$79.00~~ $65.00

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

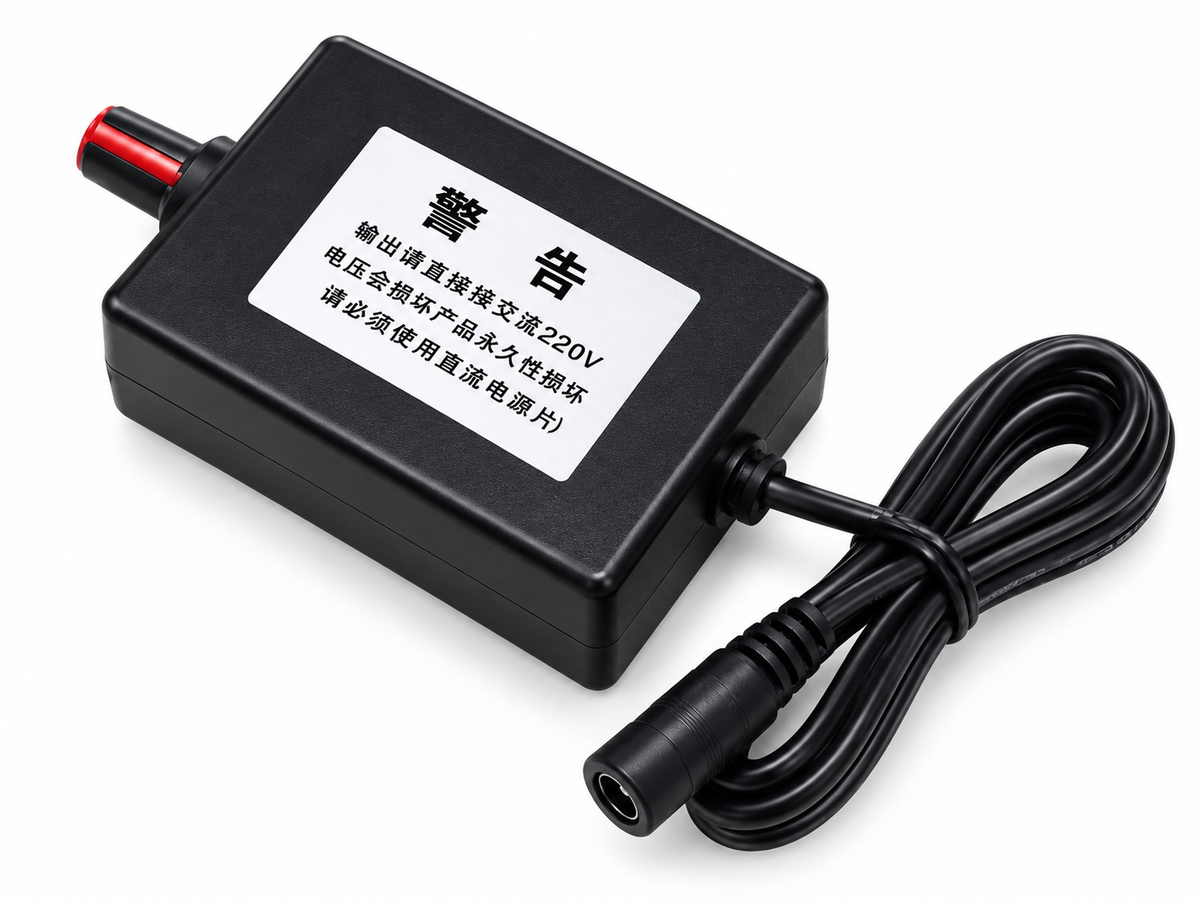

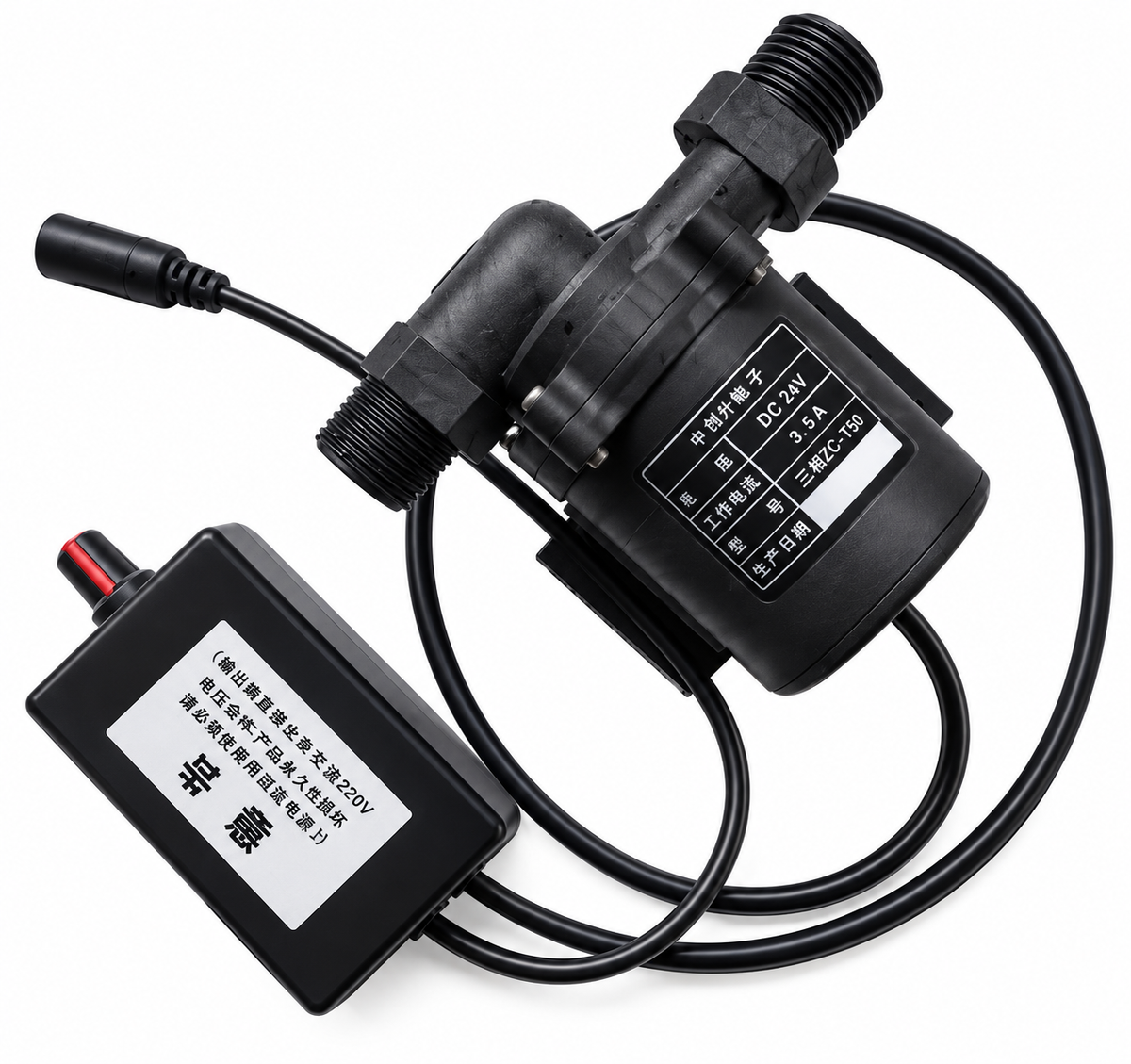

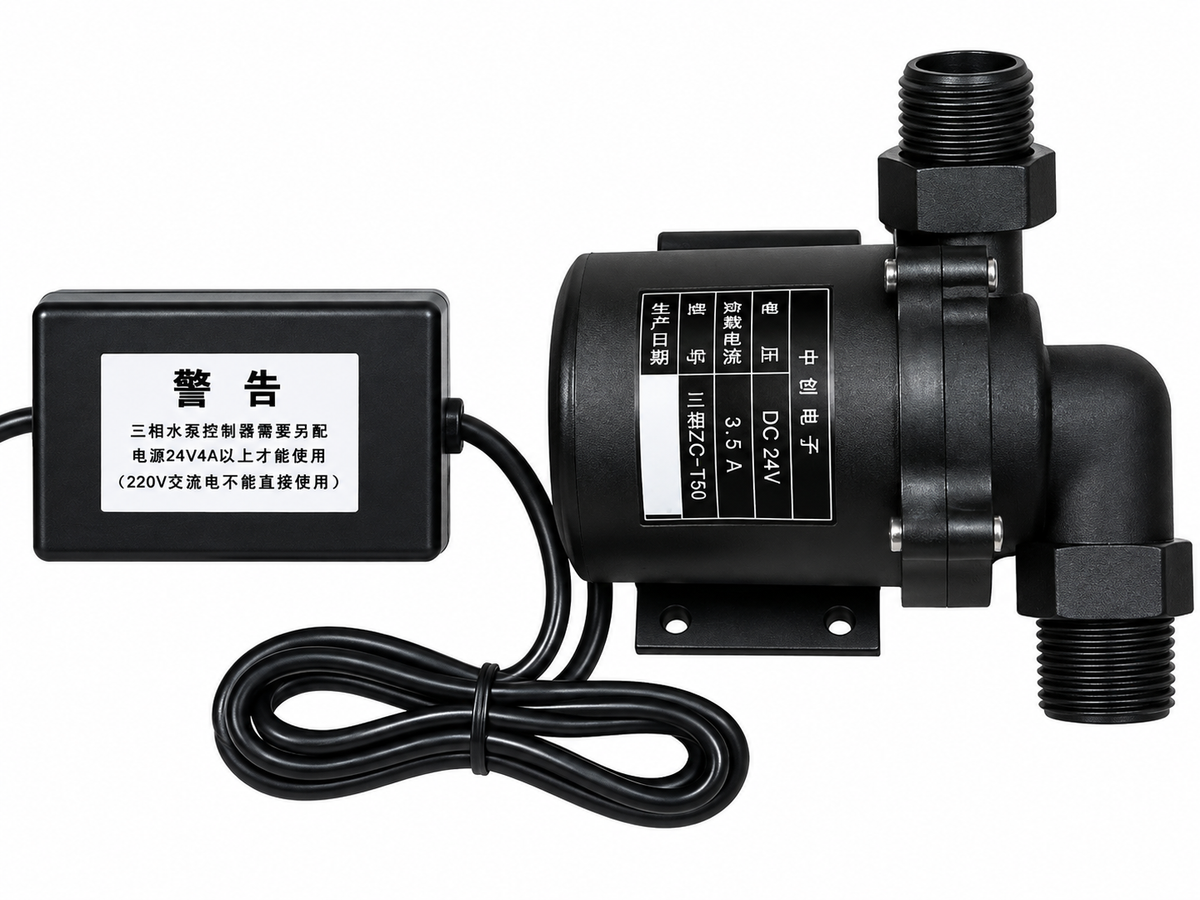

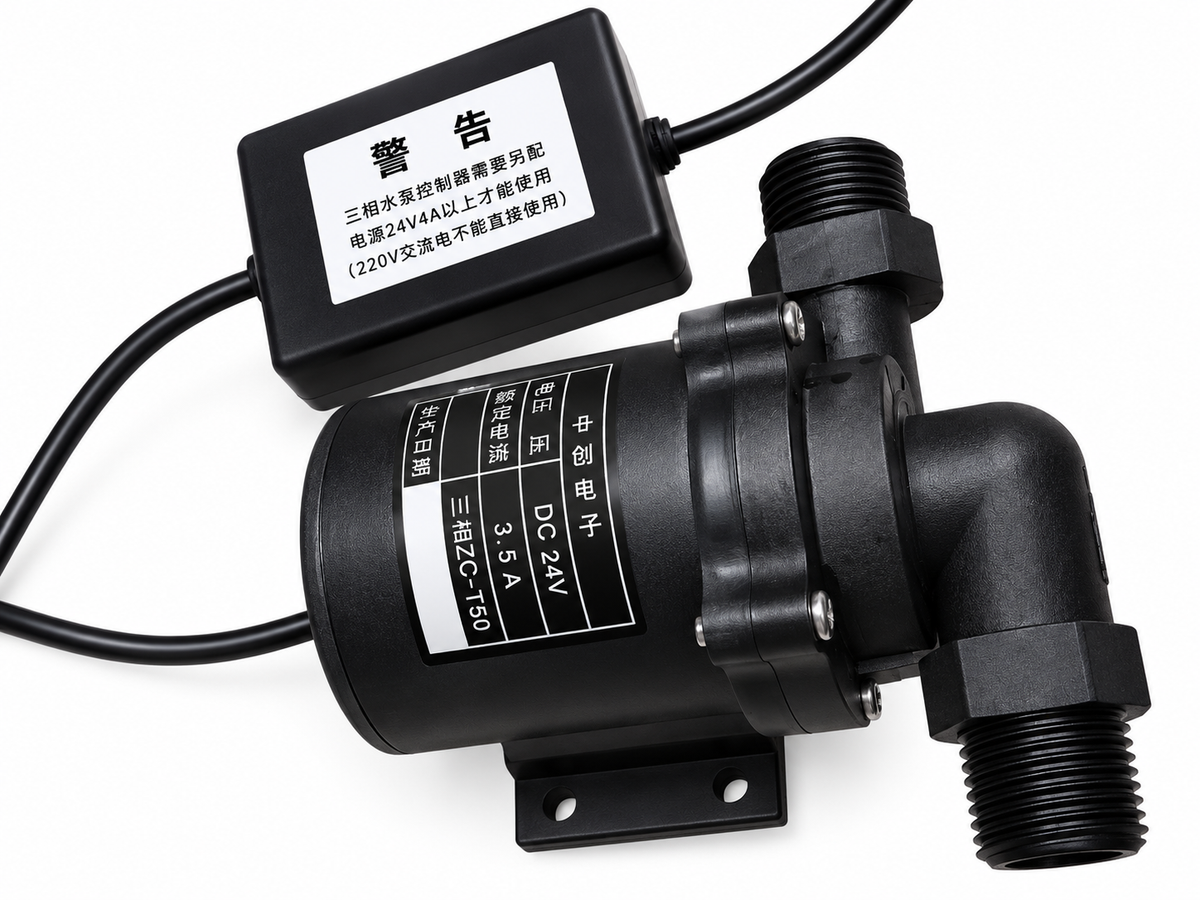

Options 24V ZC-T50 Pump Only 24V ZC-T50 Pump + 5A Power Supply Adjustable-Speed 24V ZC-T50 Pump 24V 5A Power Supply Only

Quantité

Product Description

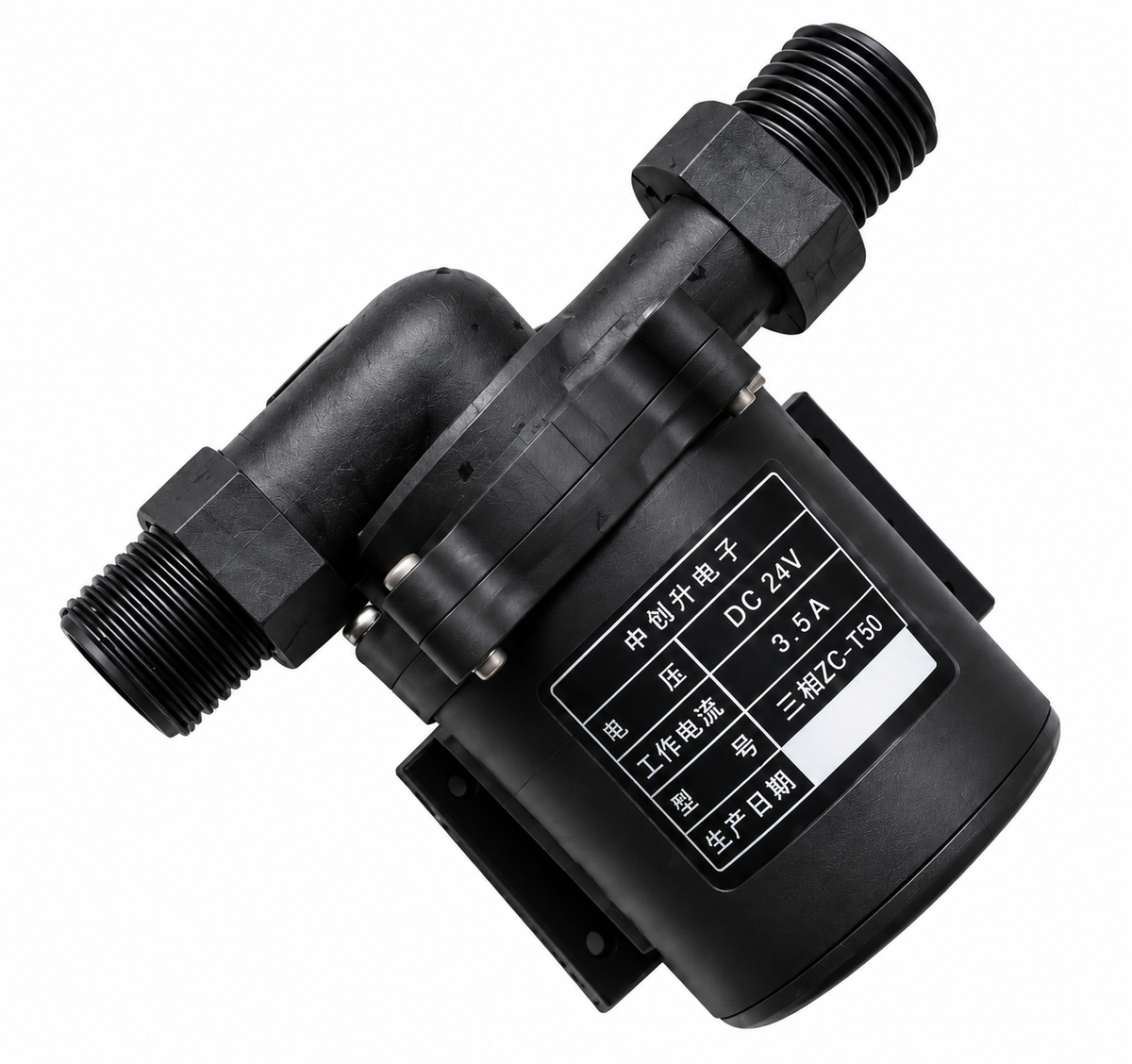

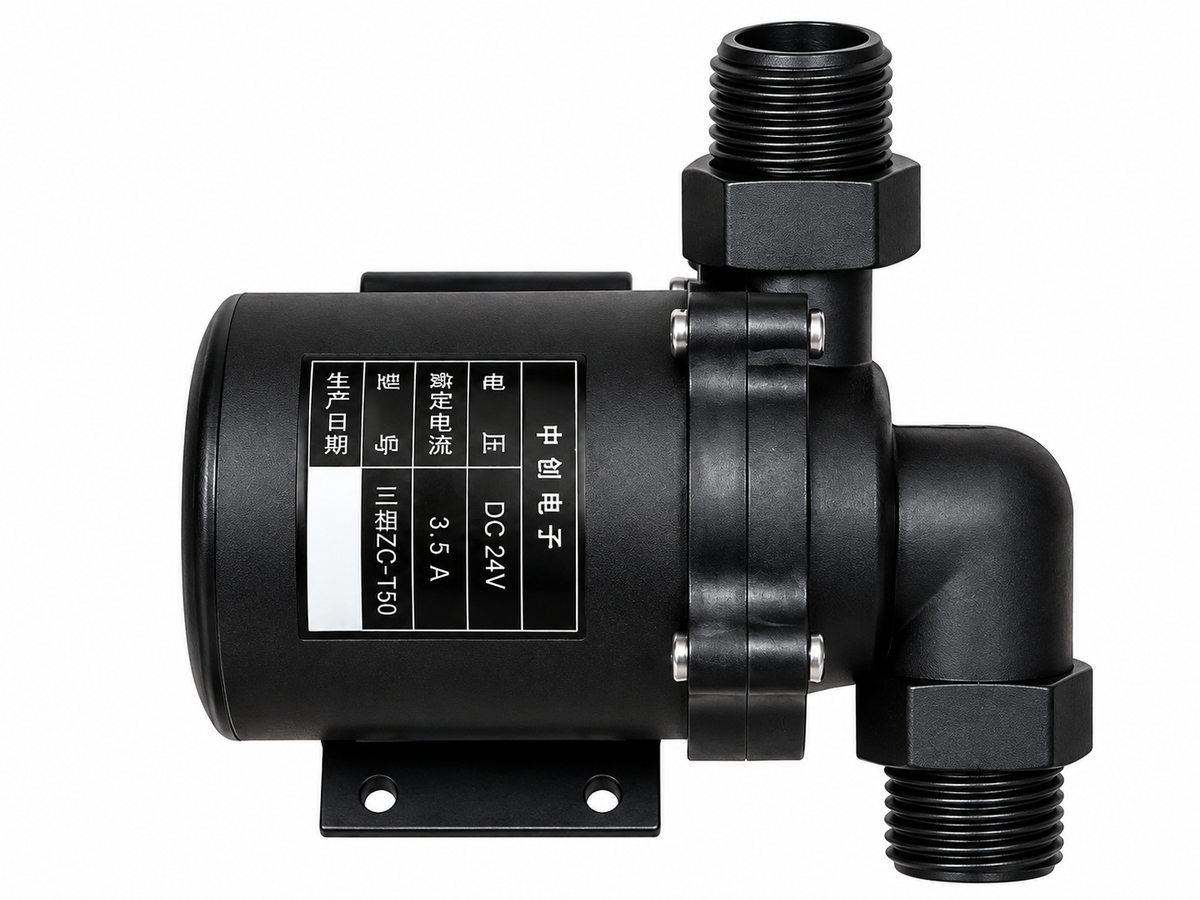

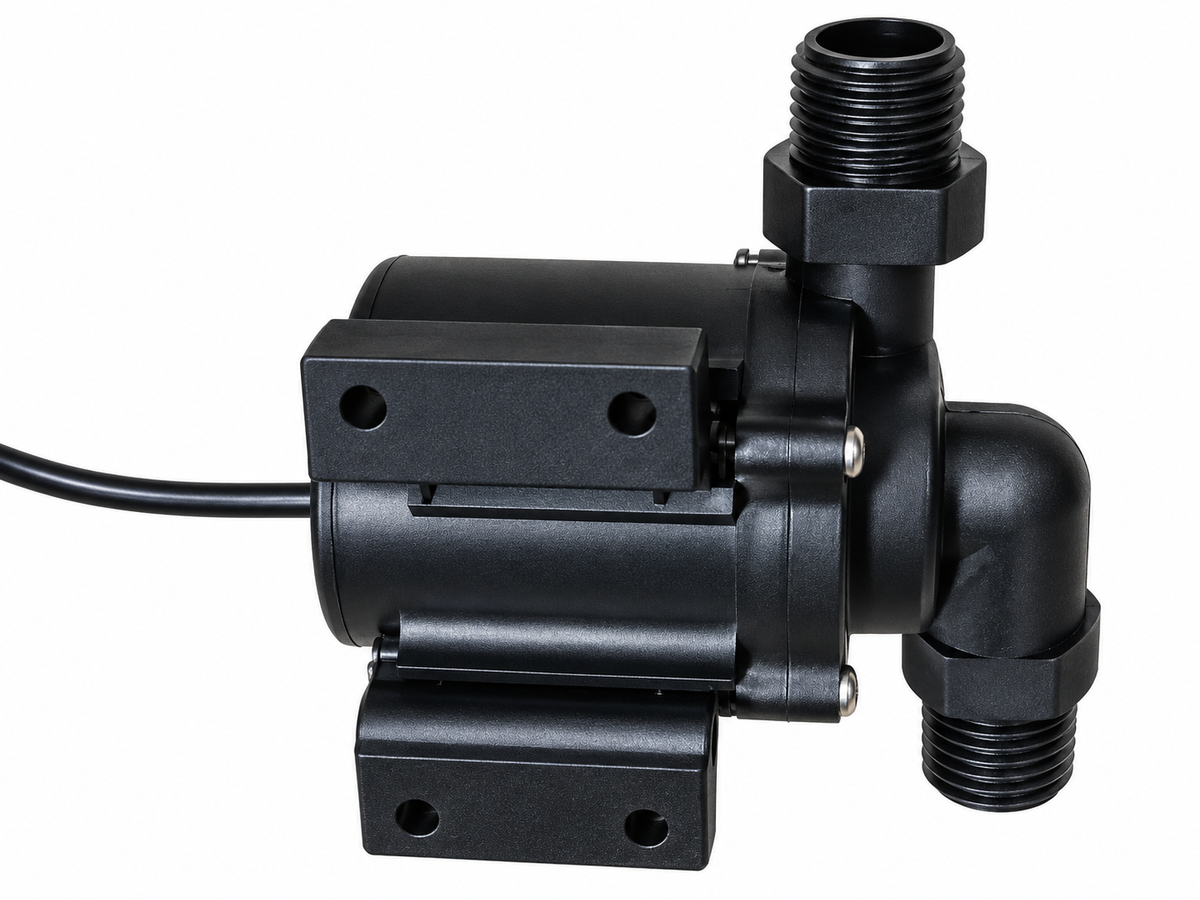

24V DC Brushless High Temperature Circulation Water Pump – 1750L/H, 13M Head, IP68

The ZC-T50 24V DC Brushless Circulation Water Pump is designed for continuous liquid circulation in demanding heating, cooling, solar, and industrial applications.

Featuring a brushless DC motor, high-temperature liquid capability, IP68 waterproof construction, and a durable ceramic motor shaft, this pump provides reliable, quiet, and energy-efficient operation for long-term use.

With a maximum flow rate of approximately 1750 L/H and a maximum head of 13 meters, it is suitable for applications requiring relatively high pressure and continuous circulation.

Key Features

24V DC brushless motor for reliable and efficient operation
Wide operating voltage range: DC 6V–24V
Maximum flow rate: 1750 L/H ±10%
Maximum head: 13 m ±10%
Handles liquid temperatures from 0°C to 100°C
IP68 waterproof rating
Suitable for submersible or external/in-line installation
Low-noise operation: <40 dB at 0.5 m
High-wear-resistant ceramic motor shaft
Low starting current and low power consumption
Designed for stable, continuous operation
Flow and head specifications can be customized for OEM applications

Specifications

Specification	Details
Model	ZC-T50
Pump Type	Brushless DC Circulation Pump
Rated Voltage	DC 24V
Operating Voltage	DC 6V–24V
Operating Current	4A
Maximum Flow Rate	1750 L/H ±10%
Maximum Head	13 m ±10%
Liquid Temperature	0°C–100°C
Noise Level	<40 dB at 0.5 m
Waterproof Rating	IP68
Motor Type	Brushless DC Motor
Motor Shaft	High-Wear-Resistance Ceramic Shaft
Installation	Submersible or External/In-Line

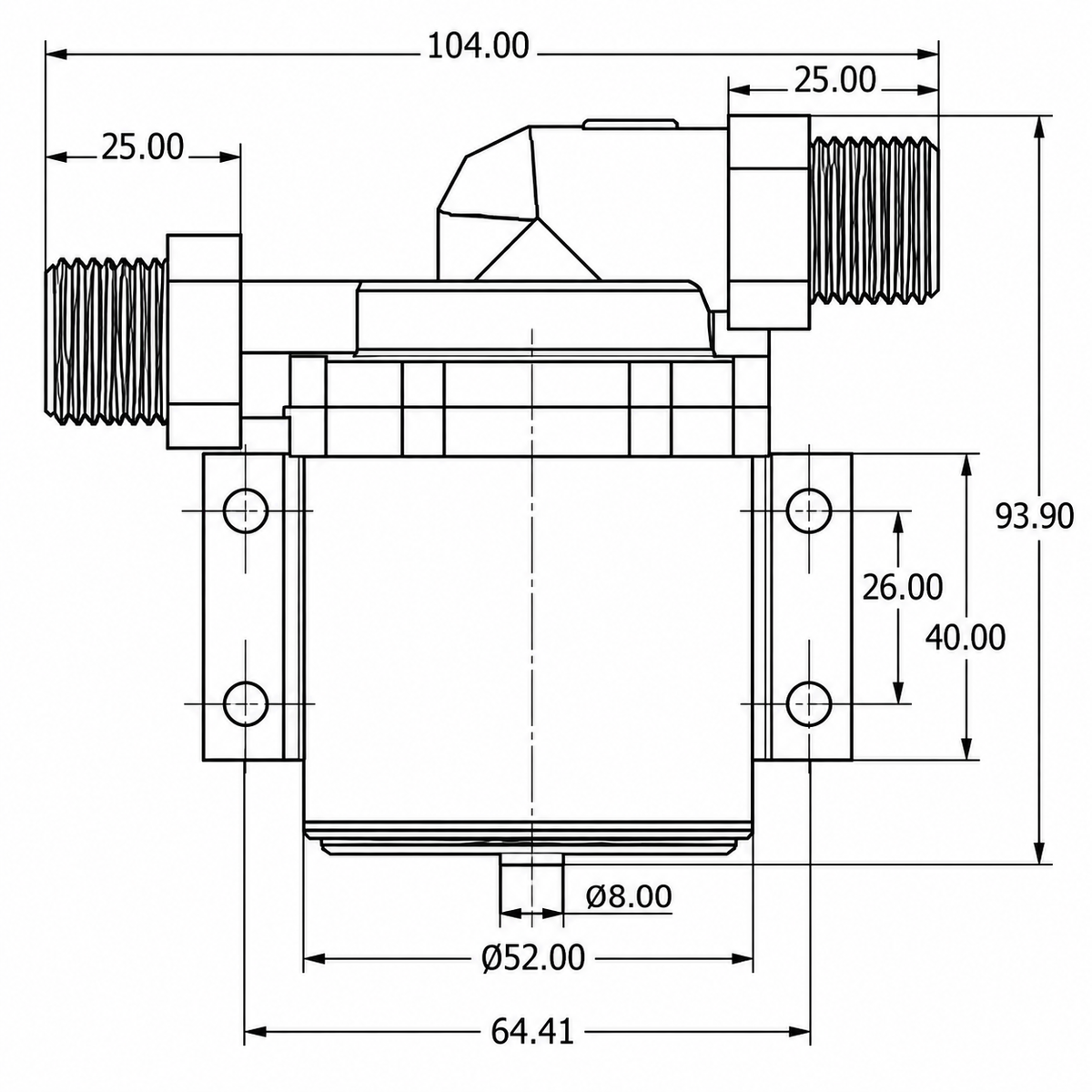

Approx. Pump Dimensions	10.4 × 9.5 × 6.5 cm
Approx. Weight	530 g

Applications

Suitable for a wide variety of liquid circulation applications, including:

Solar hot-water circulation systems
Water heater circulation
Hot-water circulation systems
Cooling and heat-exchange systems
Industrial equipment cooling
Machinery cooling systems
Water circulation equipment
Washing and circulation systems
DIY liquid cooling projects
Other continuous liquid circulation applications

Important Operating Notes

Please note:

This is a DC pump and must not be connected directly to 110V/220V AC power.
The pump must contain liquid during operation. Do not run the pump dry.
The pump is not self-priming.
For external installation, position the pump so that liquid can naturally flow into the pump inlet.
A filter is recommended at the pump inlet to prevent debris from entering the pump.
Maximum head refers to the vertical distance between the inlet liquid level and the discharge point.
Actual flow and head may vary depending on voltage, piping, liquid characteristics, installation conditions, and system resistance.
Power lead length can be customized upon request.
