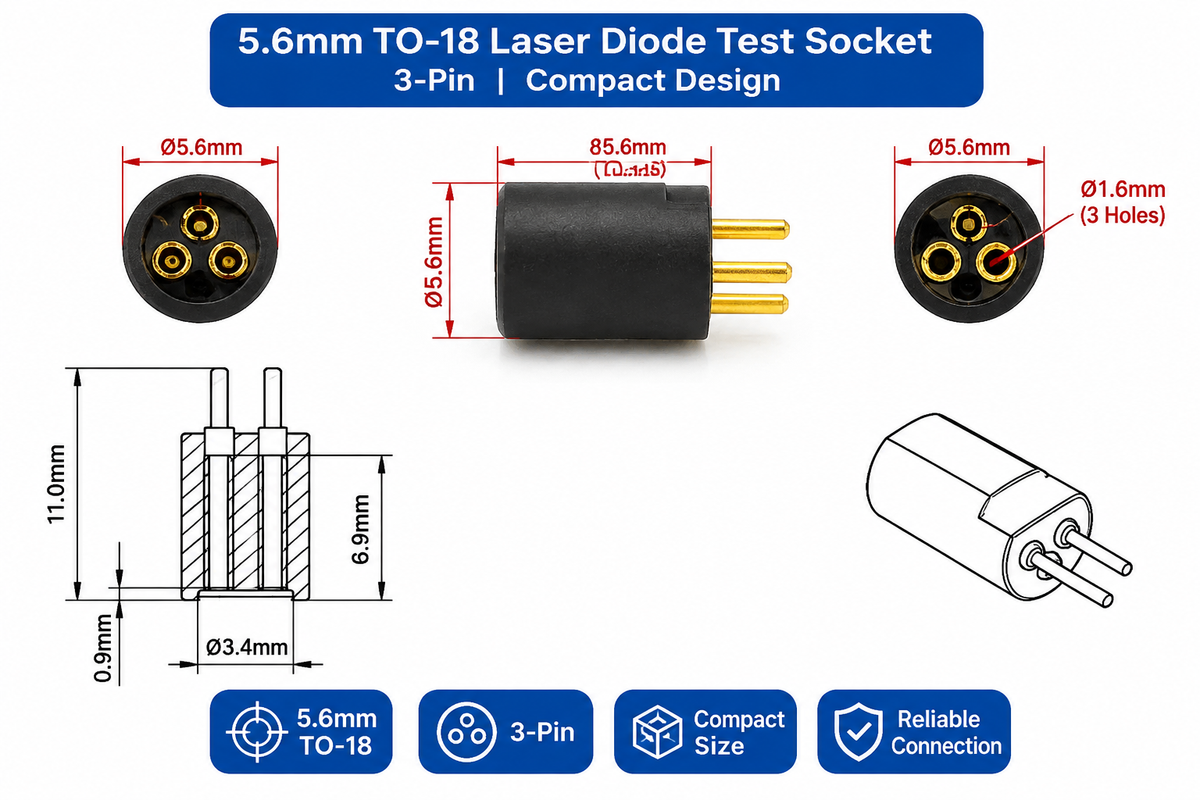

  • Dimension drawing of 5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin

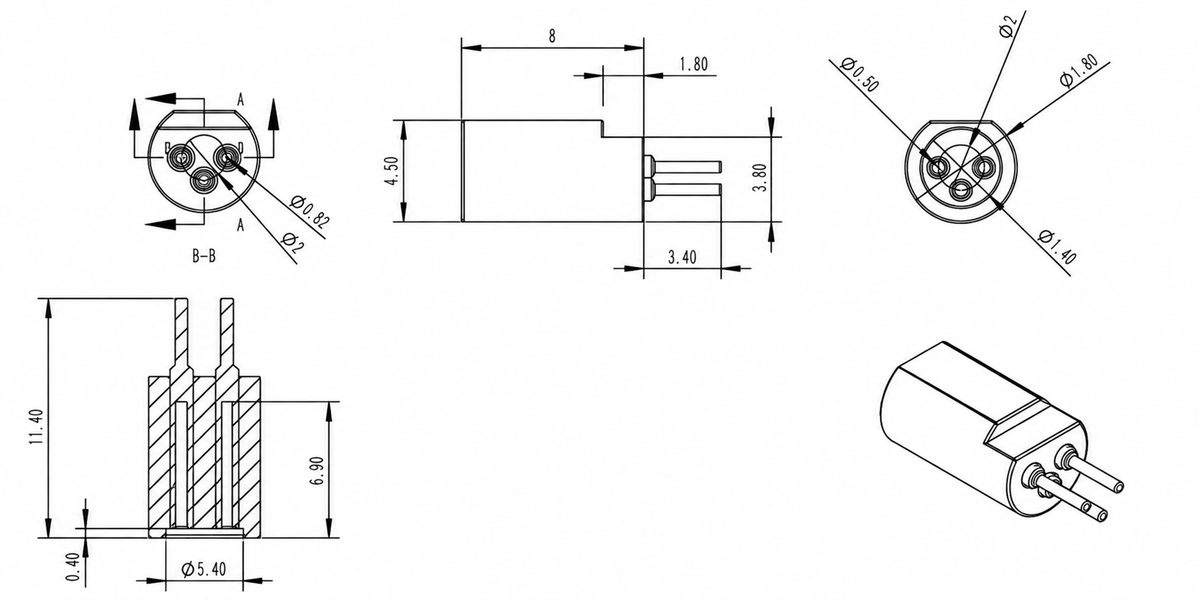

  • Dimension drawing of 5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin
  • 5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin
  • 5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin
1 5

Lilly Electronics

5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin

5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin

$20.00
$34.00 $20.00
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

5.6mm TO-18 Laser Diode Test Socket Connector – 3-Pin

The 5.6mm TO-18 Laser Diode Test Socket Connector is designed to provide a convenient electrical connection for compatible three-pin laser diodes. Featuring a compact black cylindrical housing and three metal contact sockets, it is suitable for compatible laser diode testing, electronic prototyping, and laser module assembly.

Designed for 5.6mm TO-18 laser diode packages, this socket provides a convenient connection without directly soldering wires to the laser diode pins.

Key Features

  • 5.6mm TO-18 Compatibility: Designed for compatible three-pin laser diode packages.

  • Three-Pin Socket Configuration: Accommodates suitable laser diode pin arrangements.

  • Compact Black Housing: Space-saving cylindrical design for electronic assemblies.

  • Convenient Electrical Connection: Allows compatible laser diode pins to connect without direct soldering.

  • Snug-Fit Contacts: Designed for secure pin engagement; not intended for repeated insertion and removal.

  • Versatile Applications: Suitable for compatible laser diode connections, optoelectronic development, and laboratory projects.

Technical Specifications

Specification Details
Product Type Laser Diode Test Socket Connector
Compatible Package 5.6mm TO-18
Pin Configuration 3-Pin
Housing Color Black
Housing Shape Cylindrical
Housing Length Approx. 8mm
Contact Type Female Socket Contacts
Application Laser Diode Connection and Testing
Package Quantity 1 Piece

Applications

  • 5.6mm TO-18 laser diode connections

  • Laser diode testing and evaluation

  • Laser module development and assembly

  • Optoelectronic research

  • Electronic circuit prototyping

  • Laboratory and engineering projects

Installation and Compatibility Notes

  • Confirm the laser diode's pin spacing, arrangement, and dimensions before ordering.

  • This socket is intended for compatible three-pin TO-18 laser diode packages.

  • The connector fits snugly and is not recommended for frequent insertion and removal.

  • Avoid excessive force when inserting or removing laser diode pins.

  • Verify electrical polarity and pin configuration before connecting a laser diode driver.

  • This socket provides an electrical connection only and does not regulate laser diode current.

Package Contents

1 × 5.6mm TO-18 Three-Pin Laser Diode Test Socket Connector (Black)

Note: Laser diode and driver are not included.
