635nm 650nm 694nm 620-700nm Laser Safety Glasses – OD4+ Red Laser Protection

$86.00

~~$95.00~~ $86.00

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Frame Style #33 – Black Frame #36 – White & Black Frame #52 – White Frame #55 – Gray Frame

Quantité

Product Overview

Protect your eyes during compatible red laser applications with these OD4+ Laser Safety Glasses, designed for optical protection across the 620–700nm wavelength range, including 635nm, 650nm, and 694nm lasers.

Featuring blue-tinted protective lenses, 50% visible light transmittance, and four frame styles, these laser safety glasses are suitable for laboratory, industrial, and laser alignment applications when selected according to the appropriate laser safety requirements.

Key Features

620–700nm Laser Protection: Designed for red laser wavelengths, including 635nm, 650nm, and 694nm.
OD4+ Optical Density: Provides high optical attenuation within the specified wavelength range.
50% Visible Light Transmittance (VLT): Allows moderate visible light transmission while filtering specified laser wavelengths.
Four Frame Styles: Available in black, white/black, white, and gray designs.
Blue Protective Lenses: Designed for red laser protection.
Multiple Applications: Suitable for compatible laboratory, laser alignment, industrial, and research applications.

Technical Specifications

Specification	Details
Product Type	Laser Safety Glasses / Laser Protective Eyewear
Protection Wavelength Range	620–700nm
Applicable Laser Wavelengths	635nm, 650nm, 694nm
Optical Density (OD)	OD4+ (620–700nm)
Visible Light Transmittance	50%
L-Rating (Supplier-Stated)	620–700nm DIR LB4
Lens Color	Blue
Frame Styles	#33 Black / #36 White & Black / #52 White / #55 Gray
Applications	Red Laser Protection

Available Frame Styles

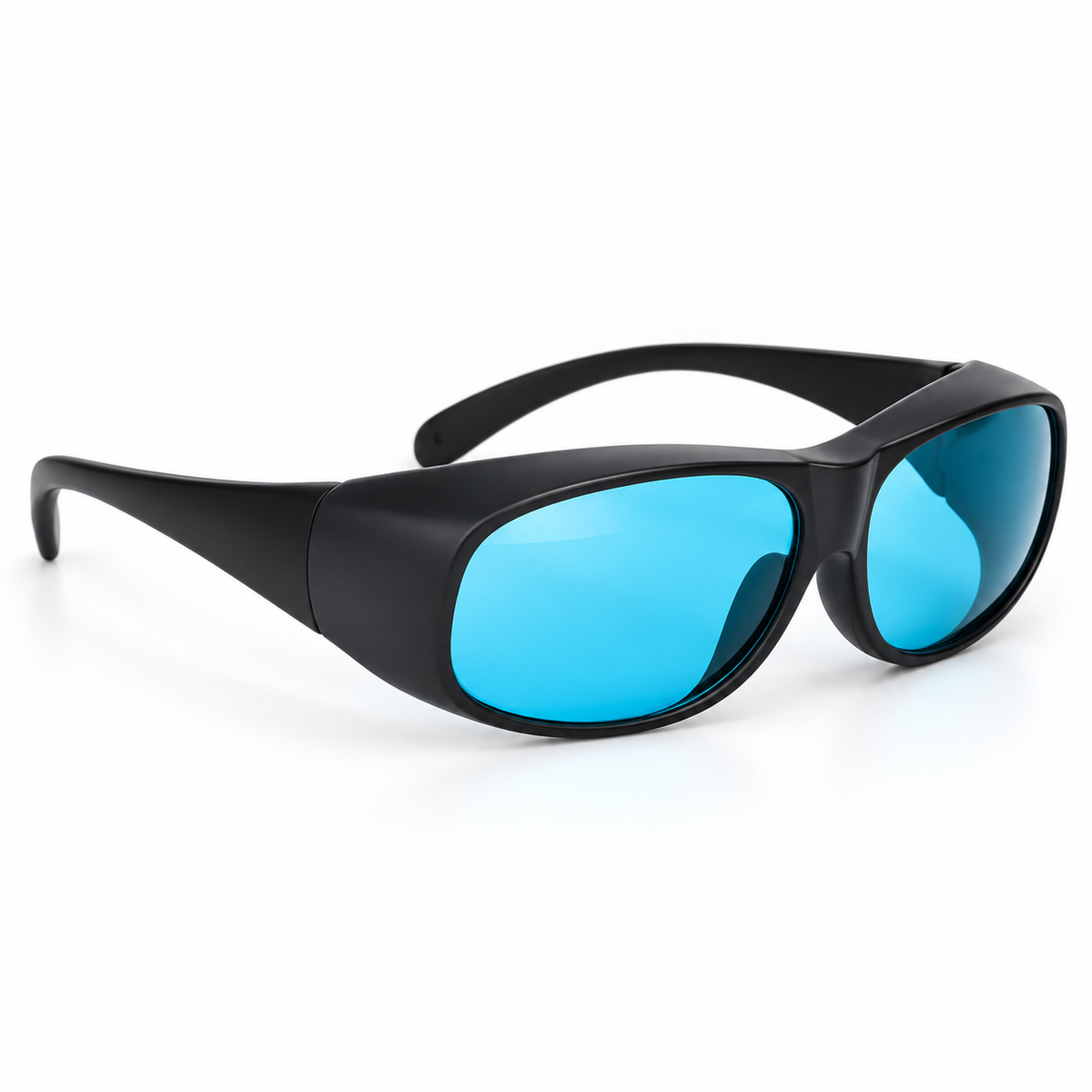

#33 – Black Frame

Classic black wraparound frame with blue protective lenses.

#36 – Black Frame

White front frame with black temples and blue protective lenses.

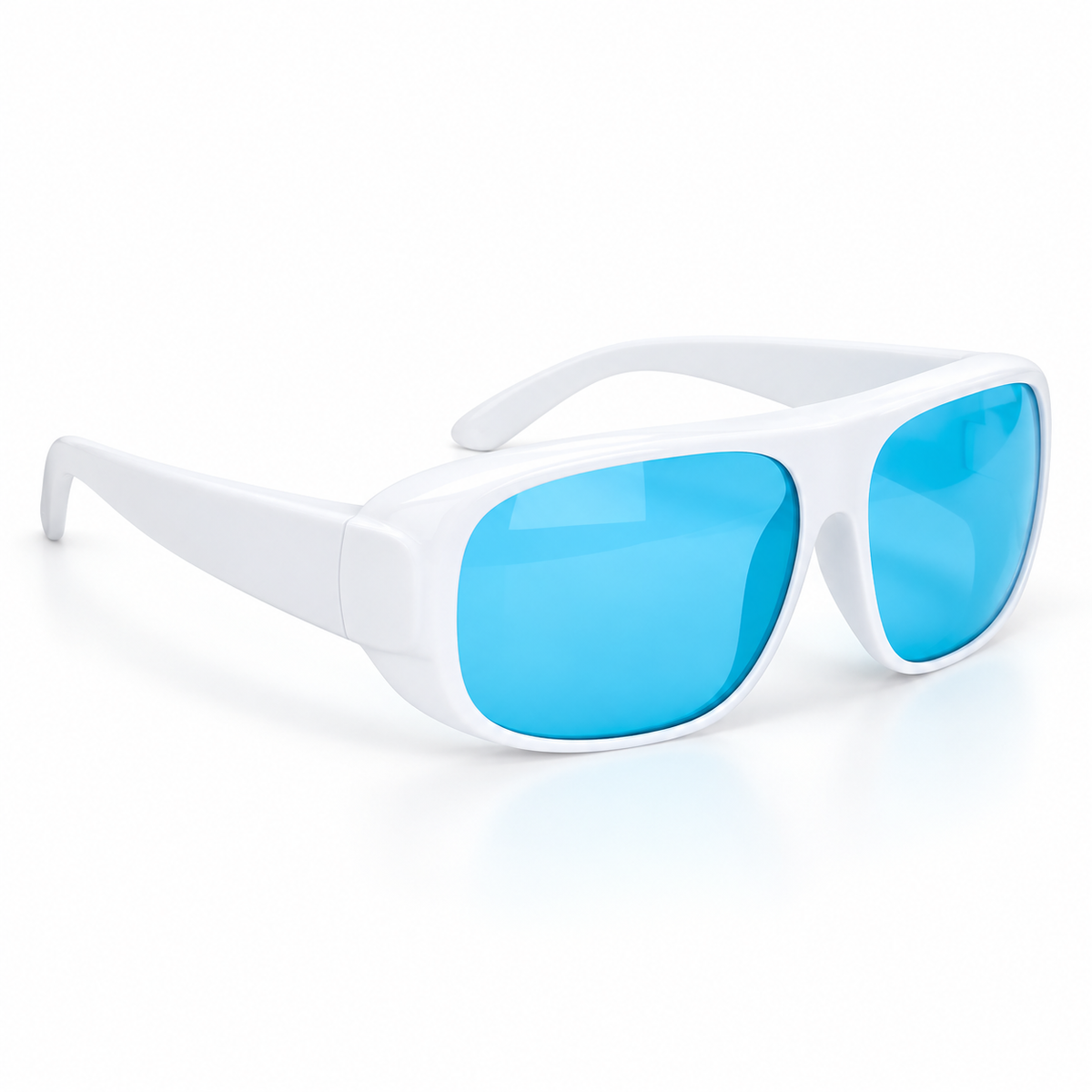

#52 – White Frame

All-white frame design with blue protective lenses.

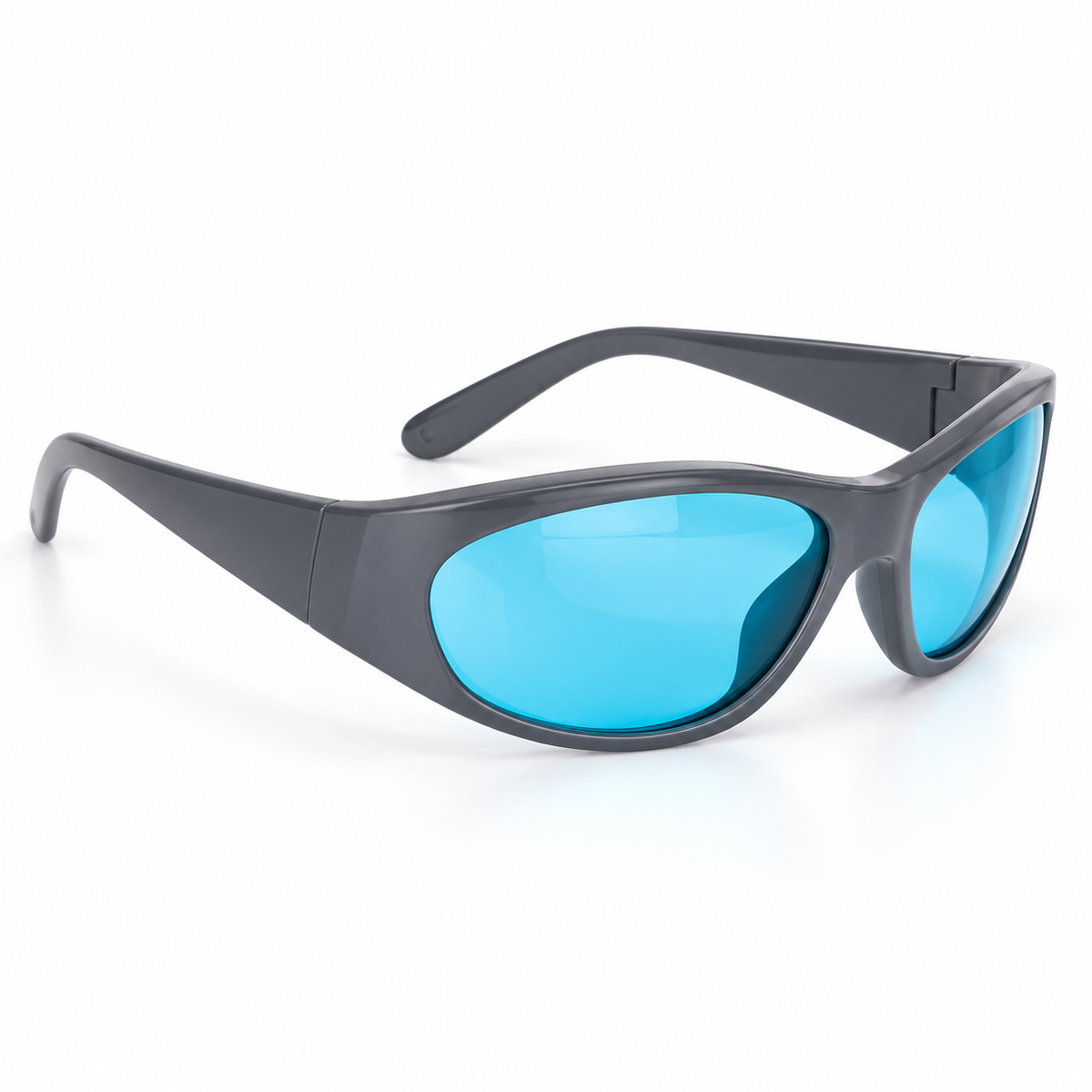

#55 – Gray Frame

Gray wraparound frame with blue protective lenses.

All four styles are offered with the same stated 620–700nm protection range and OD4+ optical density.

Applications

These laser safety glasses are designed for use with compatible red laser equipment, including:

635nm red laser modules and alignment systems
650nm red laser pointers and positioning equipment
694nm laser systems
Laboratory and research laser applications
Industrial laser alignment and positioning
Optical experiments and laser testing

Important: Suitability must be determined based on the actual laser wavelength, output power, operating mode, exposure conditions, and required protective rating.

Package Includes

1 × Pair of Laser Safety Glasses (selected frame style)

Laser Safety Information

WARNING: LASER RADIATION CAN CAUSE PERMANENT EYE DAMAGE.

Use only with laser wavelengths and exposure conditions covered by the verified protective specifications.
Never intentionally look directly into a laser beam, even when wearing laser safety glasses.
Do not use these glasses outside the specified 620–700nm protection range.
Inspect the lenses and frames before each use. Replace damaged or scratched eyewear.
Optical density alone does not establish suitability for every laser power level or exposure duration.
Confirm applicable laser safety standards and manufacturer certification documentation before use.
