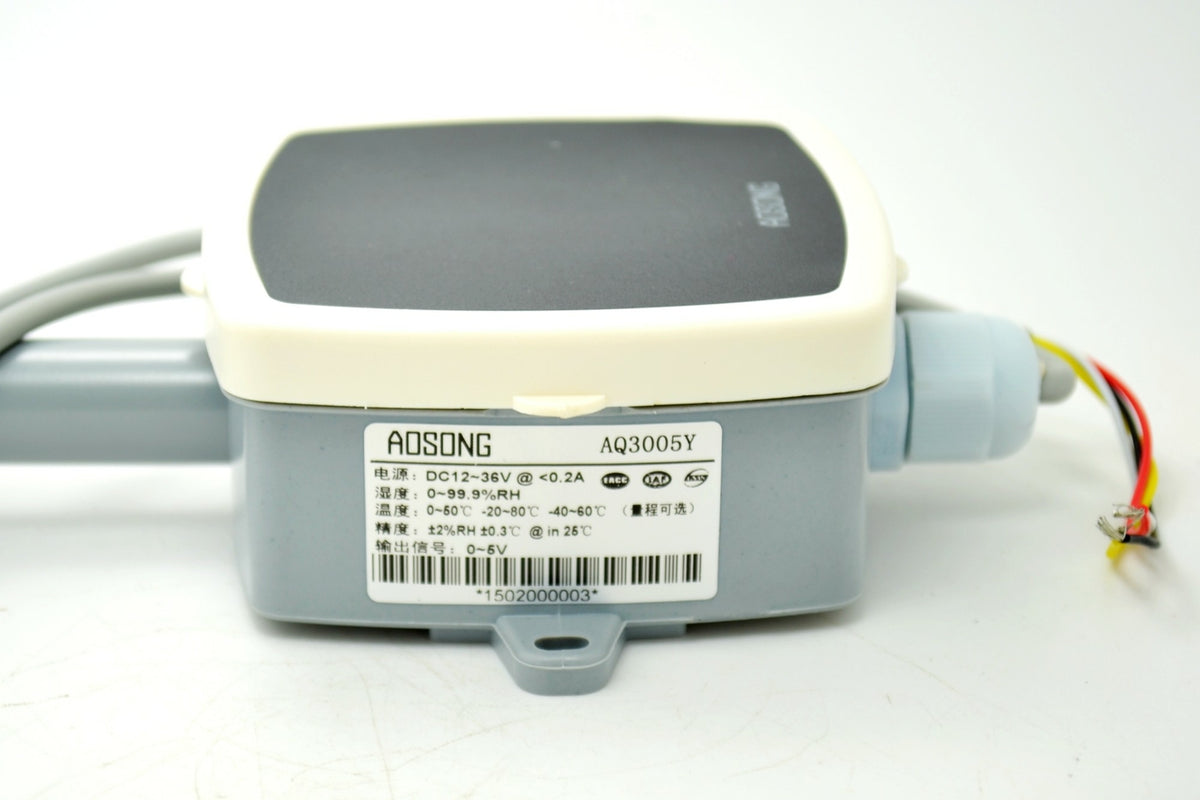

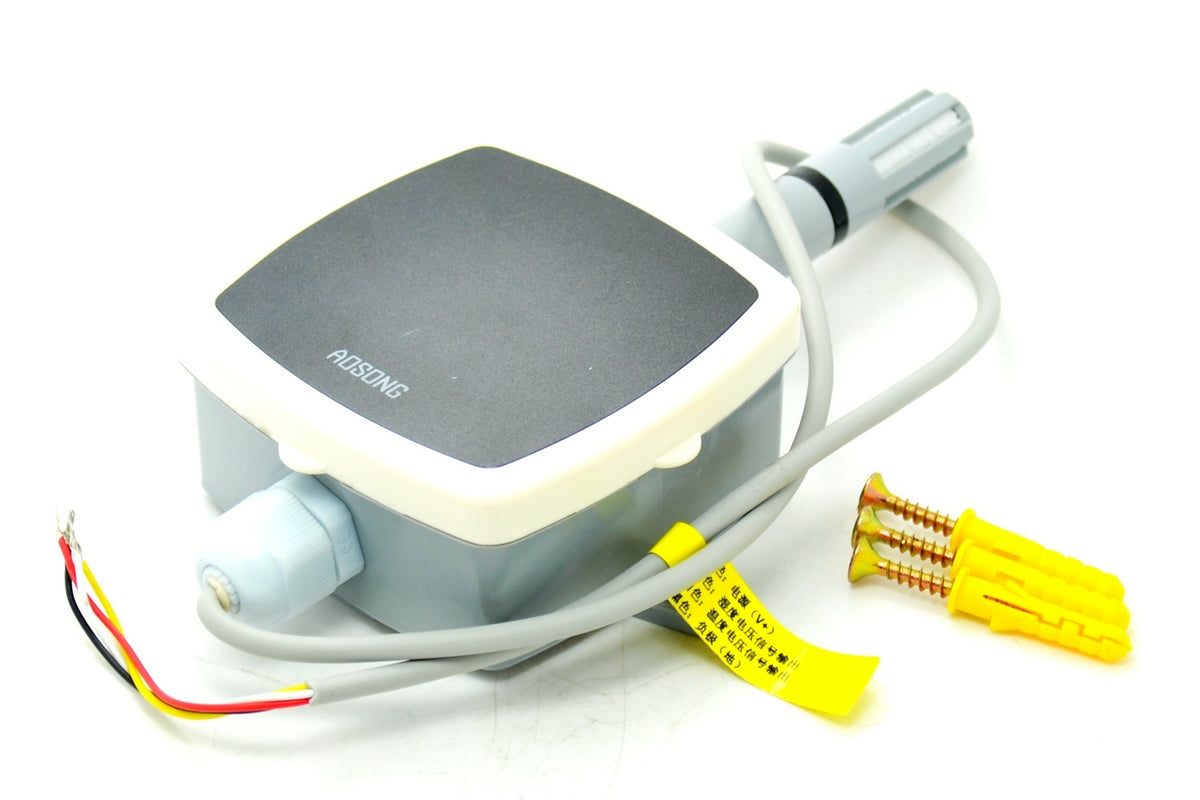

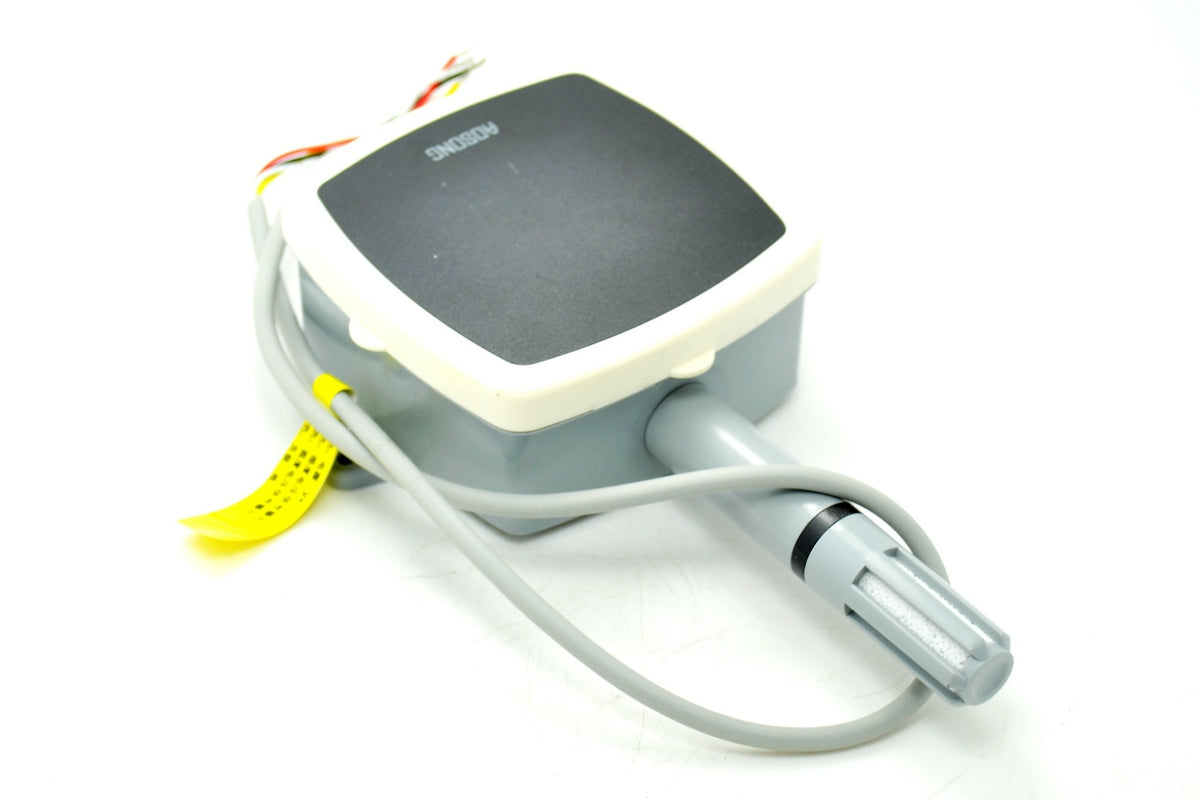

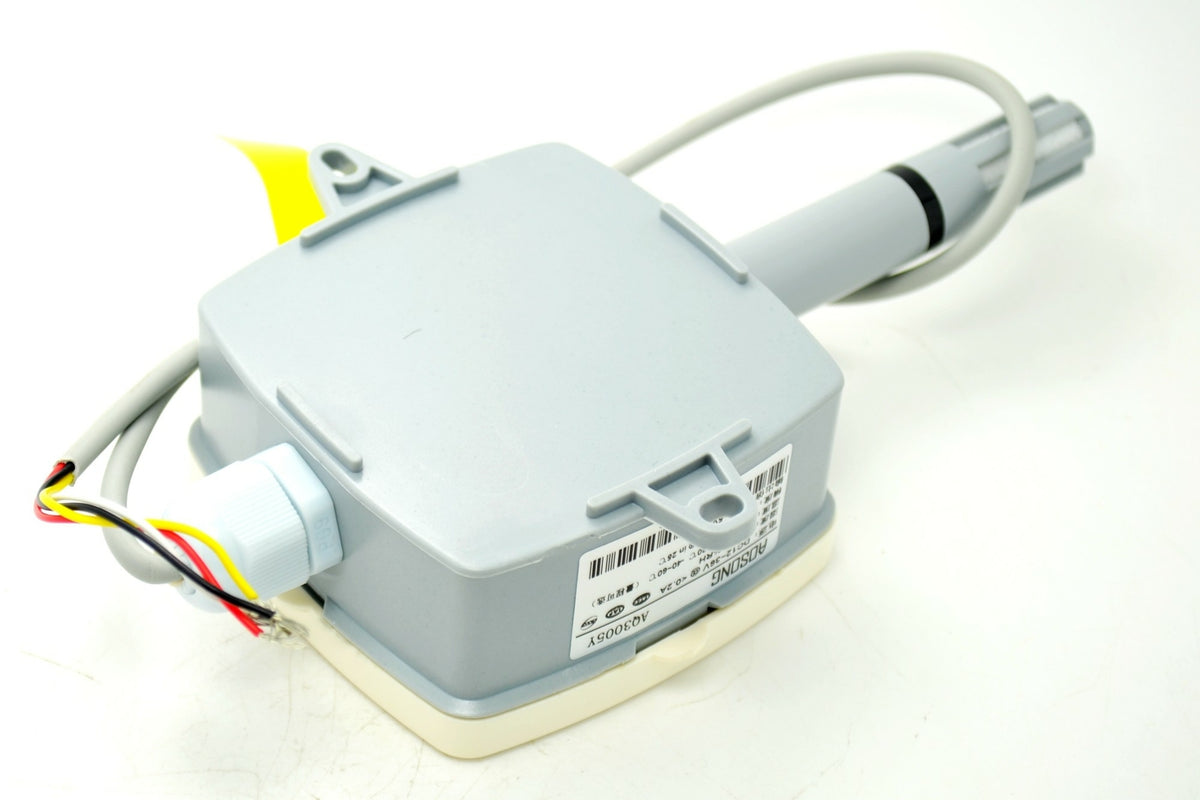

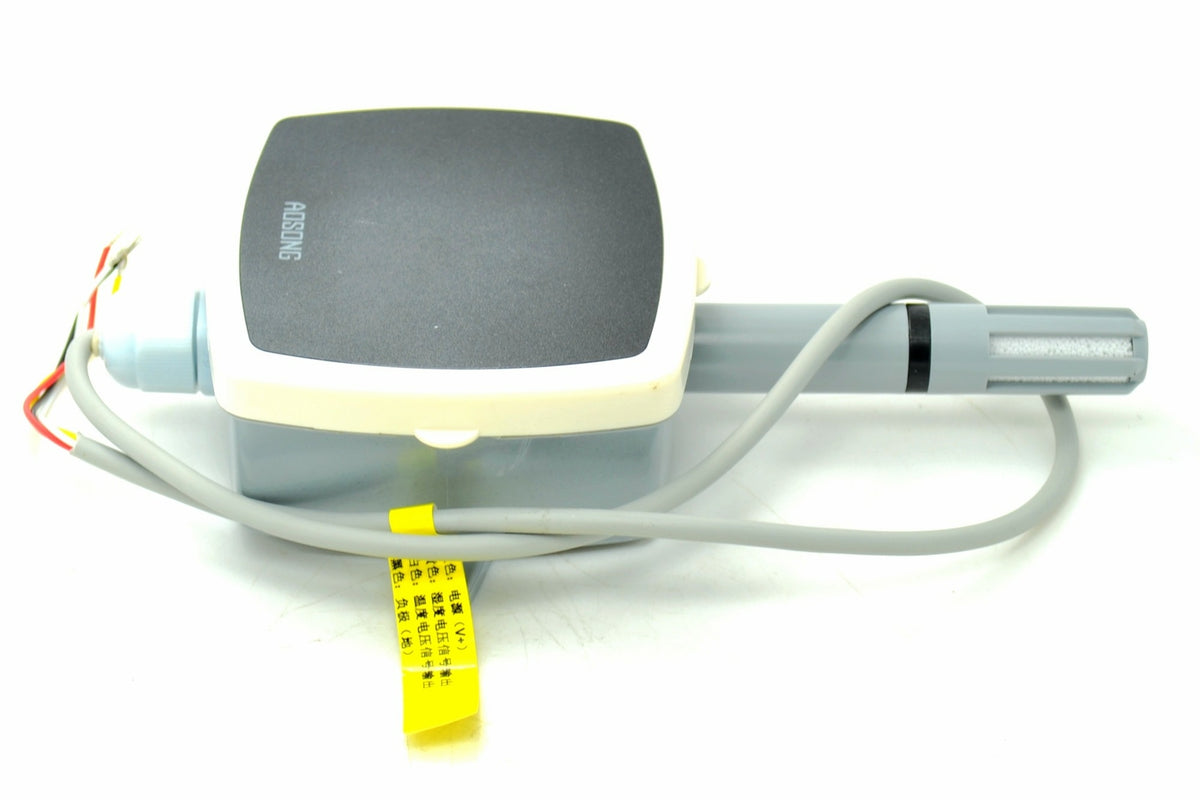

AQ3005Y Voltage Temperature and Humidity Transmitter Hygrometer Sensor

Specification:

AQ3005Y voltage temperature and humidity transmitter digital temperature and humidity sensor AM2305 as the humidity measurement unit,

together with the stable and reliable signal processing circuit,

temperature and humidity in the environment will be converted to the corresponding standard signal,

the choice of high-quality integrated digital temperature and humidity sensor to ensure that the transmitter excellent long-term stability,

low delay, and strong resistance to chemical pollution capacity, this transmitter is a very excellent repeatability.

Feature:

Relative humidity:

Range: 0 to 99.9% RH

Accuracy (including non-linearity, hysteresis and repeatability): ± 2% RH

Factory calibration uncertainty: ± 0.6% RH (0 ~ 40% of RH) / ± 1.0% RH (40 ~~ 97% of RH)

Response time (90%) still air at 8 s, the plastic grille

Resolution: 0.1% RH

Long-term stability: <0.5% RH / year

Temperature:

Range (via jumper settings): 0 to 50 / -20 to 80 degree/ -40 60 degree

Accuracy: (25 ) ± 0.3

Resolution: 0.1

Long-term stability: <0.1 degree / year

Work environment:

Operating temperature: AQ3005Y -20 ~ 70

Working environment humidity: 0 to 99.9% non-condensing

Storage range:

Temperature: 0 ~~ 60

Humidity: <90% RH

Input and output:

Operating voltage: 15 ~ 36VDC (12 ~ 24VAC)

Power-on time: 3s

Power consumption: 15mA (typical)

Humidity voltage output: 0 to 5V DC

Temperature voltage output: 0 to 5V DC

Note: All specifications are measured at 25℃ unless otherwise specified.

Package:

1 x AQ3005Y Voltage Temperature and Humidity Transmitter Hygrometer Sensor
