Blue Laser 450nm 1-20mW Adjustable Focus Light Module Locator with Power&Holder

Specifications:

Size: Φ 12X40mm

Materia: Aviation aluminum (all metal shell)

Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment

Service life: Continuous output, continuous service life>8000 hours

Output wavelength: 450nm±10nm

Output Power: ＜1mW,＜5mW,＜10mW, <20mW

Working current: I<65mA(1mW)，< 100mA(5mW)，<130mA(10mW), <180mA(20mW)

Circuit Control: ACC Circuit

Working voltage: DC2.8~5.2V

Working temperature: -10 ℃ to+50 ℃

Storage temperature: -20 ℃ to+70 ℃

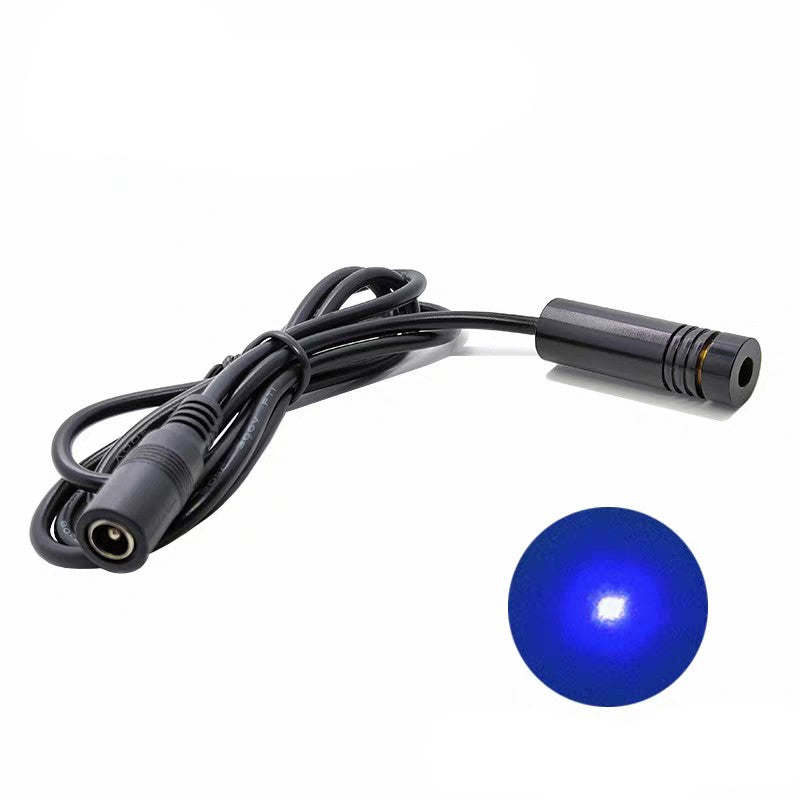

Features(Dot)

Range:<300 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

Spot shape/diameter: Dot, elliptical, spot size<Φ 10mm at 10m (adjustable focus)

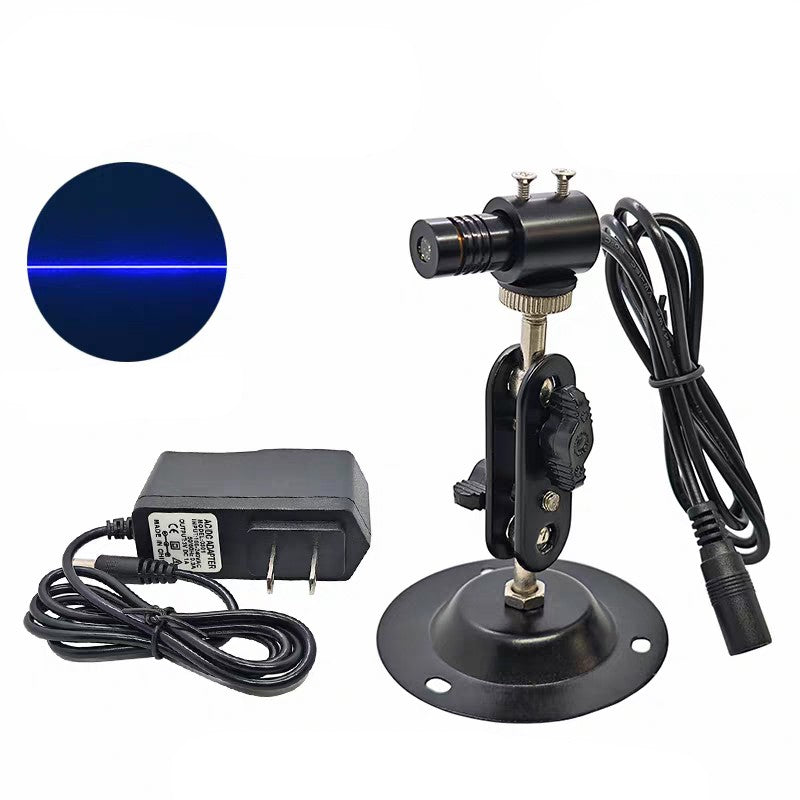

Features(Line)

Range:<5 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

Spot shape/diameter: Line shape, adjustable line thickness. Focus can be adjusted according to customer‑specified distance for optimal performance.

Beam divergence angle: default 90° (5°, 15°, 30°, 45°, 60°, 90°, 110°, 130° optional)

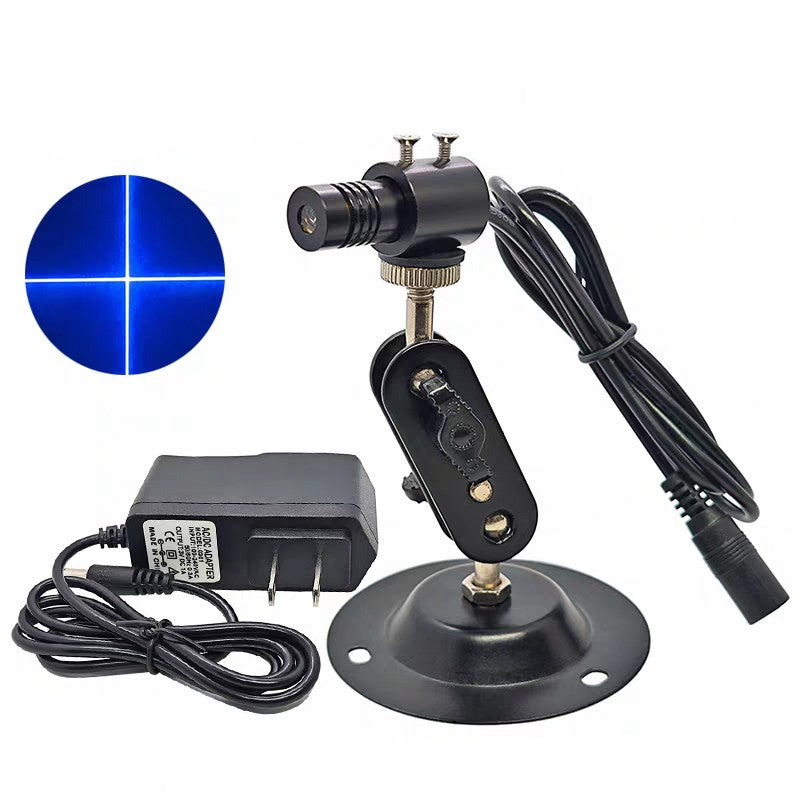

Features(Cross)

Range:<5 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)

Spot shape/diameter: Cross shape, adjustable line thickness. Focus can be adjusted according to customer‑specified distance for optimal performance.

Beam divergence angle: default 60° (15°, 30°, 45°, 60°, 90°, 110° optional)

Packing:

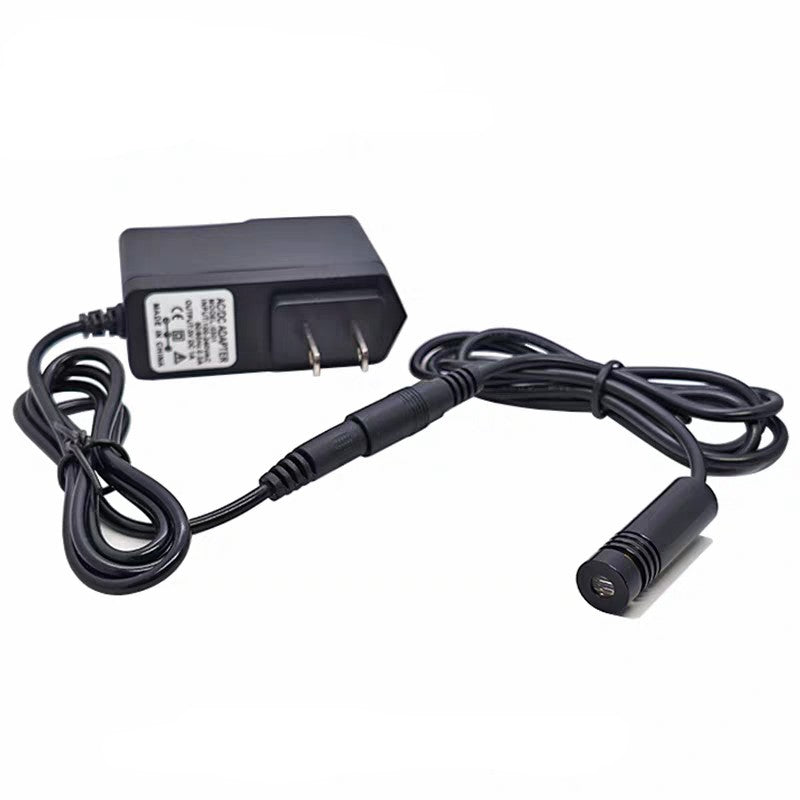

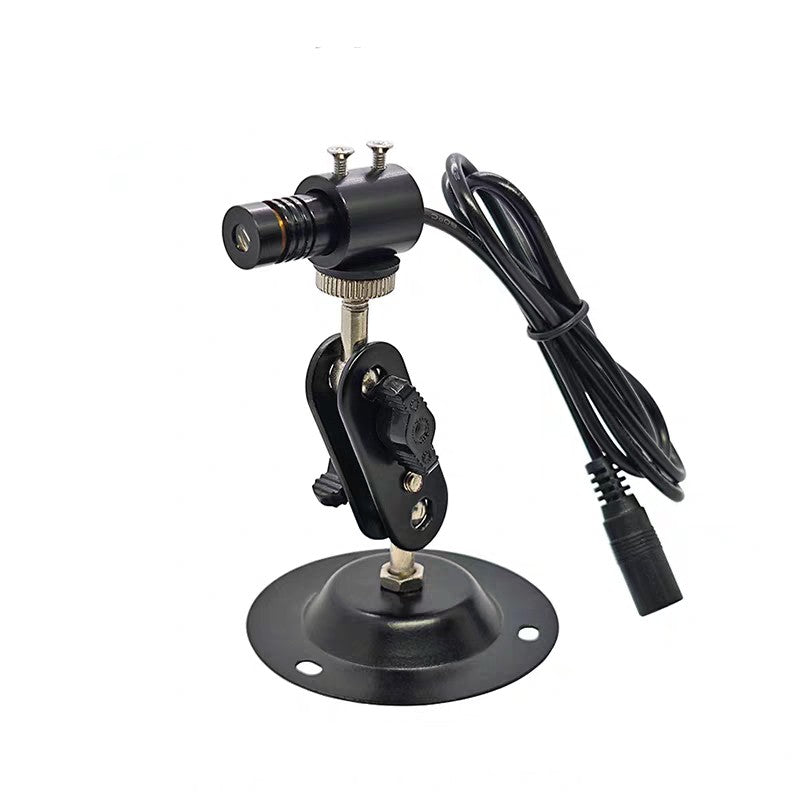

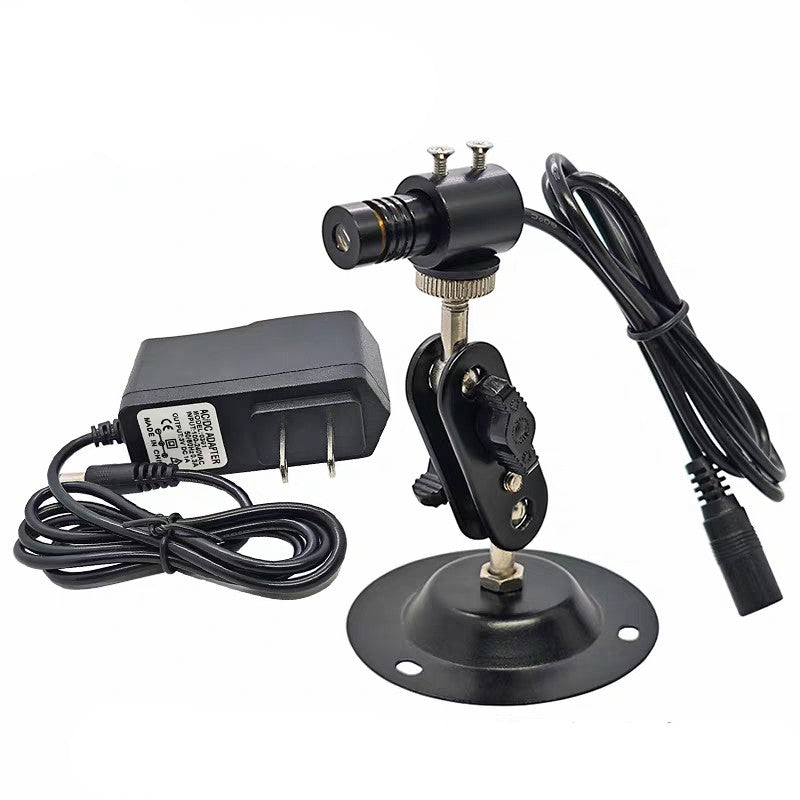

1* 450nm Blue Laser Module with Power Adapter/Holder
