520nm Green Laser Module – 1mW, 5mW, 10mW, Adjustable Focus, DC 3V
520nm Green Laser Module – 1mW, 5mW, 10mW, Adjustable Focus, DC 3V
Impossible de charger la disponibilité du service de retrait
DC3V Φ10X35mm 520nm 1mW 5mW 10mW Green Laser Light Module Positioning Locator

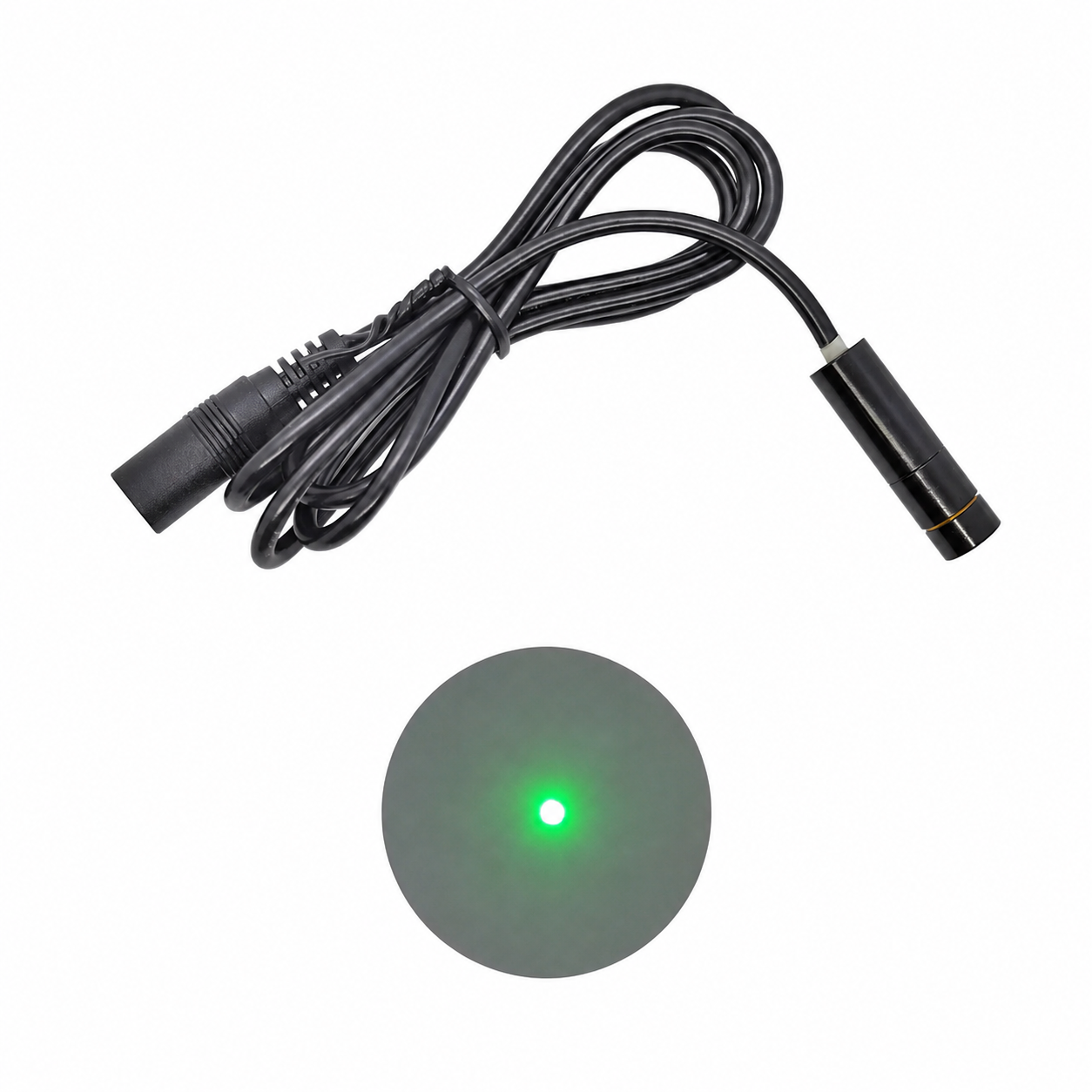

Dot Laser Specification:
Size: Φ 10X35mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power: ＜1mW,＜5mW,＜10mW
Range:<200 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Dot, elliptical, spot size<Φ 12mm at 10m (adjustable focus)
Circuit Control: APC Circuit
Working voltage: DC2.8~5.2V
Working current: I<80mA(1mW)，< 120mA(5mW)，<180mA(10mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃

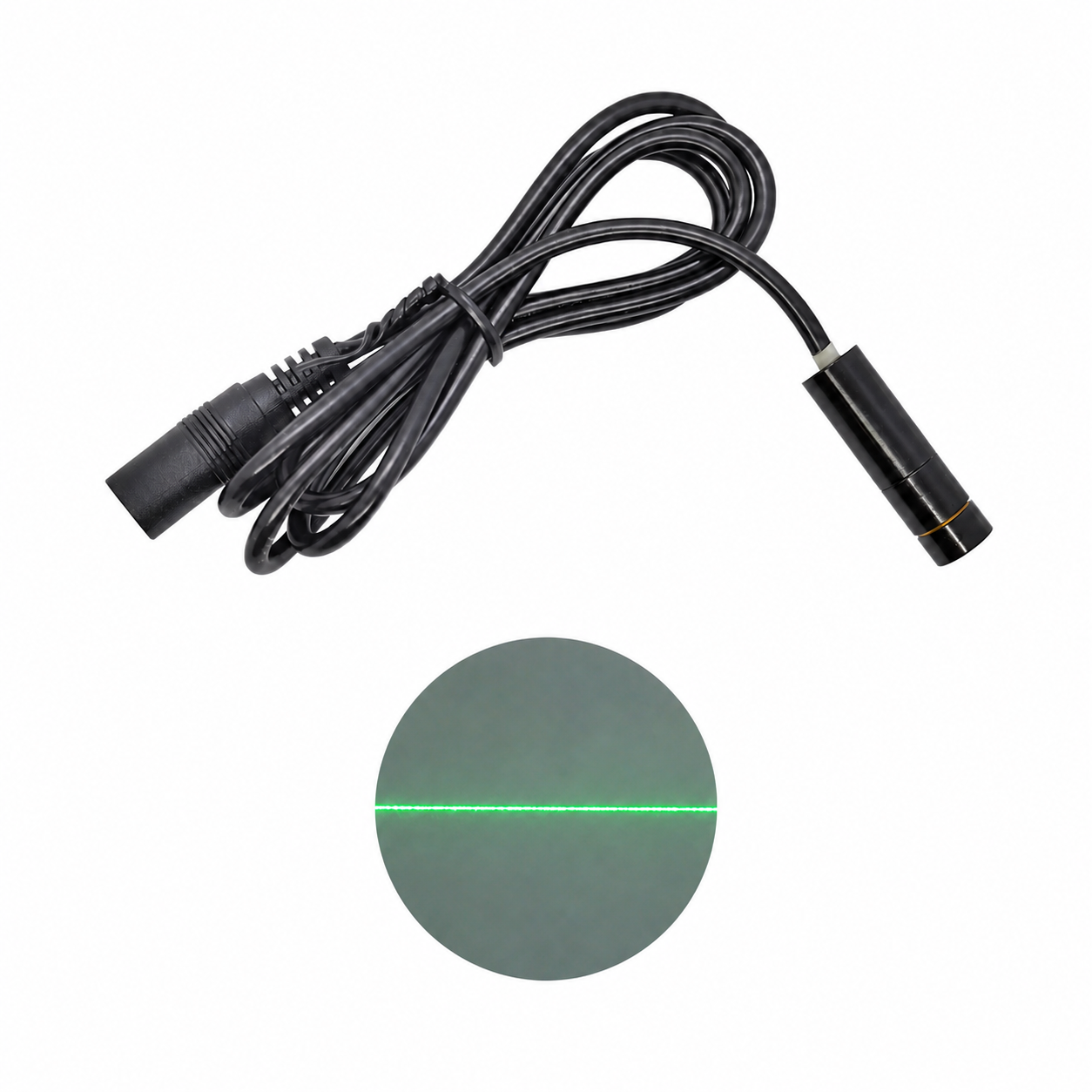

Line Laser Specification:
Size: Φ 10X35mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power: ＜1mW,＜5mW,＜10mW
Range:<3 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Line(Line width can be adjustable)
Light diffusion angle: 5°,15°,30°,45°,60°,90°,110°,130°(Optional) Default 90 °
Circuit Control: APC Circuit
Working voltage: DC2.8~5.2V
Working current: I<80mA(1mW),< 120mA(5mW)，<180mA(5mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃

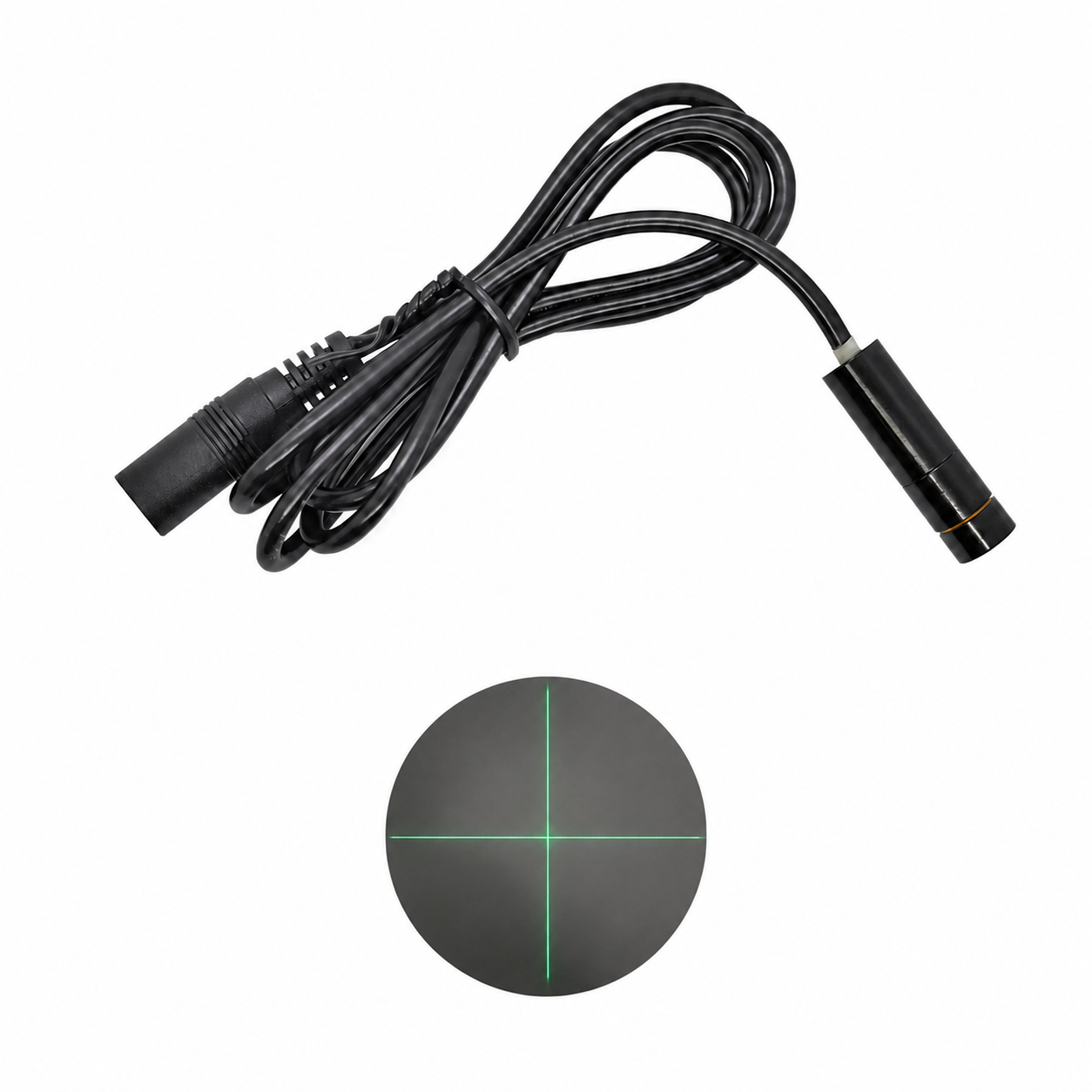

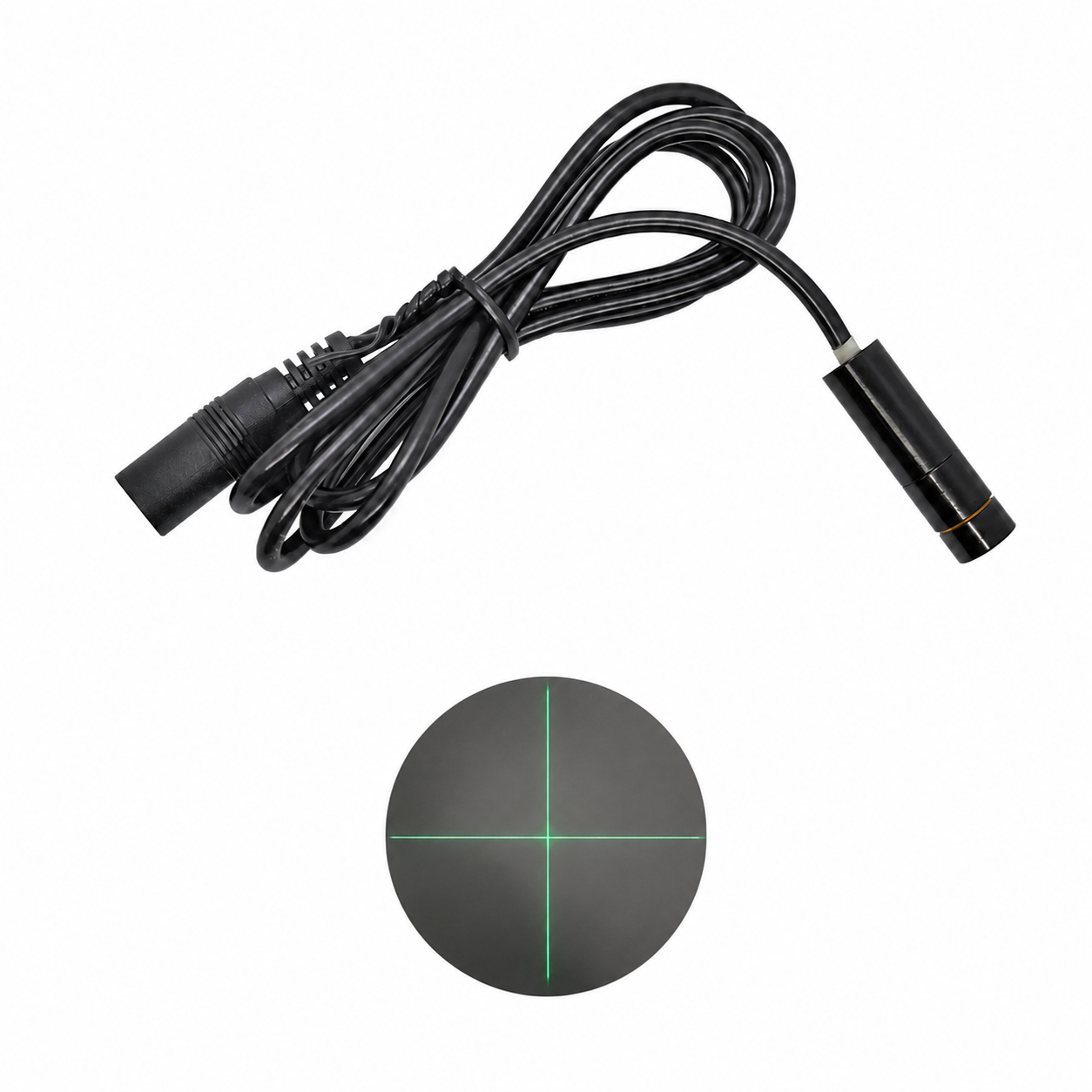

Cross Laser Specification:
Size: Φ 10X35mm
Materia: Aviation aluminum (all metal shell)
Surface Treatment/Color: Black shell, surface insulation, oxidation mist black treatment
Service life: Continuous output, continuous service life>8000 hours
Output wavelength: 520nm±10nm
Output Power: ＜1mW,＜5mW,＜10mW
Range:<3 meters(Indoor environment, laser will be affected by ambient light interference, and the distance will vary)
Spot shape/diameter: Cross(Line width can be adjustable)
Light diffusion angle: 15°,30°,45°,60°,90°,110°(Optional) Default 60 °
Circuit Control: APC Circuit
Working voltage: DC2.8~5.2V
Working current: I<80mA(1mW),< 120mA(5mW)，<180mA(5mW)
Working temperature: -10 ℃ to+50 ℃
Storage temperature: -20 ℃ to+70 ℃
Packing:
1* 520nm Green Laser Module
