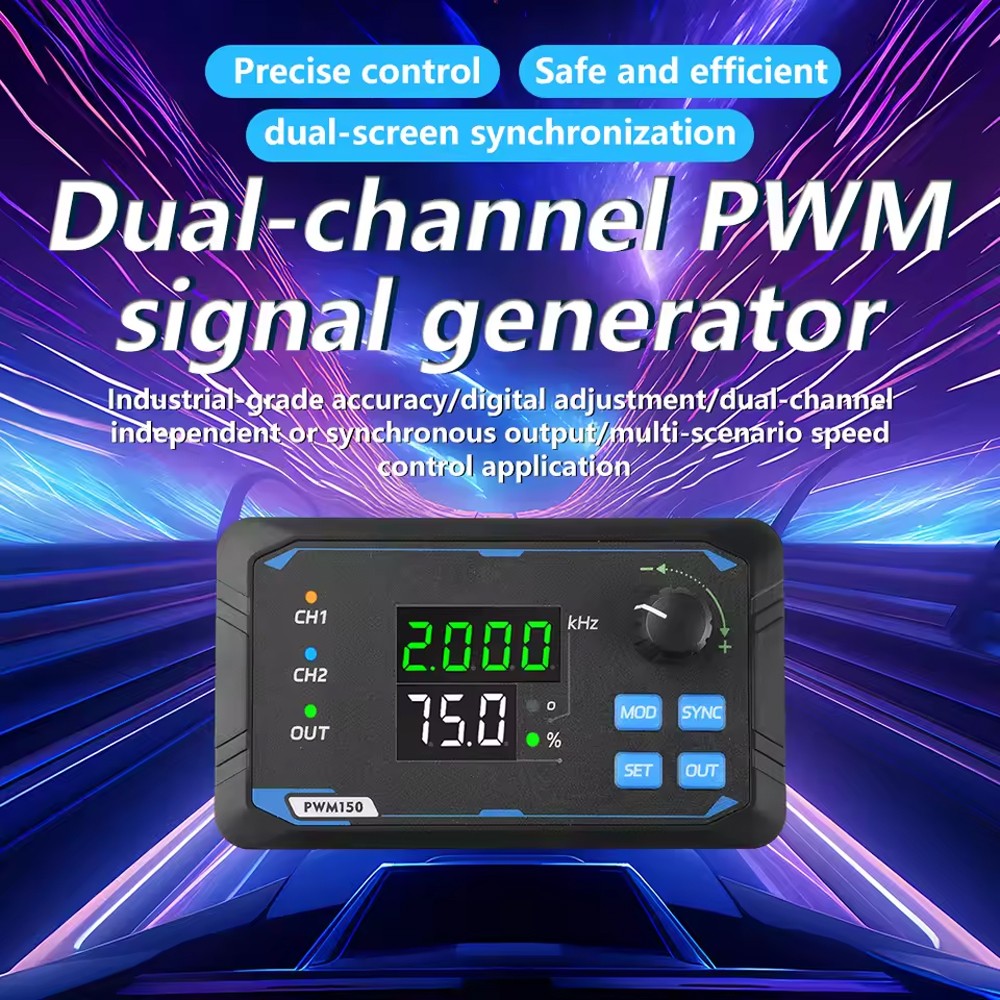

Product Description｜PWM150 Dual Channel Signal Generator

Product Intro ：

The PWM150 is a dual‑channel PWM signal generator with independent outputs, adjustable frequency, duty cycle and phase difference. Featuring dual‑color LED dynamic display, short‑circuit protection and intuitive encoder & key operation. It outputs stable square‑wave signals for electronic lab testing, industrial automation, education experiments and DIY projects.

Key Features

• Dual‑Channel Independent PWM Output


  Two fully independent signal channels. Support adjustable duty cycle and phase difference to meet multi‑channel synchronous signal control requirements.





• Dual‑Screen Dynamic LED Display


  4‑digit green LED for frequency reading, 3‑digit white LED for duty cycle / phase value. Real‑time synchronized parameters with 120Hz refresh rate for clear visual feedback.





• Built‑in Short‑Circuit Safety Protection


  Output short‑circuit protection activates within 60 seconds under 20V working voltage, effectively protecting the module from damage caused by accidental short‑circuit.





• Convenient Human‑Machine Operation


  Equipped with rotary encoder with push‑button plus 4 function keys (MOD/SYNC/SET/OUT). Easy to switch channels and configure synchronous output modes.




• Wide Application Scenarios


  Perfect for electronic laboratory debugging, industrial automation control, teaching training experiments and various electronic DIY projects.

Specifications

Package Includes

‑ 1 × Display Meter
‑ 1 × Instruction Manual

Note: Short‑circuit protection is a temporary safeguard. Do not keep short‑circuit state for a long time. Use DC 5‑24V qualified external power adapter for power supply. Power adapter is NOT included.
