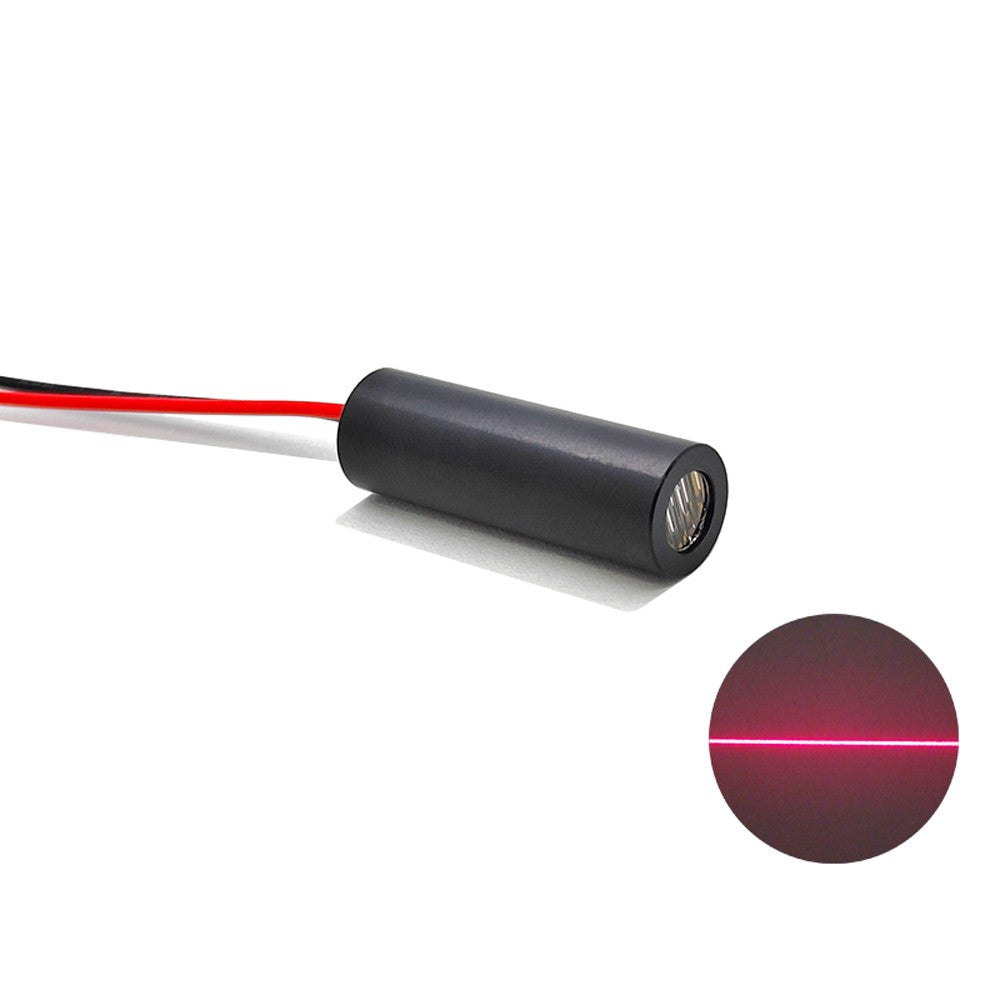

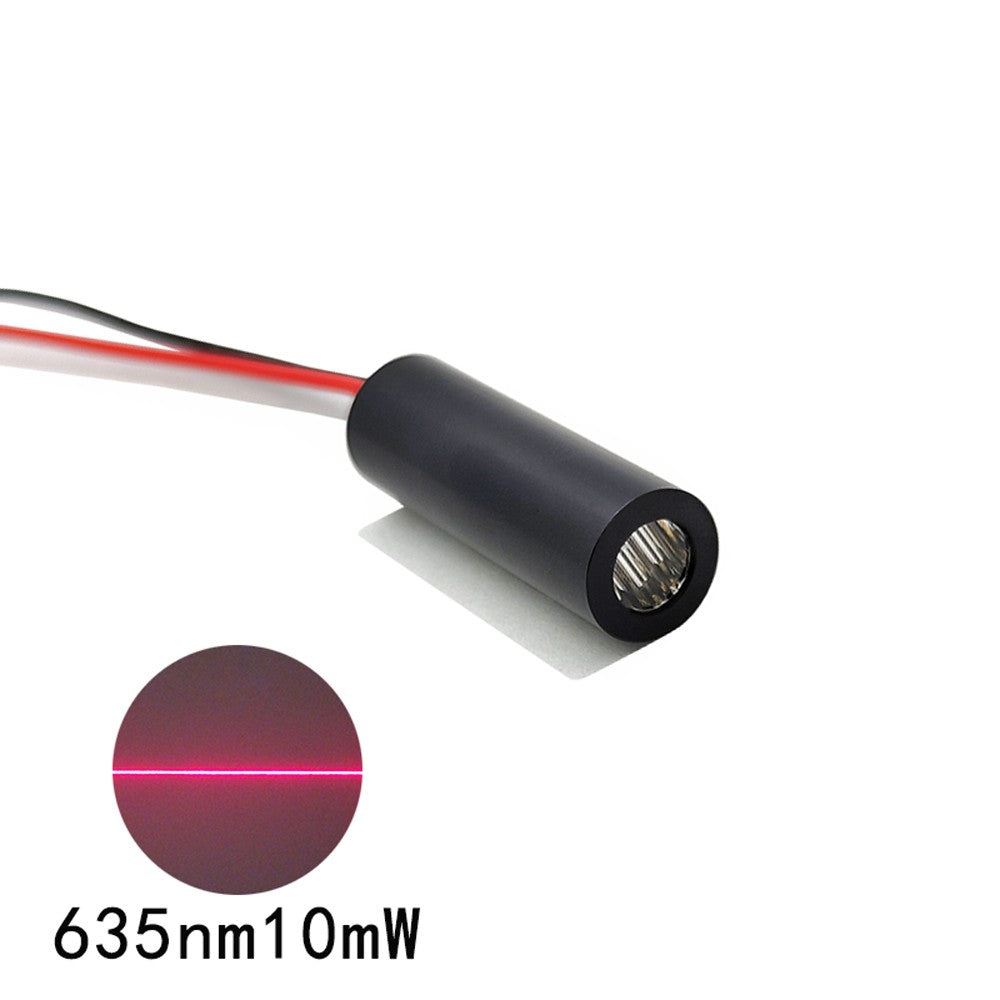

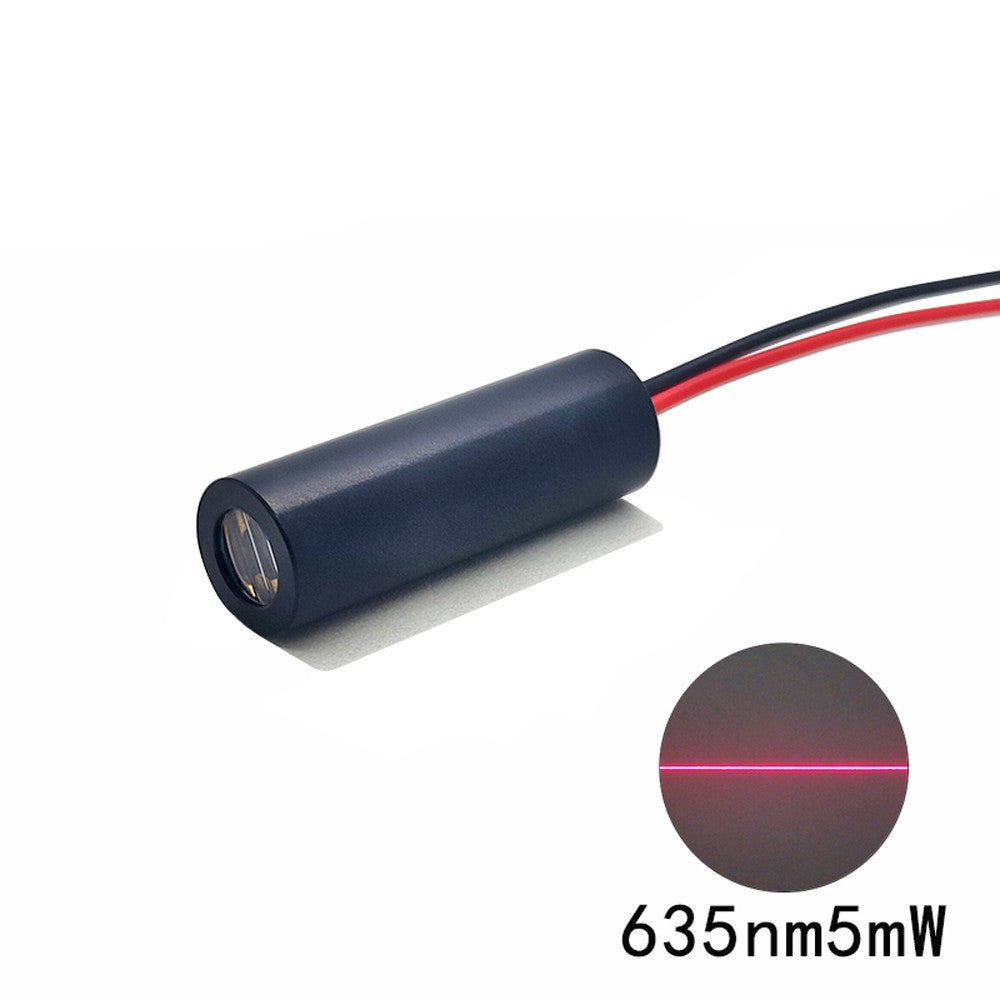

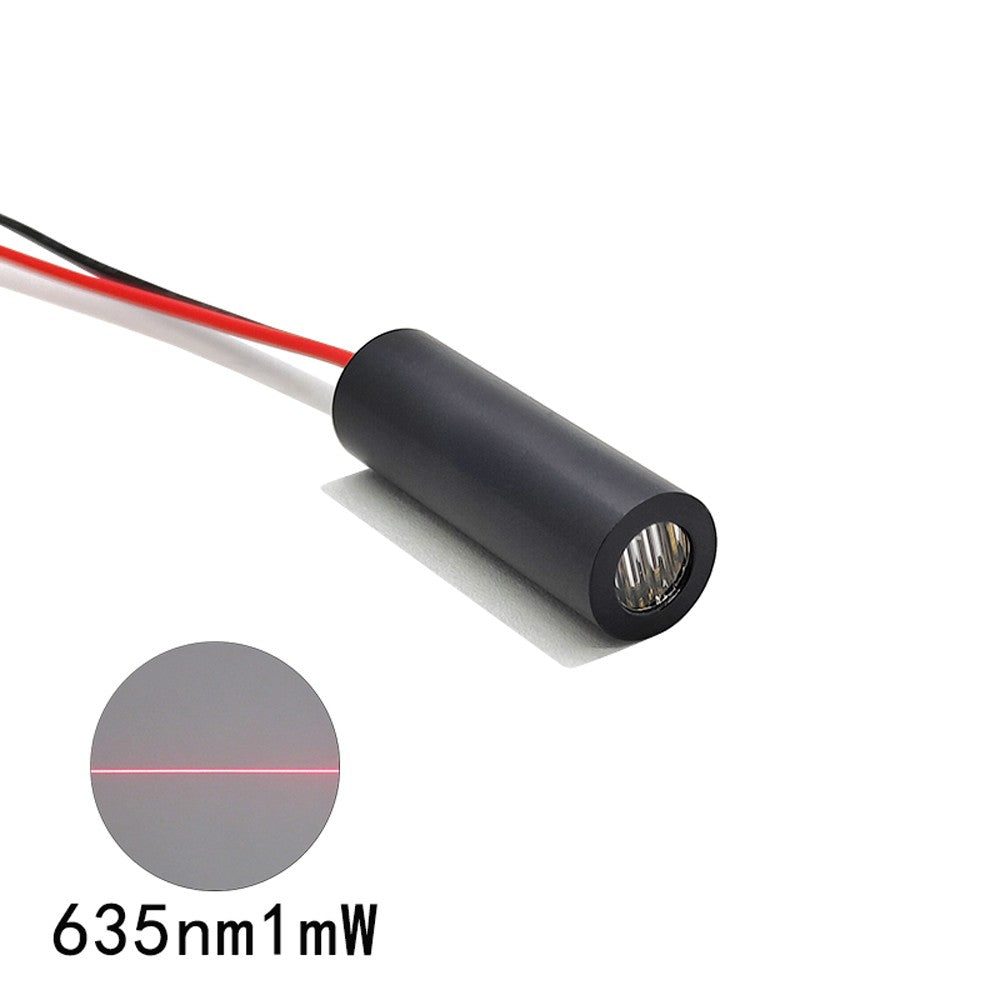

Φ 10X30mm 635nm 1mW 5mW 10mW Line Red Light Laser Module Marking Positioning Light
Φ 10X30mm 635nm 1mW 5mW 10mW Line Red Light Laser Module Marking Positioning Light
Regular price
$31.00
Regular price
$34.00
Sale price
$31.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Φ10X30mm 635nm 1mW 5mW 10mW Line Red Light Laser Module Marking Positioning Light
Specifications:
Size: 10X30mm
Material: Aviation aluminum (all metal shell)
Surface treatment/color: Black shell, surface insulation, oxidation mist black treatment
Wavelength: 635nm ± 10nm
Exit pupil power:<1mW,<5mW,<10mW (optional)
Range:<3 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Light panel size and shape: a straight line light shape, with a focal length of less than 1.5mm at 0.5m (conventional focal length of 0.5m)

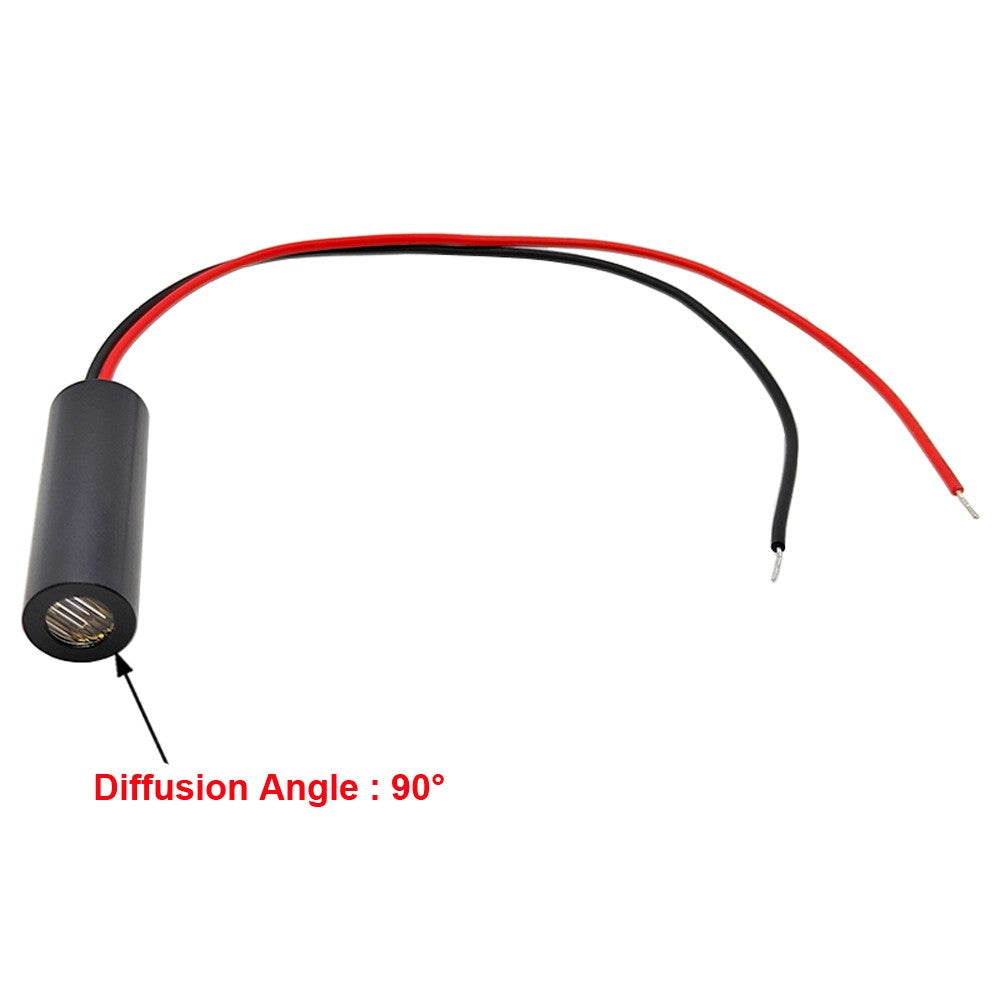

Light Diffusion Angle: 5 °, 15 °, 30 °, 45 °, 60 °, 90 °, 110 °, 130 ° (optional diffusion angle) default to 90 °
Focusing method: fixed focus
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current: 30mA (1mW),<50mA (5mW),<60mA (10mW)
Working temperature: -10C~+50C
Storage temperature: -20 ° C~+70 ° C
Service life: Continuous output/usage>10000 hours
Safety level: Class II (1mW), Class IIIA (5mW), Class IIIB (10mW)
