Diameter 10X22mm 635nm 0.4mW 1mW 5mW 20mW Dot Red Laser Module Laser Positioning Light
Specifications:

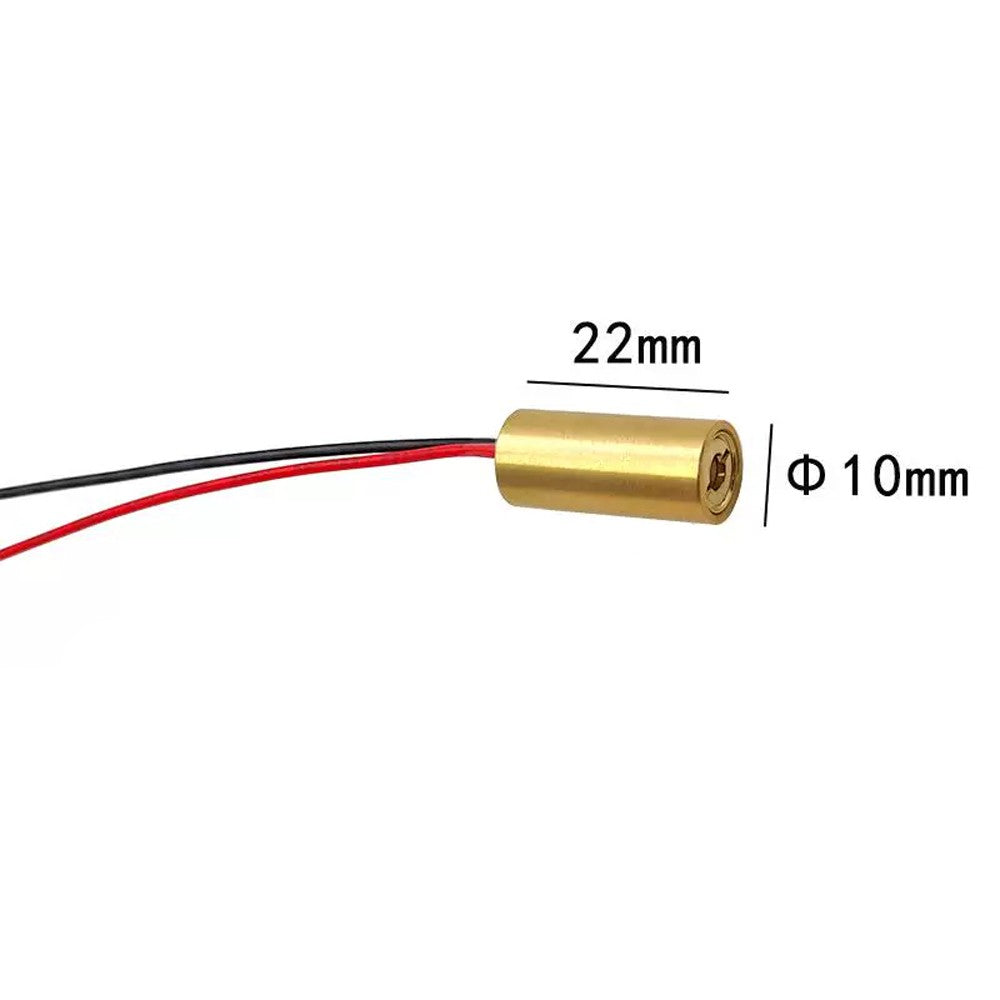

Size: 10X22mm
Material: Copper (all metal shell)
Surface treatment/color: brass shell (natural color)
Wavelength: 635nm ± 10nm
Exit pupil power:<0.4mW,<1mW,<5mW,<30mW (optional)
Range:<300 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)

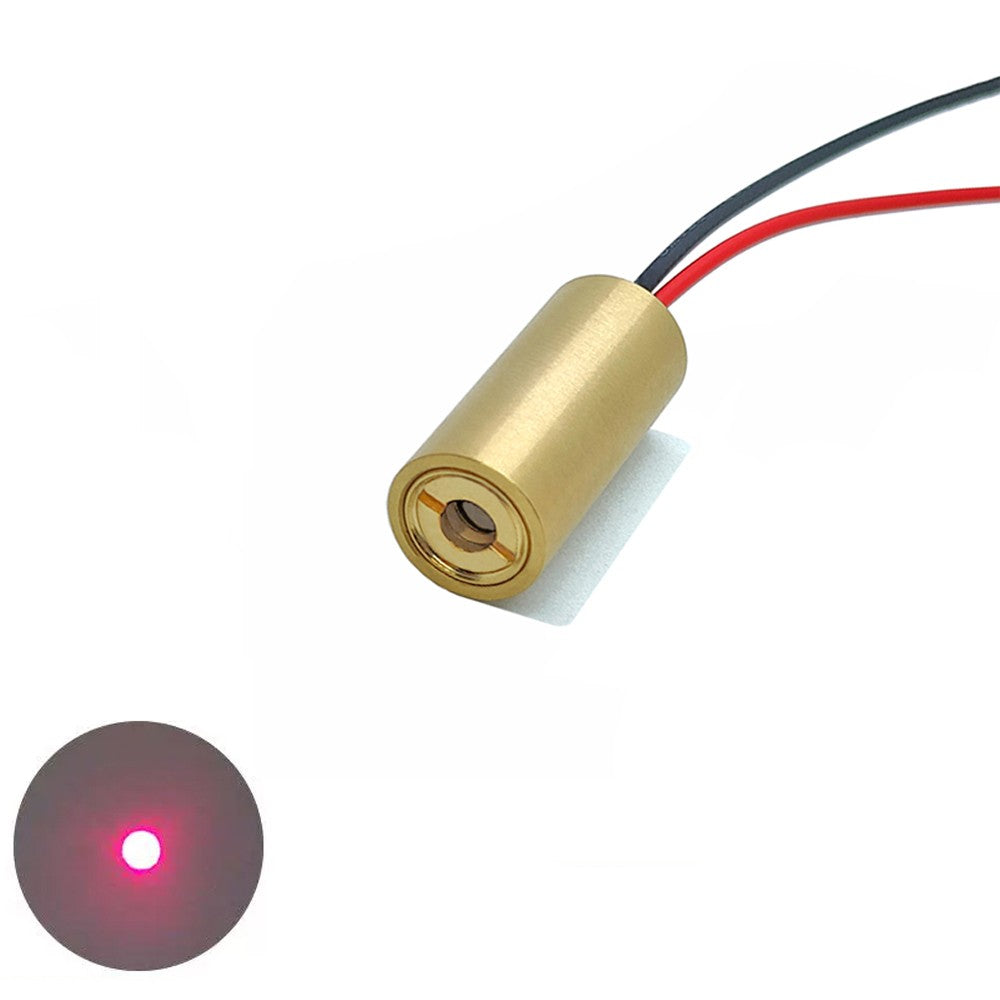

Spot shape and size: Point like light, elliptical,<12mm at 10 meters)
Focusing method: adjustable focus or fixed focus (optional, default adjustable focus)
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current:<25mA (0.4mW),<30mA (1mW),<35mA (5mW),<100mA (30mW)
Working temperature: -10C~+50C
Storage temperature: -20 ° C~+70 ° C
Service life: Continuous output/usage>10000 hours
Security level: Class I (0.4mW),Class II (1mW), Class IIIA (5mW),Class IIIB(30mW)
Packing:
1*Red Laser Module
