Φ12×50mm 650nm High Coaxiality Glass Lens Red Laser Module | 0.4mW /1mW /5mW /20-100mW Industrial Positioning Laser Locator

$36.00

~~$40.00~~ $36.00

Sale Sold out

Shipping calculated at checkout.

Options 0.4mW 1mW 5mW 20mW 30mW 50mW 80mW 100mW

Quantity

Φ12×50mm 650nm High Coaxial Red Dot Laser Module | 20mW~100mW CLASS 3B Industrial Positioning Laser Emitter

Constructed with sturdy aviation aluminum full metal casing with matte black insulating oxidation finish, paired with high-quality A-grade glass fixed-focus lens and mature ACC constant current circuit design. Our red laser dot delivers stable luminous output, high coaxial precision and ultra-long service life, supporting up to 1100 meters indoor effective working distance for all kinds of industrial positioning and calibration jobs.

Outstanding Product Strengths

🔹 Aviation aluminum housing: fast heat dissipation, corrosion resistant, insulated surface for safer operation
🔹 Top-tier A-grade glass lens: neat elliptical dot spot, stable focusing effect
🔹 ACC constant current circuit: anti-current fluctuation, protect laser diode for longer service life
🔹 Multiple optional power grades cover low to high brightness working requirements
🔹 10000+ hours continuous service life, durable for long-cycle industrial work
🔹 15cm 26# red-black wire, simple and quick wiring installation

Full Technical Specs

Specifications	Details

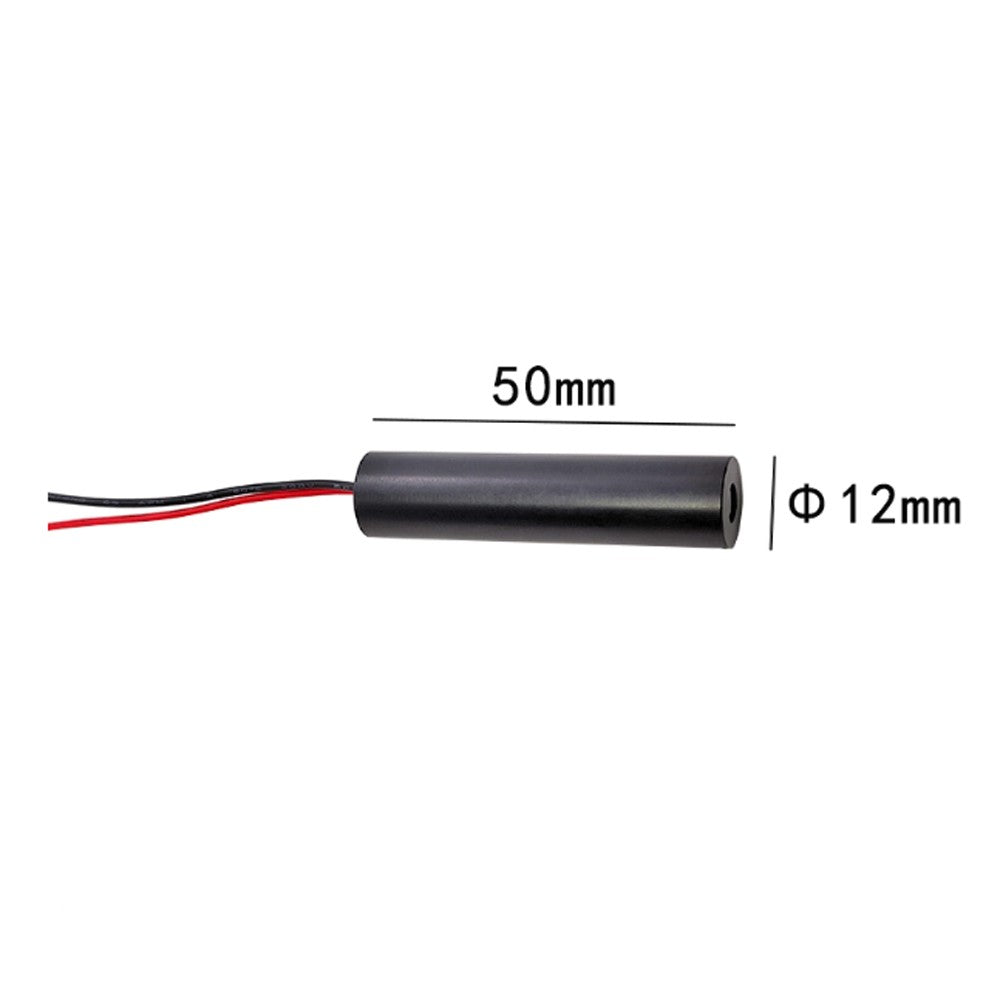

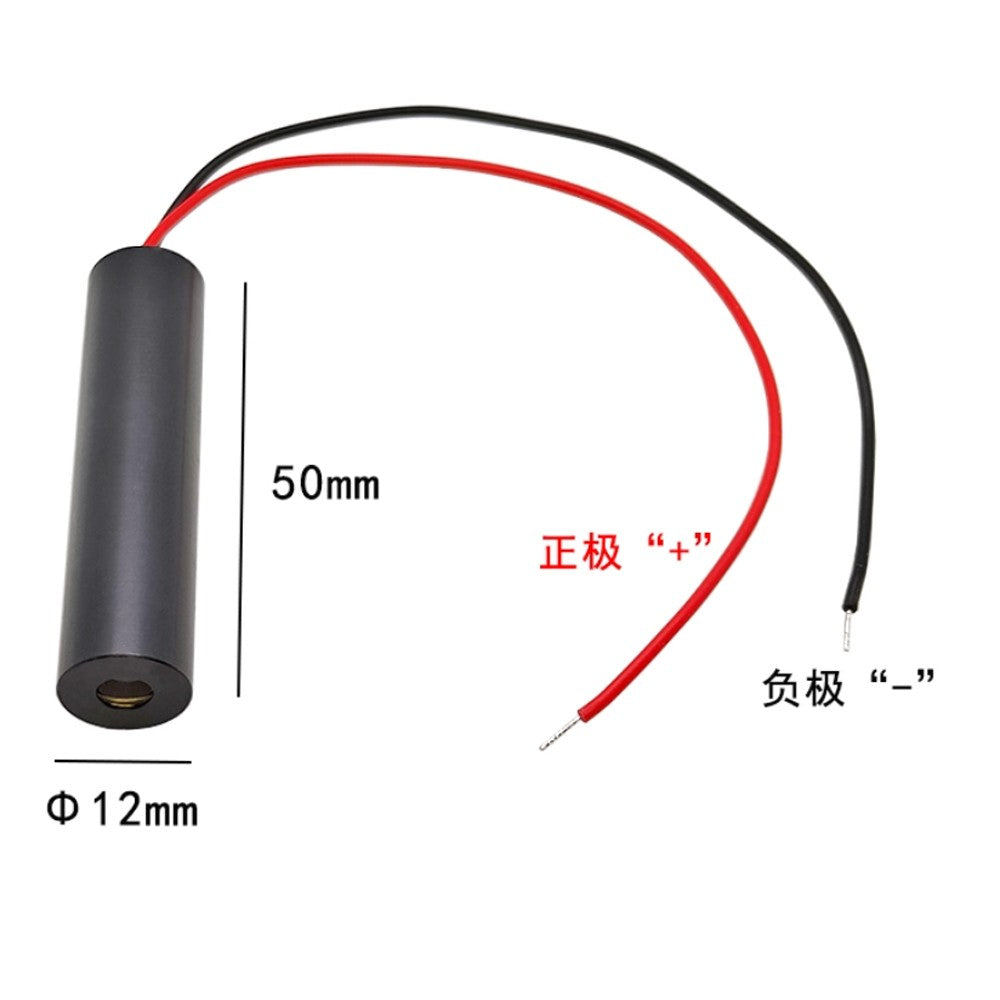

Size	Diameter 12mm × Length 50mm
Housing	Aviation Aluminum, Matte Black Oxidation & Insulation Treatment

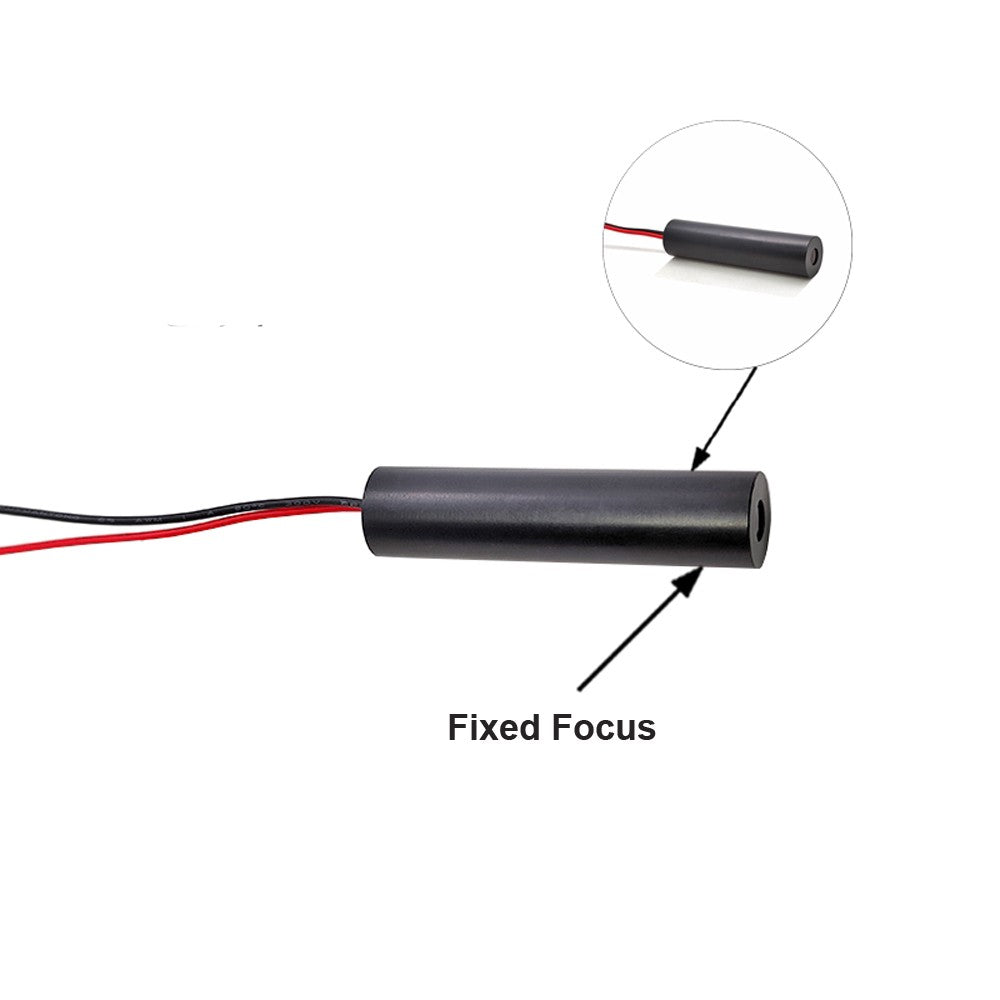

Lens	A-Grade High Quality Glass, Fixed Focus
Central Wavelength	650nm ±10nm Red Laser
Selectable Power	20mW / 30mW / 50mW / 80mW / 100mW
Max Indoor Projection Distance	1100 Meters (subject to ambient light conditions)

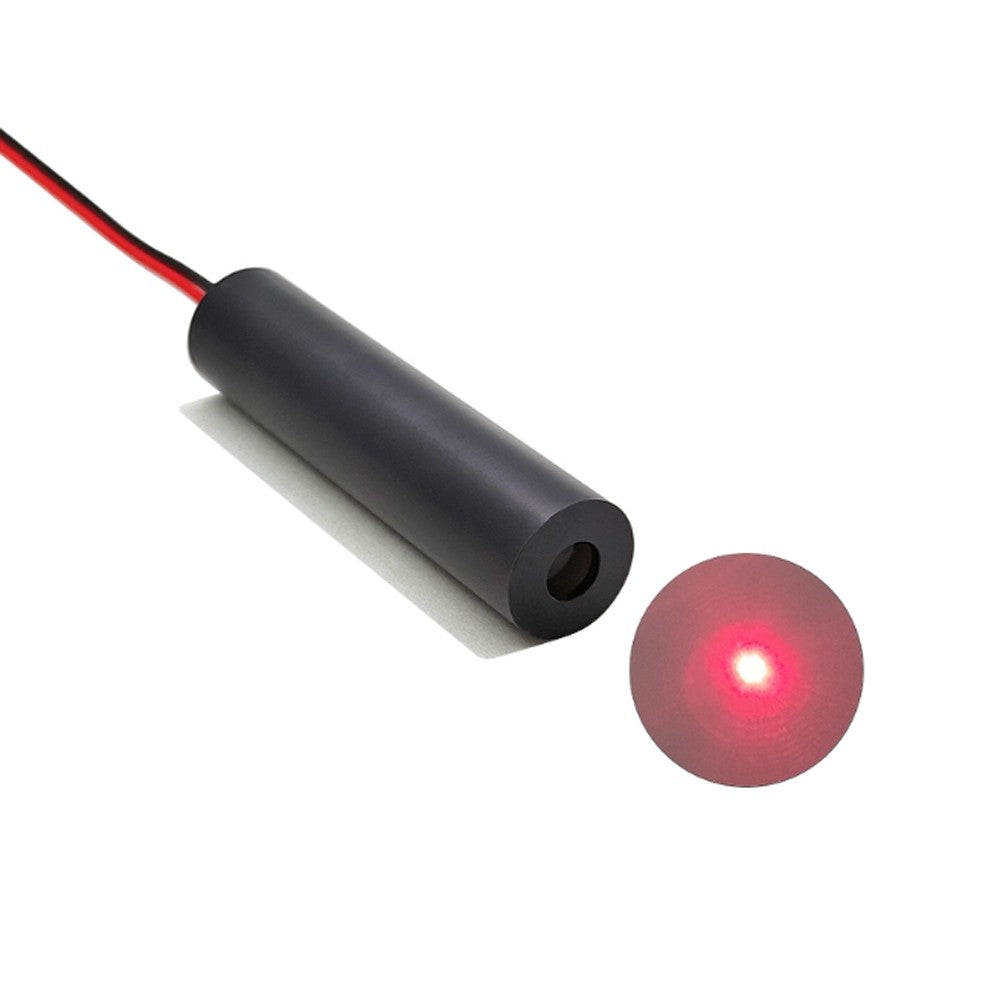

Dot Parameter	Elliptical dot, 6mm spot at 10m distance
Control Circuit	ACC Constant Current Circuit
Input Voltage	DC 2.8V – 5.2V
Working Current	Max 100mA~180mA (depends on power)
Operating Temp	-30℃ ~ +50℃
Storage Temp	-20℃ ~ +70℃
Service Life	≥10000 Hours Continuous Use

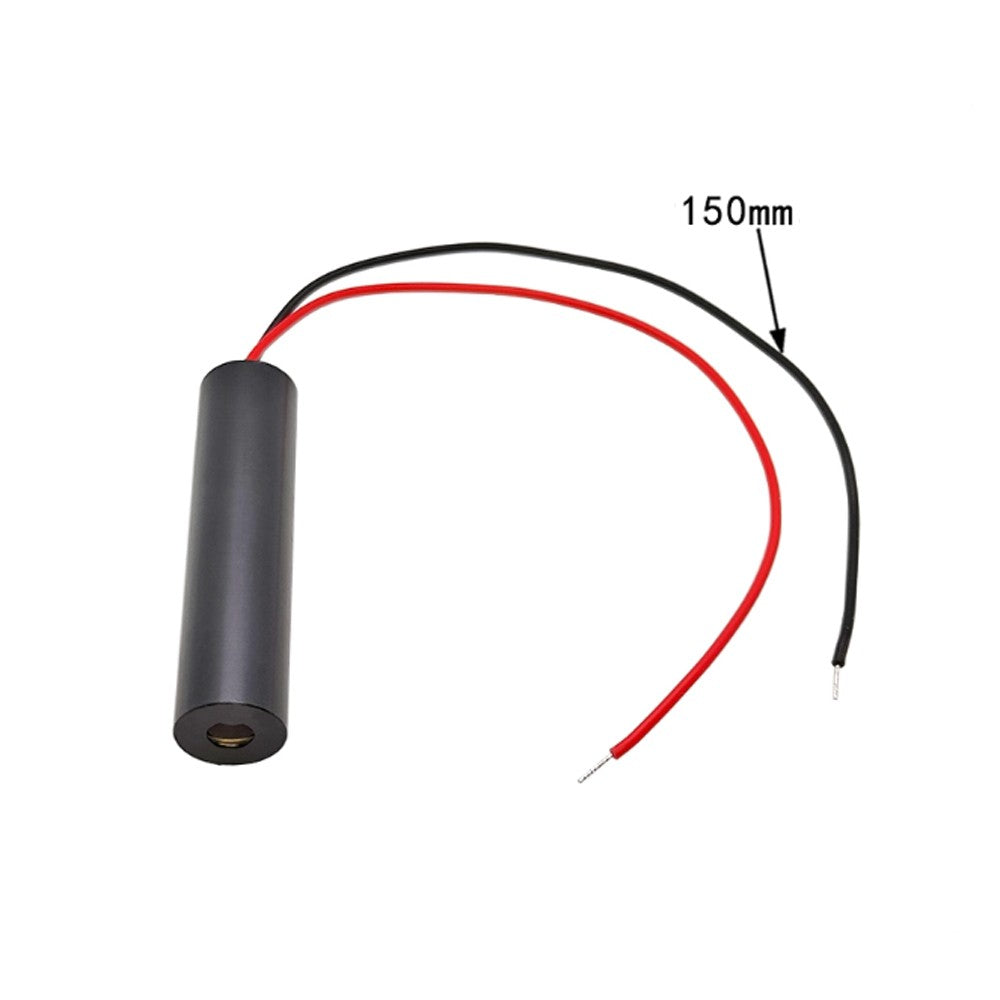

Lead Wire	26AWG Red & Black Cable, 15cm Length
Laser Safety Grade	Class I -Class 3B

Application Fields

Industrial precision positioning, mechanical equipment calibration, long-distance indication marking, assembly line alignment, construction measurement layout, stone & woodworking machinery positioning, laboratory optical experiments, automation equipment auxiliary locator.

Safety Notice

CLASS 3B laser radiation is harmful to human eyes. Avoid eye exposure to laser beam at all times.
Laser protective eyewear is mandatory for long time use of high power 50/80/100mW laser modules.
Do not apply voltage outside the rated 2.8~5.2VDC to prevent module burnout.
Not a toy, prohibited for minors to operate without professional guidance.
