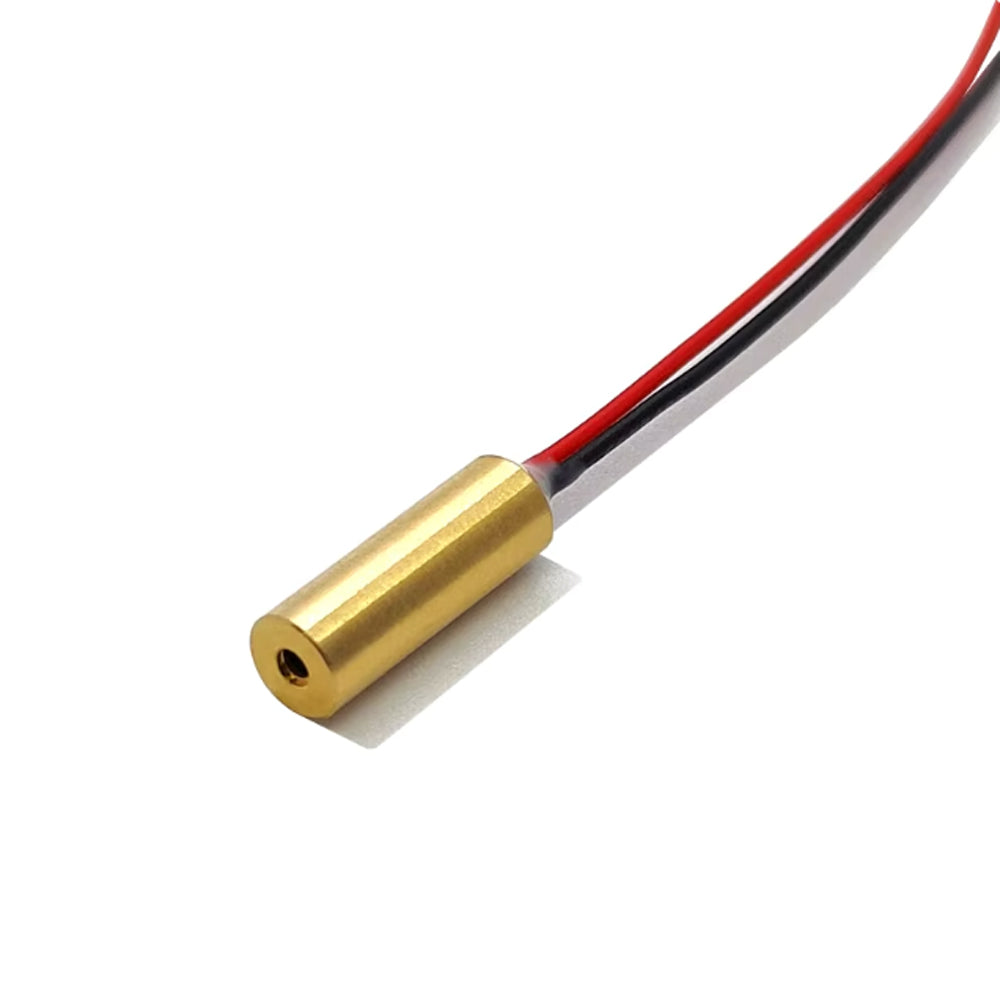

Φ5X14mm 850nm 5mW 10mW Infrared Light Fixed Focus Laser Module Positioning
Specifications:

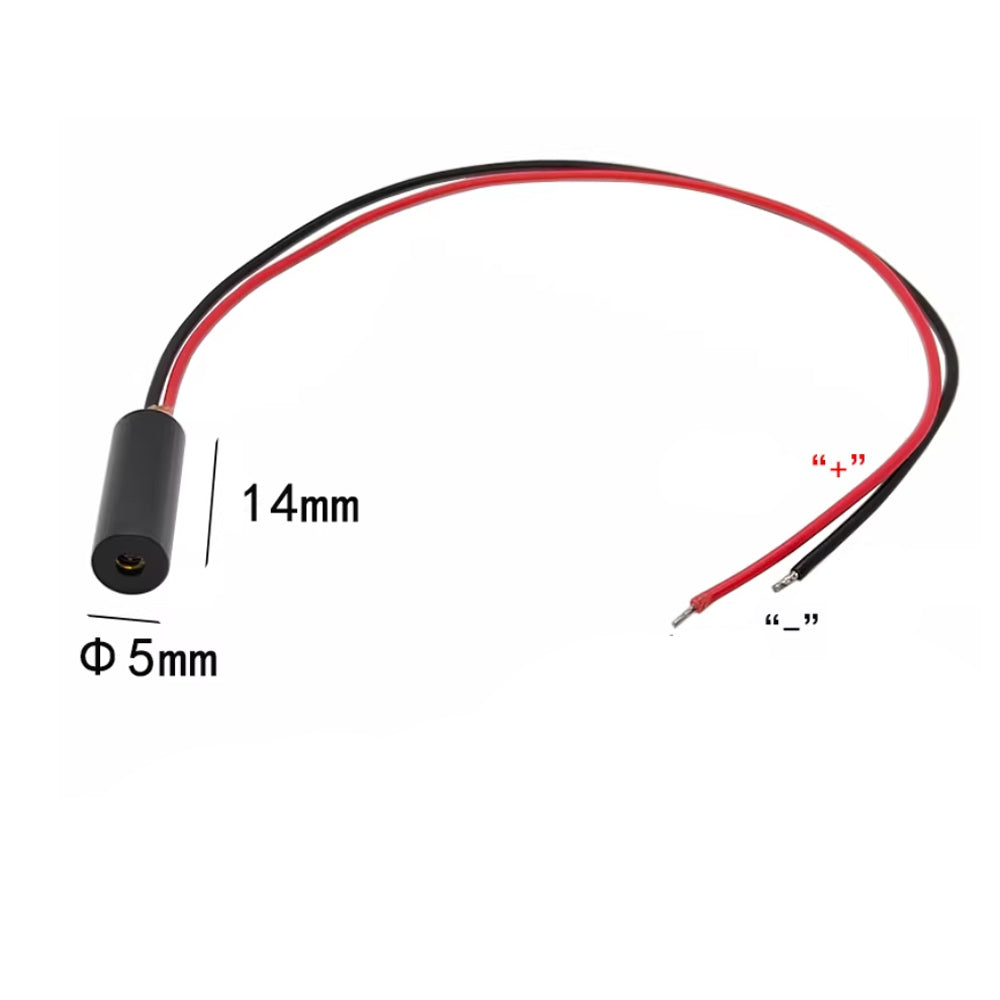

Size: Φ5X14mm
Material: Copper/Aviation Aluminum (Full Metal Shell)
Surface treatment/color: Brass shell (natural color)/black shell, surface insulation, oxidation mist black treatment
Wavelength: 850nm ± 10nm
Exit pupil power:<5mW，< 10mW
Range:Dot：<200 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)

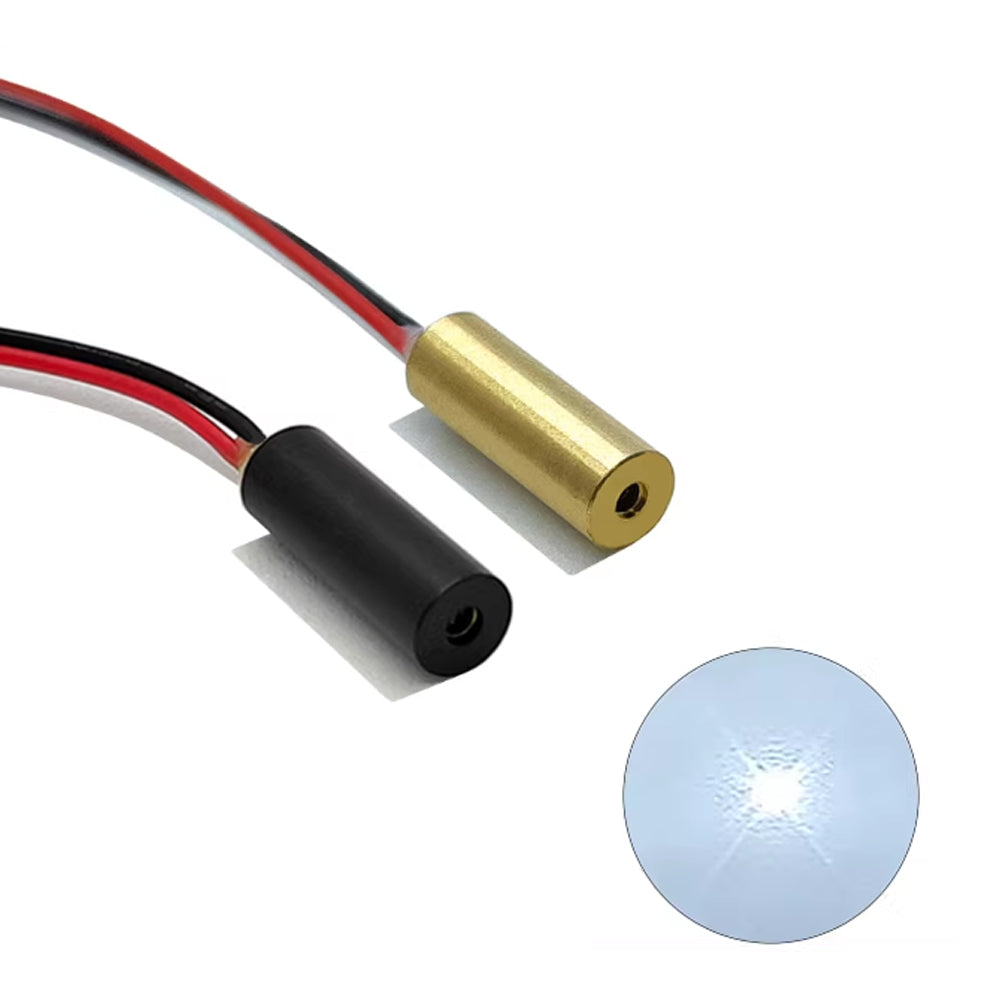

Spot shape and size: Dot, elliptical light
Focusing method: Fixed focus
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current:<30mA(5mW)，<40mA(10mW)
Working temperature:- 10℃~+50℃
Storage temperature:- 20℃~+70C
Service life: Continuous output>10000 hours
Tail wire: 28 # red and black electronic wire, approximately 15cm long
Security level: Class IIA(5mW)，Class IIIB(10mW)
Package：
1x Φ5X14mm 850nm 5mW 10mW Infrared Light Fixed Focus Laser Module Positioning
