Φ6X21mm 635nm 1mW 5mW 10mW Red Light Laser Module Laser Emitter Dot Positioning Light
Specifications:

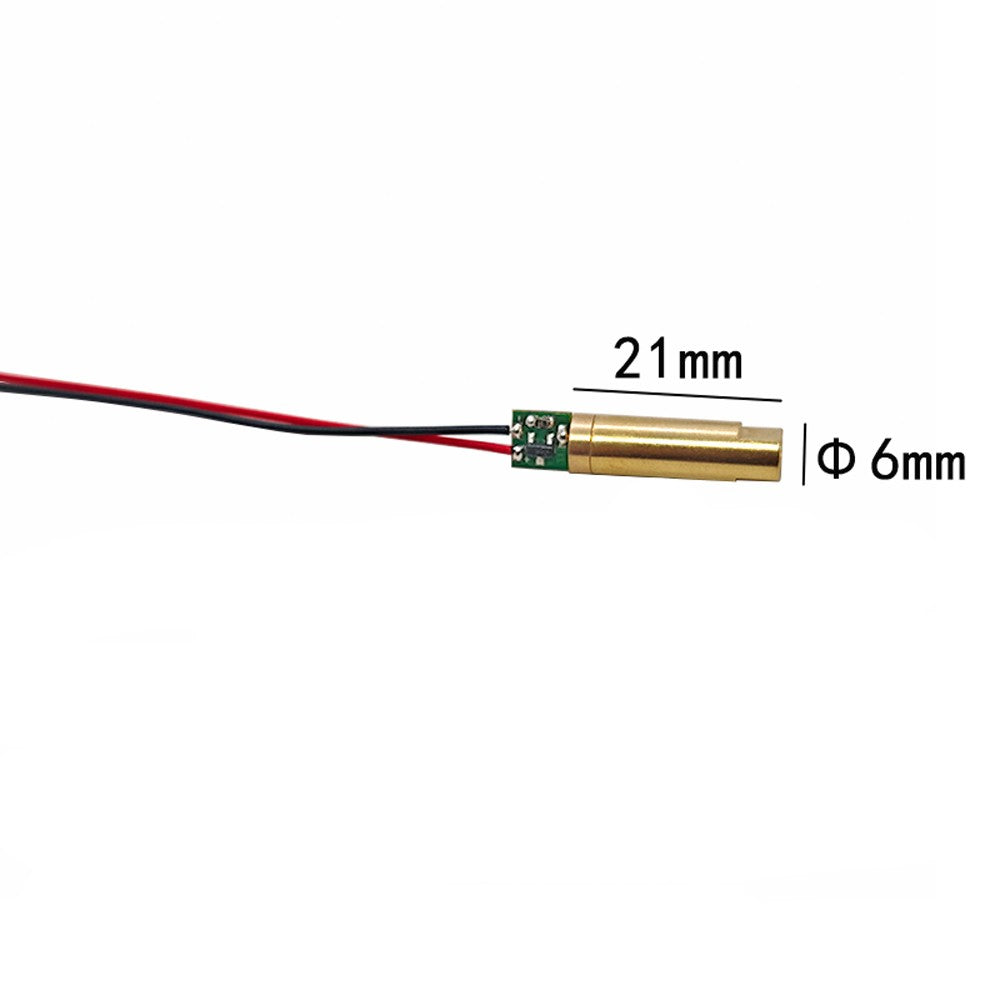

Size: 6X21mm
Material: Copper (all metal shell)
Surface treatment/color: brass shell (natural color)
Wavelength: 635nm ± 10nm
Exit pupil power:<0.4mW,<1mW,<5mW,<10mW
Range:<200 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Spot shape and size: Point like light, elliptical,<12mm at 10 meters)
Focusing method: adjustable focus or fixed focus (optional, default adjustable focus)
Circuit control: APC circuit
Working voltage: 2.8~5.2VDC
Working current:<30mA (1mW),<50mA (5mW),<70mA (30mW)
Working temperature: -10C~+50C
Storage temperature: -20 ° C~+70 ° C
Service life: Continuous output/usage>10000 hours
Security level: Class I (0.4mW), Class II (1mW), Class IIIA (5mW),Class IIIB(30mW)
Usage:
Can be used for industrial laser positioning, sights, laser flashlights, instrument equipment, medical equipment (healthcare)
Instrument, military, anti-counterfeiting security, stage lighting, tools, USB flash drive, mobile phone, projection teaching page turning pen eta.
