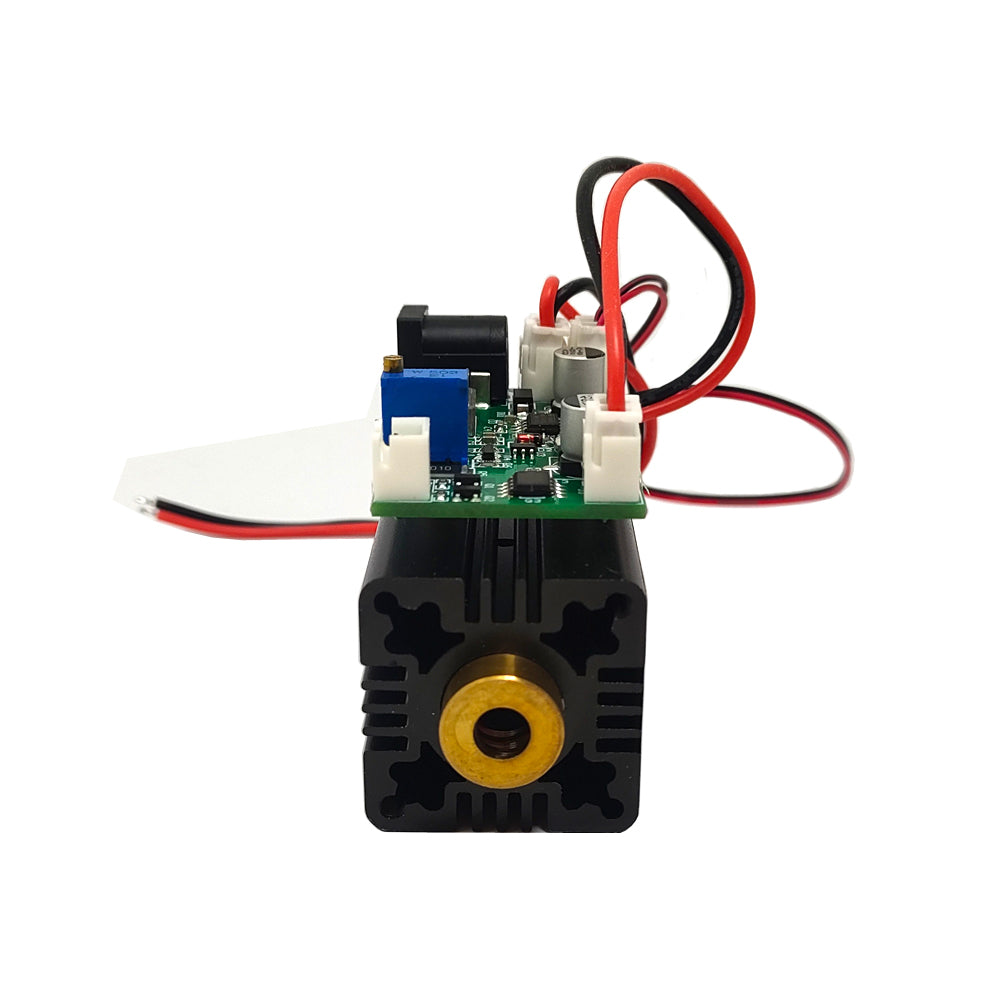

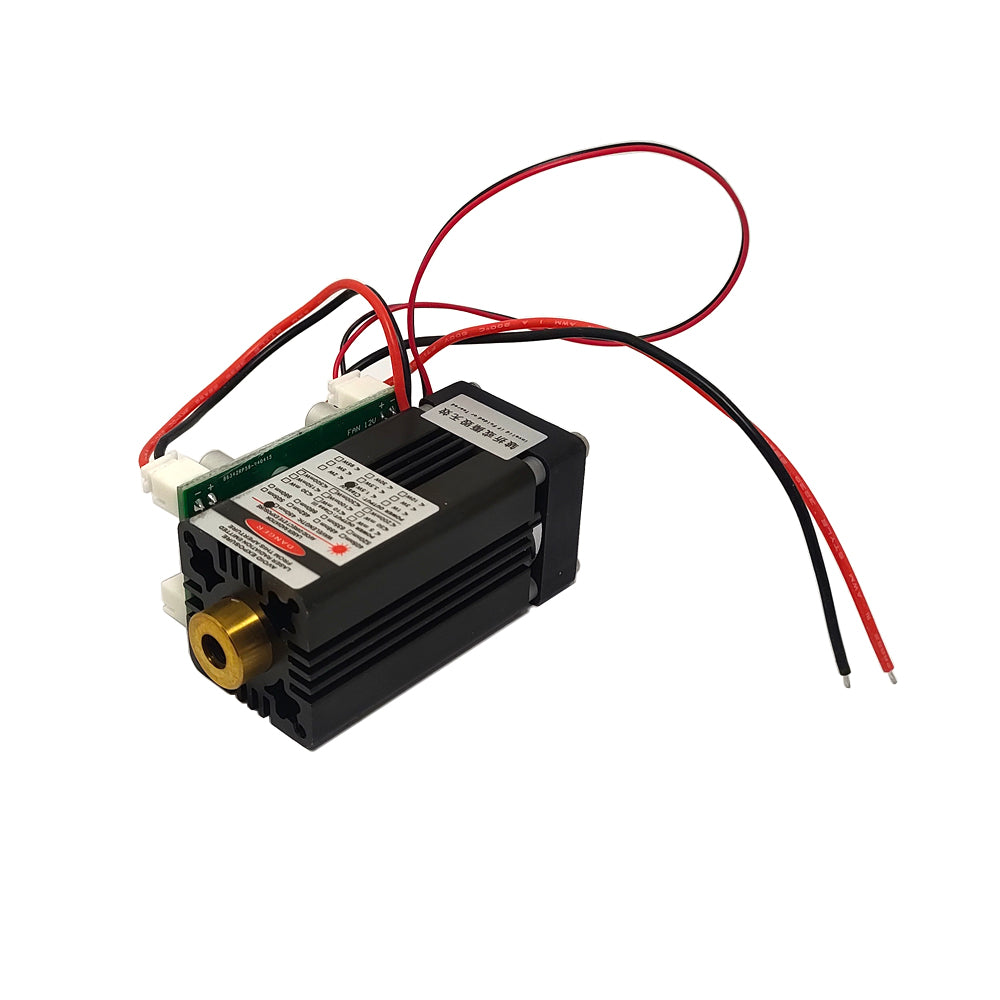

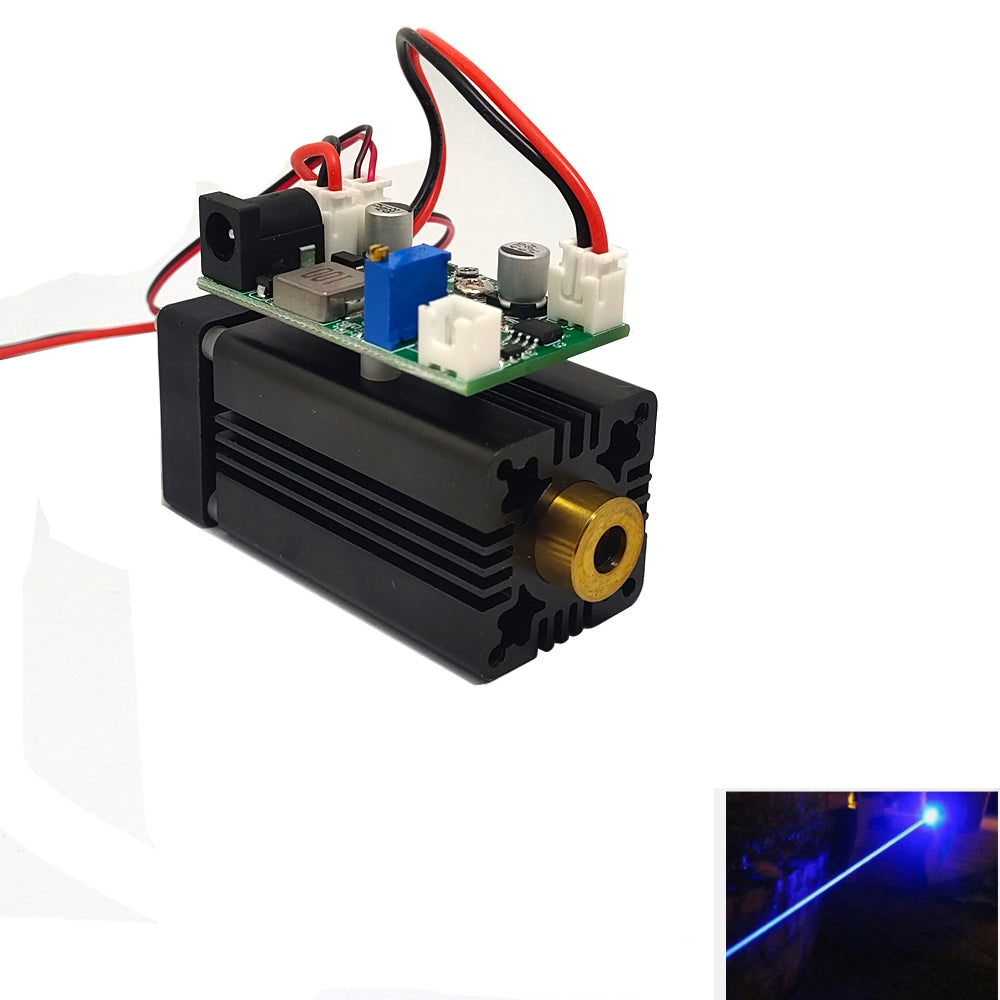

1.5W 1500mw 445nm 447nm 450nm Blue Laser Diode Module 12V TTL Fan Cooling

Name: 1.5W 1500mw 445nm 447nm 450nm Blue Laser Diode Module 12V TTL Fan Cooling
Brand: lillyelectronics
SKU: 450MD-1*5W-12V-XL
Price: 114.00 CAD
Availability: InStock

$114.00

~~$137.00~~ $114.00

Sale Sold out

Shipping calculated at checkout.

Quantity

1.5W 445nm 447nm 450nm Blue Laser Dot Module 12V+ TTL+ Fan Cooling

Specification:
Laser head size: 69mmx30mmx30mm

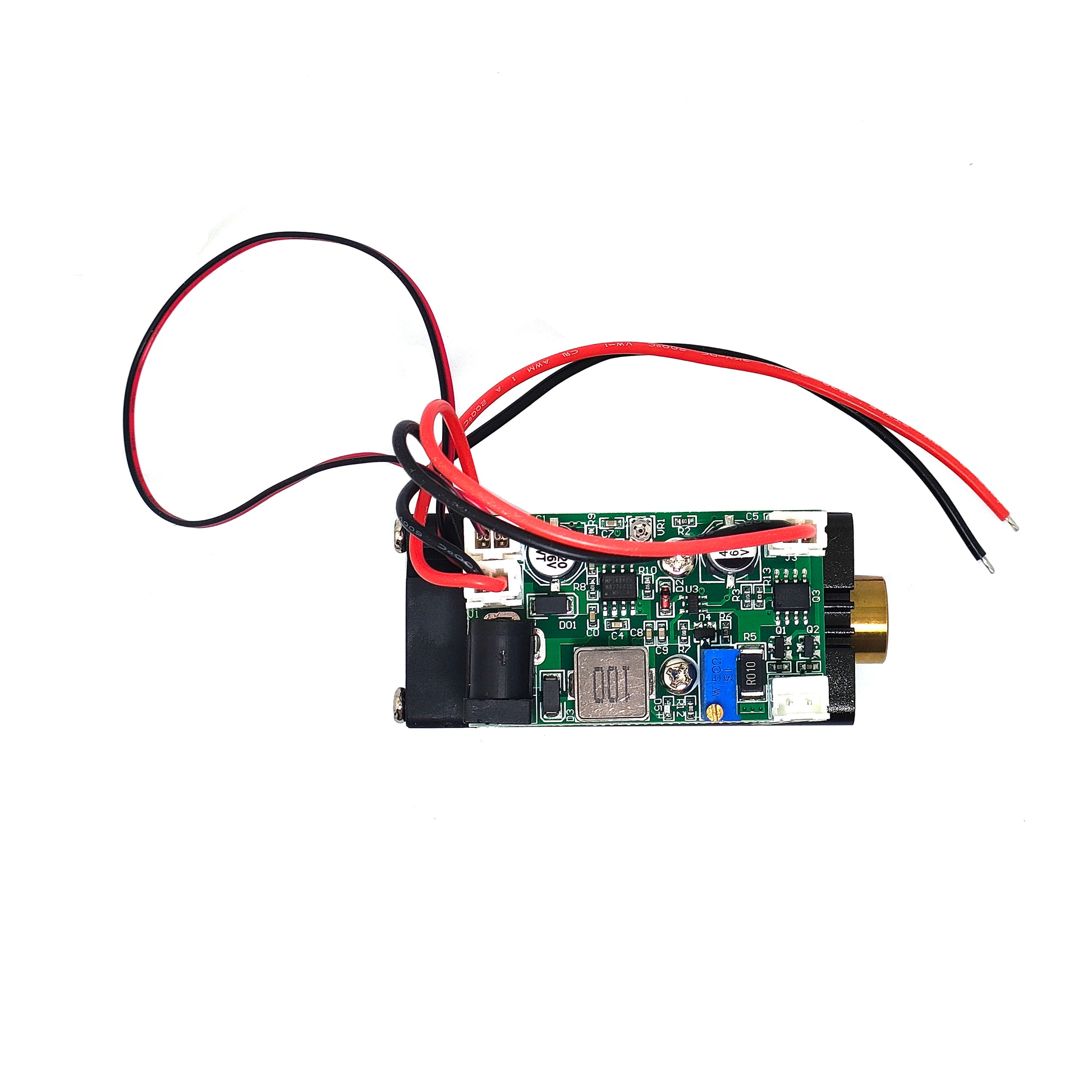

Circuit Board size: 71.5mmx35.5mmx16mm
Wavelength: 445 nm/447nm/450nm
Output power: 1.5W
LD PL_TB450
Modulation frequency: TTL modulation
Operation Method: continuous work

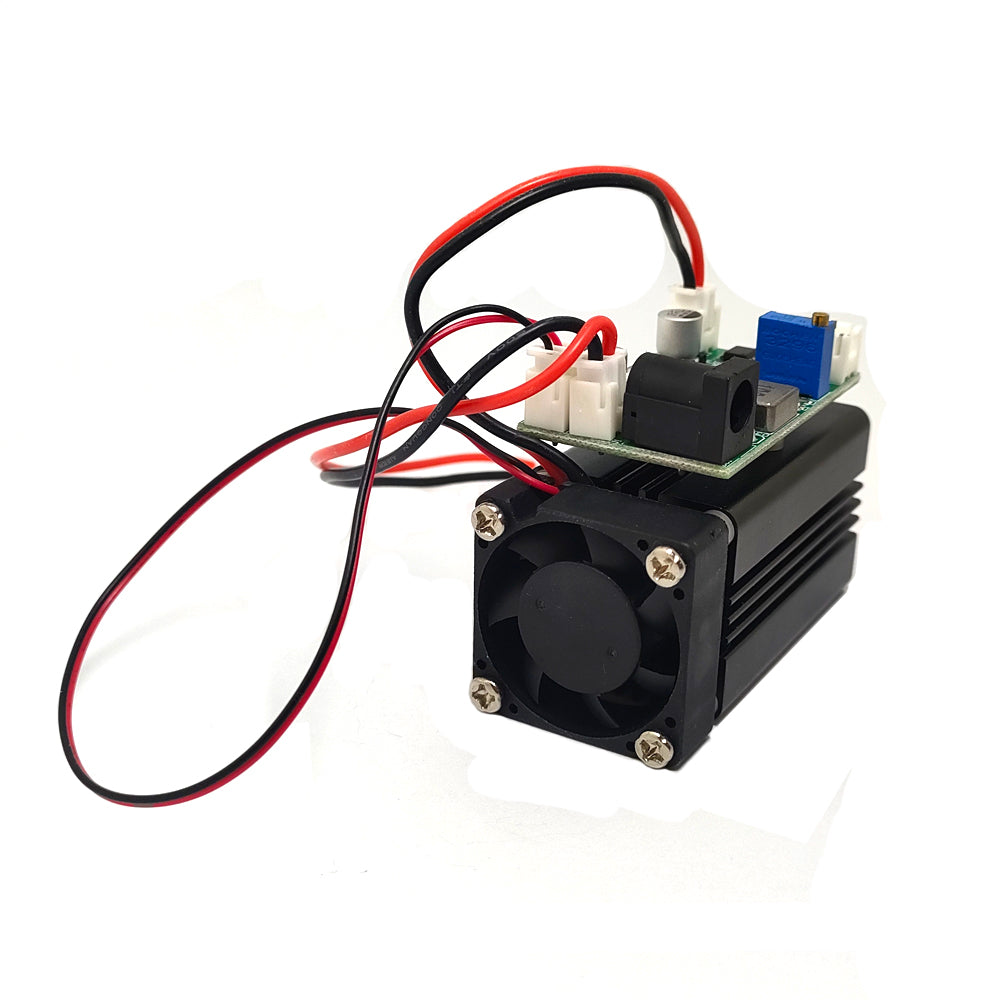

Cooling Method: Fan Cooliing
Finish Color: Blue
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Operating Current: I <1.6A
Warm-up time: None
Operating Temperature: -10 ~ +40 degree
Storage temperature: -10 ~ +40 degree

Warning:
The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us.
Please protect your eyes before 450nm Blue ray.
This laser module brings TTL modulation, can work long time, is really industry laser module.

Package:
1 x Industrial 445nm 447nm 450nm 1.5w Blue Laser Dot Module 12V+ TTL+Fan Cooling- Long-time Working
