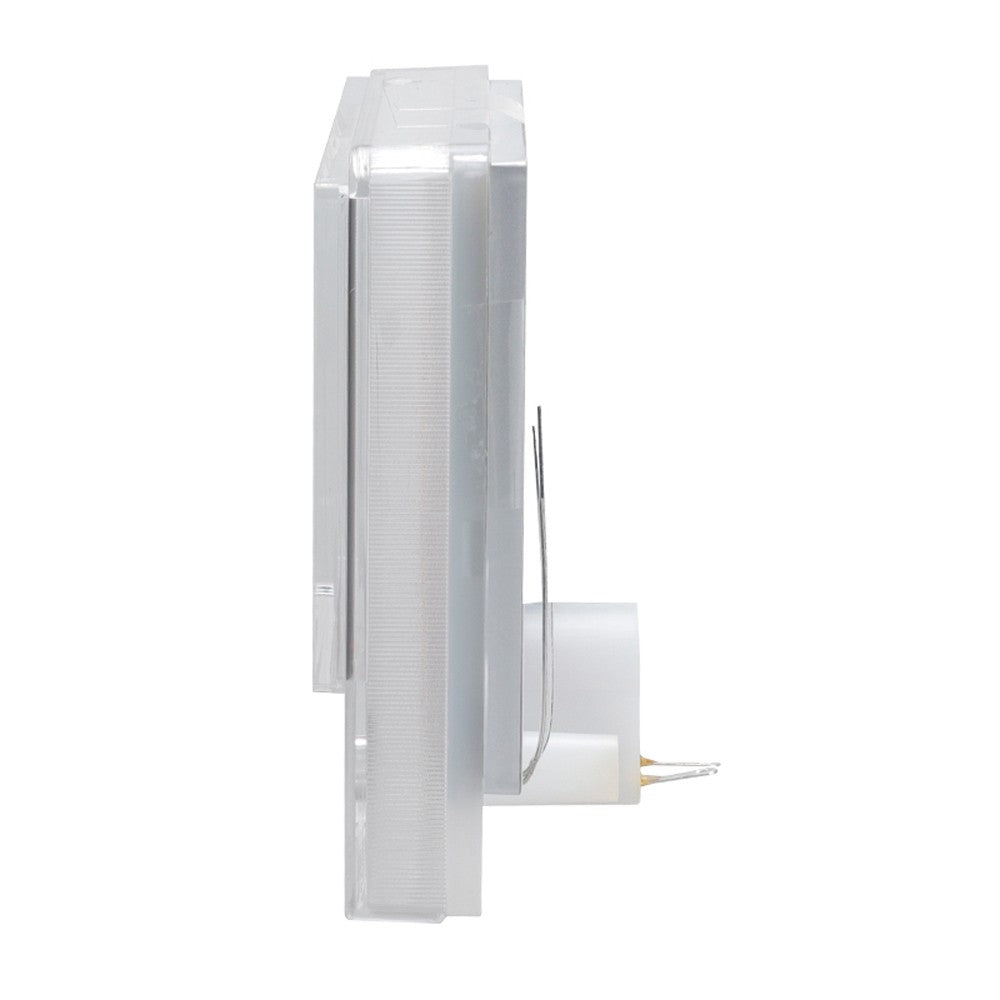

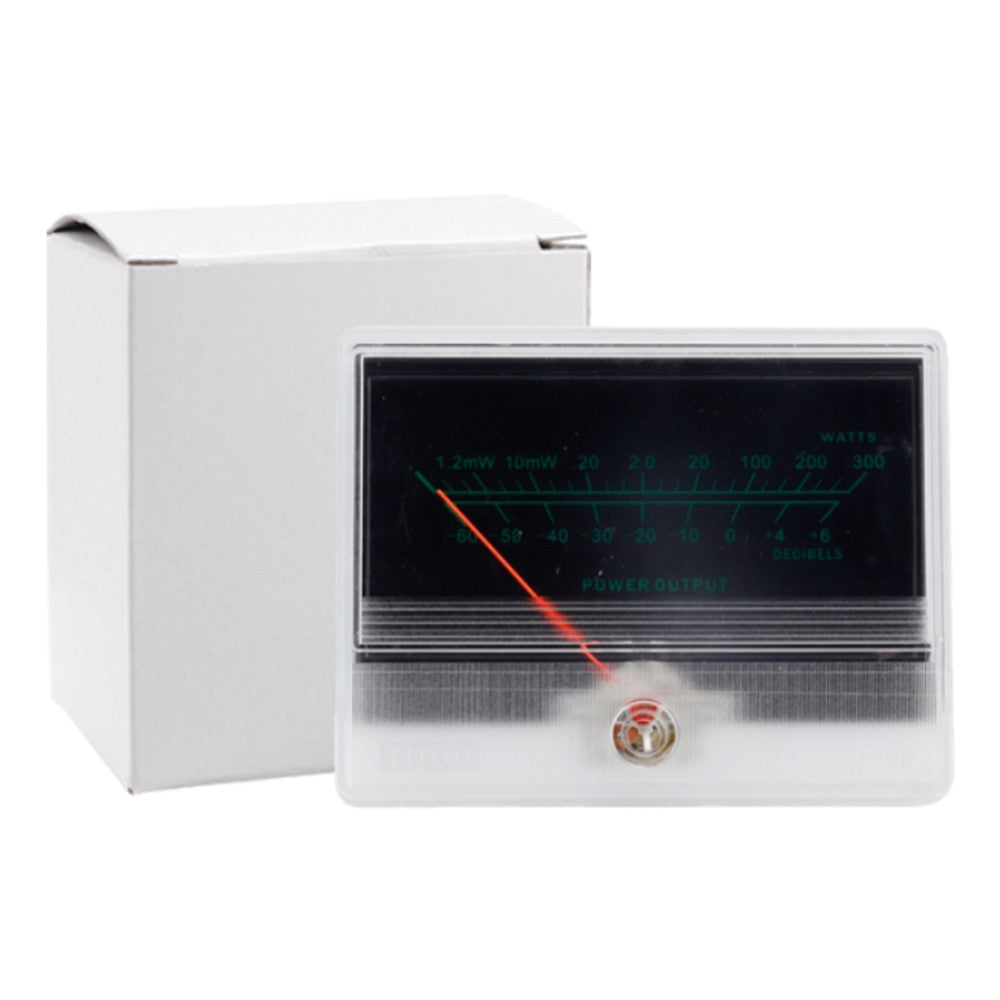

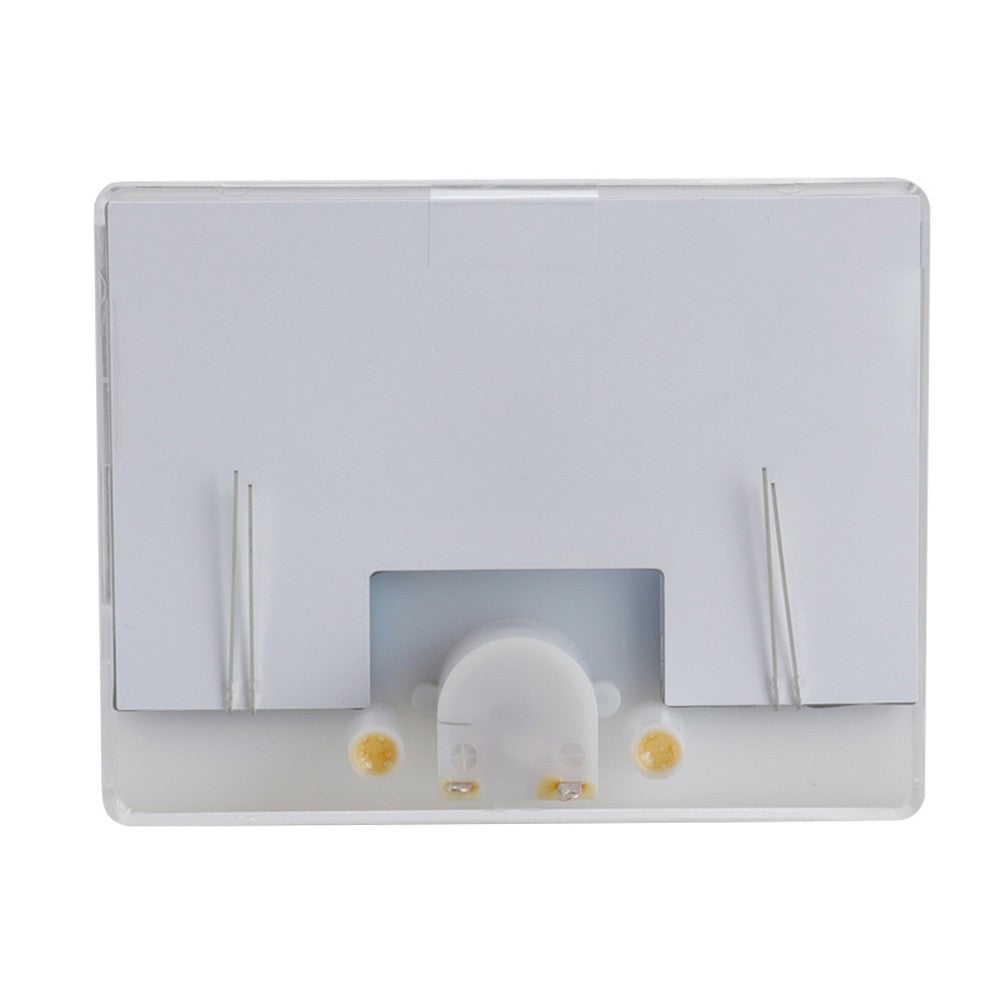

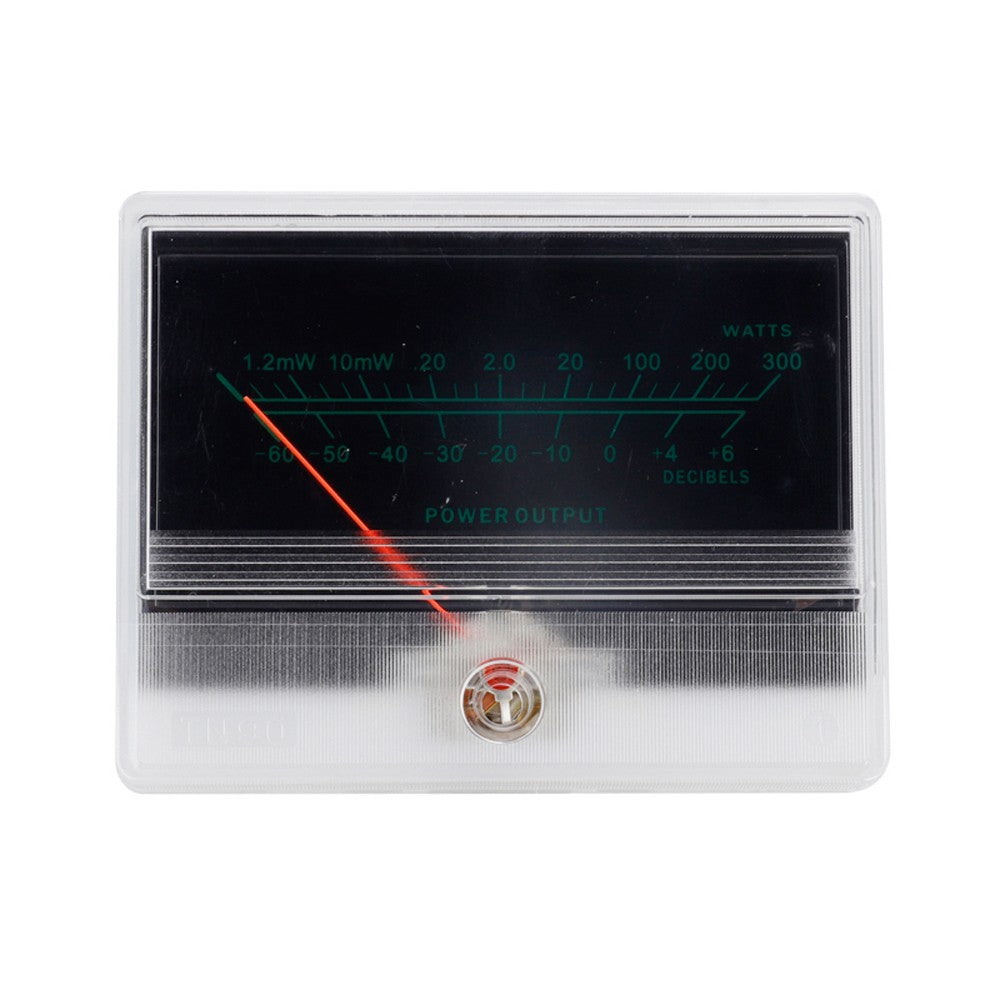

3V 20mA 1000uA 650Ω Audio Volume Meter With Backlight Pointer Digital Power Meter VU Level Meter
Specifications:
Surface structure: movable coil type
Pointer material: Zinc foil copper
Pointer color: red
Pointer length: 44 (± 1mm)
Pointer width: 0.45 (± 0.05mm)
Pointer deflection direction: It rotates clockwise from left to right.
Upper cover material: PMMA
Lower cover material: PS
Framework material: SPCC
Excitation coil material: Aluminum nickel cobalt sintered magnet
Electricity meter usage position: vertical use
Backlight: 3V 20mA
Maximum current sensitivity: 1000uA ± 10%
Internal DC impedance of the meter head: 650 Ω ± 10%
Friction error: ± 1mm
Balance error: ± 1mm
Insulation strength: above 50M Ω
Package: 1x VU level meter
