100mW 532nm Green Fat Beam Laser Module 12–15mm with TTL 0–20kHz, 12V DC

Product Overview

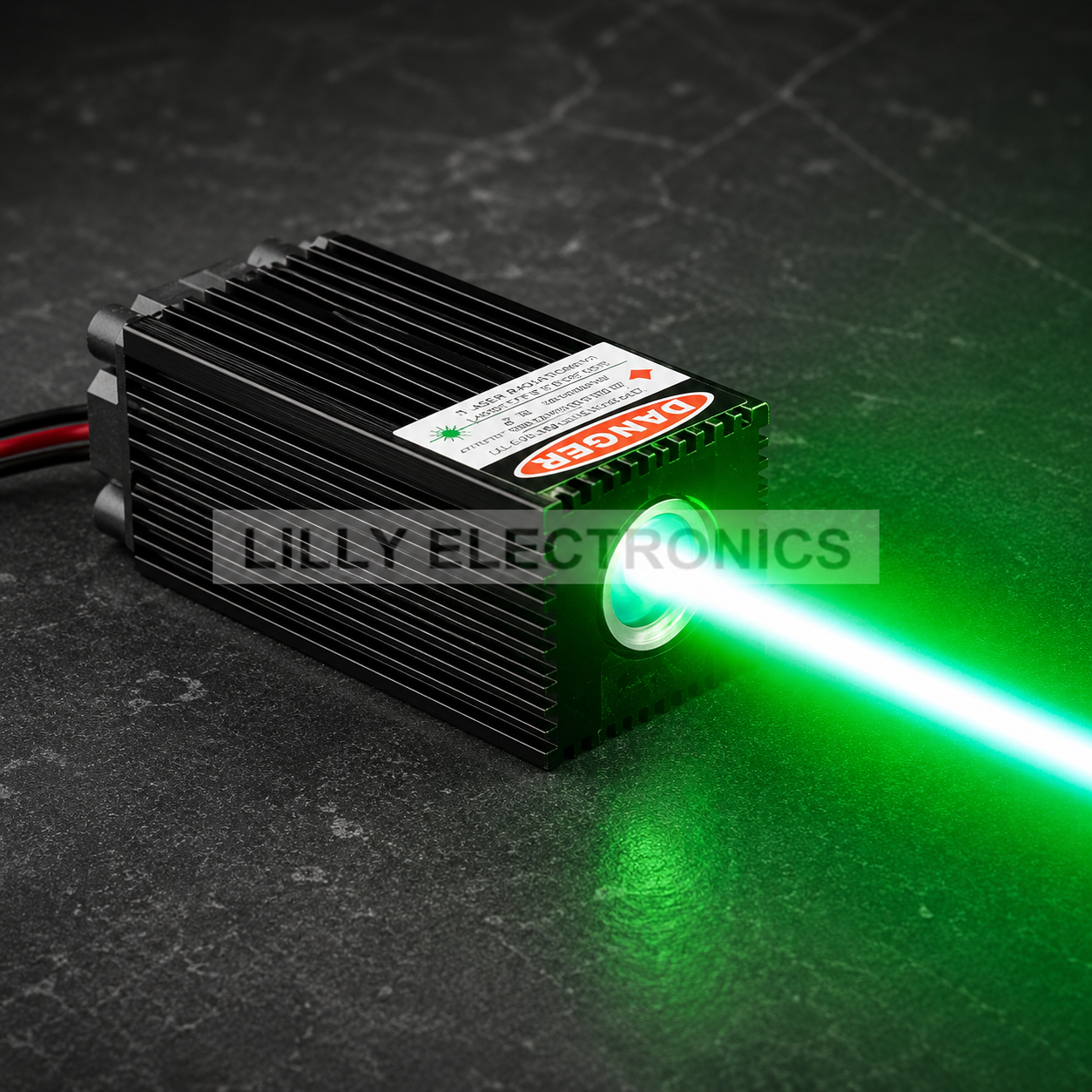

This 100mW 532nm green fat beam laser module produces a bright, highly visible green beam with an approximate 12–15mm beam diameter. Designed for laser show equipment, stage lighting, optical experiments, research projects, and compatible custom laser systems, the module combines strong visible output with convenient external control.

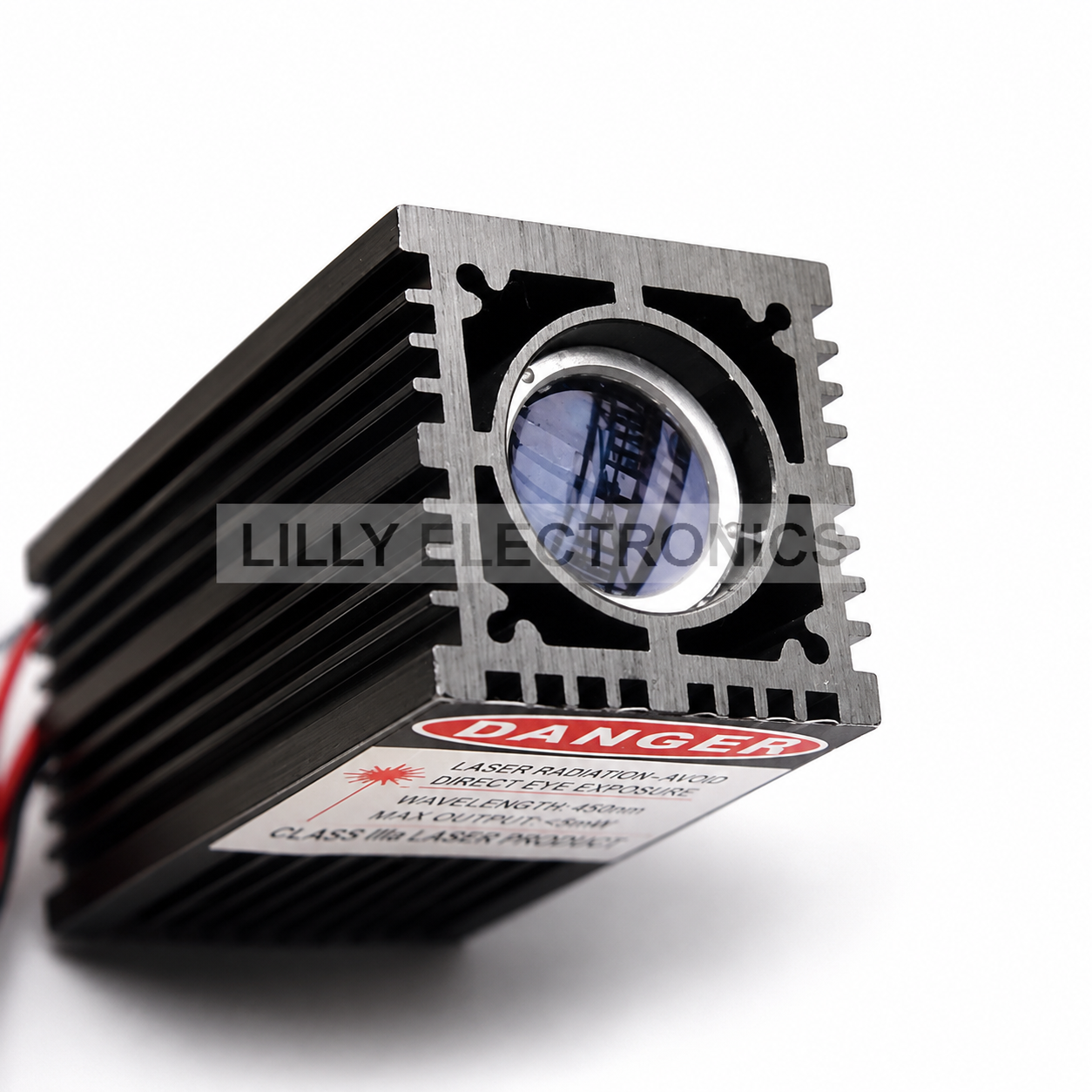

Operating from a 12V DC power source, the module supports both CW operation and 0–20kHz TTL modulation, making it suitable for applications requiring external switching or modulation control. A glass optical lens and compact aluminum housing provide a practical solution for integration into compatible optical and laser equipment.

Key Features

• 532nm green laser with 100mW optical output

• 12–15mm fat beam for a large, highly visible green beam

• 12V DC operating voltage

• 0–20kHz TTL modulation for external control

• Supports CW or TTL-controlled operation

• High-quality glass optical lens

• Compact 35 × 35 × 80mm module design

• Rated working life of more than 5,000 hours

• Suitable for laser show, optical, research, and equipment-integration applications

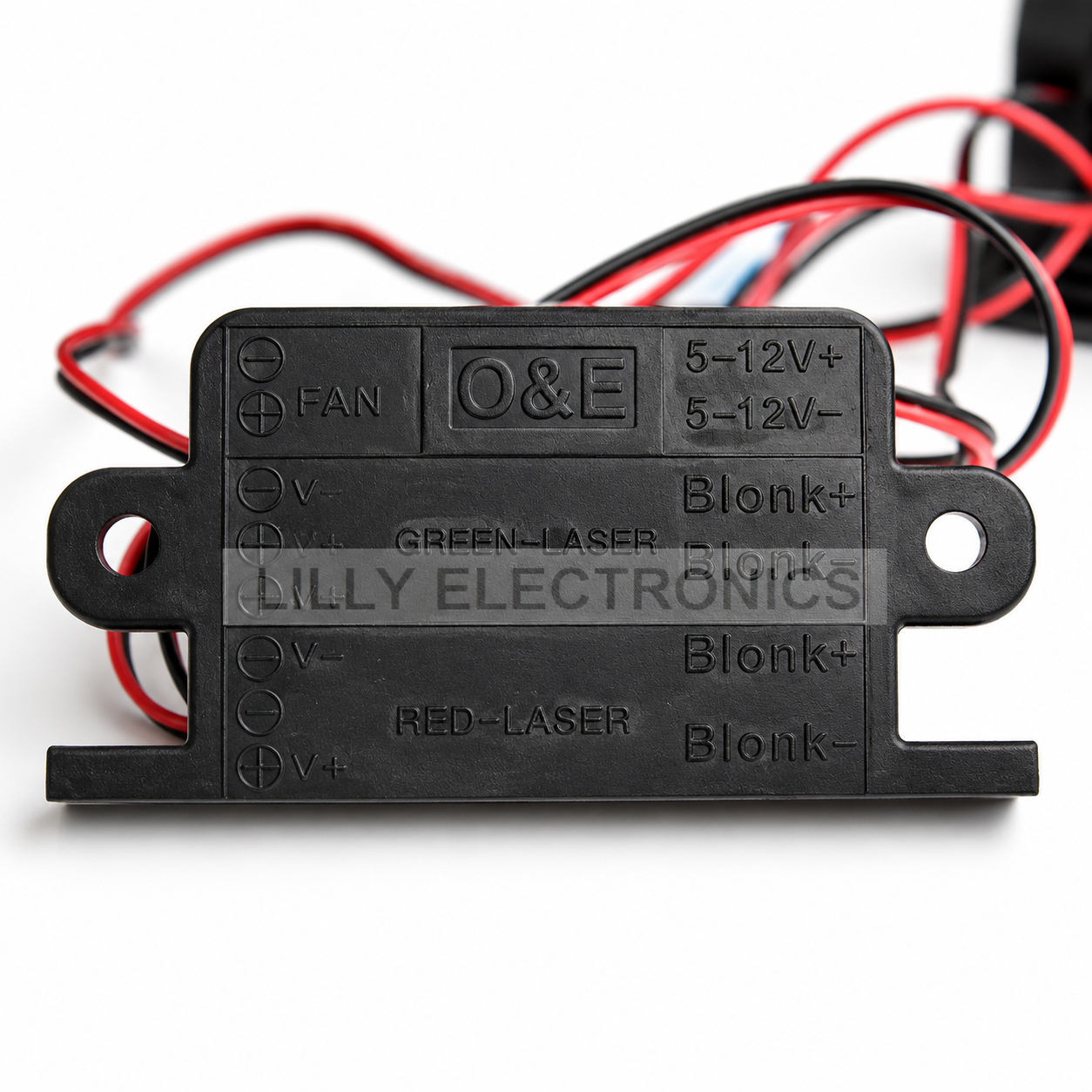

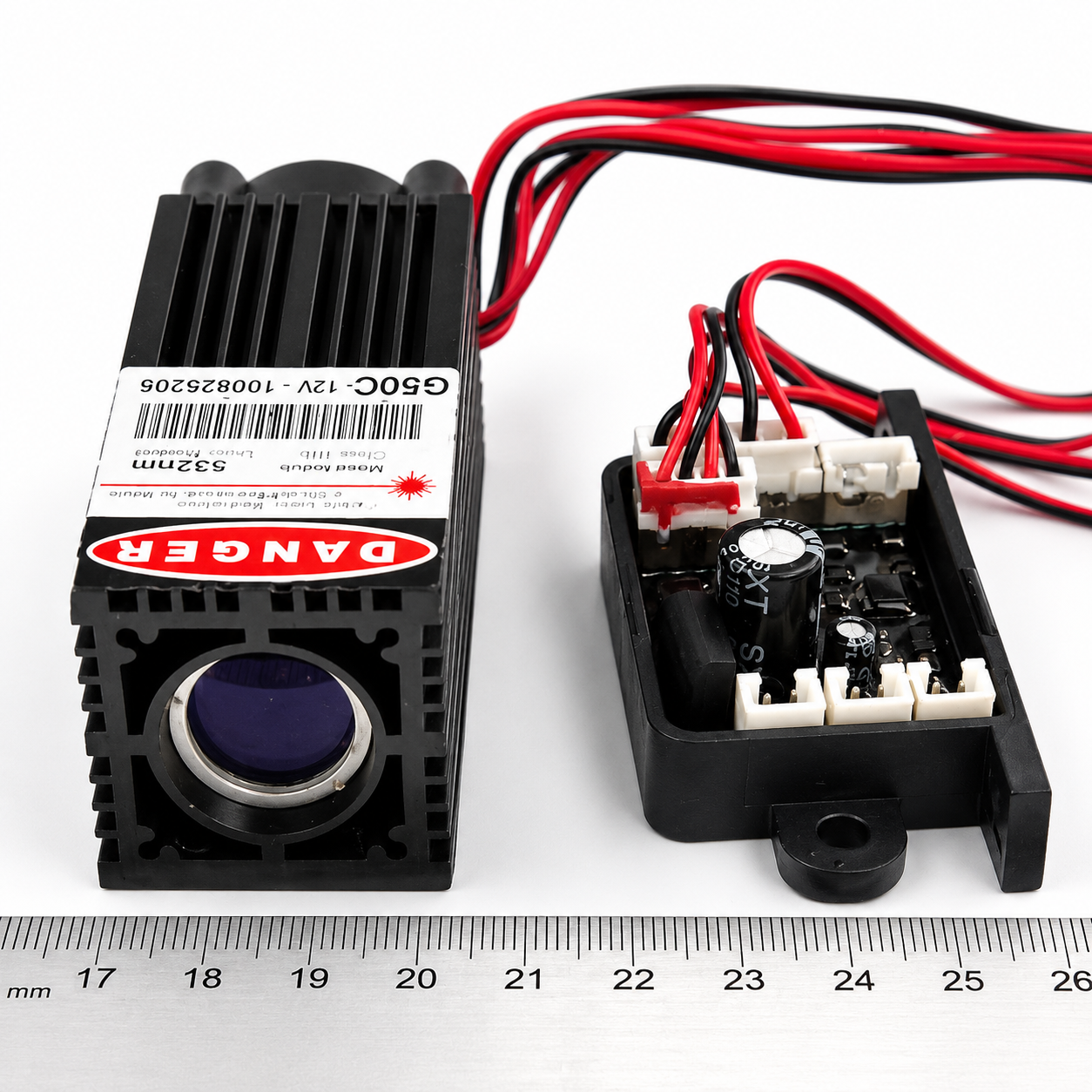

• Integrated driver electronics for convenient system installation

Specifications

TTL Control

The module supports 0–20kHz TTL modulation, allowing the laser output to be controlled by compatible external equipment.

For applications where TTL control is not required, the module can be operated in continuous-wave (CW) mode. Ensure that all electrical connections and the power supply are compatible with the module specifications before operation.

Cooling & Operation

Adequate cooling is required during operation. For continuous or extended use, install the laser module with sufficient heat dissipation and maintain an appropriate operating temperature.

Insufficient cooling may affect laser output stability and reduce the service life of the module.

The module operates from a 12V DC power source. Always verify the correct voltage and polarity before connecting power.

Keep the optical lens clean and protected from dust, fingerprints, moisture, and other contamination. Avoid touching the lens surface directly.

Applications

• Laser show equipment

• Stage and entertainment lighting systems

• Optical experiments

• Laboratory and educational demonstrations

• Research projects

• Laser equipment integration

• Compatible custom optical systems

• Beam visualization applications

Package Contents

1 × 100mW 532nm Green Fat Beam Laser Module with TTL

Power supply and other accessories are not included unless specifically stated or selected with the product.

Laser Safety

Warning: This 100mW 532nm laser module produces hazardous visible laser radiation and is not a toy. Never look directly into the laser beam or expose eyes to direct or reflected laser radiation.

Never aim the beam at people, animals, vehicles, or aircraft.

Appropriate laser safety eyewear designed for 532nm green laser radiation should be used during installation, testing, alignment, and operation. Use suitable engineering controls and operate the module only in accordance with applicable laser-safety regulations.
