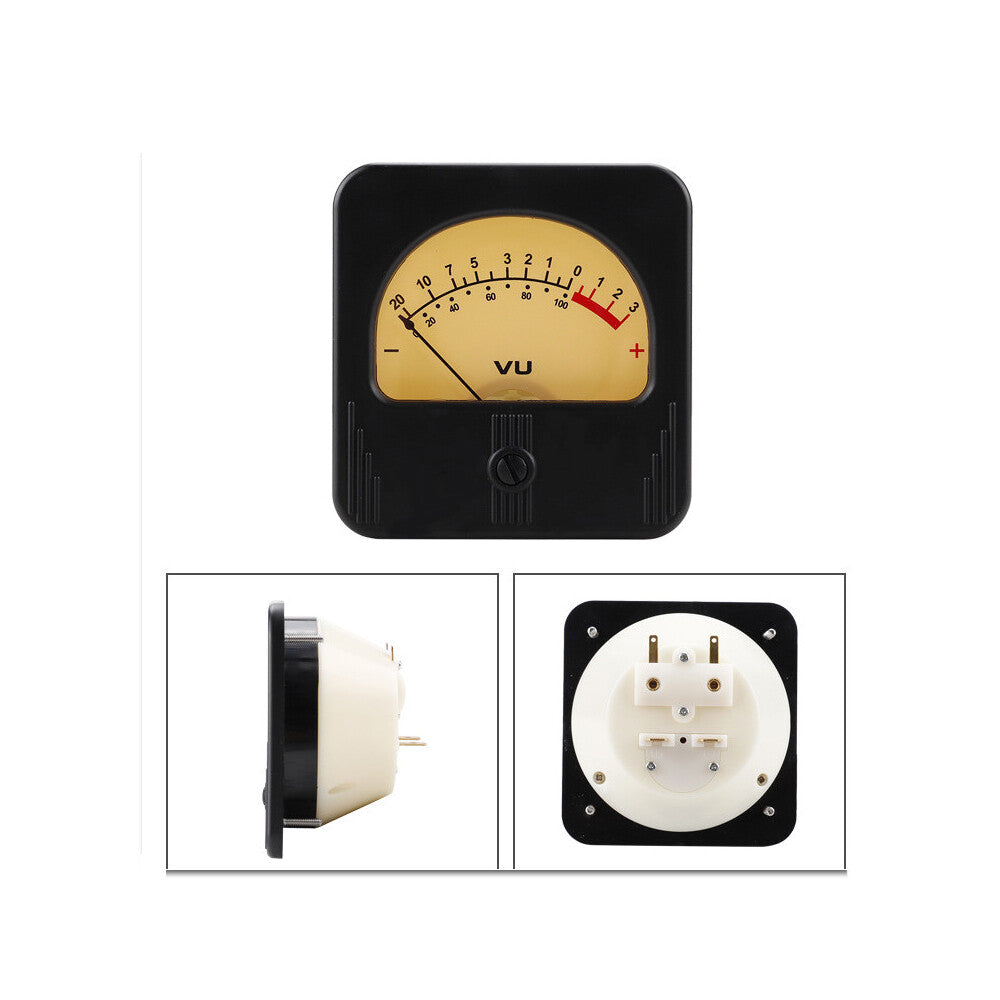

12-16V VU Level Meter With Backlight DB Tube Amplifier Meter Audio Volume Meter

Pointer material: zinc-nickel alloy
Pointer color: Black

Pointer length: 23 (±1mm)37(±1mm)
Pointer width: 0.45 (±0.05mm)

Pointer deflection direction: deflection clockwise from left to right
Electric meter use position: vertical use

Lens cover material : PMMA
Frame material: SPCC

Excitation coil material: UEW
Internal DC impedance: 1.4KΩ±10%

Bulb: 12V 100mA
Maximum current sensitivity: 200uA±10%

Balance error: ±1mm
Friction error: ±1mm

Insulation strength: above 50MΩ

Packing:

1*VU Level Meter
