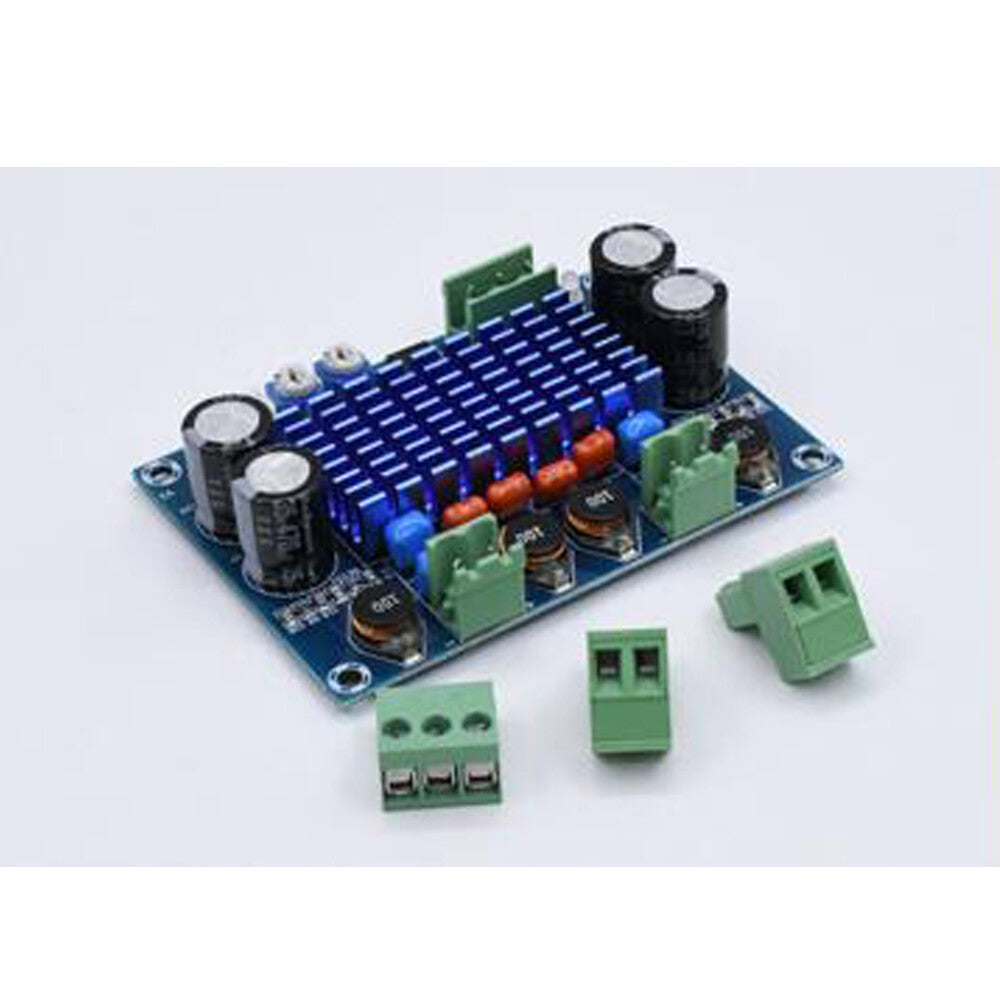

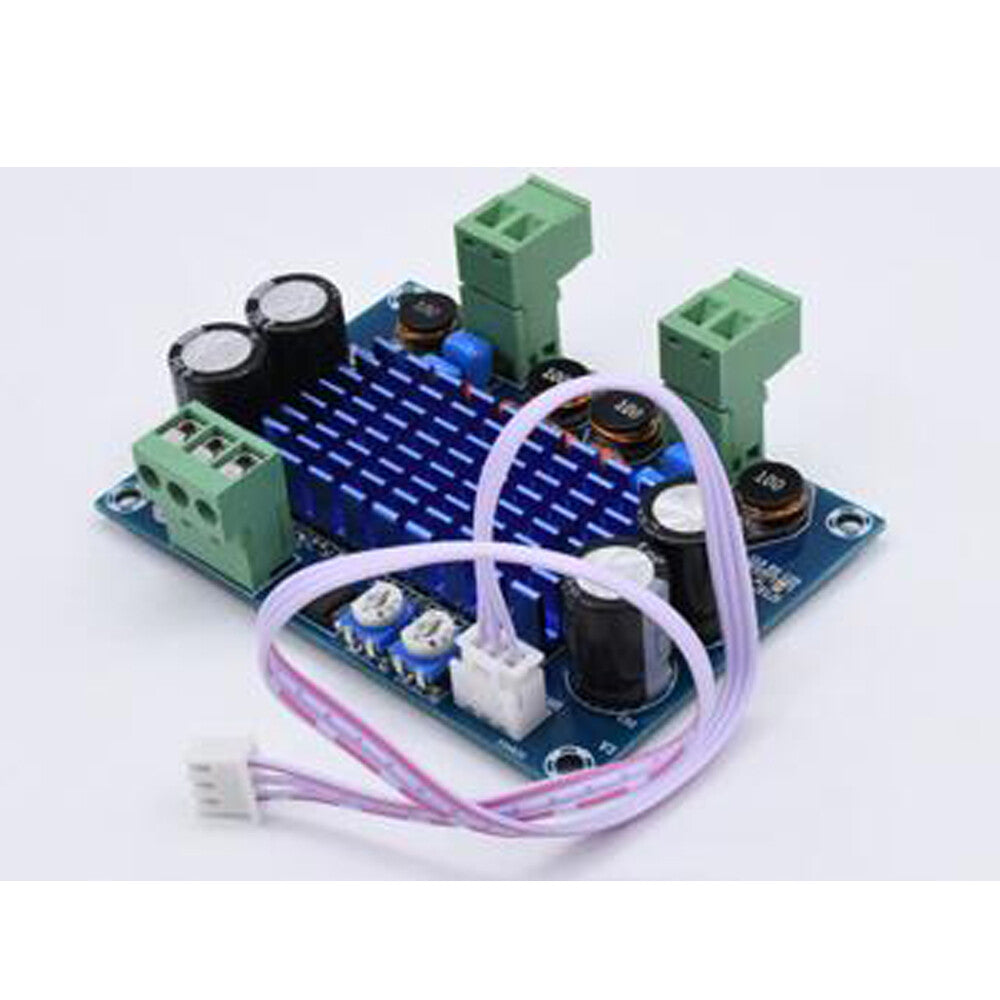

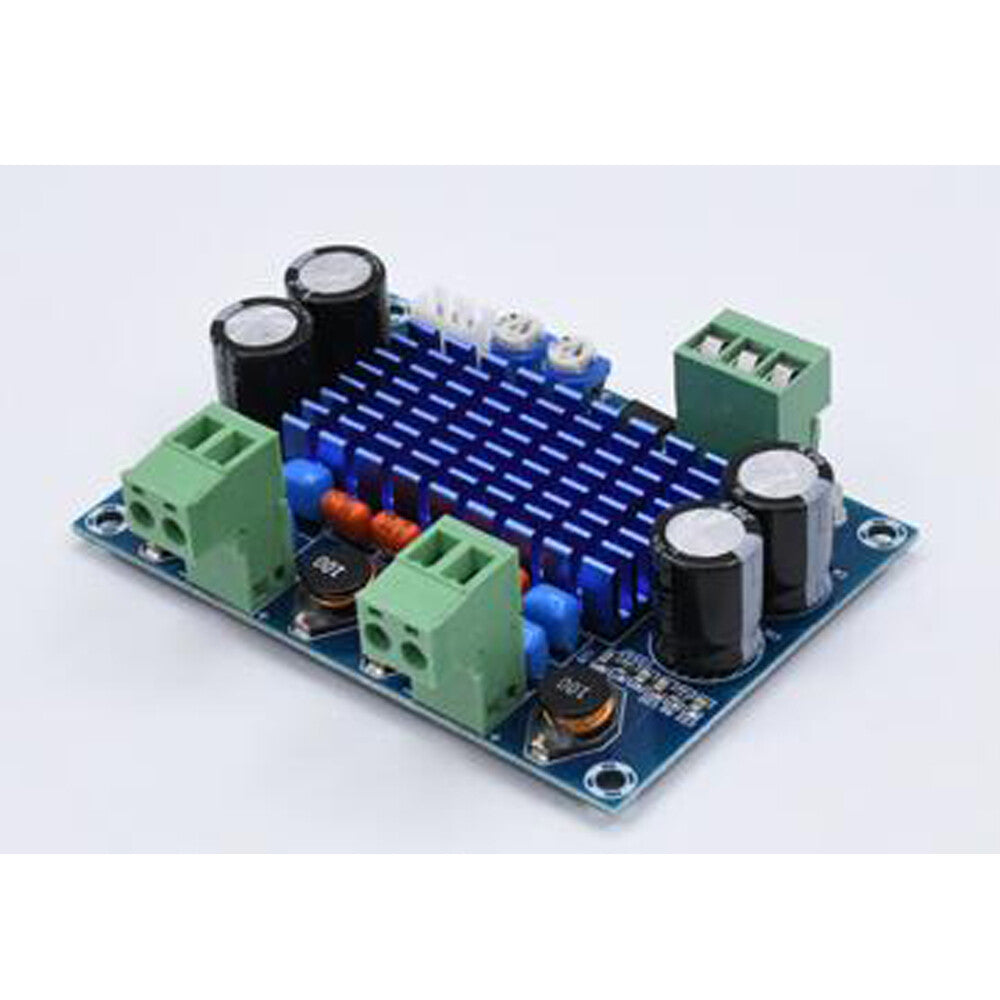

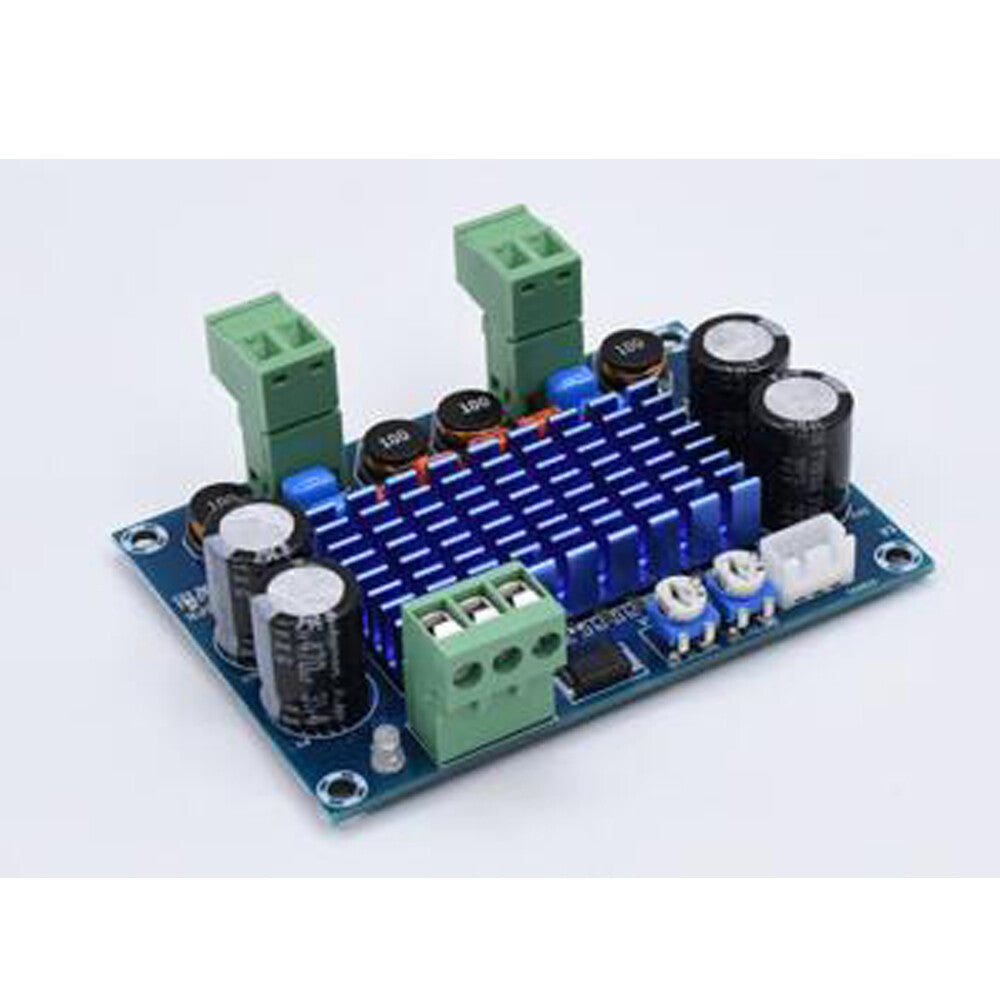

120W×2 5-28V High Power Digital Power Amplifier Board TPA3116D2 Chassis Dedicated Plug-In

Specification:
Core Chip: TPA3116
Input Voltage: 8-28C (24V Recommended)

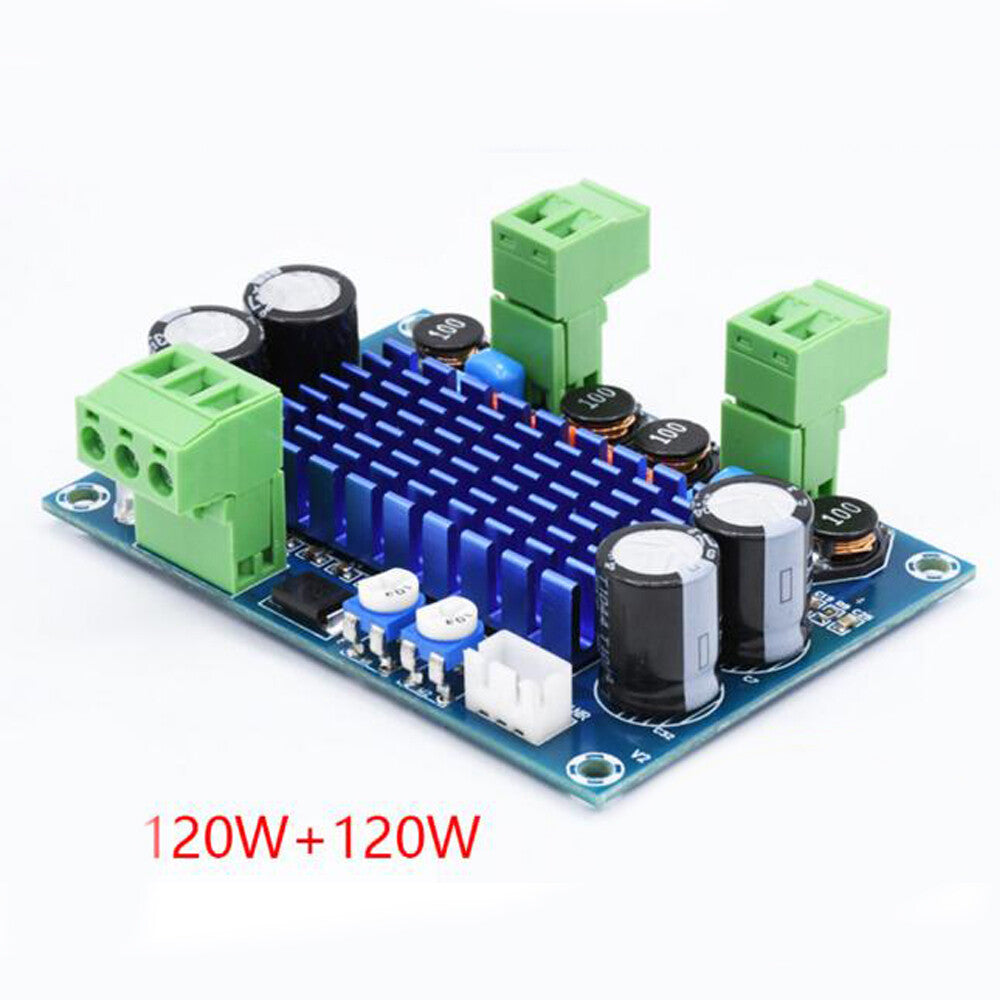

Output Power: 120W*2
Output Impedance: 4-8Ω

Appearance Size: 83*60*25mm
Weight: 65g

Instructions For Use:

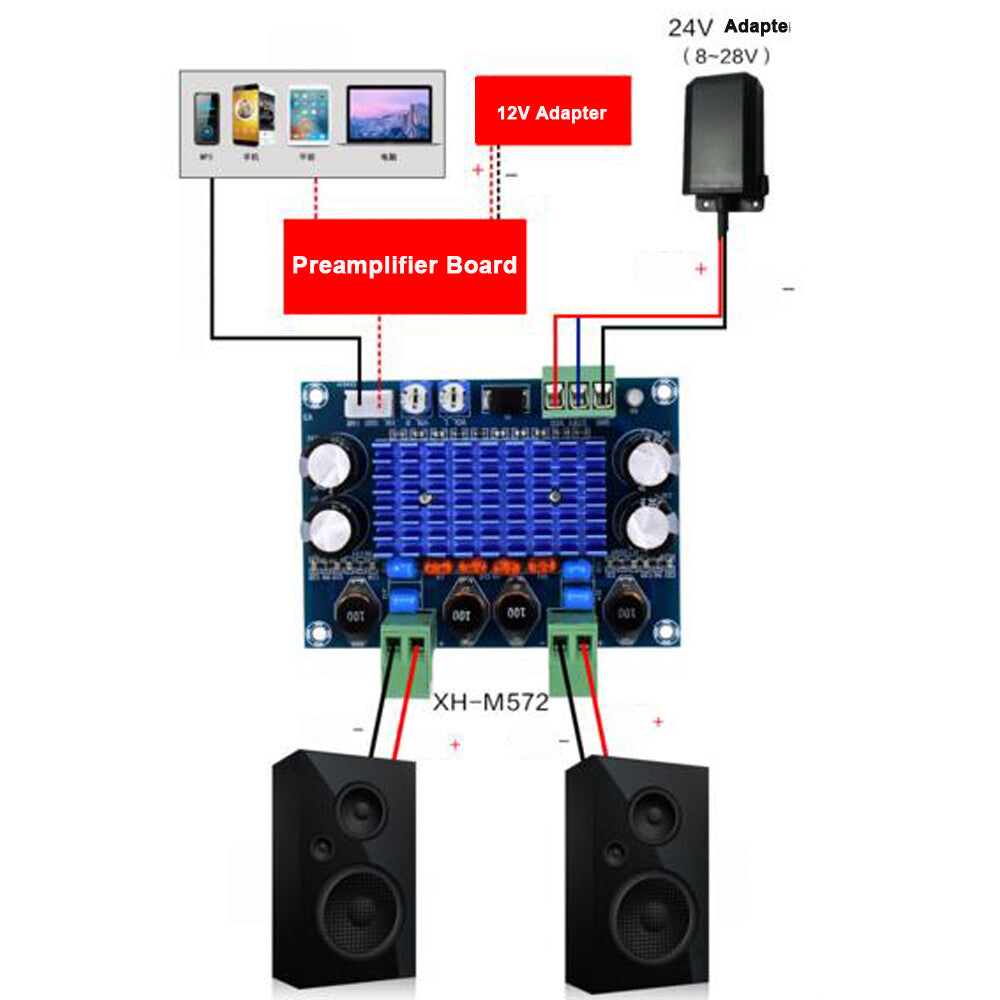

1. Connect the power input terminal to the 8V-28V power supply. It is recommended to supply the DC24V peak current 6A output maximum power up to 120W per channel.

2. Connect the audio input to the audio source, such as MP3, mobile phone, computer, etc. It is recommended to connect the output of the Pre Amplifier board.

3. Connect the two audio outputs to the two speakers separately. It is recommended to connect two professional stage speakers of 200W or more in order to exert its effect.

Package:

1* High Power Digital Power Amplifier Board
