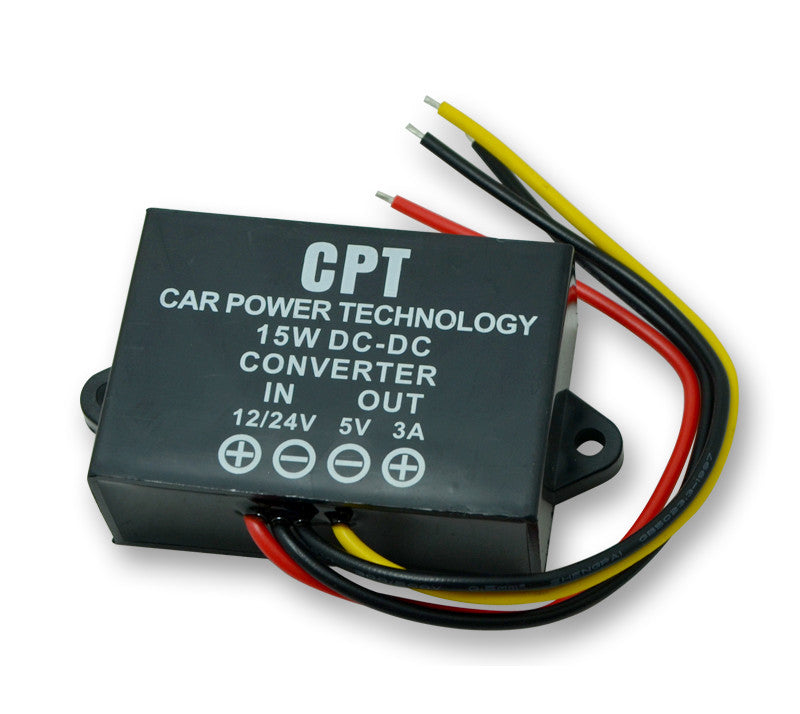

12V/24V to 5V Car Power Converter DC-DC Step-down Module LED Display Dedicated

12V/24V to 5V Car Power Converter DC-DC Step-down Module LED Display Dedicated

Specification:
Product nature: Non-isolated buck power converter

Input voltage DC12-24V (8-35V)

Output voltage: DC5V

Output current: 3A

Output power: 15W

Conversion efficiency: up to 95%

No-load power consumption: 10MA

Working temperature: -40-80 ° C

Installation line length: 13-14cm

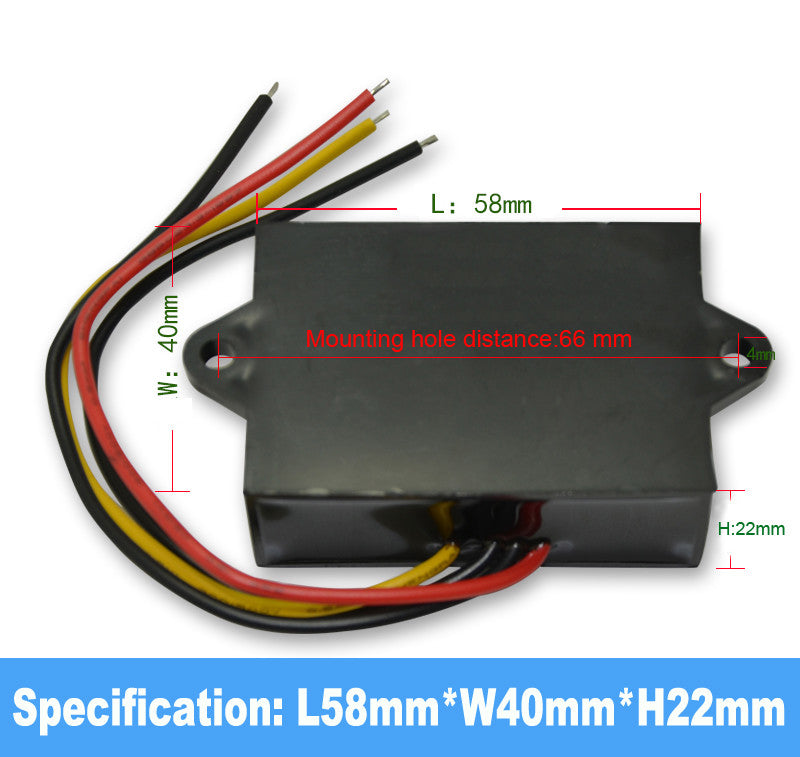

Dimensions: 58*40*22mm

Net weight of finished product: About 90g

Cooling method: Natural heat dissipation

Protection function:

Over current protection, over temperature protection, short circuit protection

Features:

1. Synchronous rectification technology: new imported components, synchronous voltage regulation technology, low heat generation, sufficient power, stable state, maximum conversion efficiency of over 95%

2. Organic silicone packaging technology: better thermal conductivity, IP67 protection level, can be used in water, waterproof and shockproof

3. Chip intelligent protection: using the original imported smart chip from the United States, with over-current protection, over-temperature protection, short-circuit protection, safer use

4. Flame-retardant plastic shell: imported high-thermal organic silicone and potting technology, no heat is generated during the use of the product.

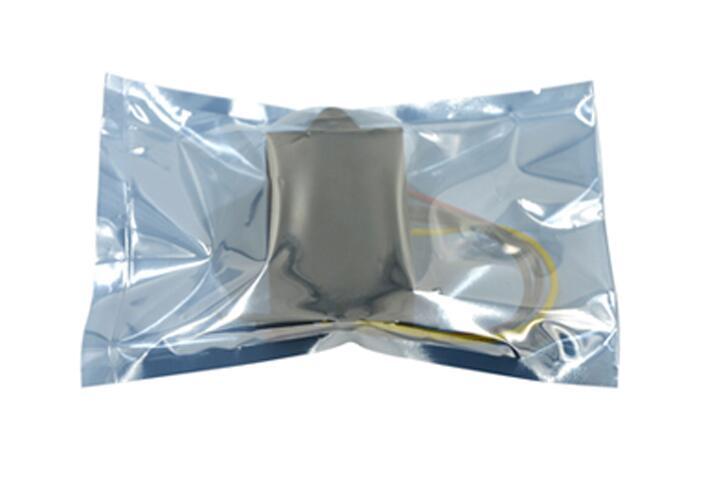

Package:

1*15W step-down module
