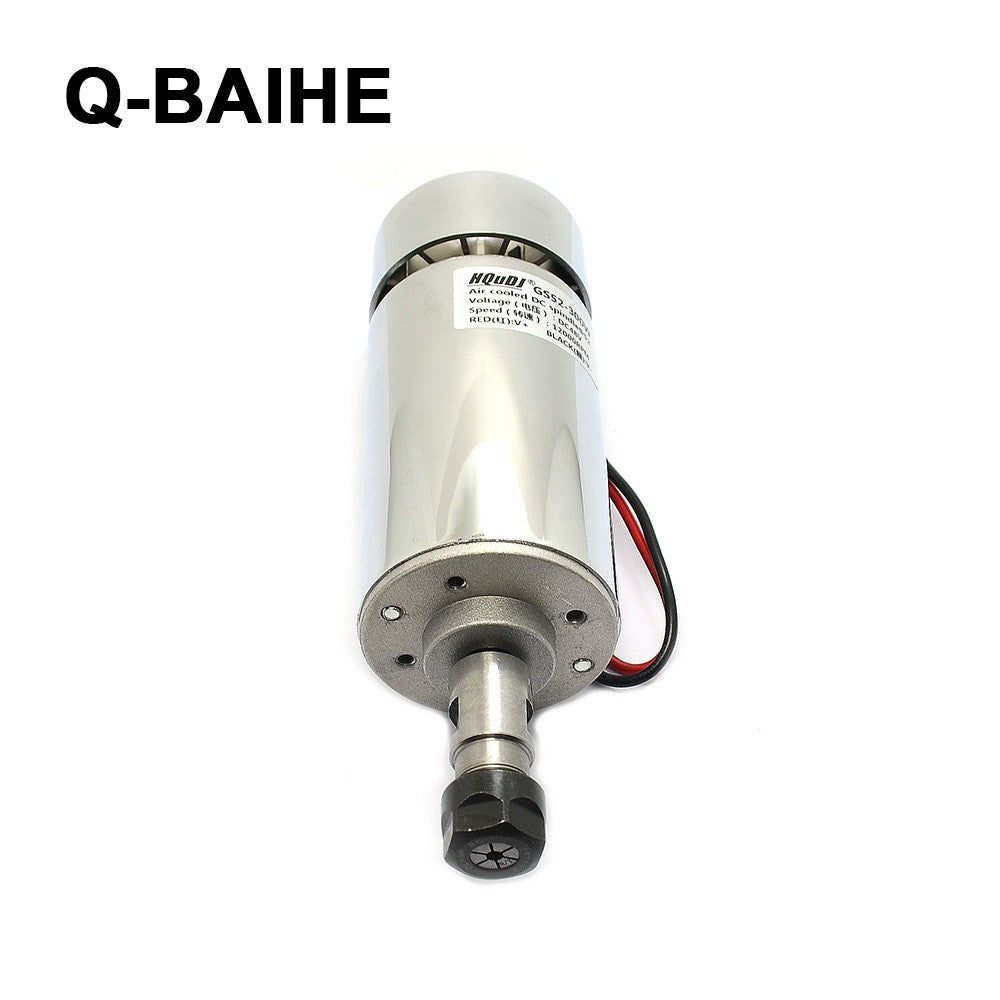

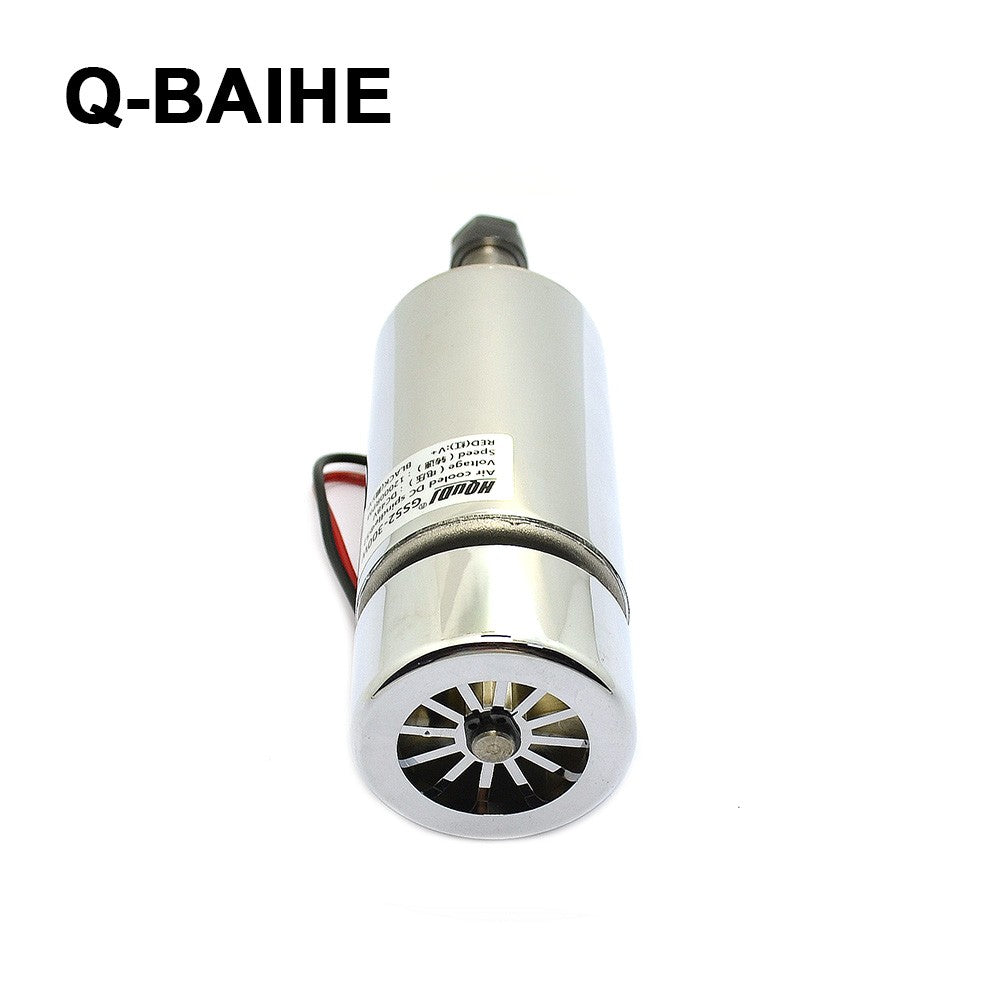

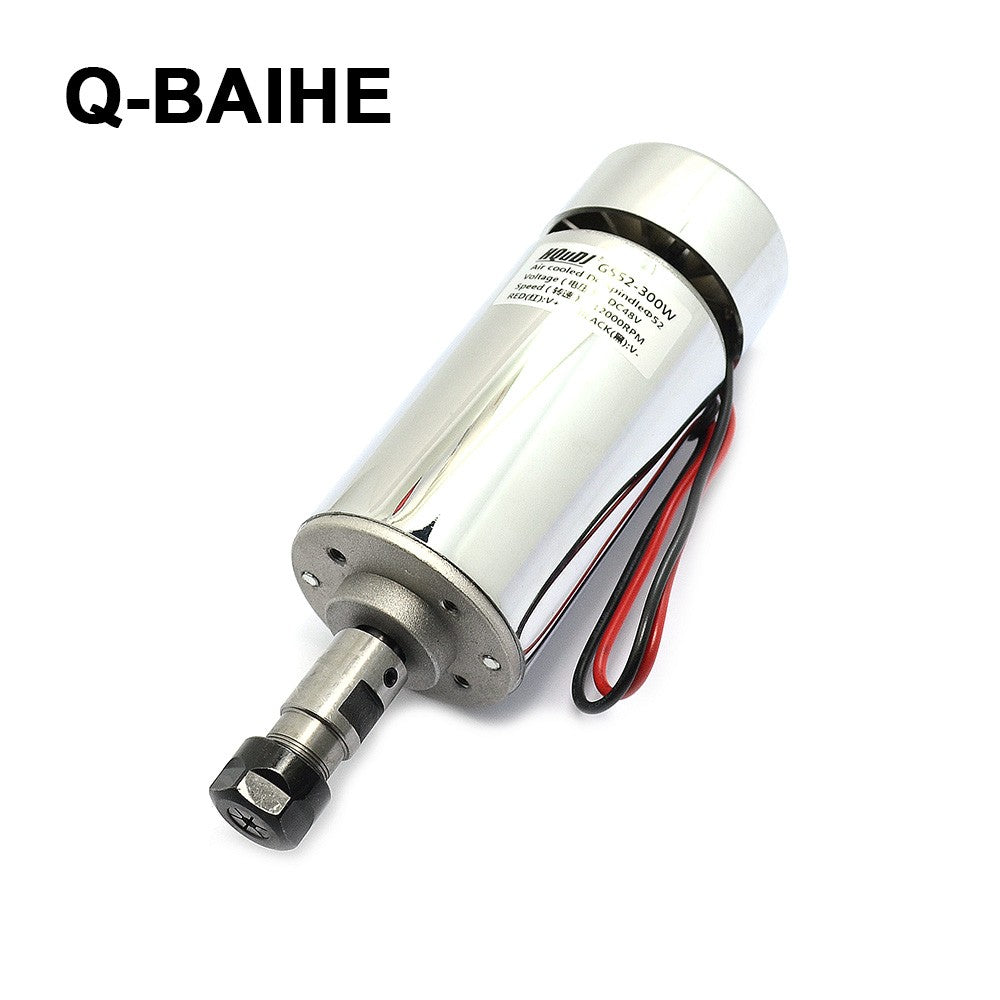

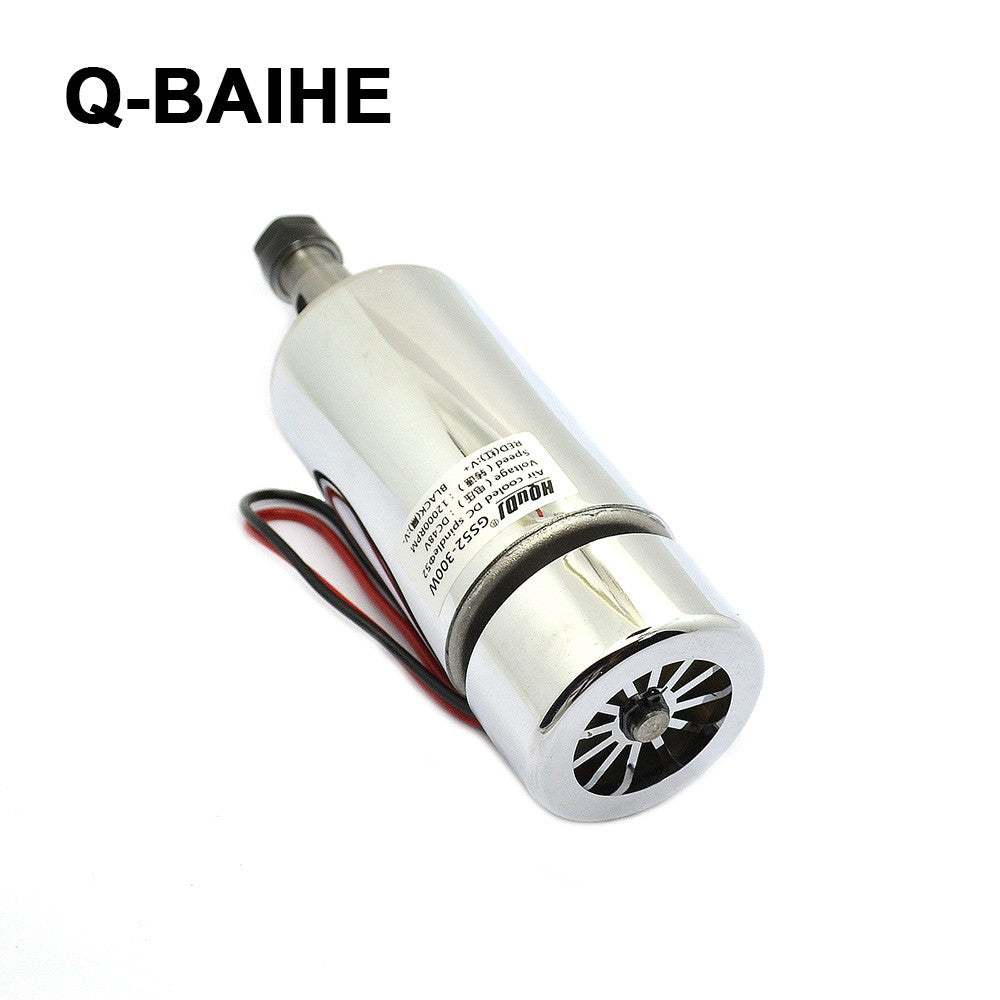

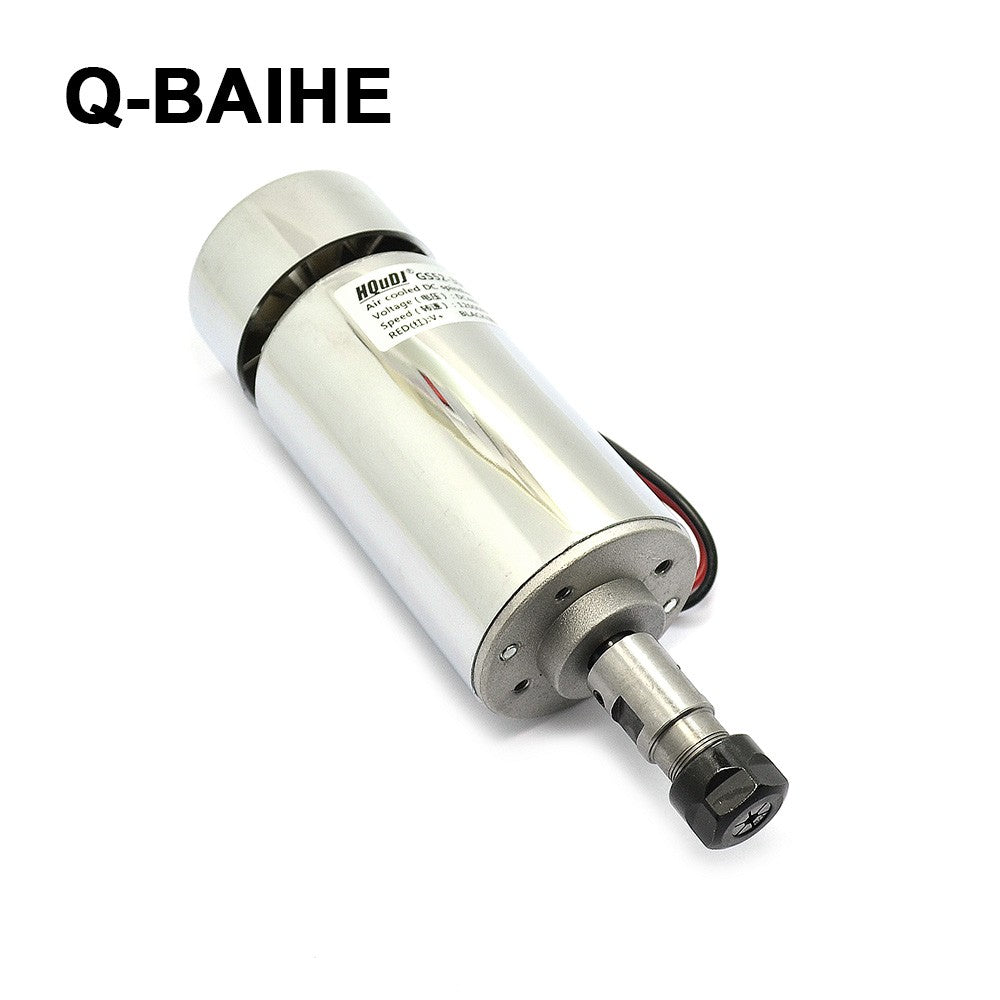

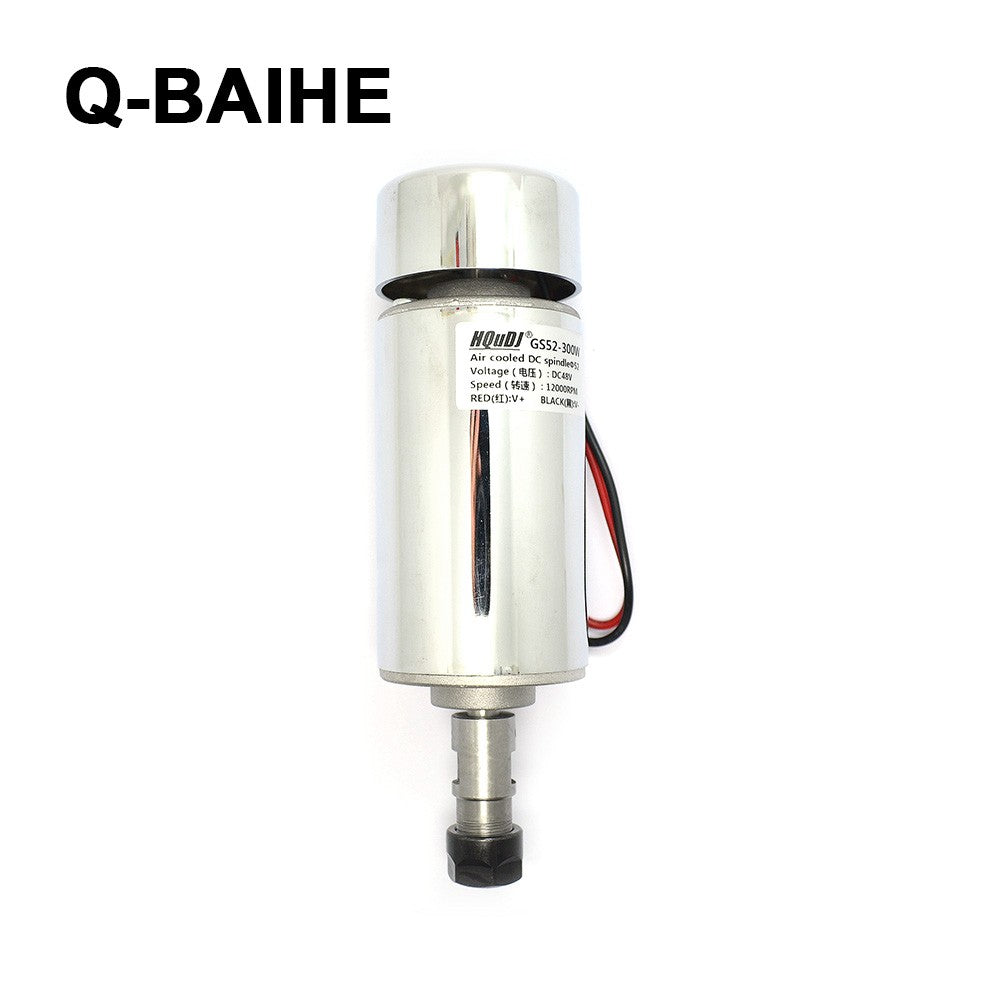

12V-48V Engraver Cutter 300w High-speed Air Cooled Spindle Motor Marker CNC12000



Parameter:
spindle motor: DC motor
working voltage：12-48VDC
power：300W
ROV：3000-12000r/min （12V-3000r/min，24V-6000r/min，36V-9000r/min，48V-12000r/min）
Torque：230mN.m
Isolating resistance：>2 tera ohm
insulating dielectric strength: 400v
Diameter：52mm
length of collet：35mm，(including screw 43mm）
diameter of the collet：16mm
total length: 180mm
Wind cooling system, duty cycle: 8hr



Note:
ATT to the collet, we will package it very well avoiding damage during the transportation. it is very frigile, if it get any problem, the whole item will be damaged.
we will not take any responsibility if buyer break it.



Package:
1pc 300w 12000RPM Spindle Motor 12V-48V
