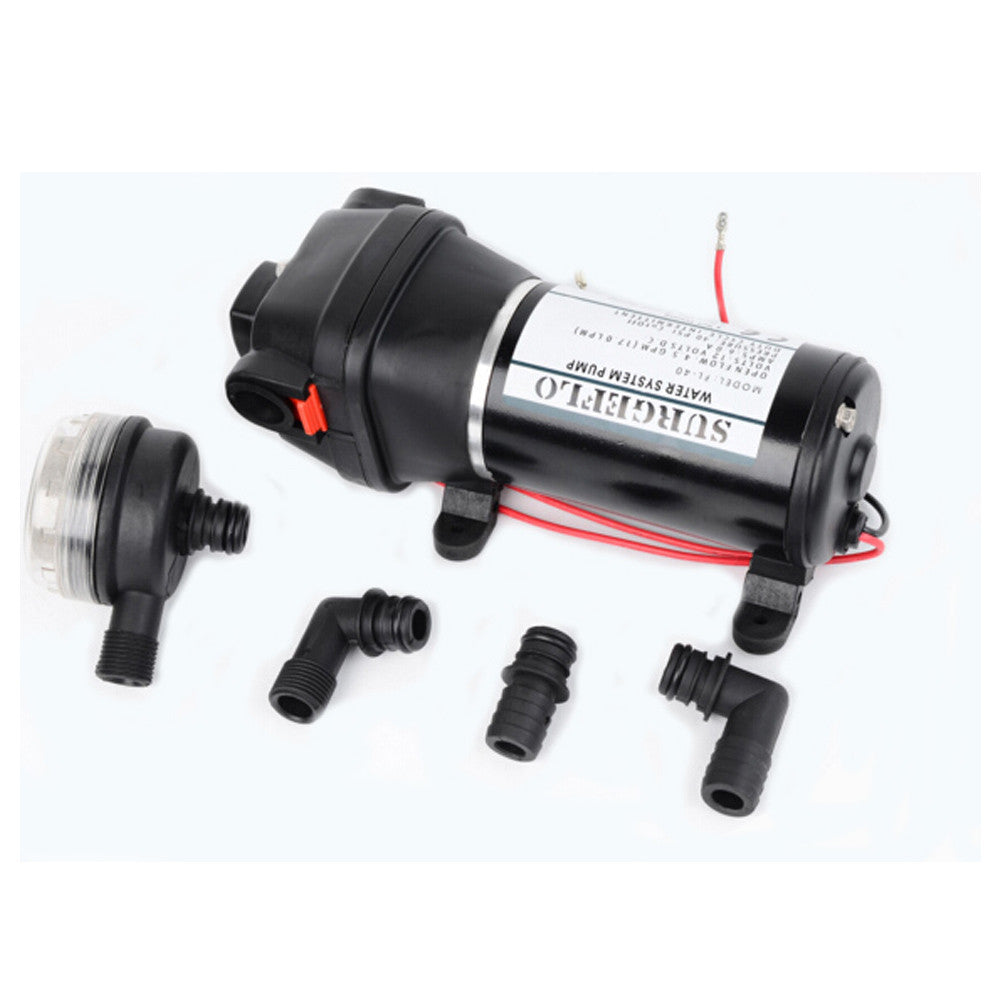

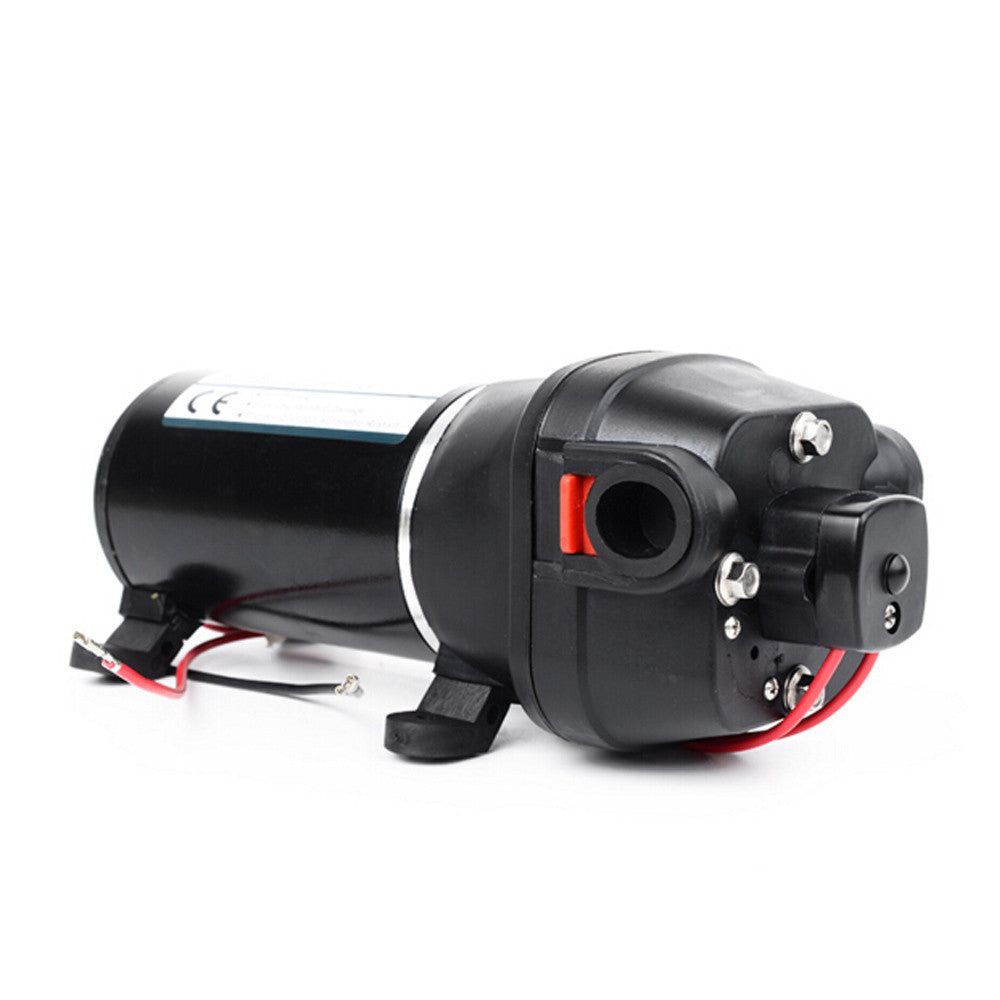

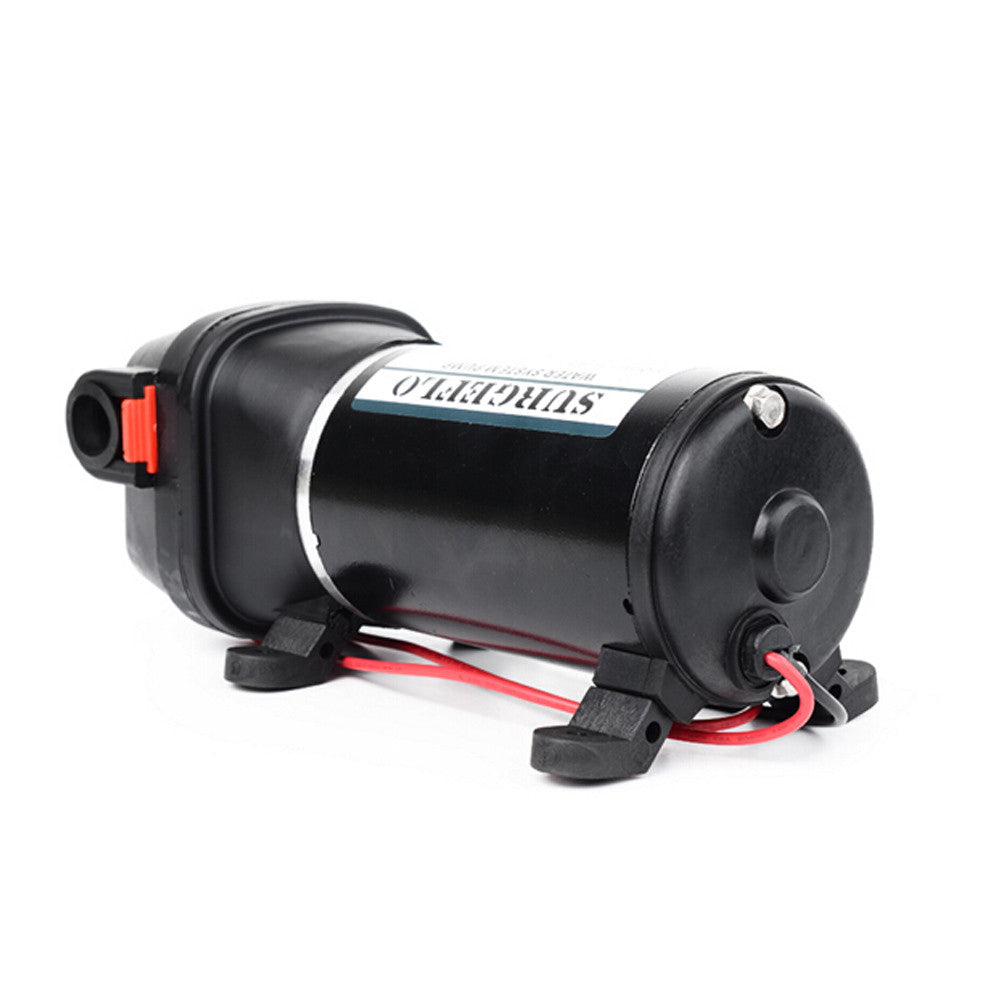

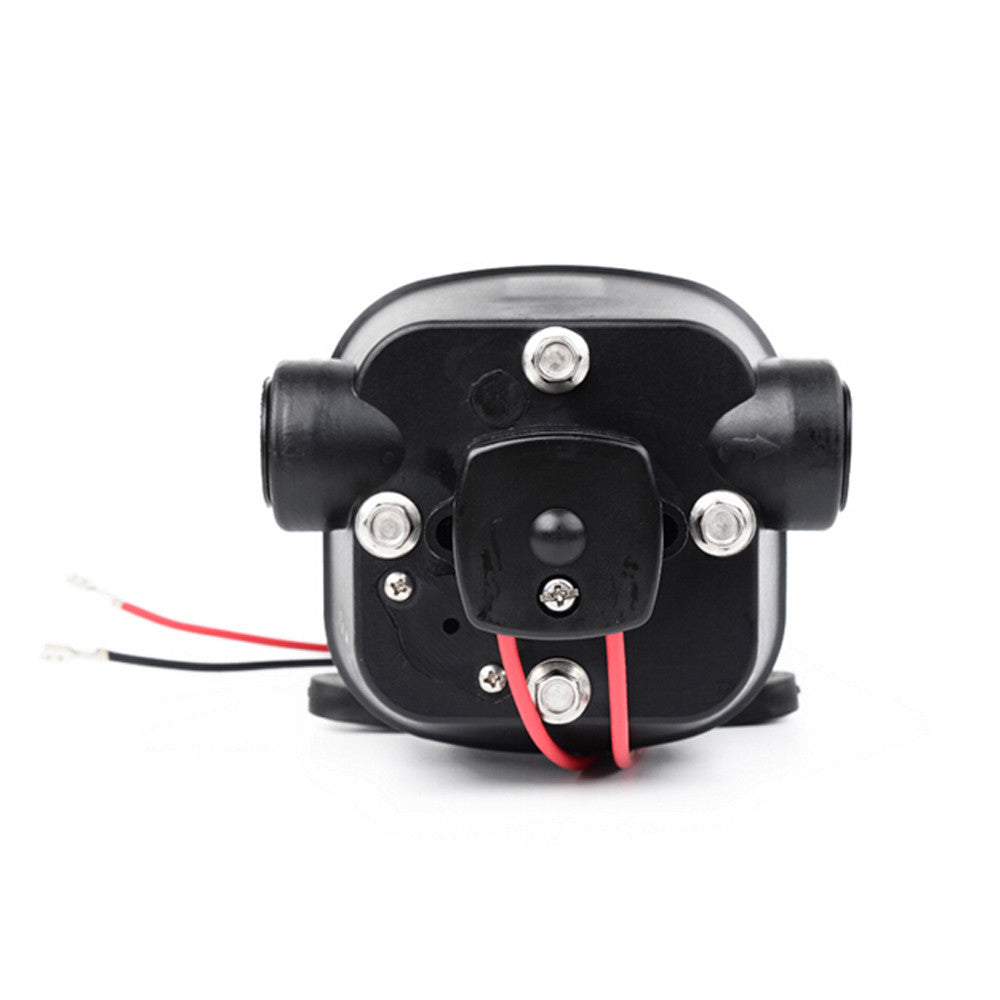

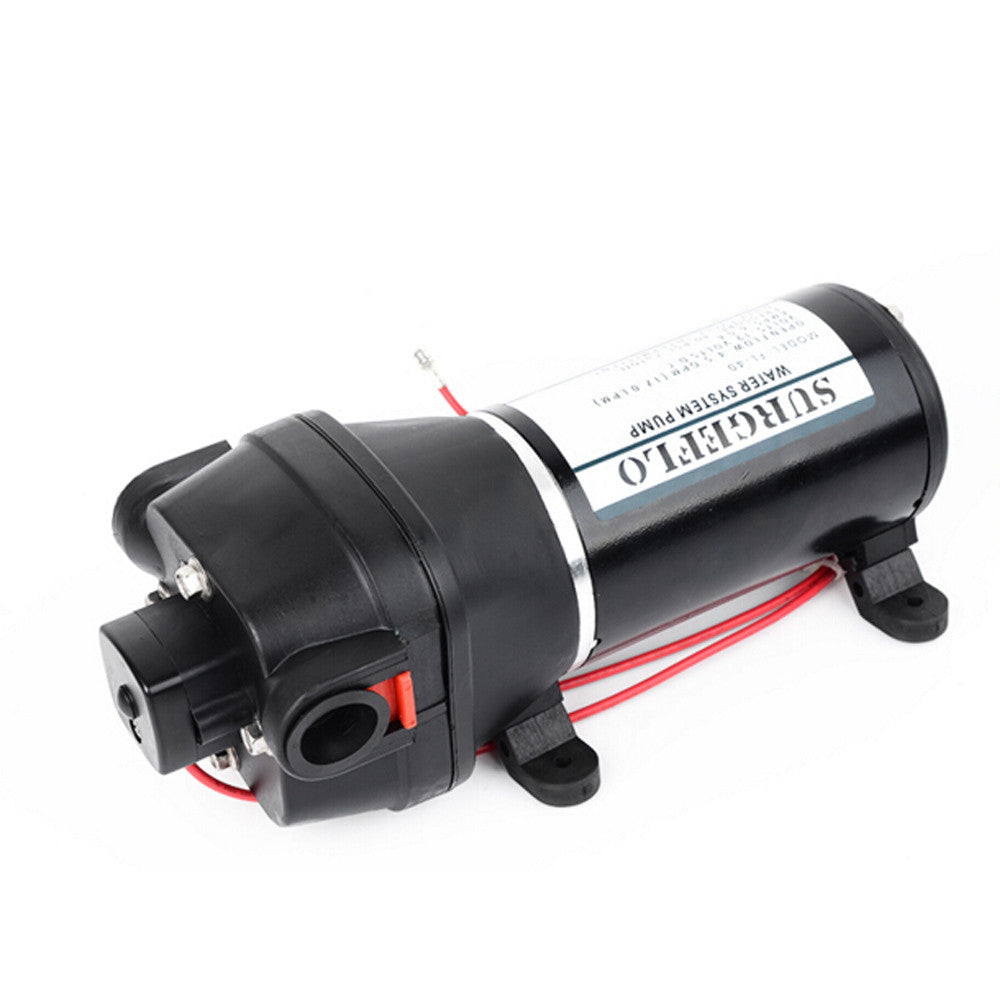

12V Self-priming Diaphragm Pump High Flow Pump for Detergent Filling Machine

12V Self-priming Diaphragm Pump High Flow Pump for Detergent Filling Machine

Pump type: diaphragm pump

Pipe diameter: 3/4” (20mm) interface aperture

Diaphragm material: rubber elastic material

Valve material: EPDM

Maximum liquid temperature: 140 degrees Fahrenheit (60 degrees Celsius)

Pump material: polyamide resin 66

Voltage: 12V DC

Maximum flow rate: 4.5 gallons per minute (17 liters / minute)

Maximum pressure: 40PSI (2.8Bar)

Maximum current: 11A

Power: 132W

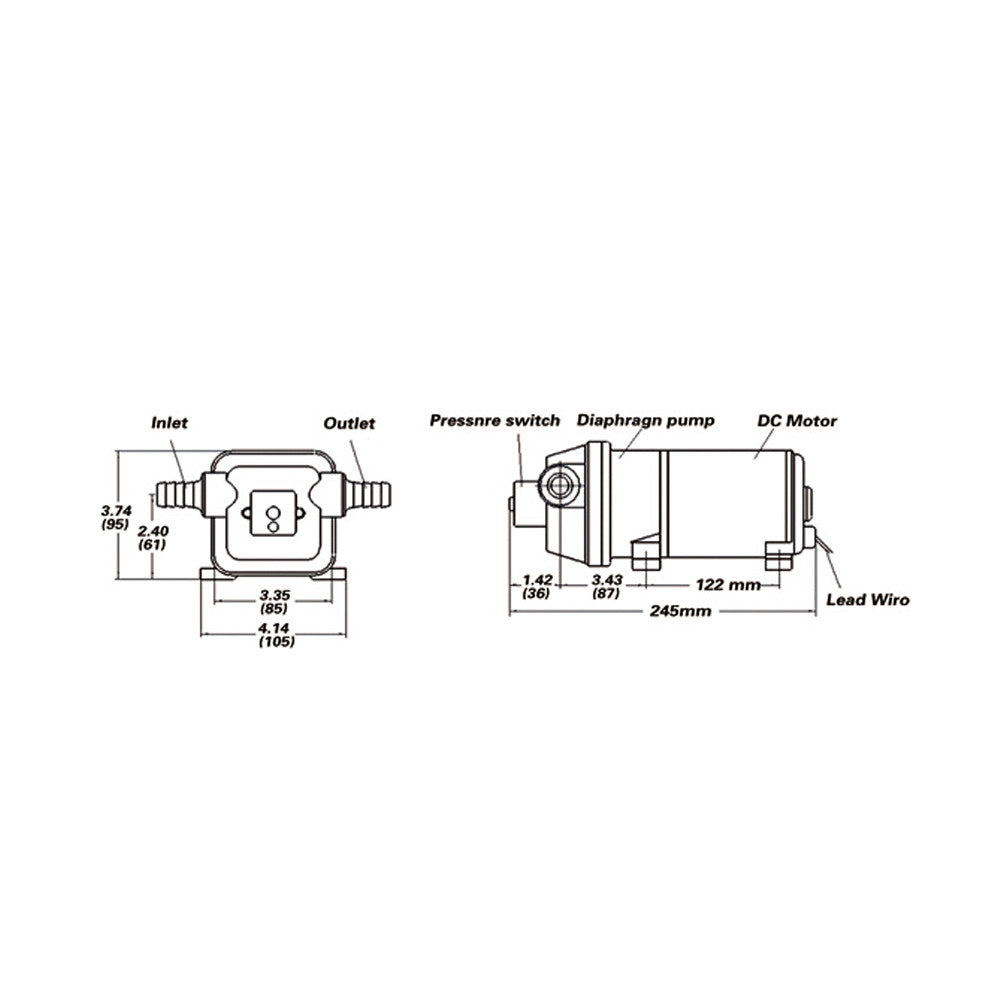

Packing size: 251*103*101mm

Product Features:

This product uses all-copper high-quality motor, and the pressurization is strong and durableContinuously maintain magnetic and intermittent work.The built-in pressure switch allows the pump to automatically start or stop when the faucet is opened or closed.

The self-priming function is sufficient for the pump to be installed above the water tank.Do not keep idle for a long time.Built-in thermal protection.Energy efficient, ducted installation, compact structure and easy maintenance.Ultra-light, small size, large flow, low noise, easy to carry.

Application:

Ocean, RV, water treatment, beverage/catering services, distillation equipment, agricultural spraying, general industry, automotive.

Package:

1* 12V Self-priming Diaphragm Pump High Flow Pump for Detergent Filling Machine
