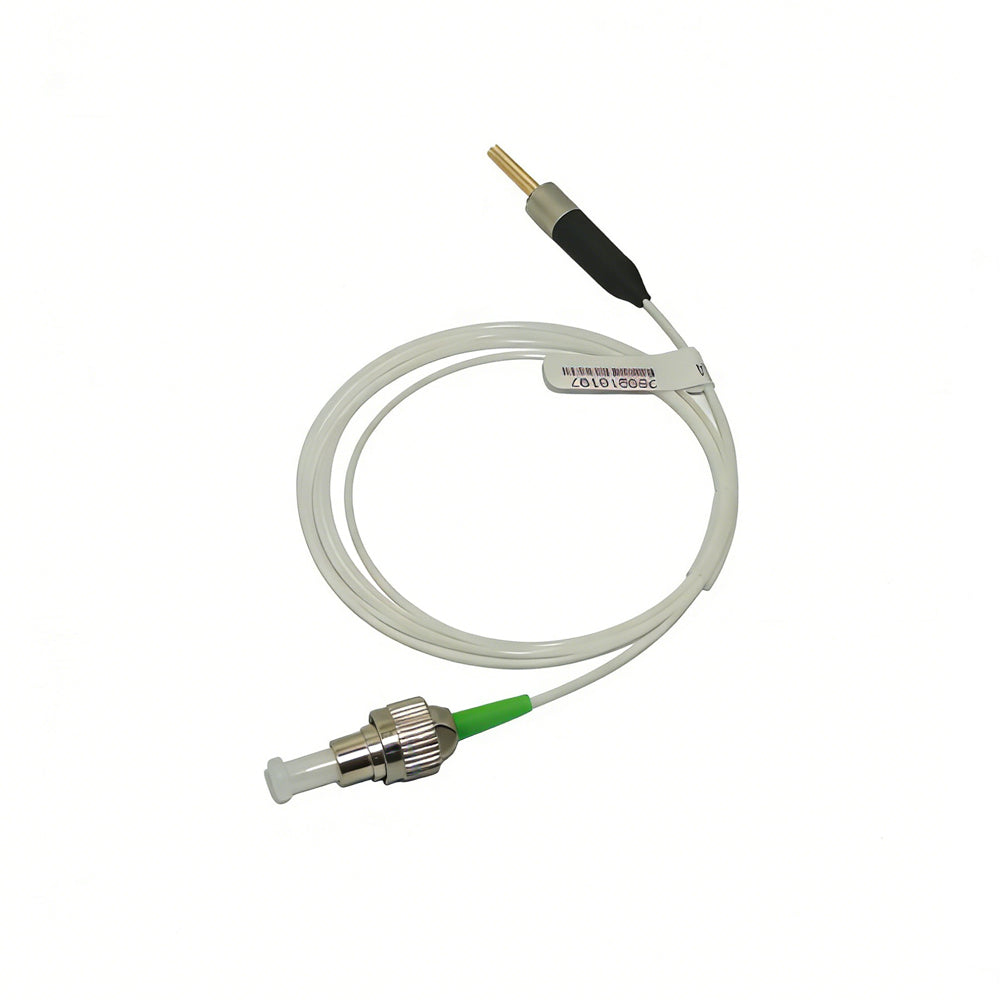

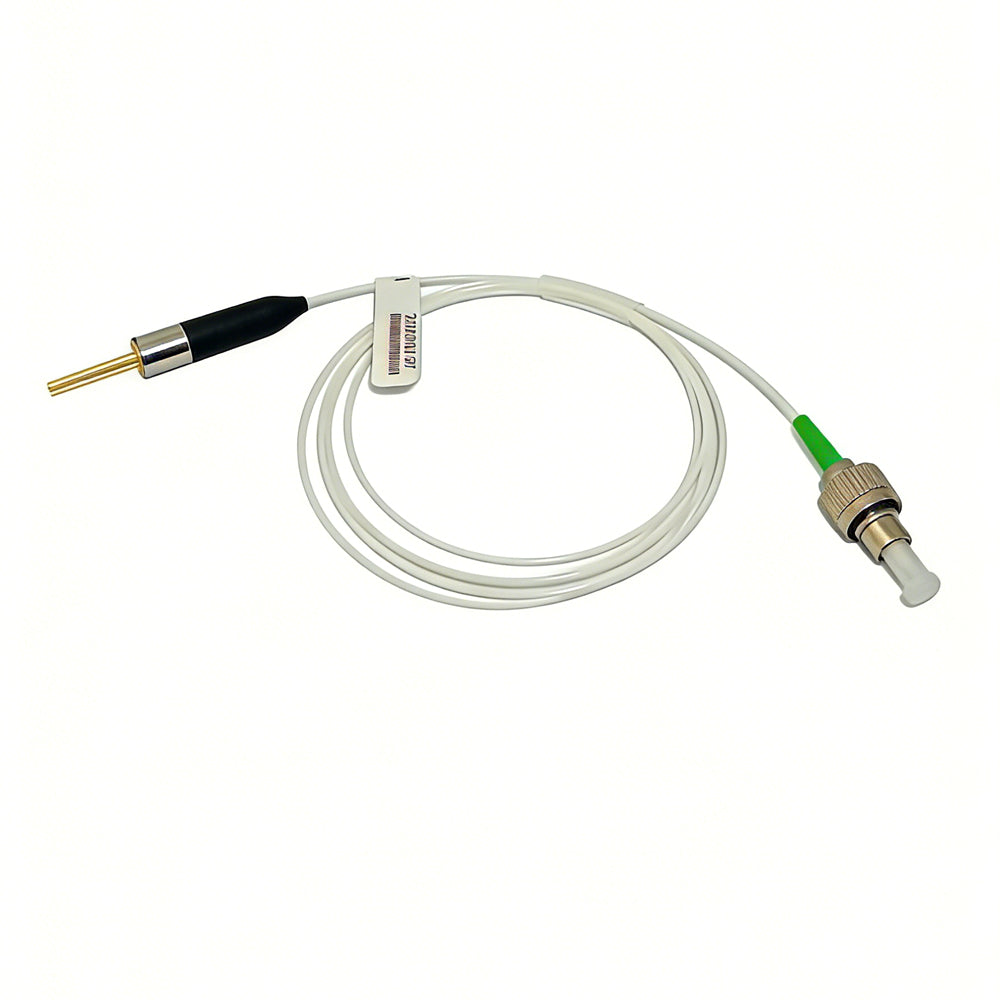

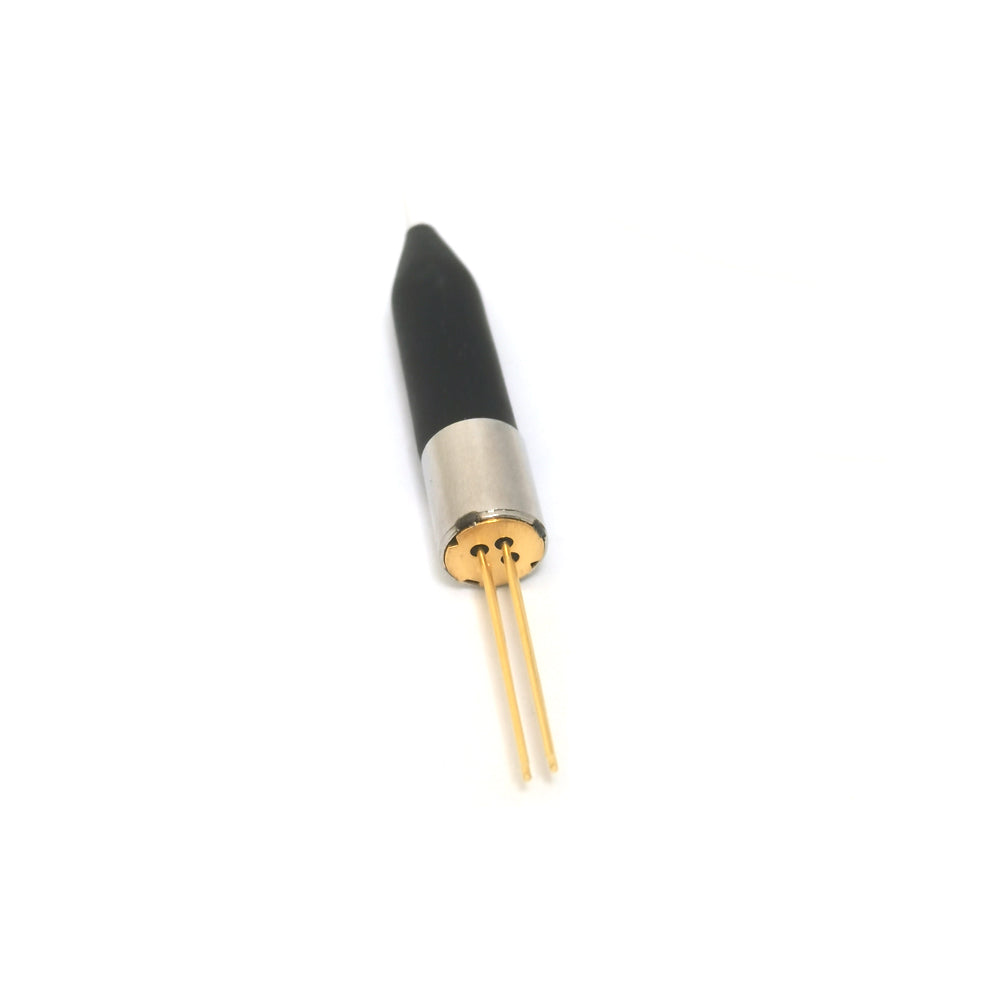

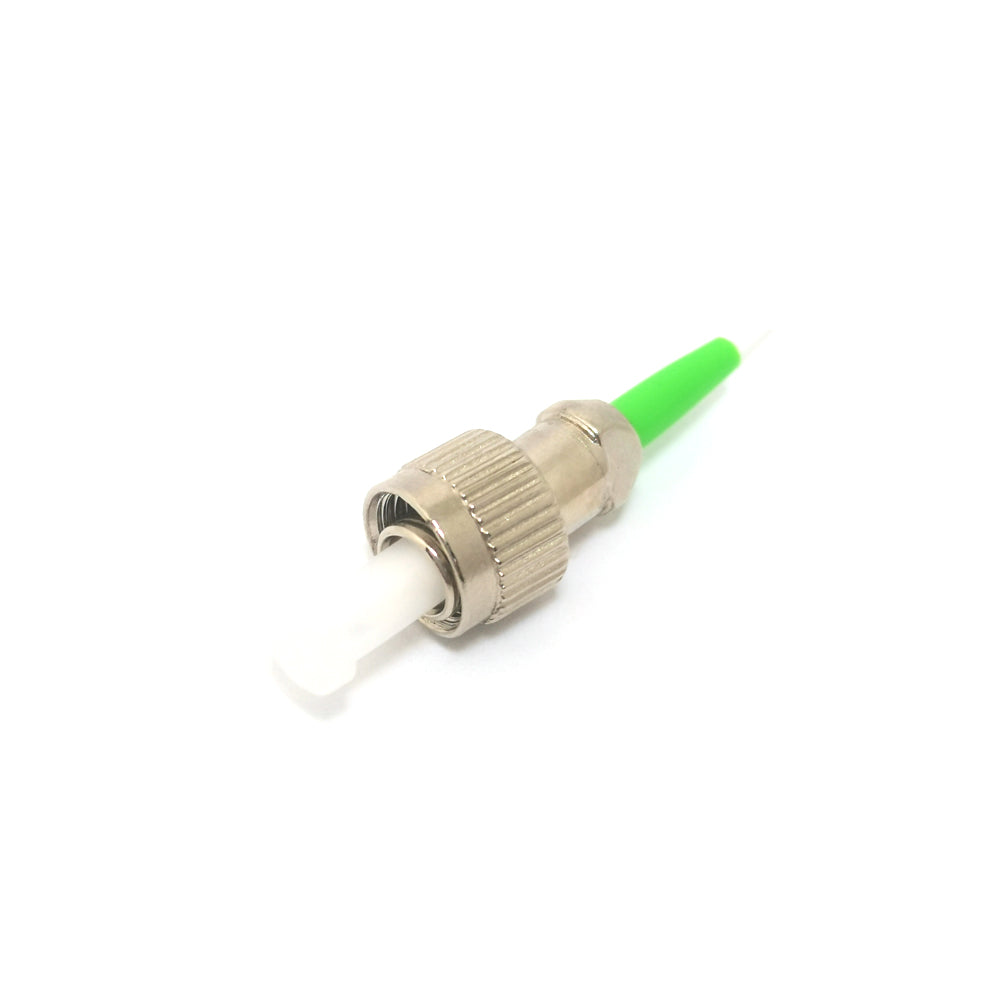

1310nm 15mW FP SM Coaxial Laser Diode S Type with SM Fiber FC/APC No Isolator
Center Wavelength: 1310nm
Fiber Output Power:15mW
Threshold Current:15mA
Working Current:70mA
Operating Voltage:1.2- 1.6 V
Operating temperature:-40～+85℃
Features:
Built-in monitoring detector, low threshold current, low operating current, high stability, imported chips, etc.
Application:
1. Optical Sensing 2. Optical Communication
3. Industrial automatic control 4. Scientific Analysis and Experiment 5. Test and Measurement Instruments
The Cautions：
1:The suitable ESD protection is required in storage, transportation and using 2: The fiber bending radius no less than 20mm for avoiding fiber damaged ,Be sure the fiber coupling facet is clean before connecting it to opto-circuit
