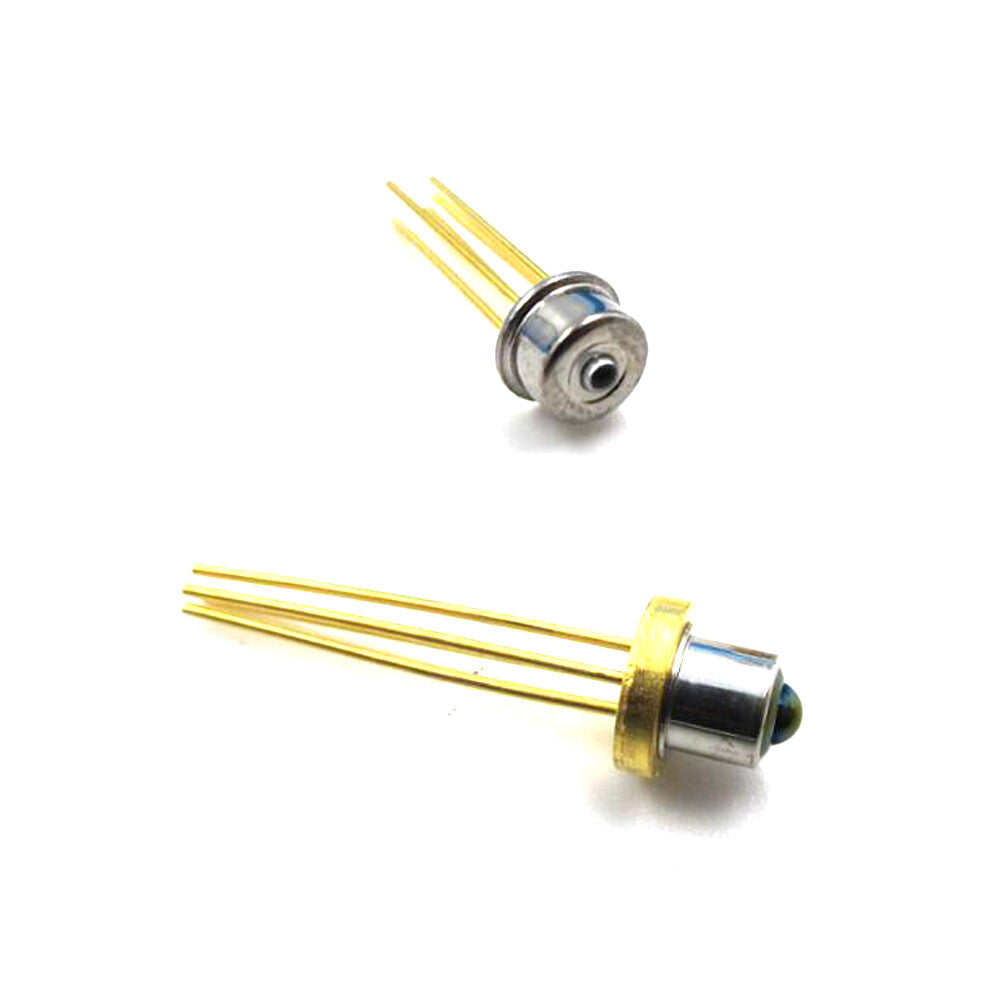

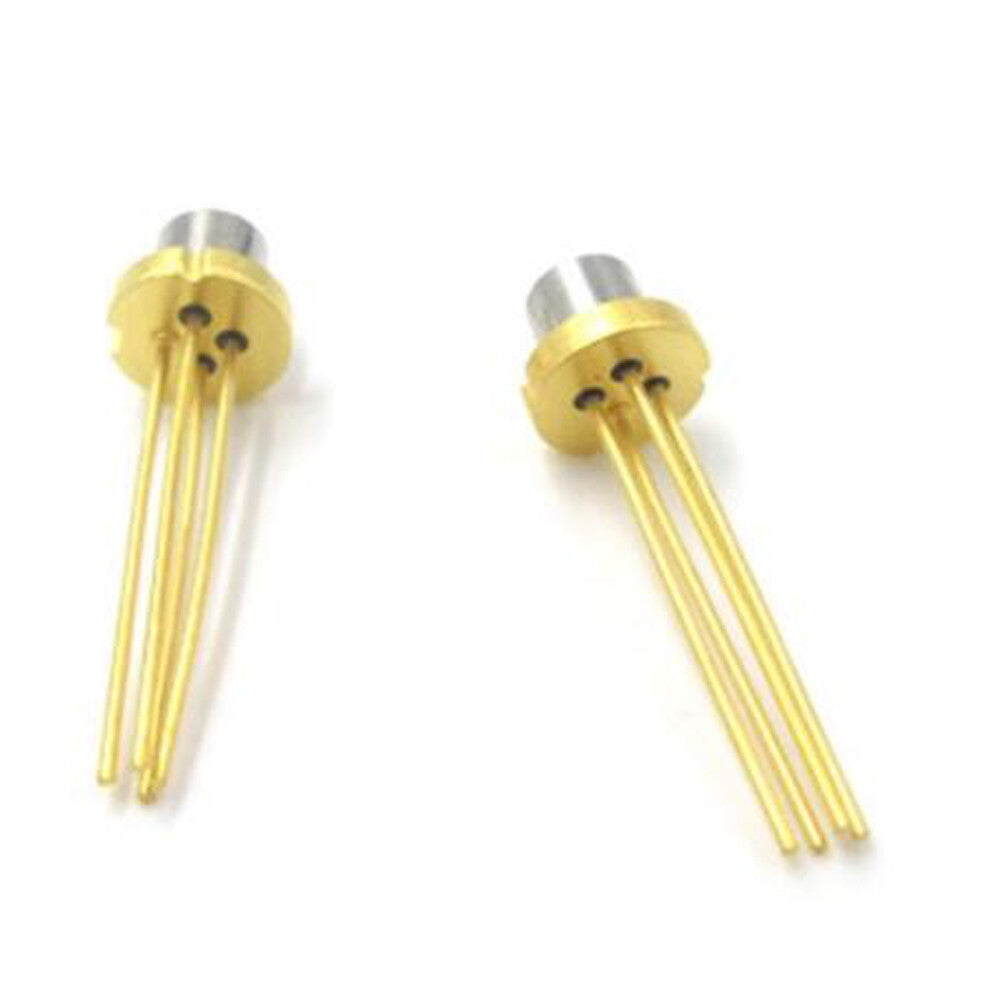

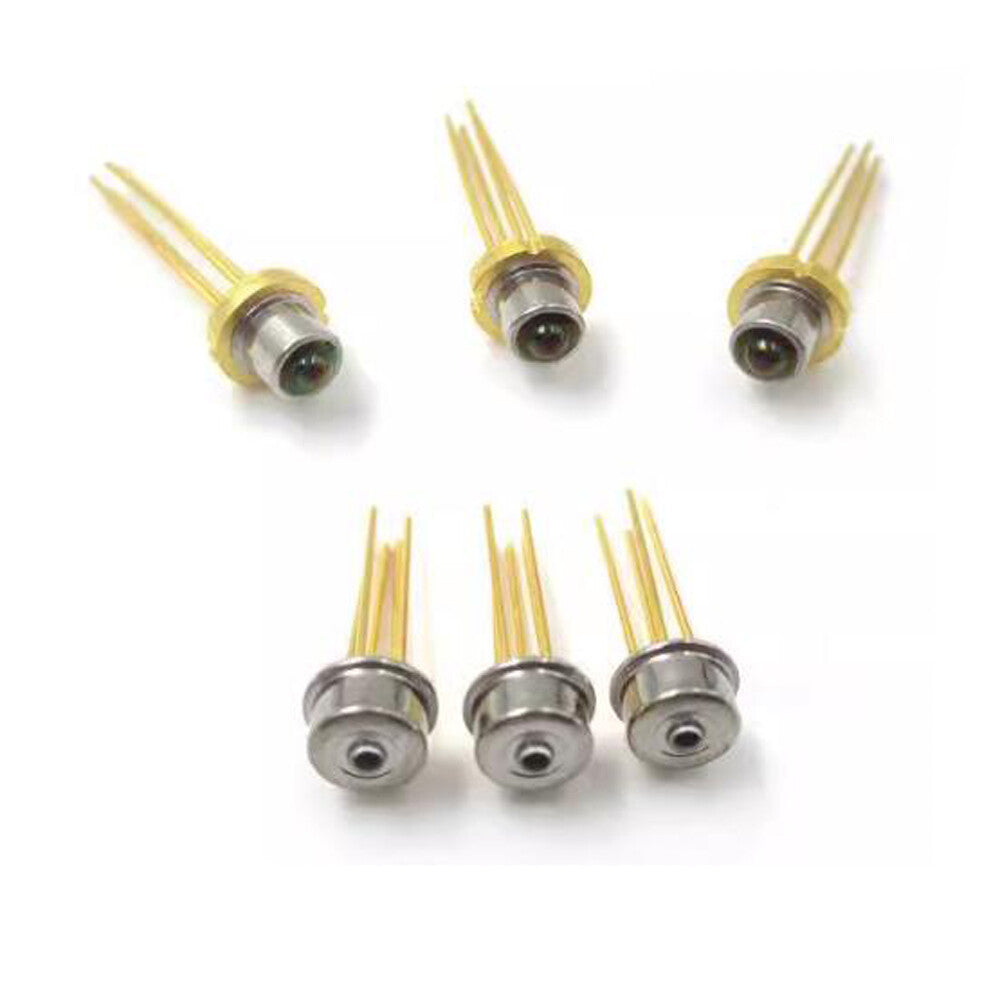

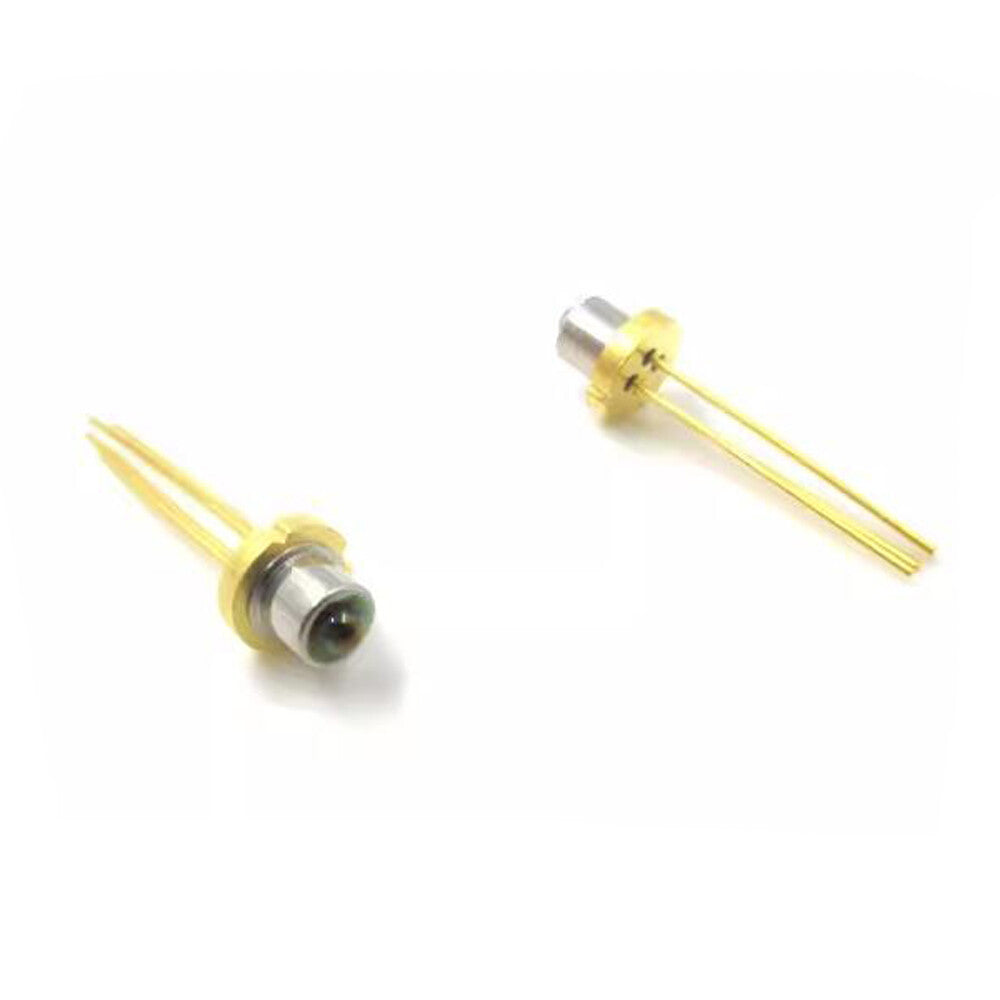

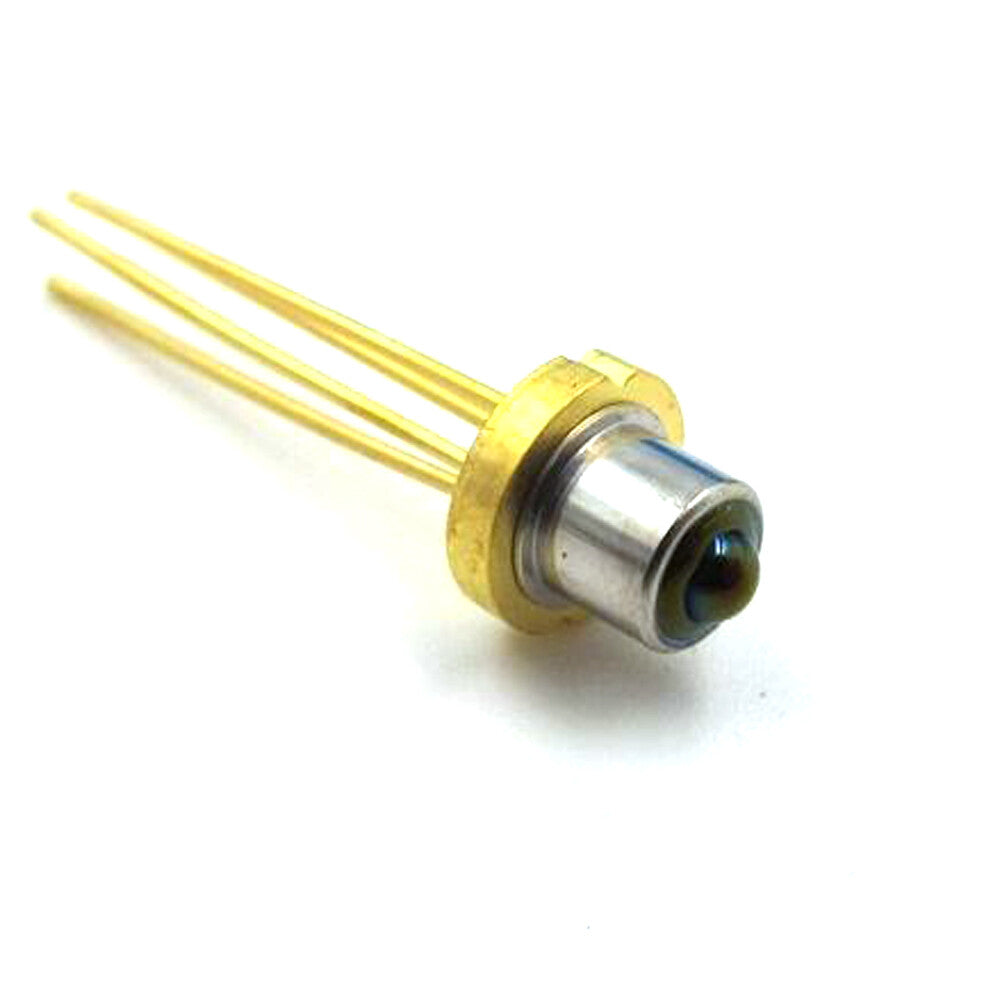

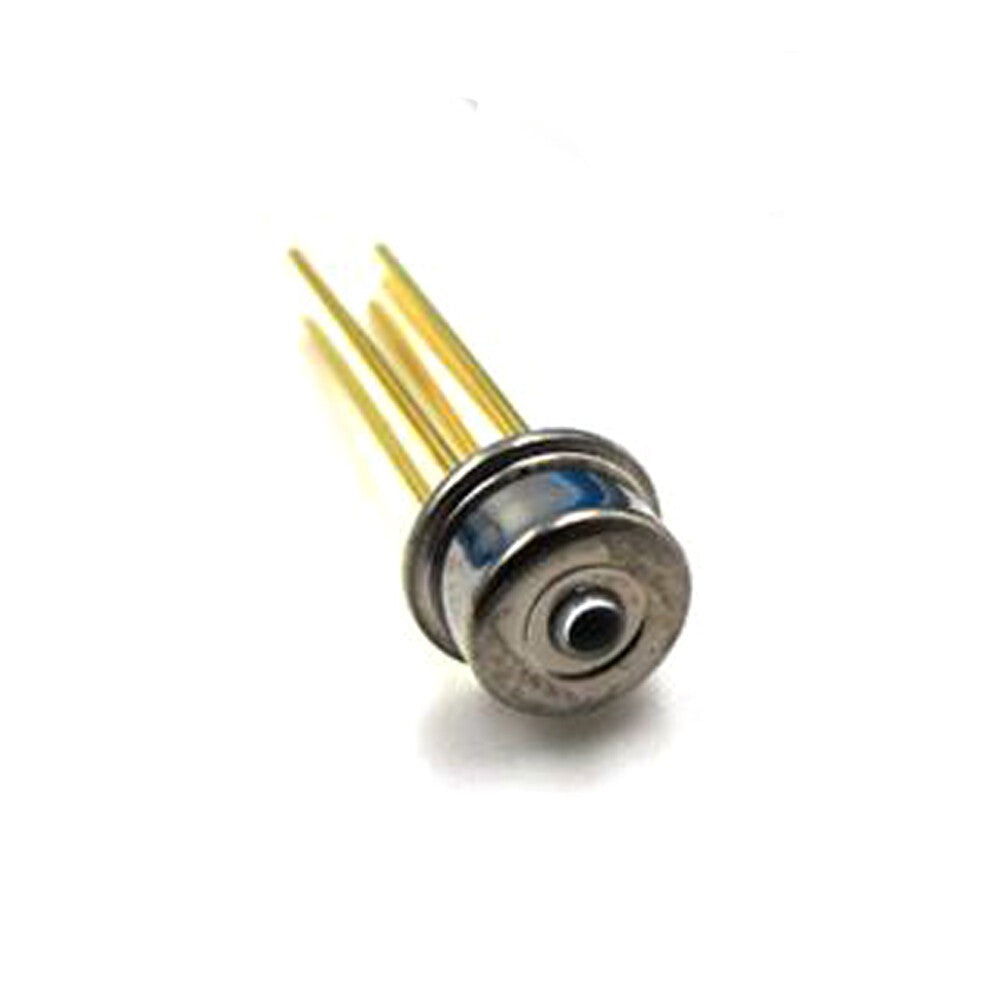

1310nm Four Pin 1510nm Five Pin 10mW Pulse Fiber Optic Communication Laser Diode

1310nm Four Pin 1510nm Five Pin 10mW Pulse Fiber Optic Communication Laser Diode

$39.00
$50.00 $39.00
Sale Sold out
Shipping calculated at checkout.
Options

1310nm 10mW Four Pin / 1510nm 10mW Five Pin Pulse Fiber Optic Communication Laser Diodes

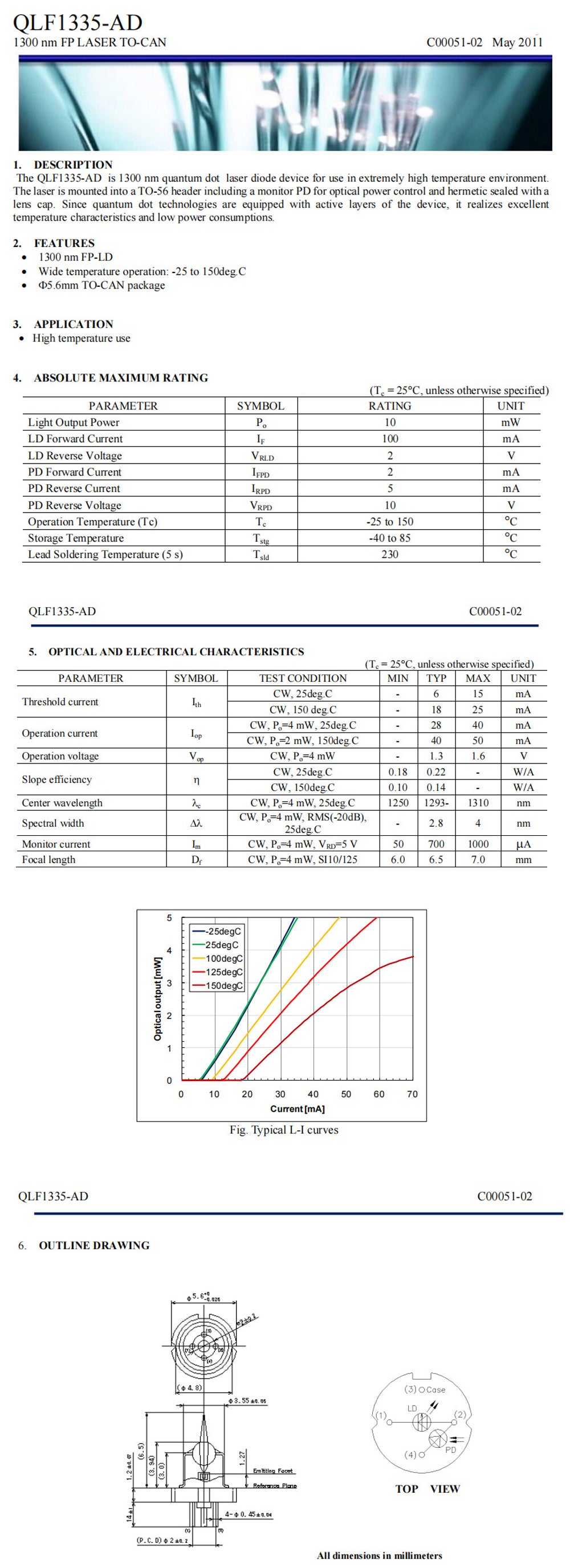

Specifications：
Wavelength:1310nm,1510nm
Power:10mW
LD Forward Current :100 mA
LD Reverse Voltage : 2 V
Light Output Power :10 mW
LD Forward Current :100 mA
LD Reverse Voltage : 2 V
PD Forward Current : 2 mA
PD Reverse Current : 5 mA
PD Reverse Voltage : 10 V
Operation Temperature (Tc) : -25 to 150℃
Storage Temperature : -40 to 85℃
Lead Soldering Temperature (5 s) : 230℃
