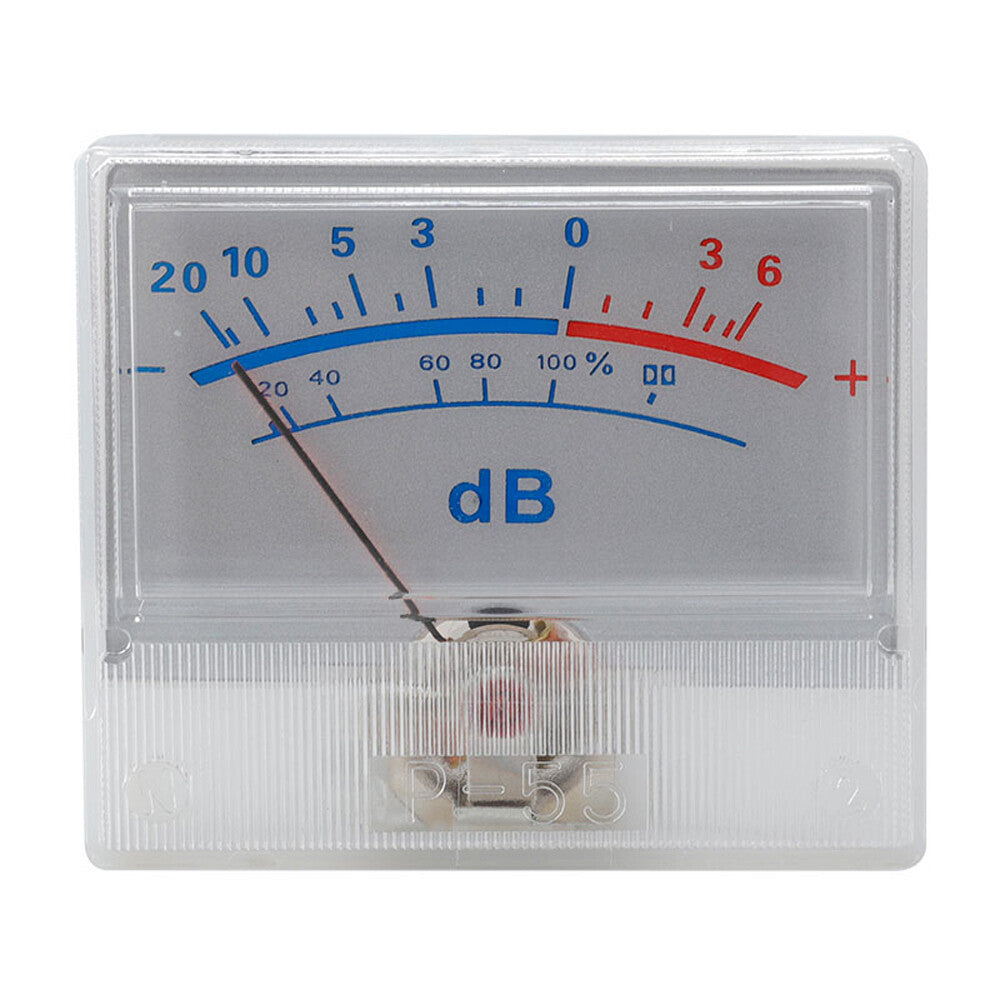

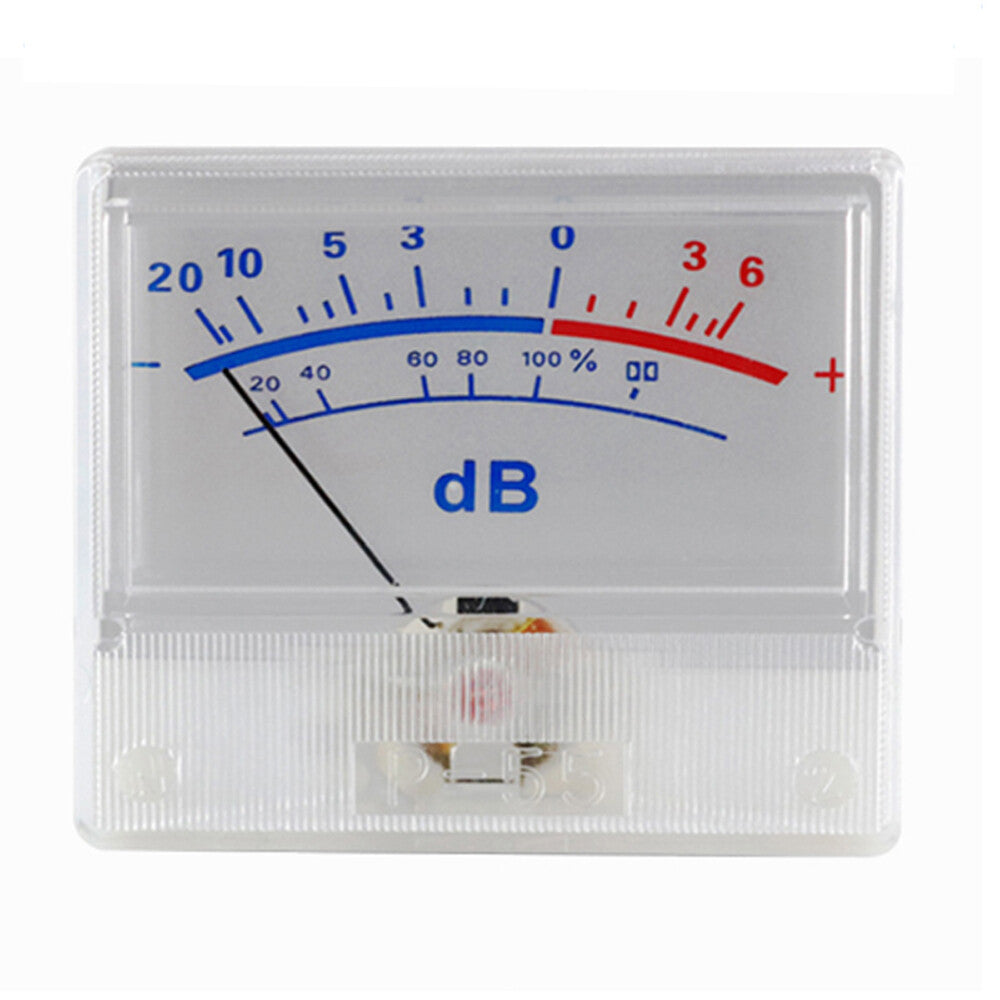

135uA 650 Ω Backless Optoelectronic Flat Meter Pointer Audio Volume VU Meter

High Precision Backlit 135uA 650 Ω Level Meter Pointer Digital Audio Meter Volume Meter Power Meter VU Meter

Specifications:

Surface structure: movable coil type

Pointer material: Zinc white copper

Pointer color: black

Pointer length: 28 (± 1mm)

Pointer width: 0.45 (± 0.05mm)

Pointer deflection direction: It rotates clockwise from left to right.

Mirror cover material: PMMA

Lower cover material: PS

Framework material: SPCC

Excitation coil material: UEW

Electricity meter usage position: vertical use

Backlight: None

Maximum current sensitivity: 135uA ± 10%

Internal DC impedance of the meter head: 650 Ω ± 10%

Friction error: ± 1mm

Balance error: ± 1mm

Insulation strength: above 50M Ω

Packing:

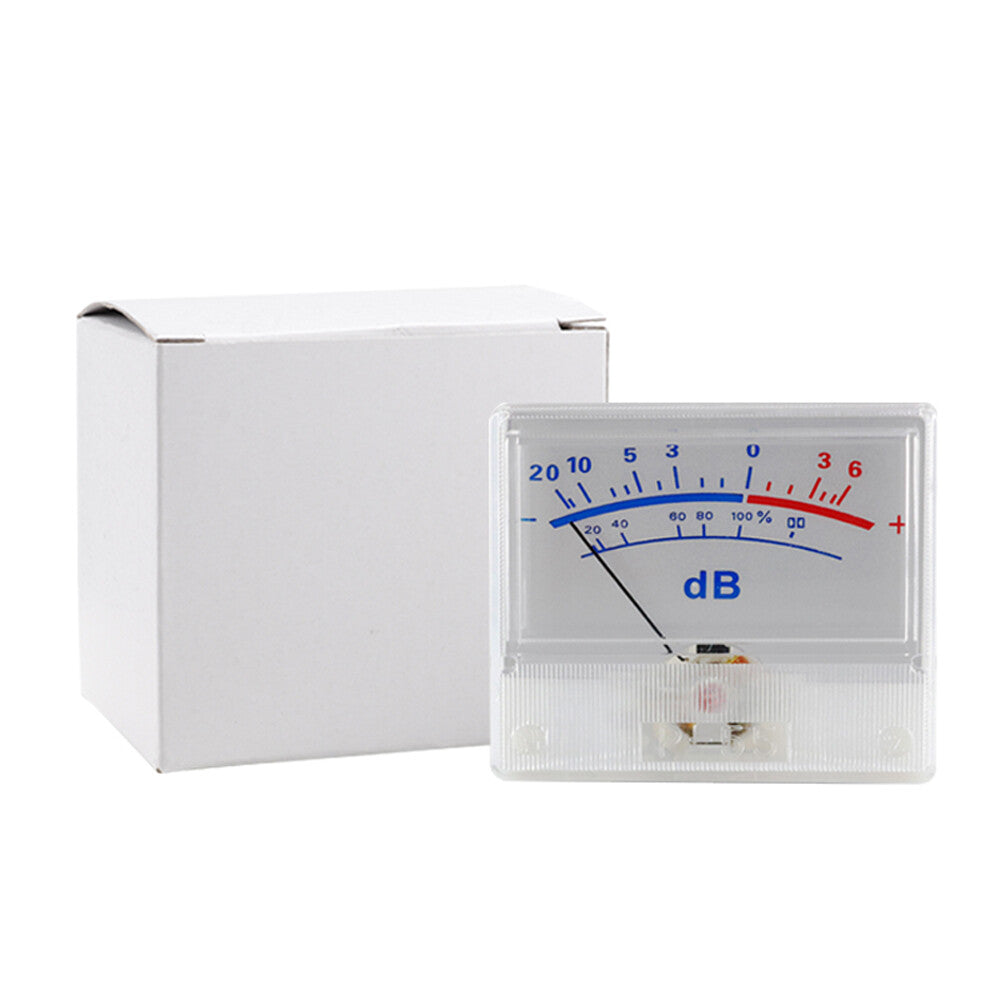

1x VU level meter
