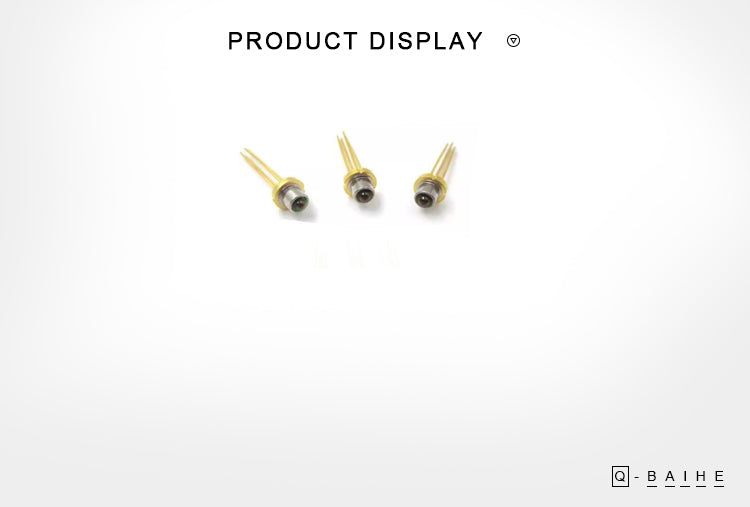

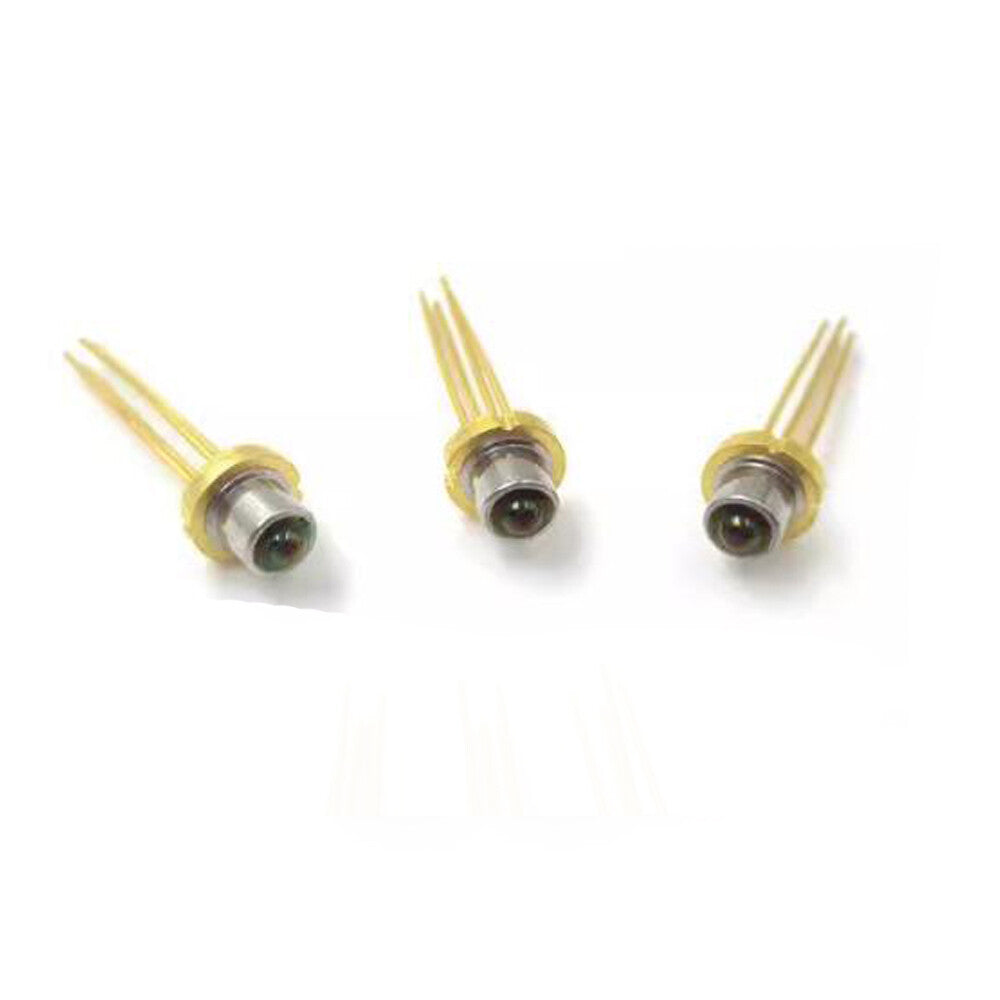

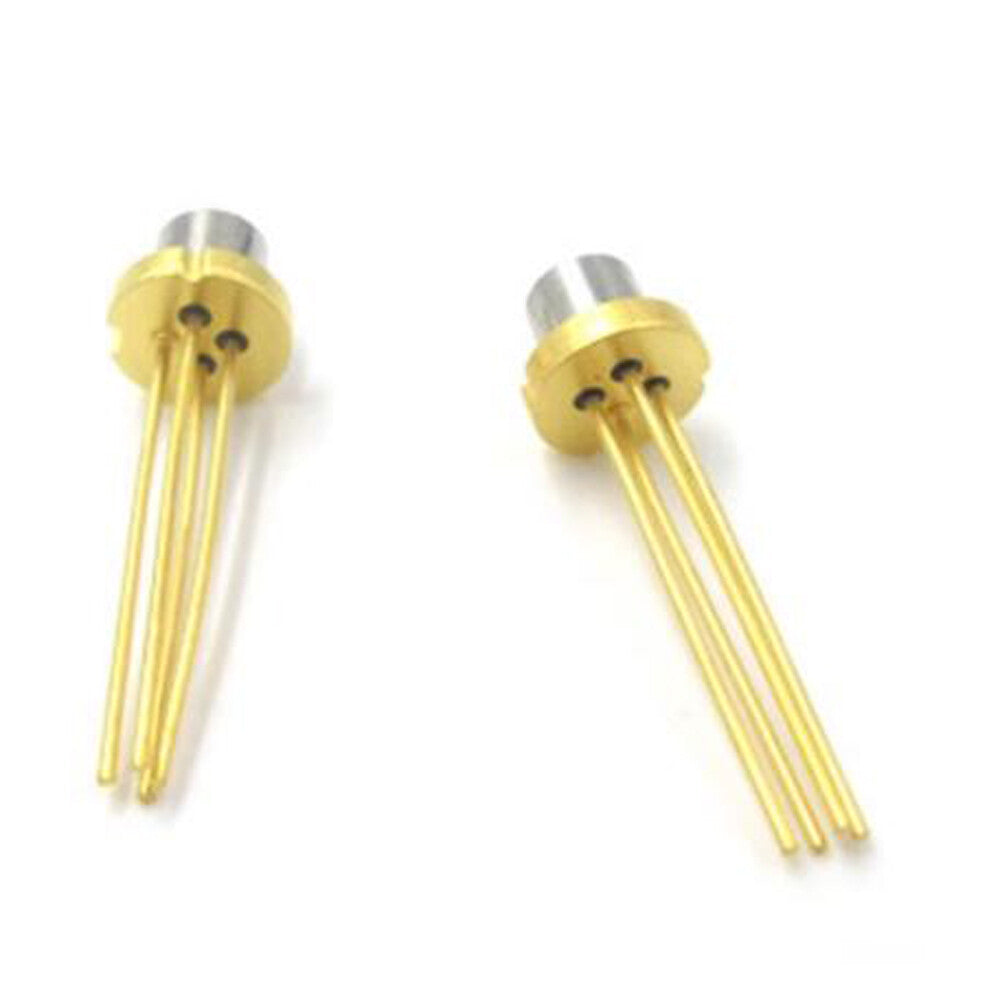

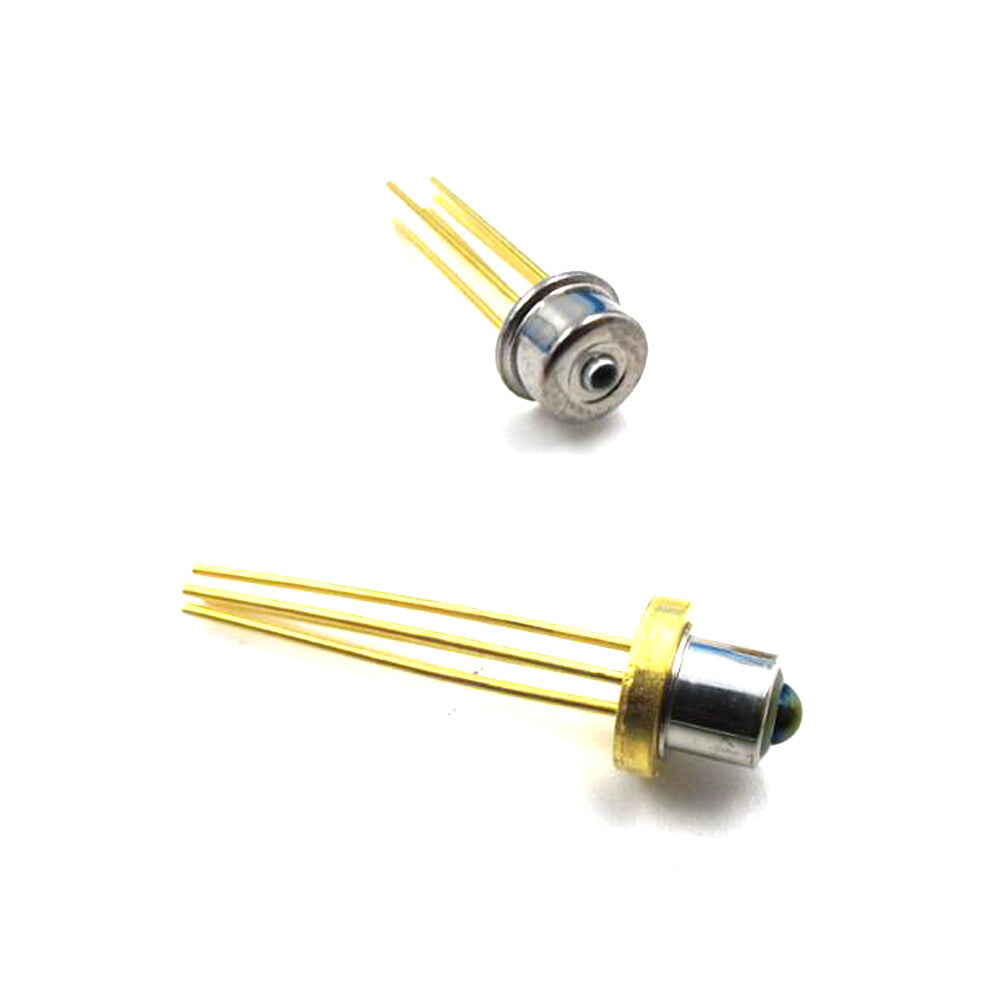

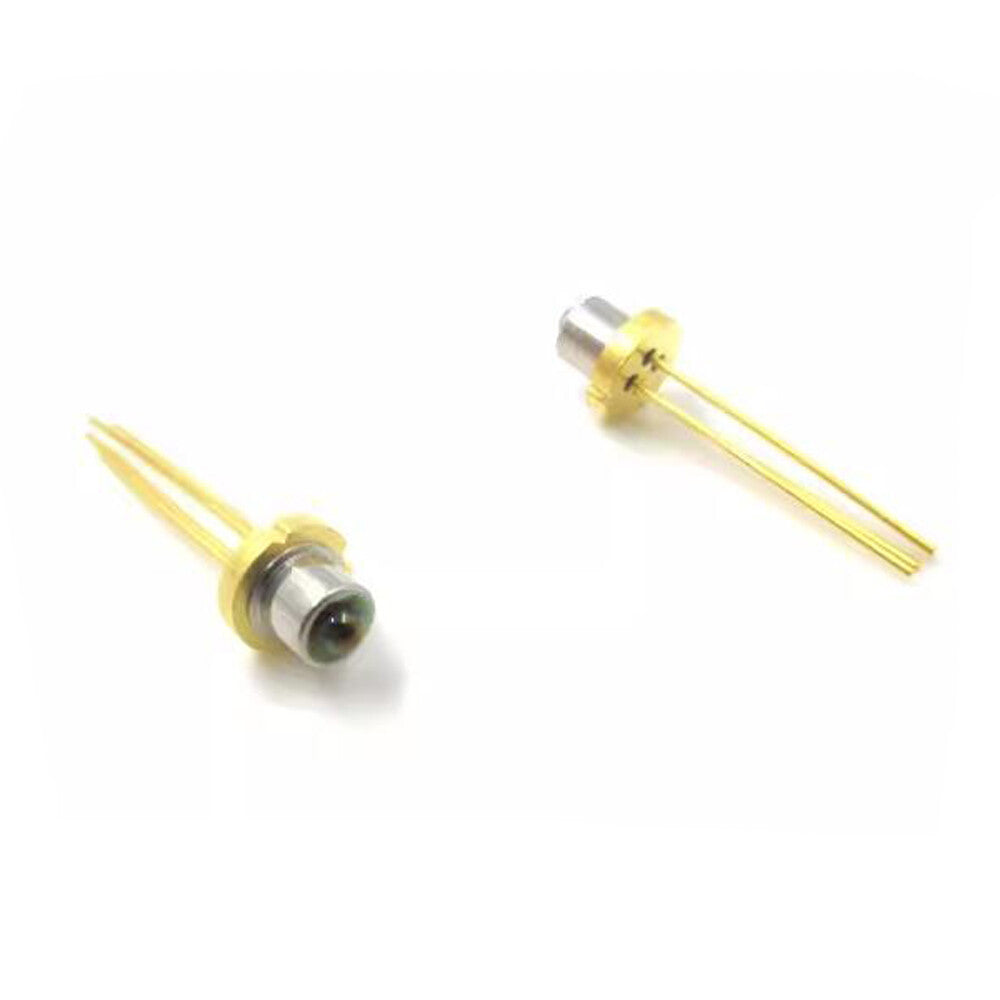

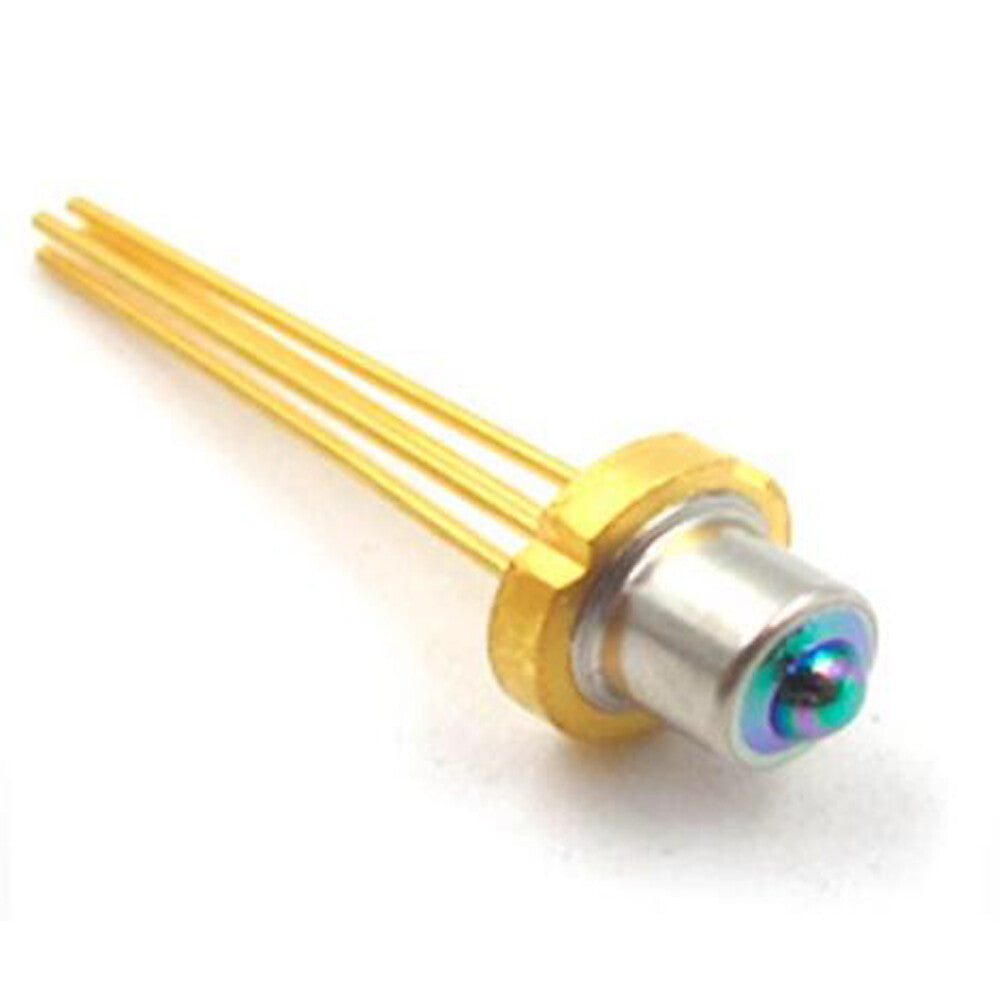

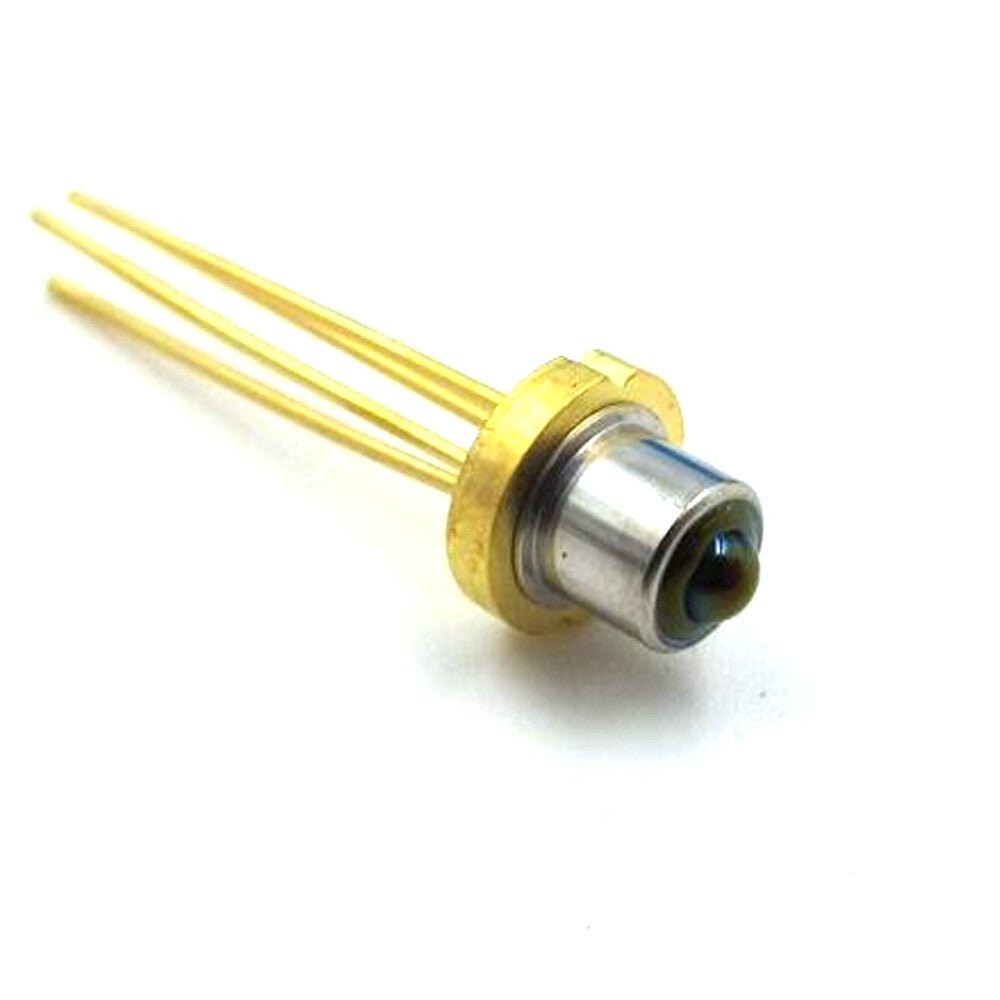

1490nm DFB 1550nm FP 5mW Aspheric Surface Fiber Optic Communication Laser Diodes

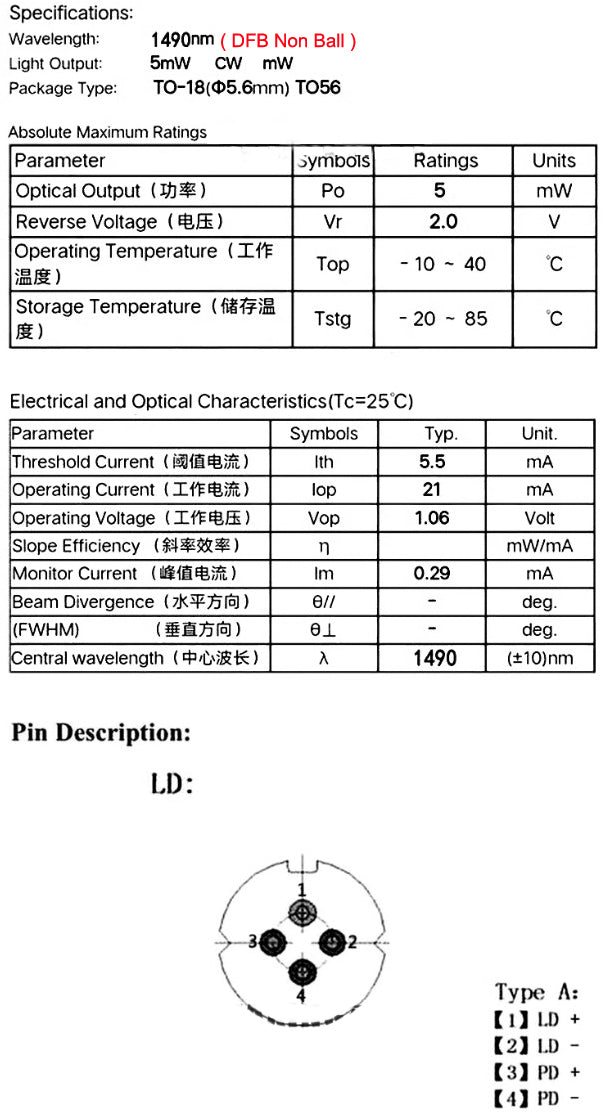

Specifications：
Wavelength: 1490nm，1550nm
Power: 5mW
Operating Current：50mA
Operating Voltage：1.5V
Output Power : 5mW
Operating Current：50mA
Operating Voltage：1.5V
LD Forward Current :150 mA
LD Reverse Voltage : 2 V
PD Forward Current : 10 mA
PD Reverse Current : 5 mA
PD Reverse Voltage : 20 V
Operation Temperature (Tc) : -40 to 85℃
Storage Temperature : -40 to 85℃
Lead Soldering Temperature : 350℃
