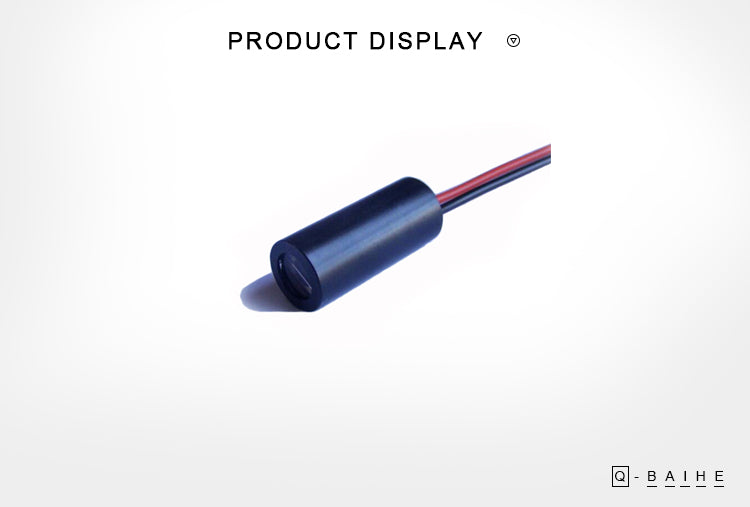

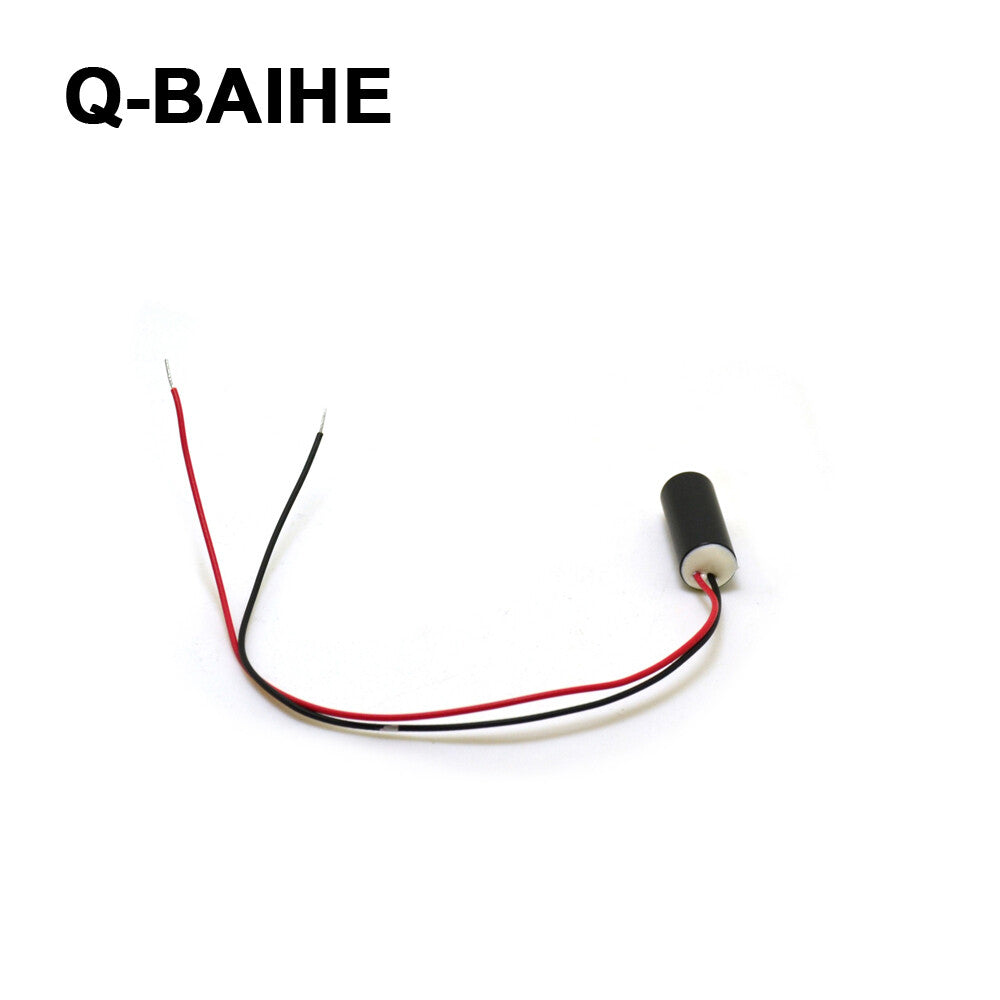

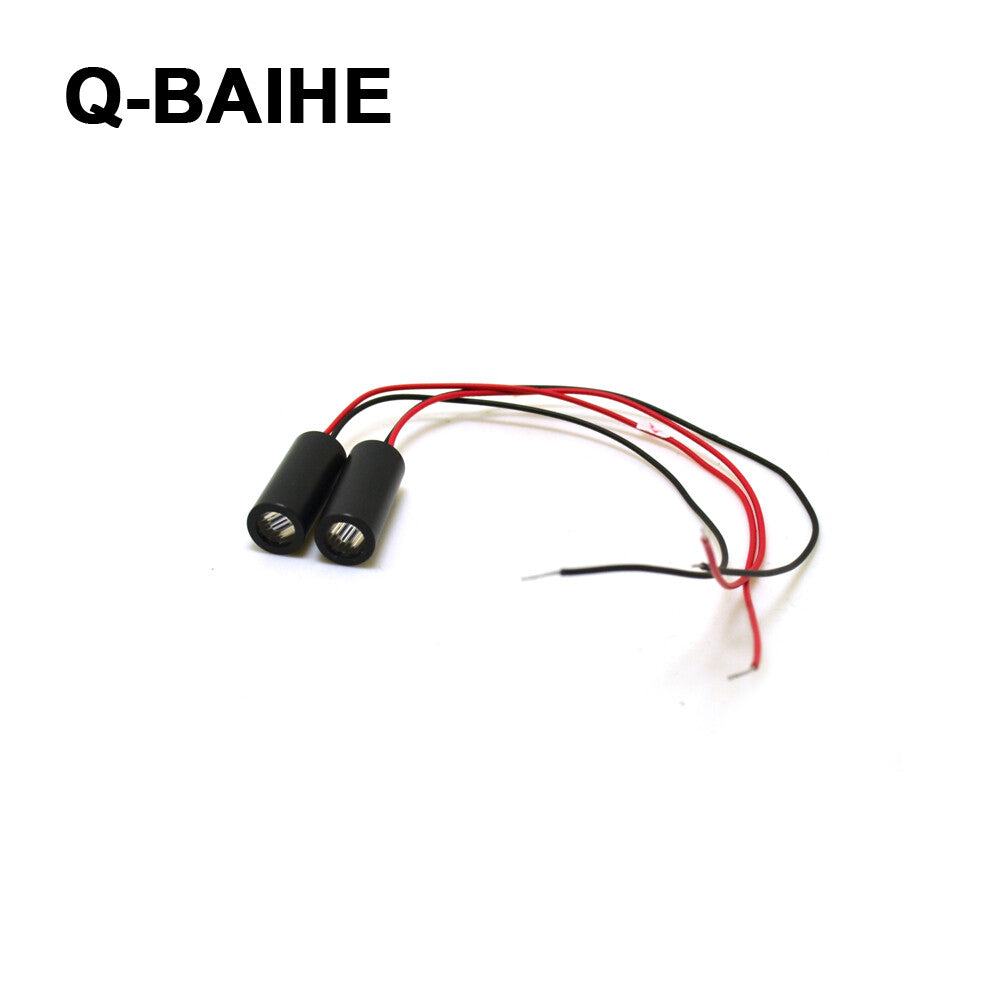

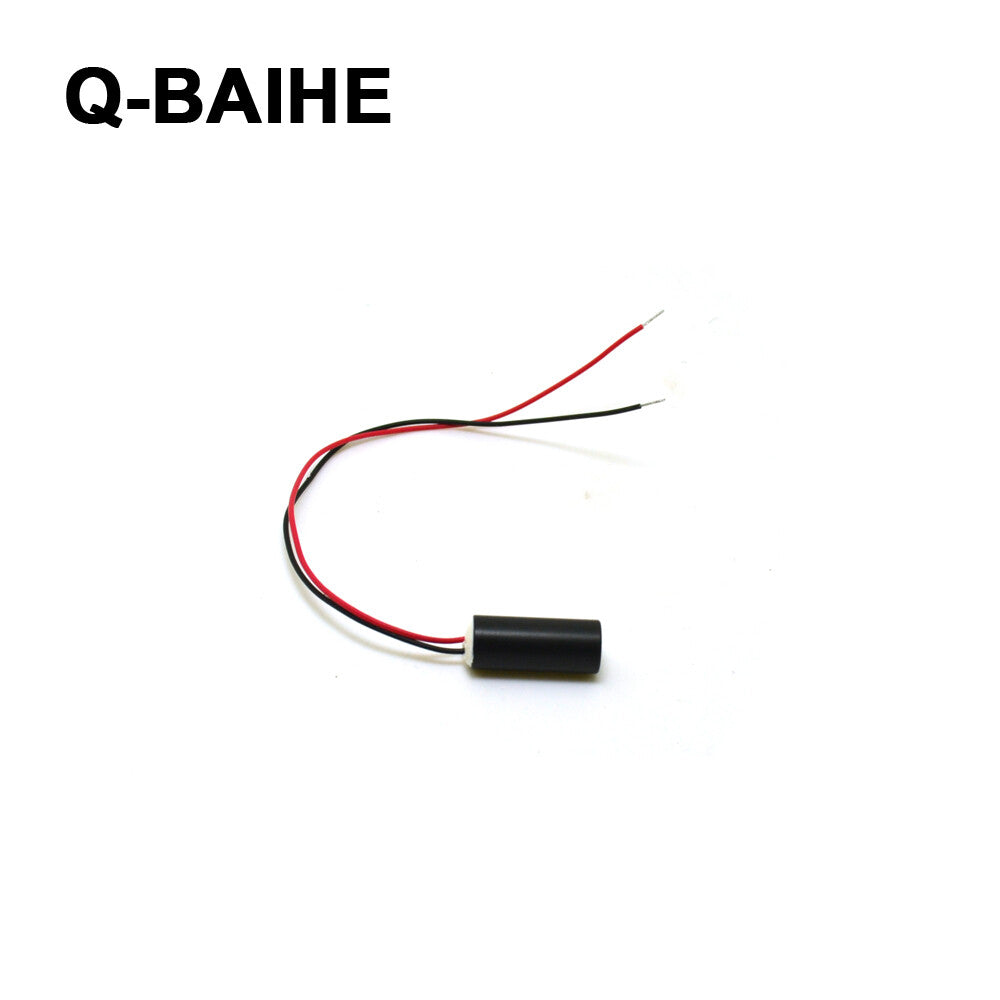

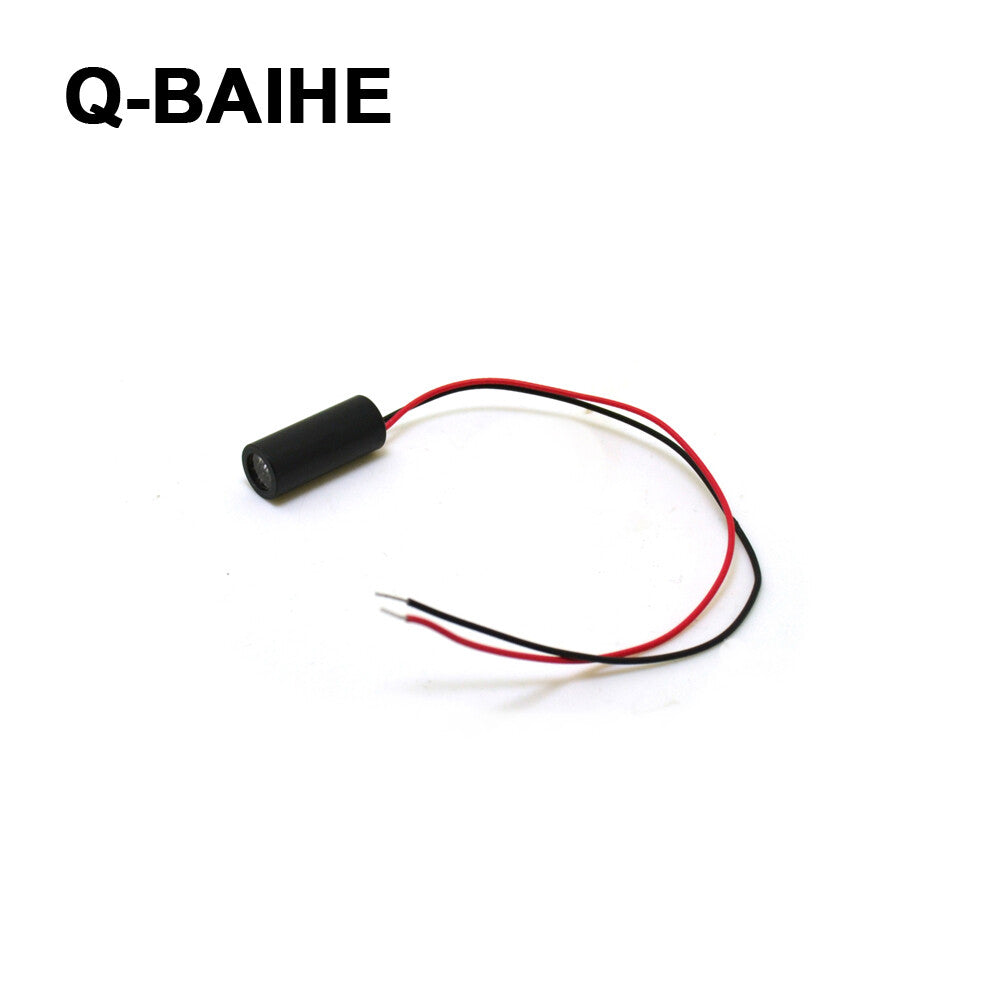

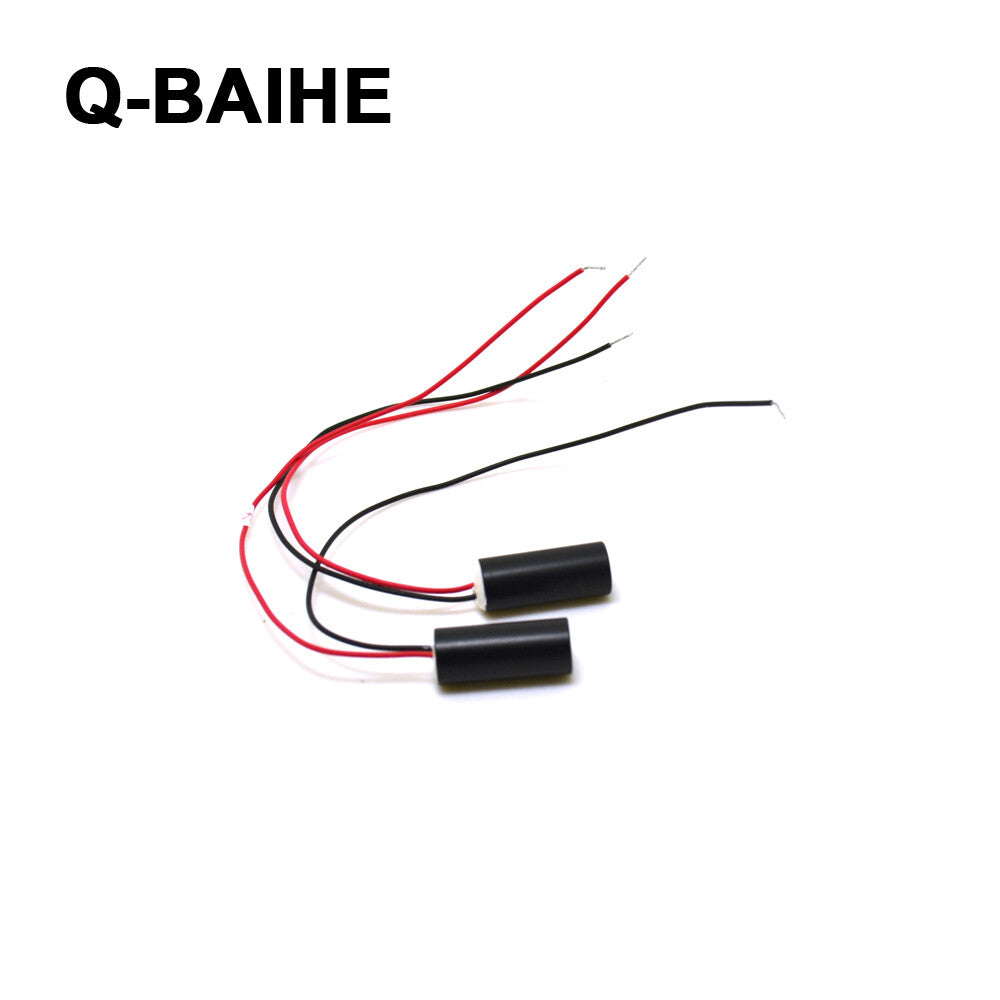

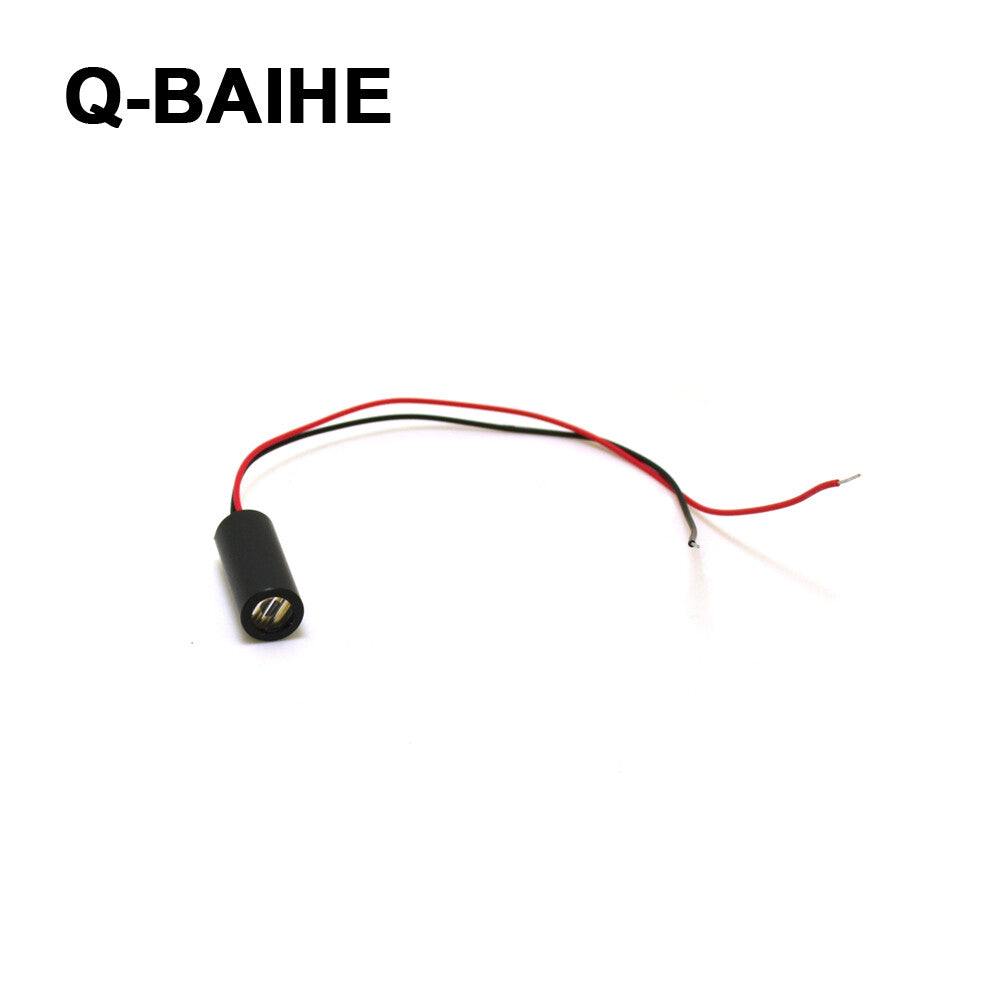

1mW 635nm Line Red Laser Module Red Horizontal Line Meter High Quality Laser

1mW 635nm Line Red Laser Module Red Horizontal Line Meter Laser Module Device

Size: 9 × 21mm (other sizes can be customized)
Material: Copper + Aluminum Optional

Output Wavelength: 635nm/±5nm
Output Power: <1mW

Range: <3 meters
Circuit Control: APC Line

Working Current: I<50mA
Security level: CLASS II

Working Temperature: -10 ° C ~ +40 ° C
Storage Temperature: -40 ° C ~ +80 ° C

Surface Treatment /Color: brass natural, black (oxidized fog black)

Light Diffusion Angle: 5°, 20°, 36.5°, 45°, 60°, 90°, 110° (optional, default 90°)

Service Life: Continuous Output, Continuous Service Life > 5000 hours

Spot shape/diameter: one-line shape/minimum line width ≤1.0mm (requires close-range fixed-point focusing); light spot at 1m<2mm

Working Voltage: DC=2.8~5.3V (two 7th batteries can be lit, you can also use our laser special power adapter)

Tail Wire: 26# red and black electronic wire is about 150mm long; (taken with the power adapter, with 1 meter long DC female plug wire)

Use: For instrument equipment, medical care instrument, military, security, stage lighting, tools, U disk, mobile phone, projection teaching flip pen, temperature measurement (ranging) instrument, sweeper, marking instrument, level, indoor Medium decoration and other products

Package:
1* Laser Module
