2.0 Channel 250W HIFI High-Fidelity Audio Digital Reverb Power Amplifier Board
Working Voltage: Two Groups AC22-26V Total Harmonic Distortion: <0.02%
Impedance: 4-8Ω Maximum Output: 250W+250W
Transformer Power:
capacity >200W Frequency Response: 10Hz-20Hz
Signal To Noise Ratio: 90db Channel Separation: >96db
IC Type: TOSHIBA Size: 15.8*16.7*4.2cm
Product Introduction:

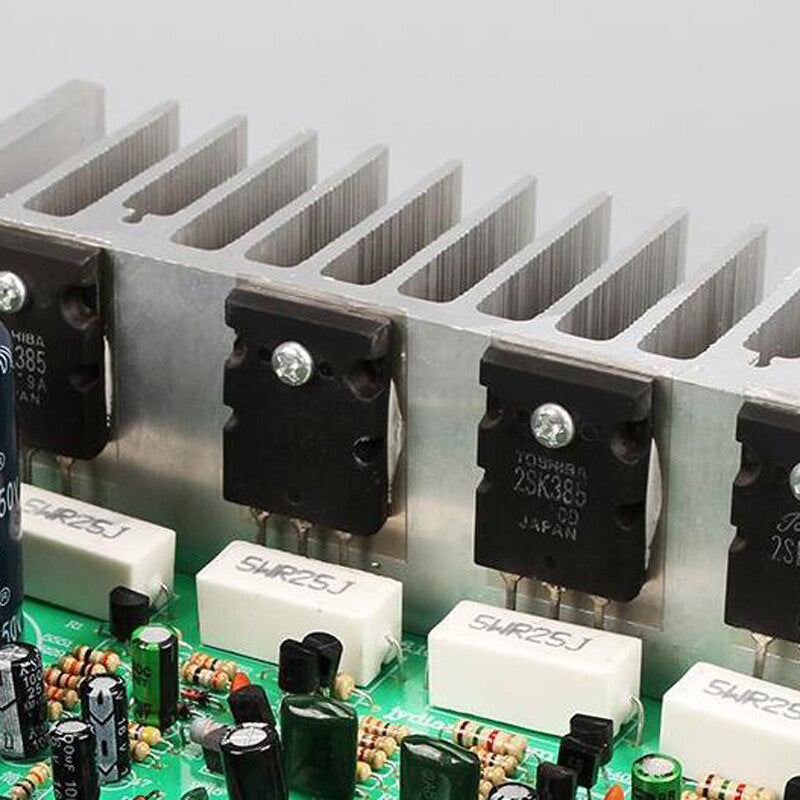

The power amplifier board adopts Toshiba 385/388 series high-power output tube for rear-stage drive, which can be matched with various speakers and has large output power. The front stage uses PT2399 to process the sound back, with digital delay reverberation, and tone control at the front end, which is especially effective.
