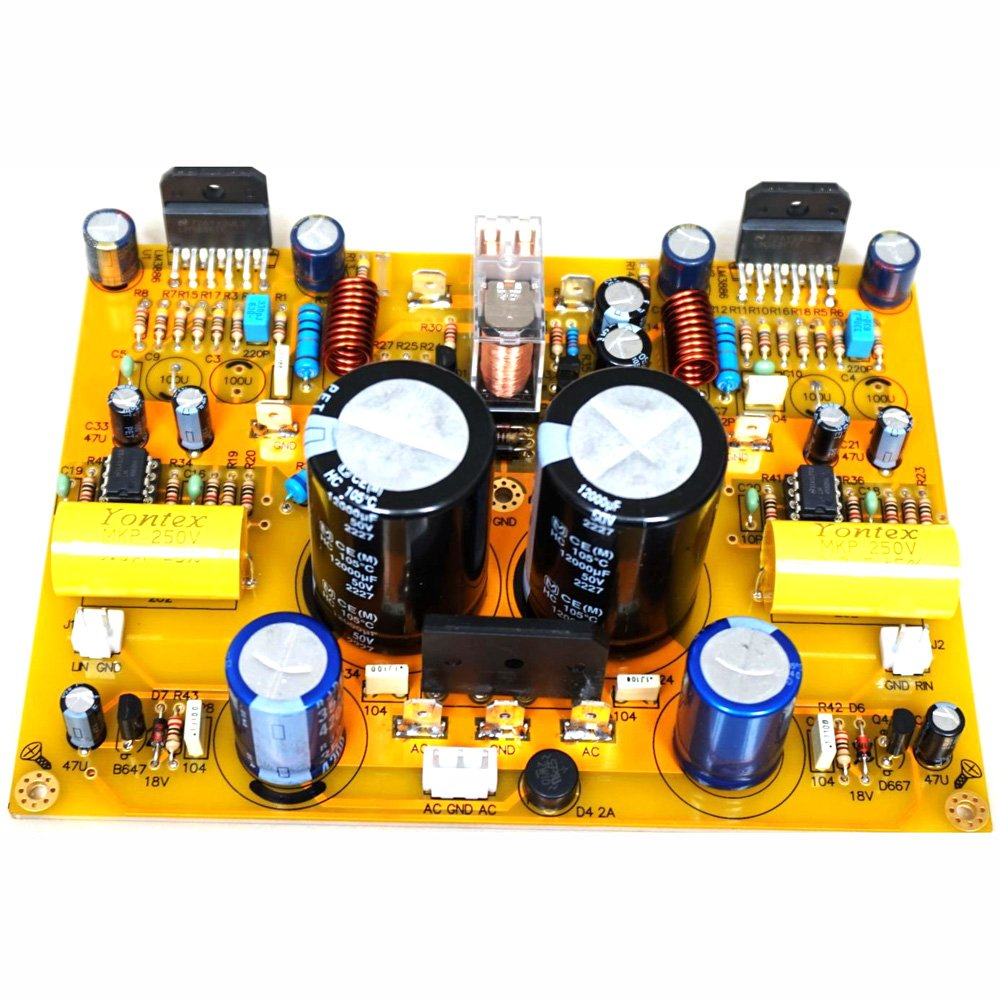

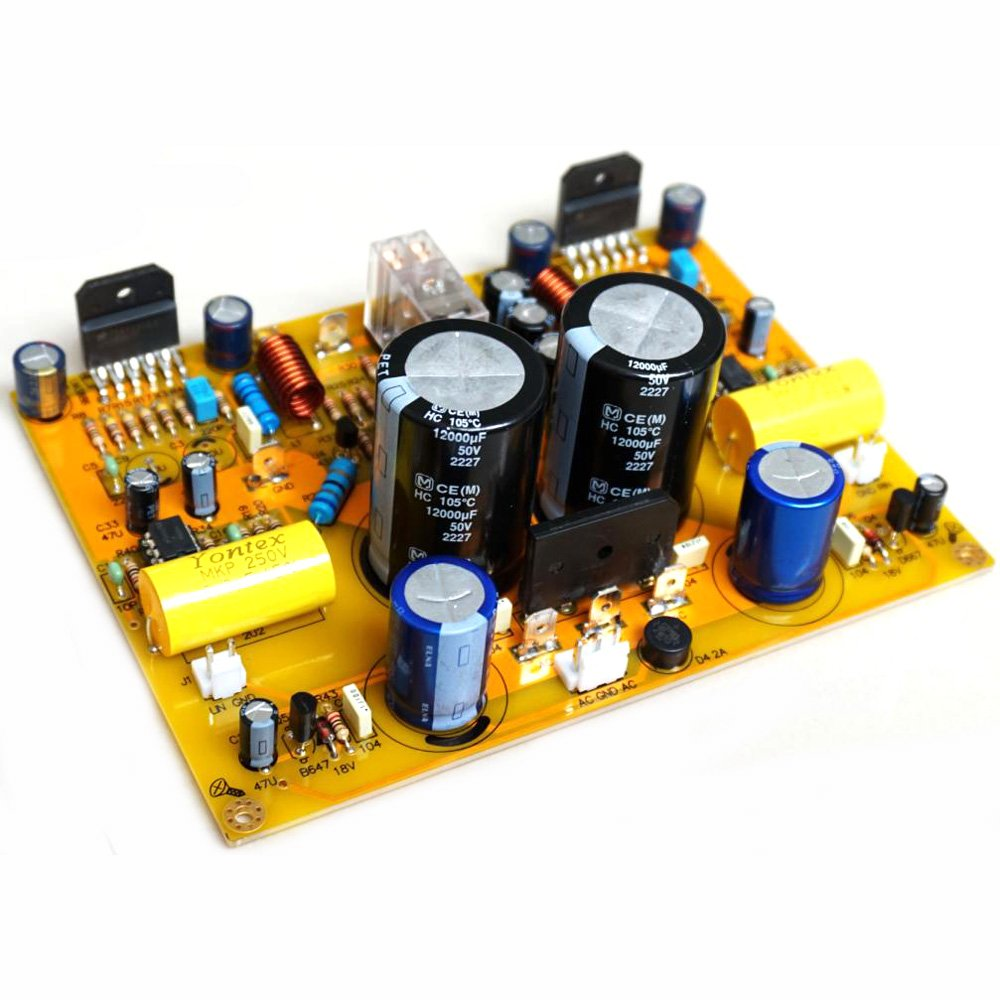

2 Channel HIFI LM3886 amplifier board with LM4562 Op Amp

2 Channel HIFI LM3886 amplifier board with LM4562 Op Amp

Specification:
Double-sided thickening gold-plated PCB (substrate 2MM, copper thickness 75U
Small resistance (1%) high precision low temperature drift metal film resistors
Coupling capacitor using this Nick YONTEX / Promise polypropylene MKP capacitor, LM4562 op amp,relays, Panasonic electrolysis and so on.
Board size: 160mm * 118mm
Supply voltage: AC: 26V-0V-26V 15V-0V-15V
Output power: 60W +6 W 8Ω

Note: There is no electronic diagram, only for professionals.

Package:
1pc LM3886 amplifier board with LM4562 Op Amp
