2 in 1 USB to RS422 & to RS485 Converter Adapter with CH340T



Description:



1. This converter uses a high-performance ch340T chip supports the latest operating system Win7 (including 64-bit)!

2. Baud Rate Range: 300 ~ 115200bsp!

3. With TVS surge protection, strict requirements for product design by industry

4. All at a glance. Board with three indicators. One is the power indicator: USB normal power light (red), one computer via USB to 422 (485), and then send out the data indicator (red), there is a 422 (485) to receive data computer uploading data received indicator (green) light.

5. Very easy to carry, with the ordinary U disk almost.

6. The converter is a USB2.0 interface, compatible with USB1.1.

7. PC through data cable directly into the top on it, no external power supply.

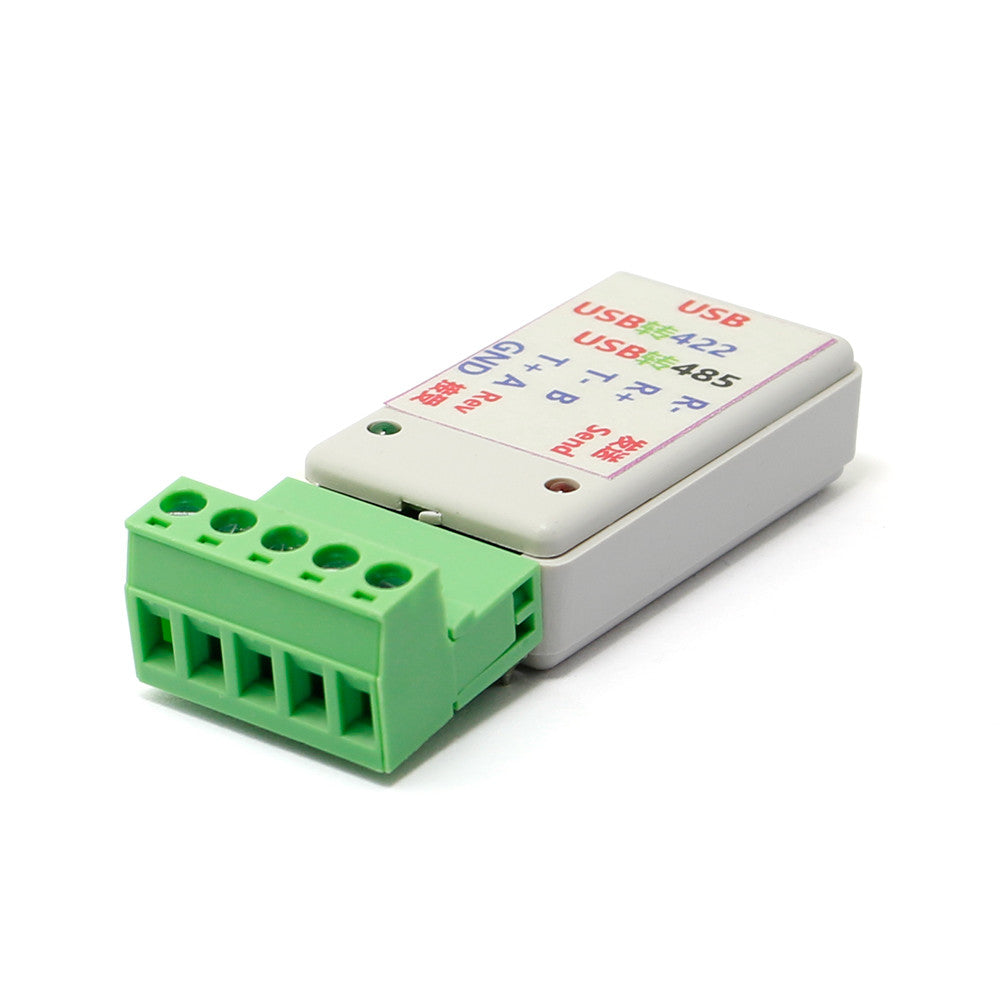

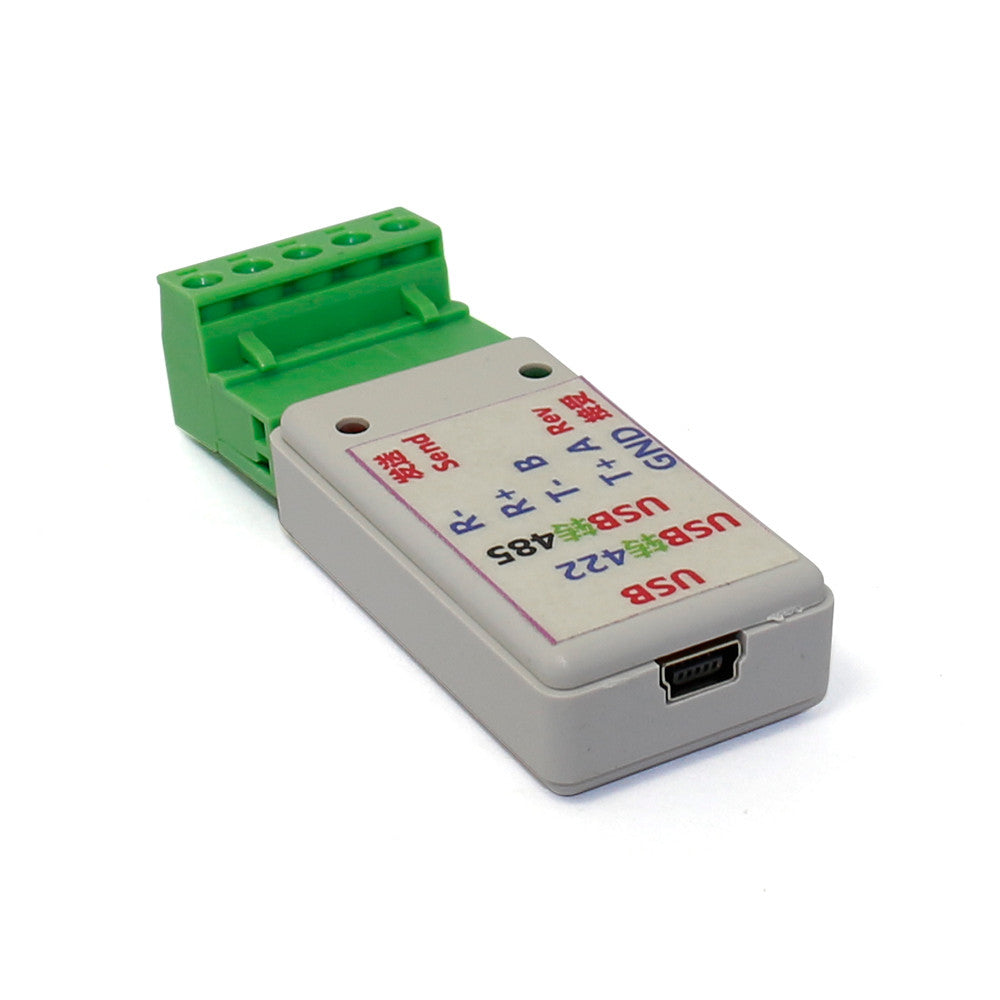

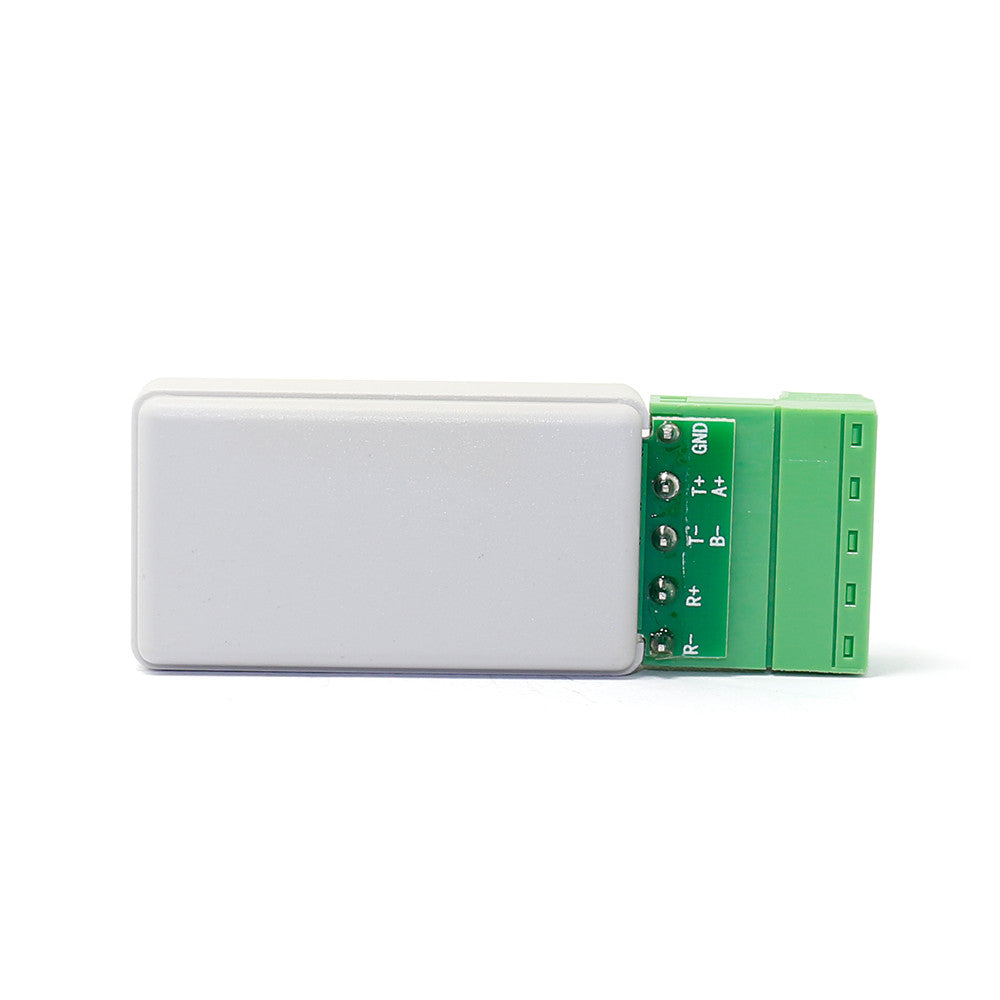

Pin definition

USB-422 terminal definitions

1 --------------- R-(receive)
2 --------------- R+ (receive)
3 --------------- T-(send)
4 --------------- T+ (send)
5 --------------- GND (ground)



USB-485 terminal definitions

1 --------------- empty
2 --------------- empty
3 --------------- B-(485 mode)
4 --------------- A (485 mode)
5 ----- GND (ground)


Download:
User manual(Please send us message for technical files after payment!Thanks!)

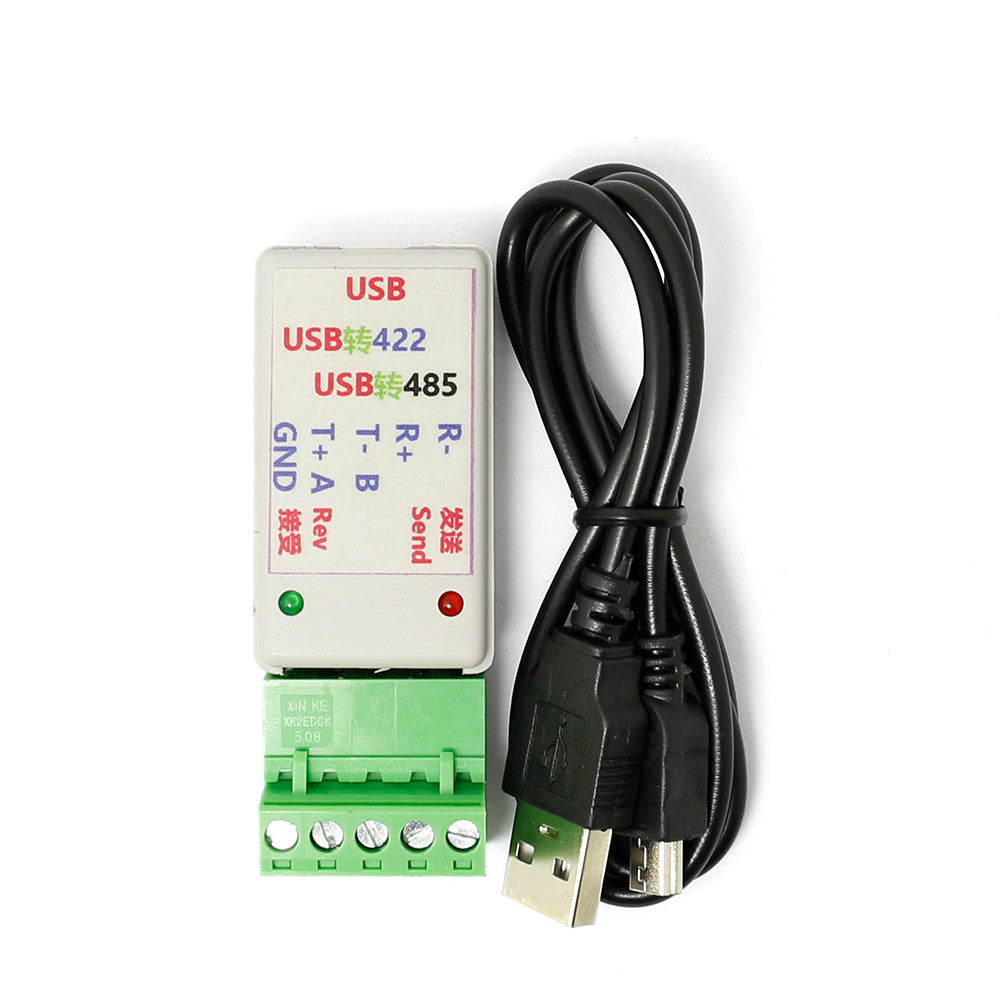

Package:



1pc 2 in 1 USB to 485 USB to 422 Converter Adapter

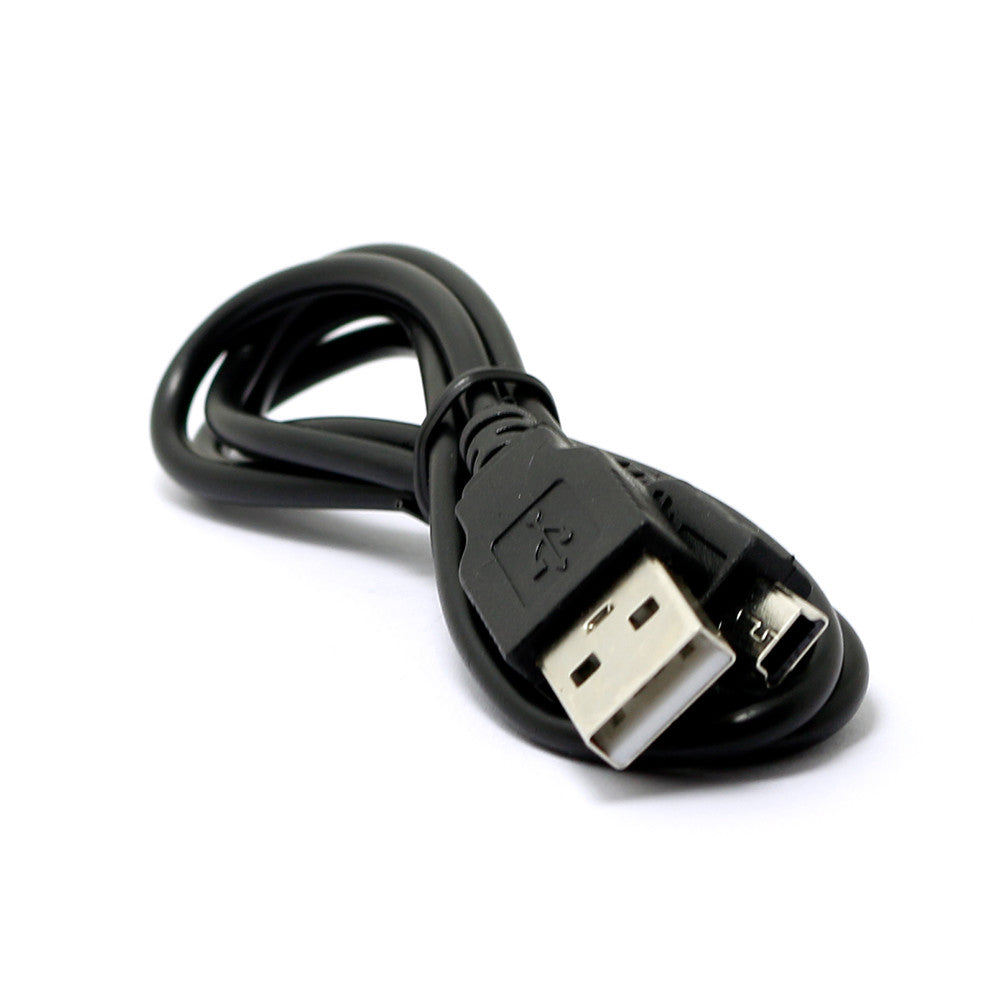

1pc USB cable
