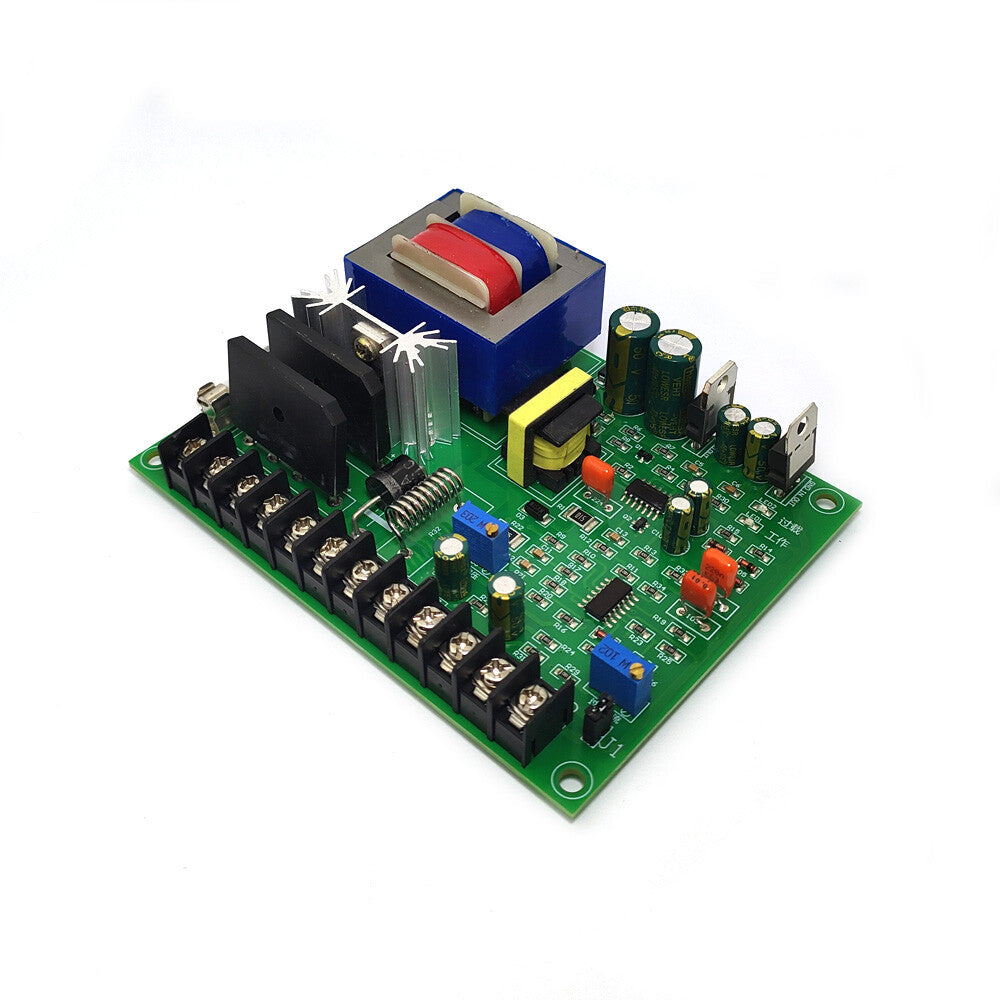

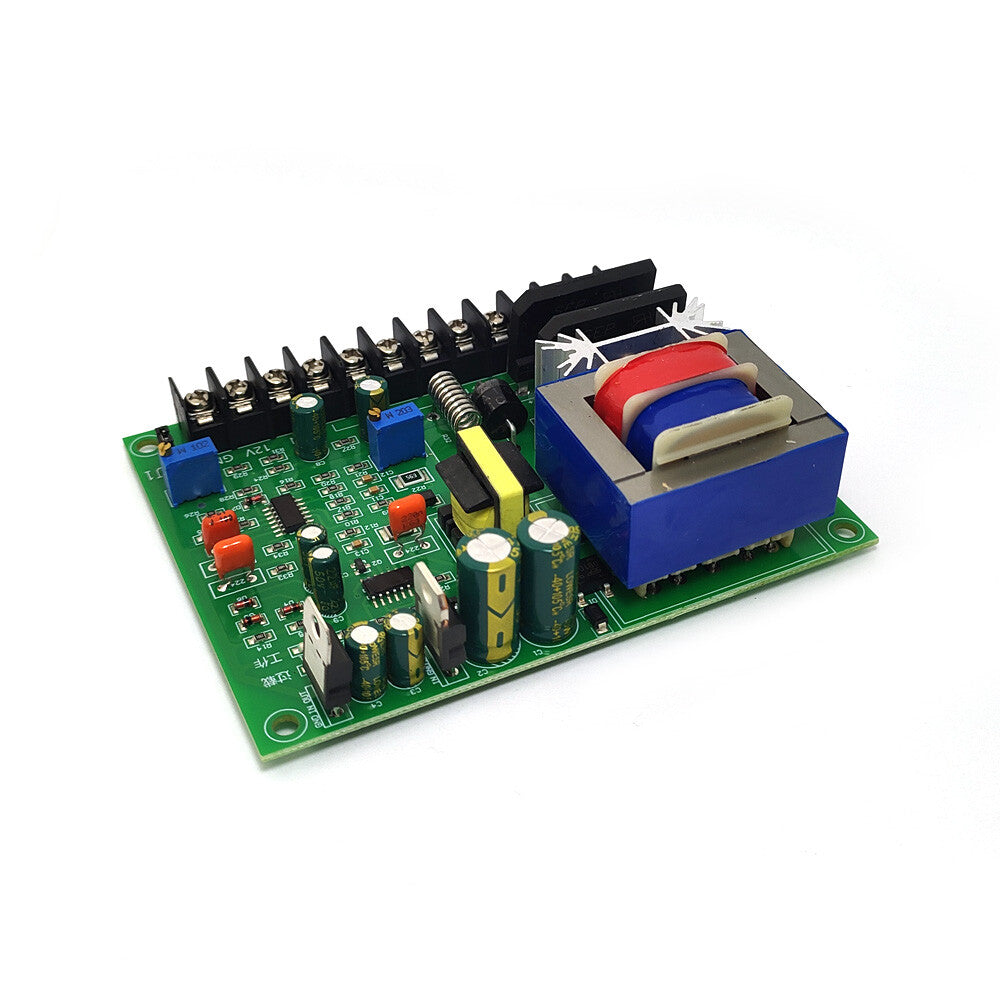

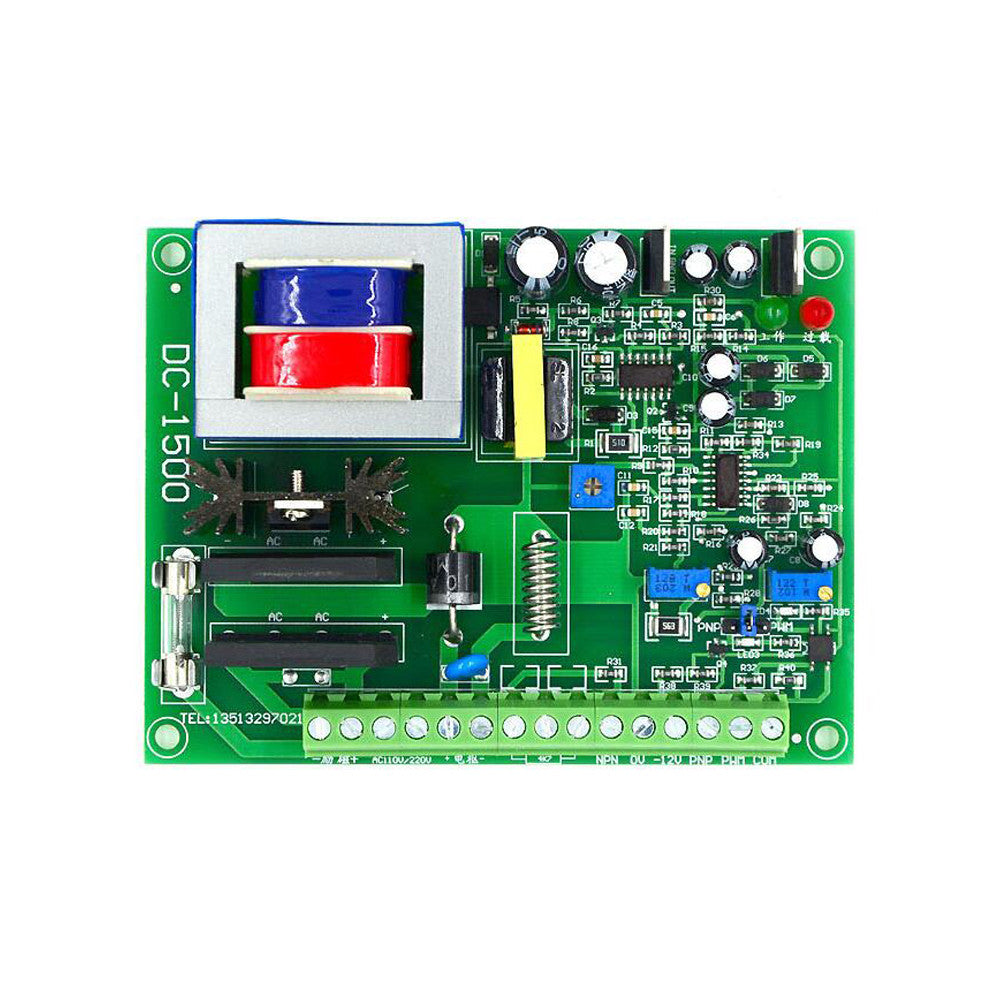

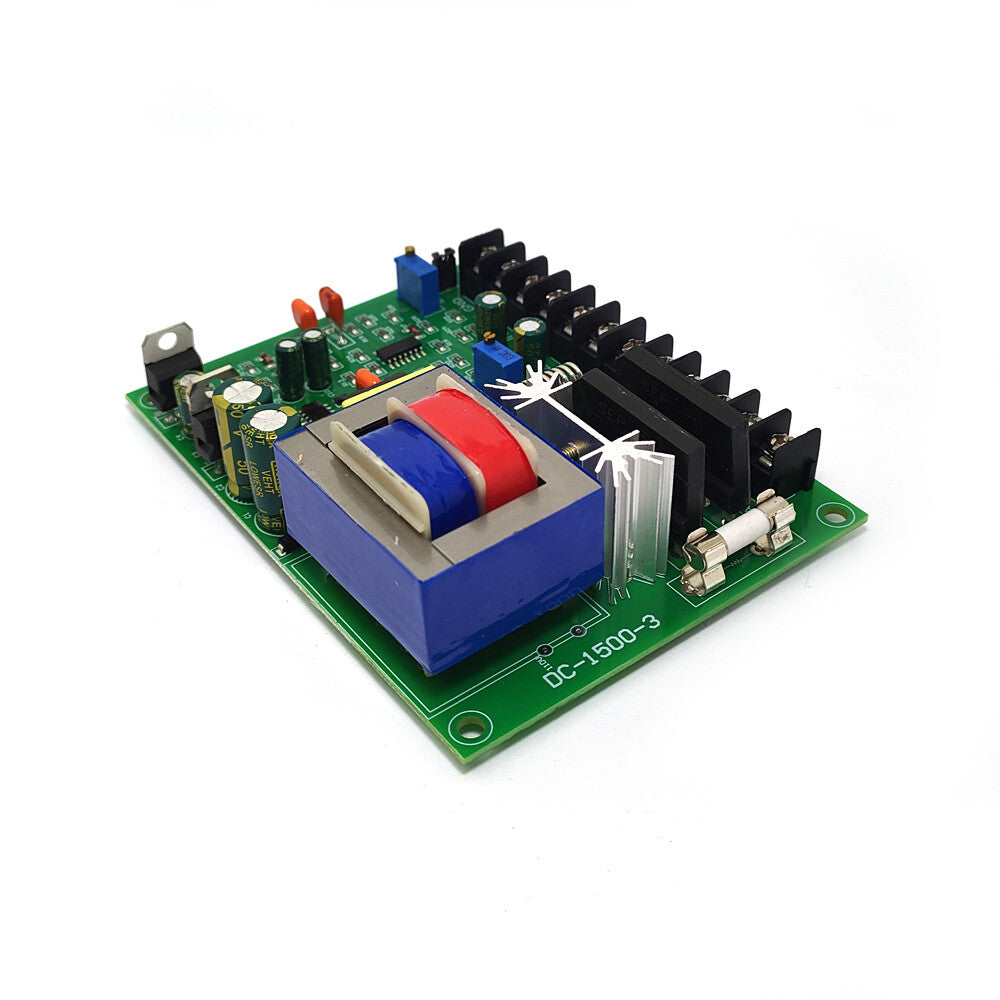

220V DC Motor Speed Control Board Controller Bag Making Machine Winding Machine

220V DC Motor Speed Control Board Controller Bag Making Machine Winding Machine

Input voltage: 220V.AC +-10%

Frequency: 50/60Hz

Output current: up to 7A

Output power: 50-1000W

Excitation output voltage: DC 200V-1A

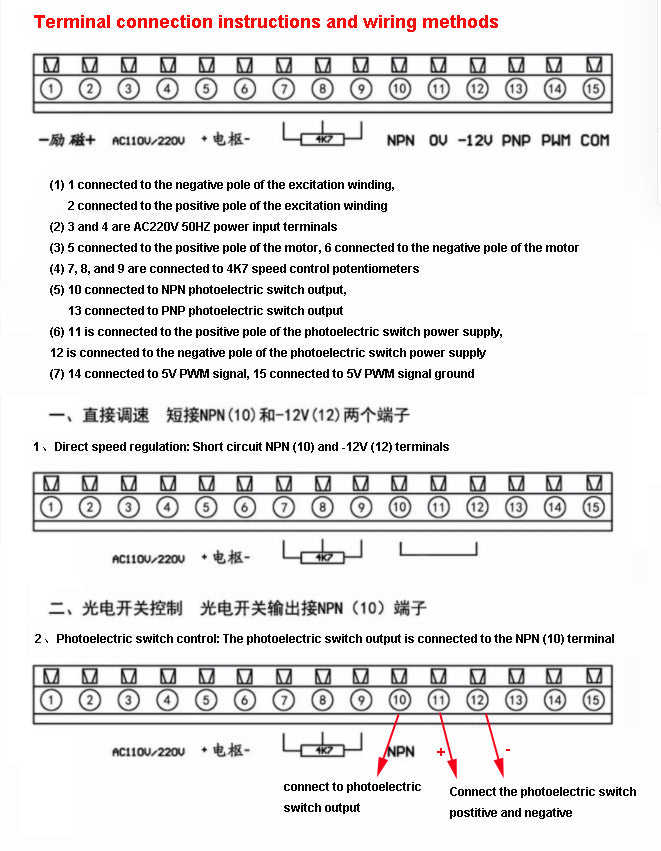

Wiring method: terminal type

Armature output voltage: DC 0V-DC 220V continuously adjustable

Features:

1. Introduce voltage negative feedback technology to make the speed more stable;

2. Over-current protection cut-off device to make performance more reliable;

3. With soft start device, eliminate the motor starting current is too large;

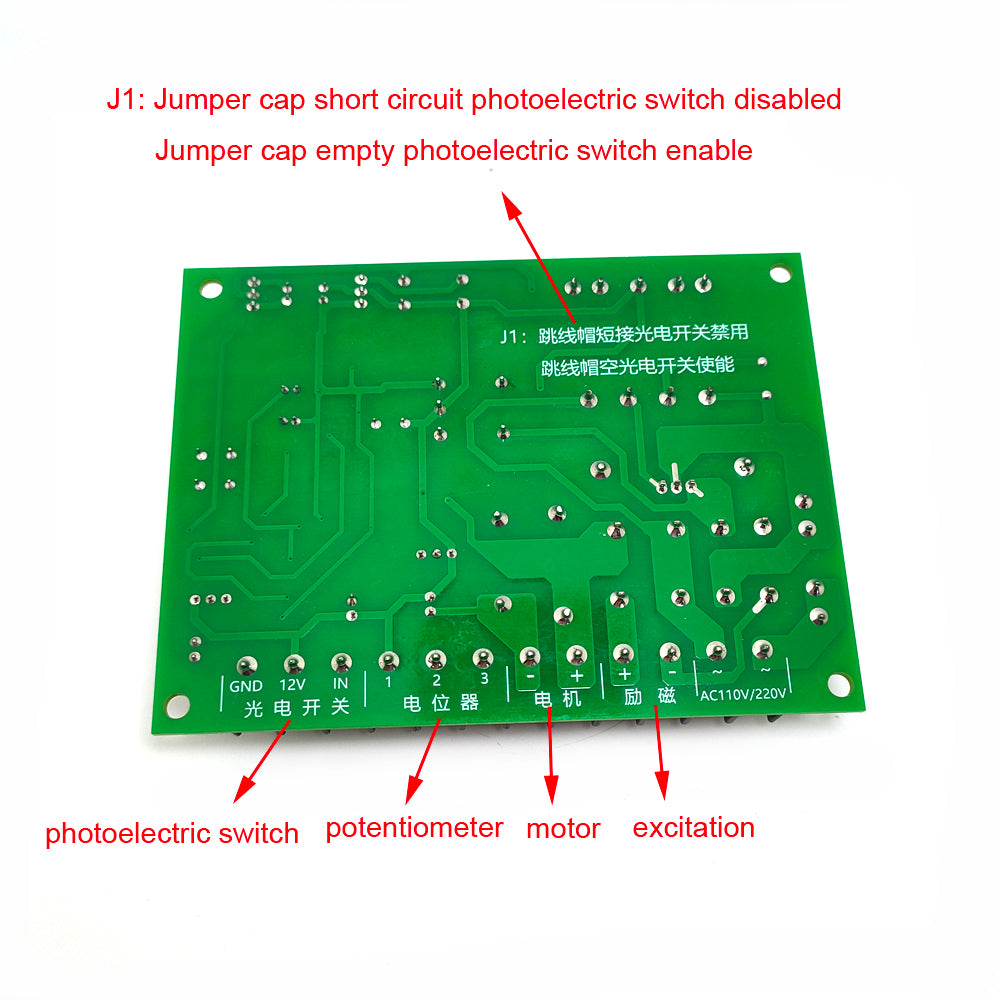

4. With flexible multi-function interface, compatible with NPN, PNP photoelectric switch, can be connected to digital output.

Package:

1* 220v DC motor speed control board controller
