232 To 485 RS485 To RS232 Serial Protocol Module Converter Bidirectional Mutual

232 To 485 RS485 To RS232 Serial Protocol Module Converter Bidirectional Mutual

$24.00
$24.00
Sale Sold out
Shipping calculated at checkout.

无标题文档
Title：

232 To 485 RS485 To RS232 Serial Protocol Module Converter Bidirectional Mutual Communication Module

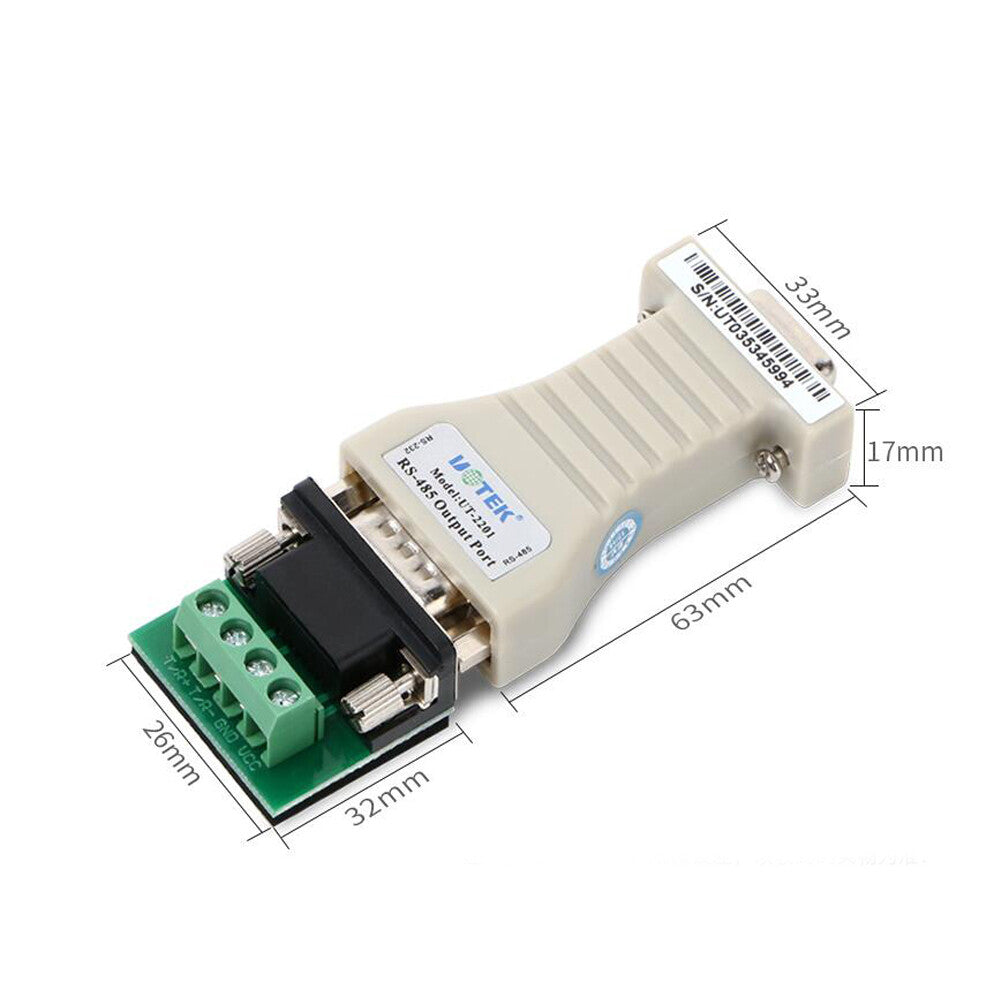

Transmission Rate: 300bps-115.2Kbps Dimensions: 63*33*17mm
Relative Humidity: 5%-95% Certification: CE, FCC
Interface Features:

EIA/TIA Compatible RS-232C, RS-485 Standard
Electrical Interface: RS-232 End DB9 Hole Connector, RS-485 End DB9 Pin Connector
Working Mode: Asynchronous Half-Duplex Differential Transmission
Transmission Introduction: Twisted Pair Or Shielded Line
Transmission Distance:

5 M On The RS-232 End And 1200 M OnThe RS-485

Storage Temperature:

-25 ° C ~ 70 ° C
Features:

1. Two-way conversion, wide range of use
2. The main control chip, the data is not lost
3. Long distance transmission, up to 1200 meters
4. No power supply, 232 charge pump drive
5. Fast conversion, zero delay transceiver
6. Environmentally friendly materials, good durability and good quality
Application:

Widely used in automation control systems, access control systems, parking systems, autonomous banking systems, bus toll systems, attendance systems, highway toll station systems, etc.

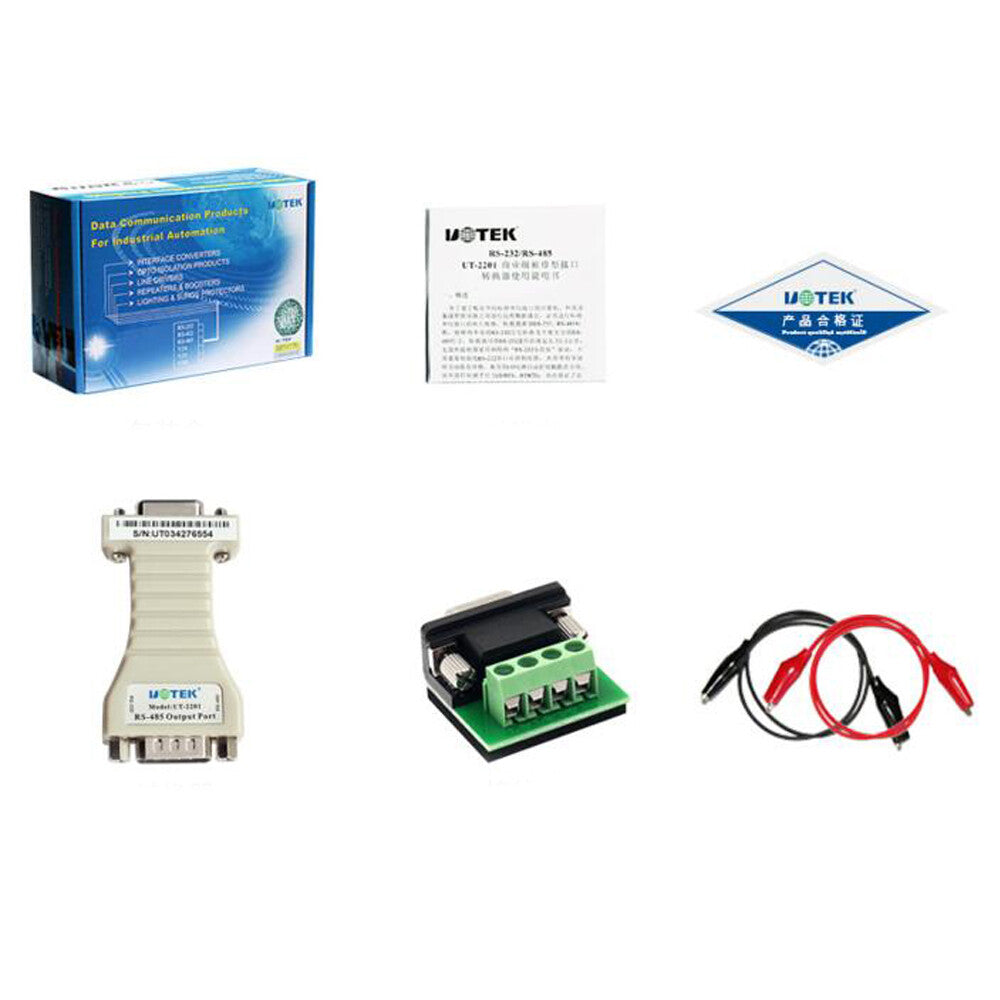

Package:

1* Converter
1*Binding Post
1*Crocodile Clip
1* Box
1* Instruction Manual
1* Certificate
