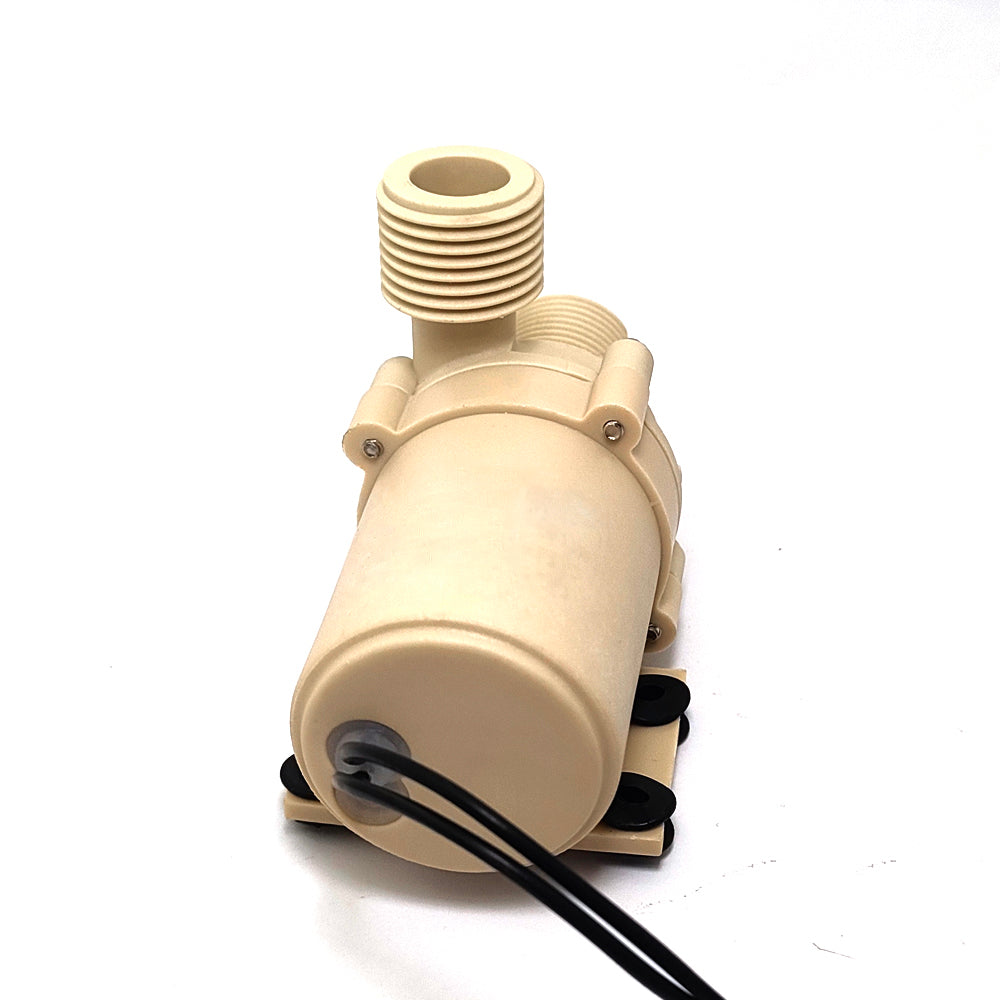

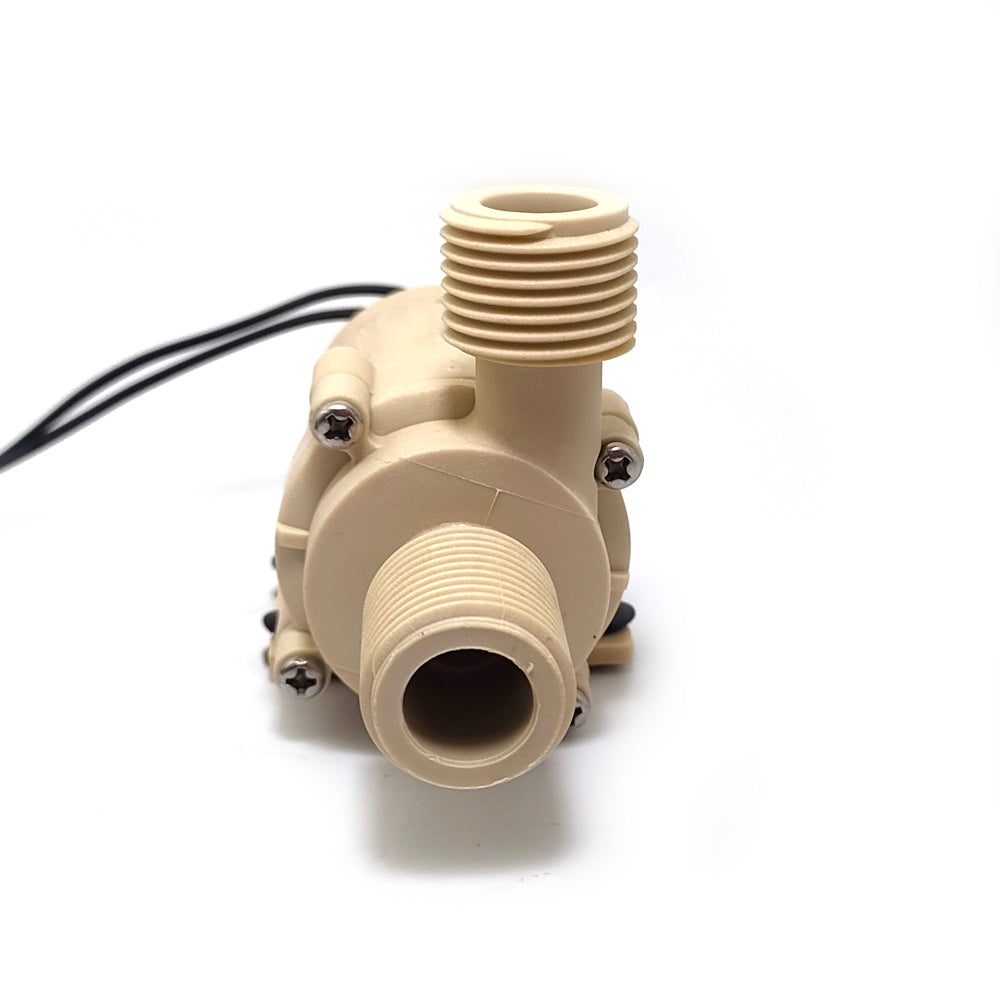

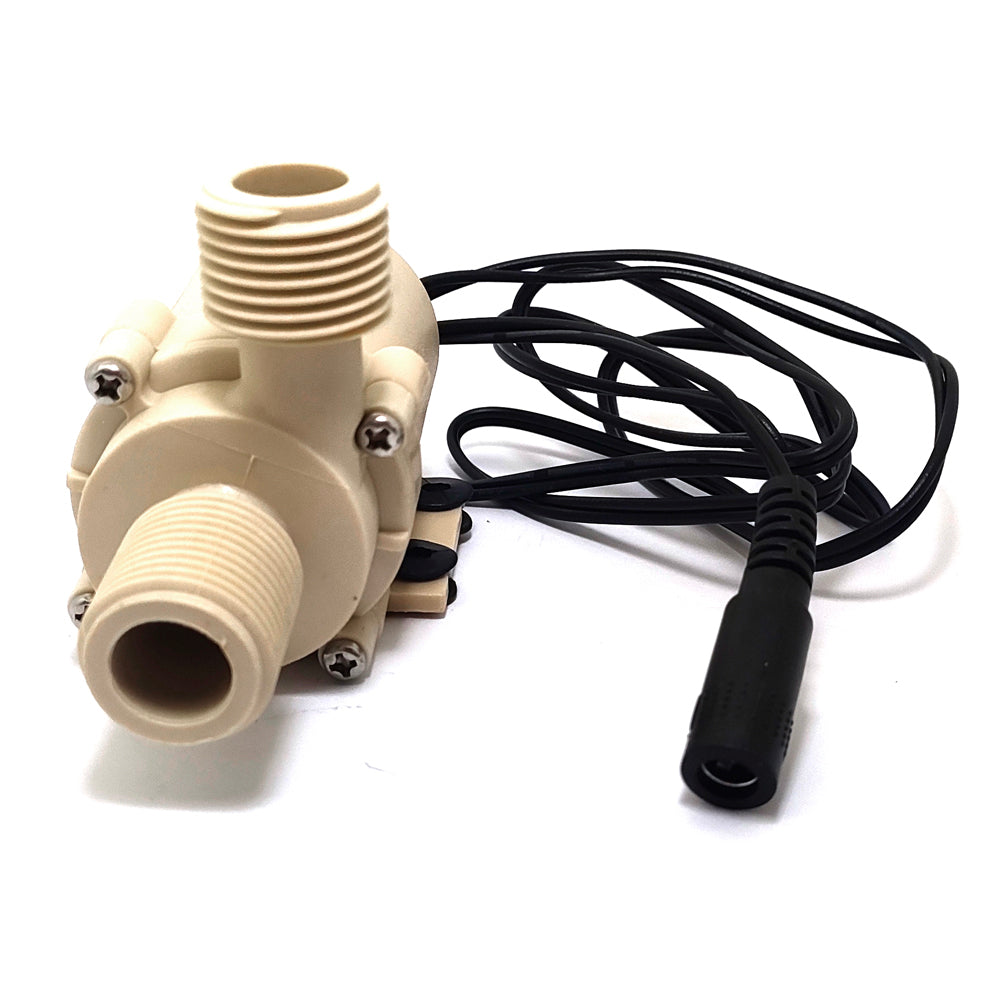

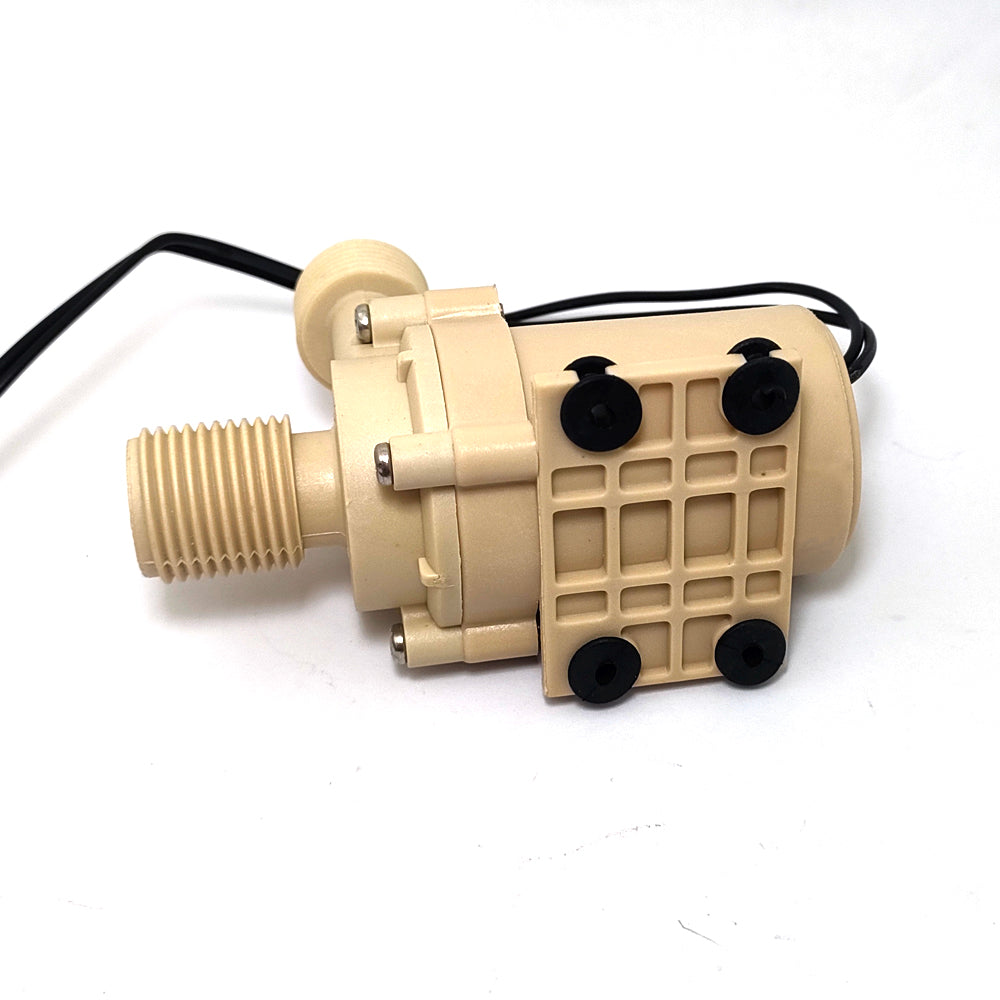

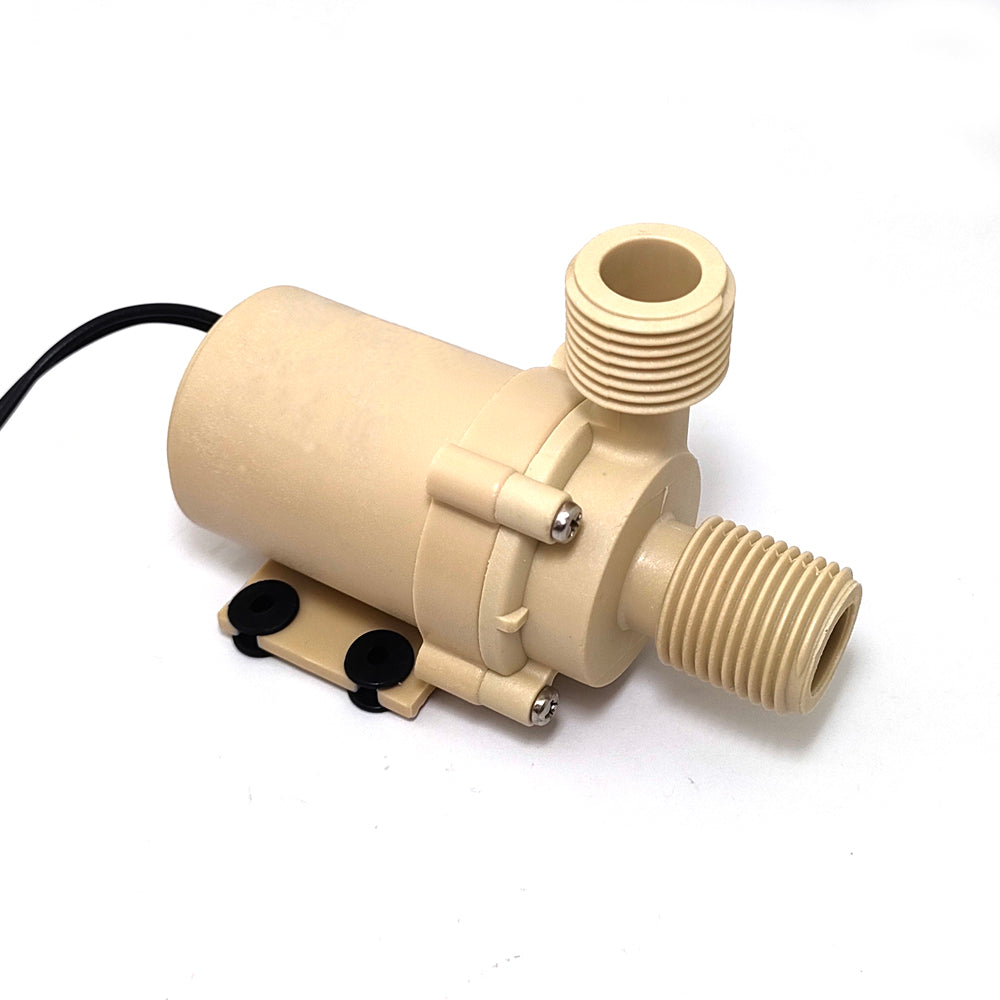

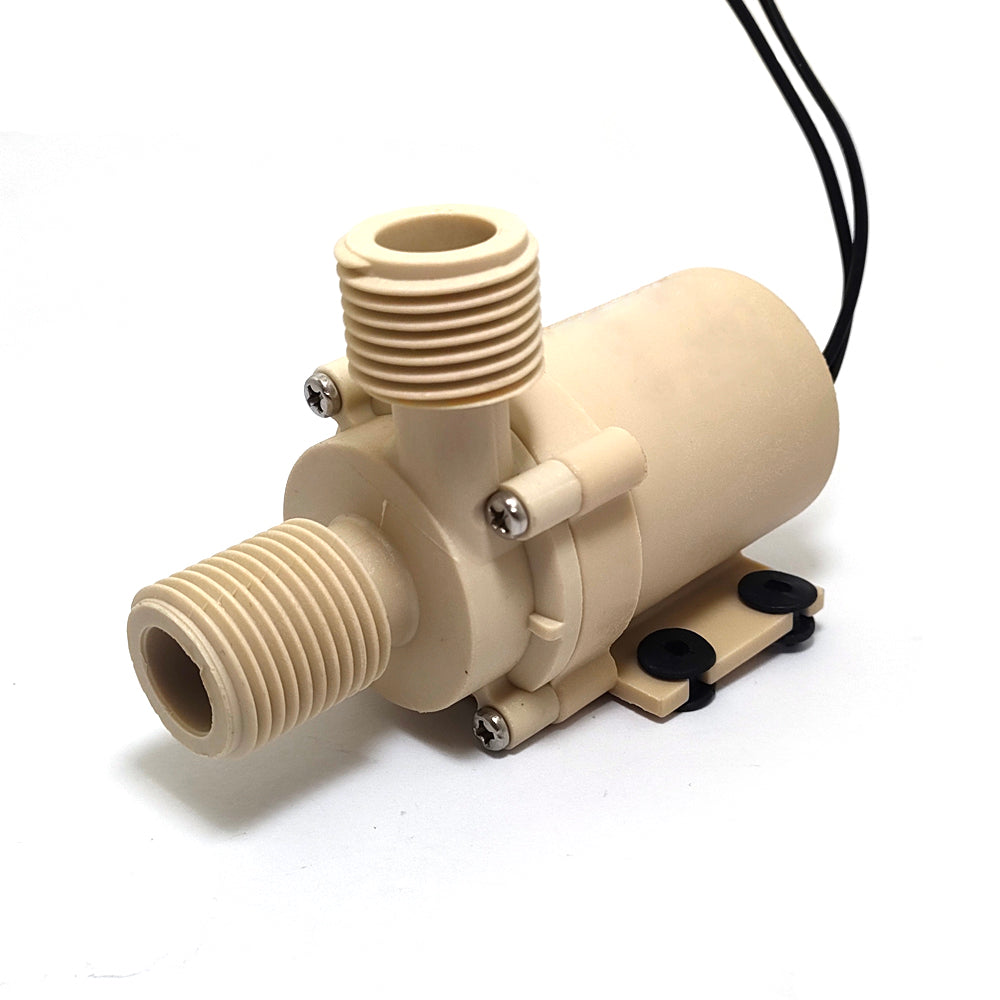

24V DC Silent High Temperature Corrosion Resistant Micro Booster Intubation Pump

24V DC ultra-quiet high temperature and corrosion resistant micro-charged intubation submersible pump

Working voltage: DC 24V
Flow Rate: 12L/min(max)

Head: 9M
Fluid Temperature: 0-120 degrees Celsius

Working Current: 1.8A (max)
Weight: 185g

Inlet and Outlet Diameter: 4 points external thread
Size: 95 x 65mm

Product Features

1. high temperature resistance

It adopts PTFE lining (commonly known as Teflon, curing temperature is above 200°) and electronic component reversing, high performance ceramic shaft and ceramic bushing motor, epoxy resin potting. Temperature resistance up to 120 °.

2. low power consumption, power saving, water saving

The low power is only 5 watts (high energy efficiency ratio), corresponding to more than 90 watts of circulating pumps on the market, saving 94.4%. The average annual electricity consumption is up to 700 degrees.

3. stable and reliable performance, long life

Continuously through 100 ° boiling water, 24 hours a day, 24 hours a day, can run for 4.5 years, if only 5 hours a day, the life expectancy can be more than 22 years

Application Example: Hot and cold water pressurization, refrigeration system, water circulation system, solar collector cycle, solar temperature difference cycle, water heater water pipe circulation,
water dispenser, boiling water transportation, solar floor heating, mattress, floor heating, fountain, etc.

Package:

1*24V Pump
