30A Learning Type 220-380V 4-Way Remote Control Switch Wireless Remote Control

High-power 30A learning type 220-380V four-way remote control switch + metal push cover 4-button wireless remote control

Working voltage:  AC220V-380V
Working frequency:  315/433MHZ (optional)

Working temperature:  -40~+85℃
Receiving sensitivity:  ≥ -105dBm

Maximum load:  NO (30A/240VAC),

                           NC (20A/240VAC)

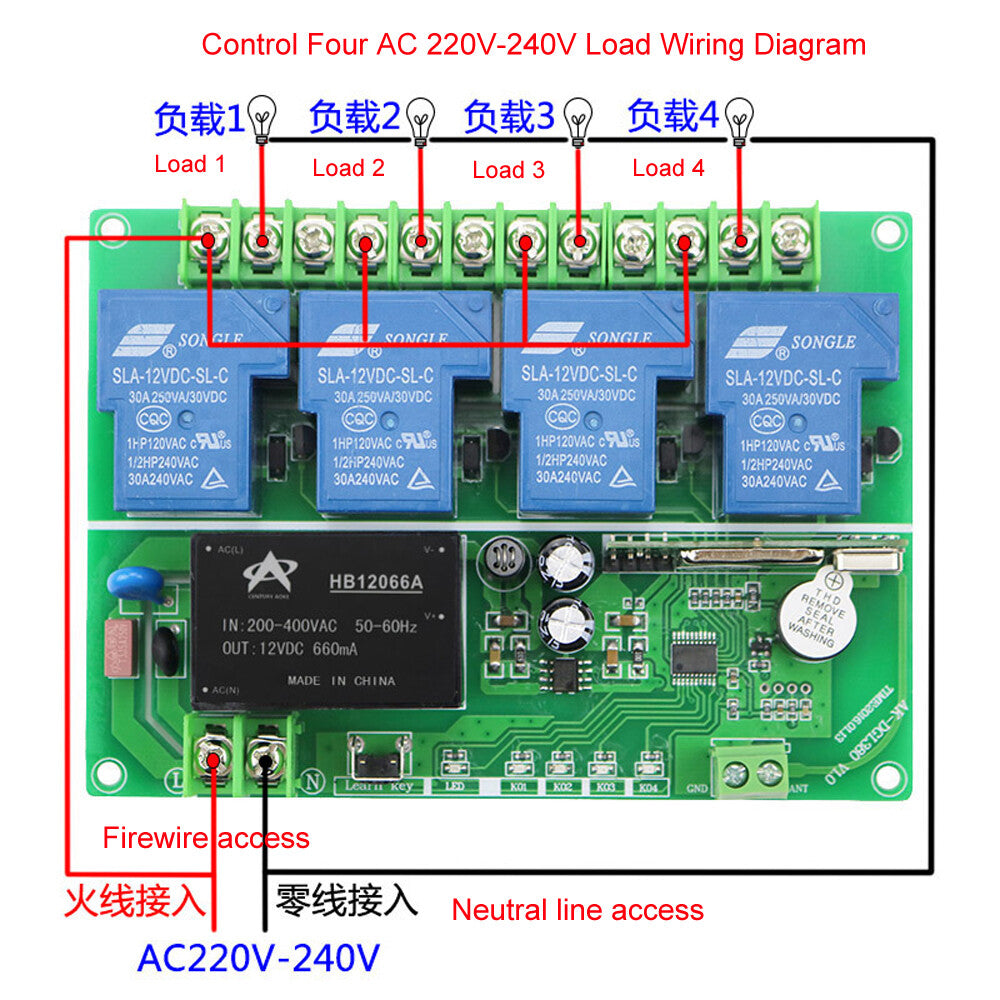

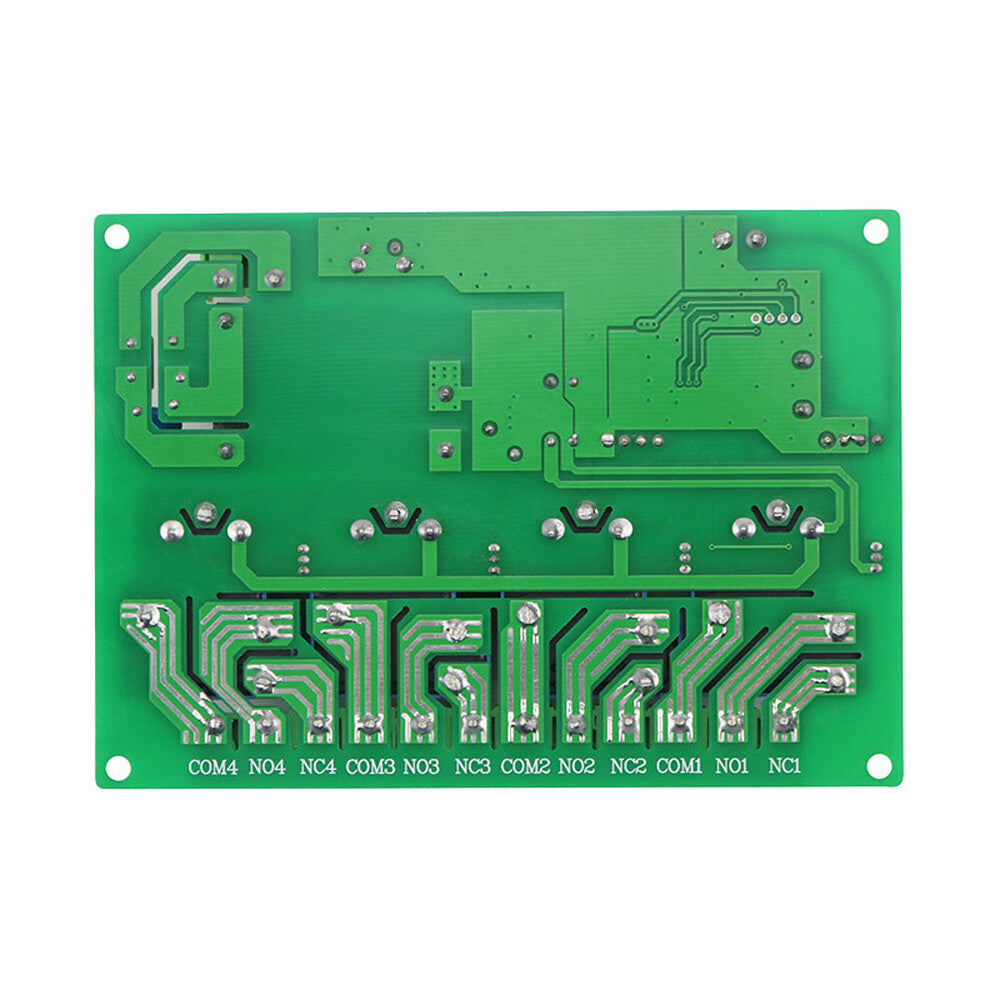

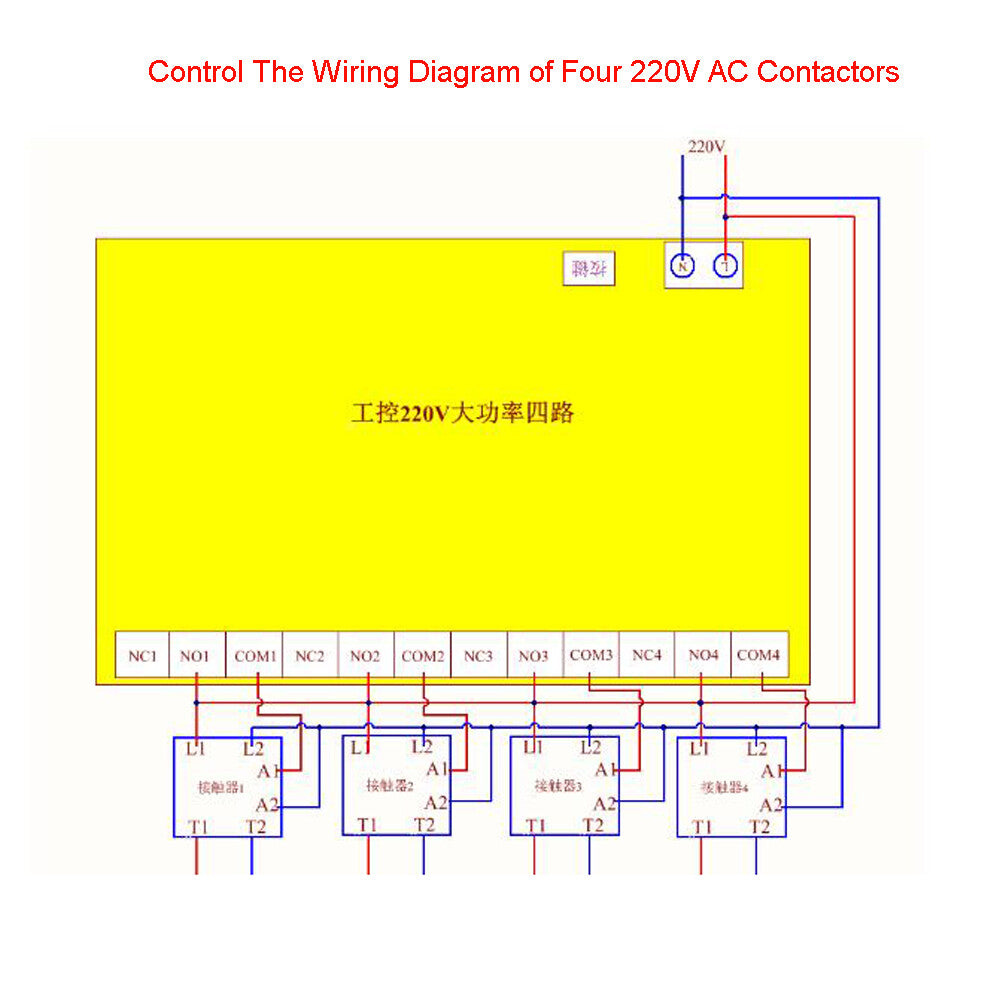

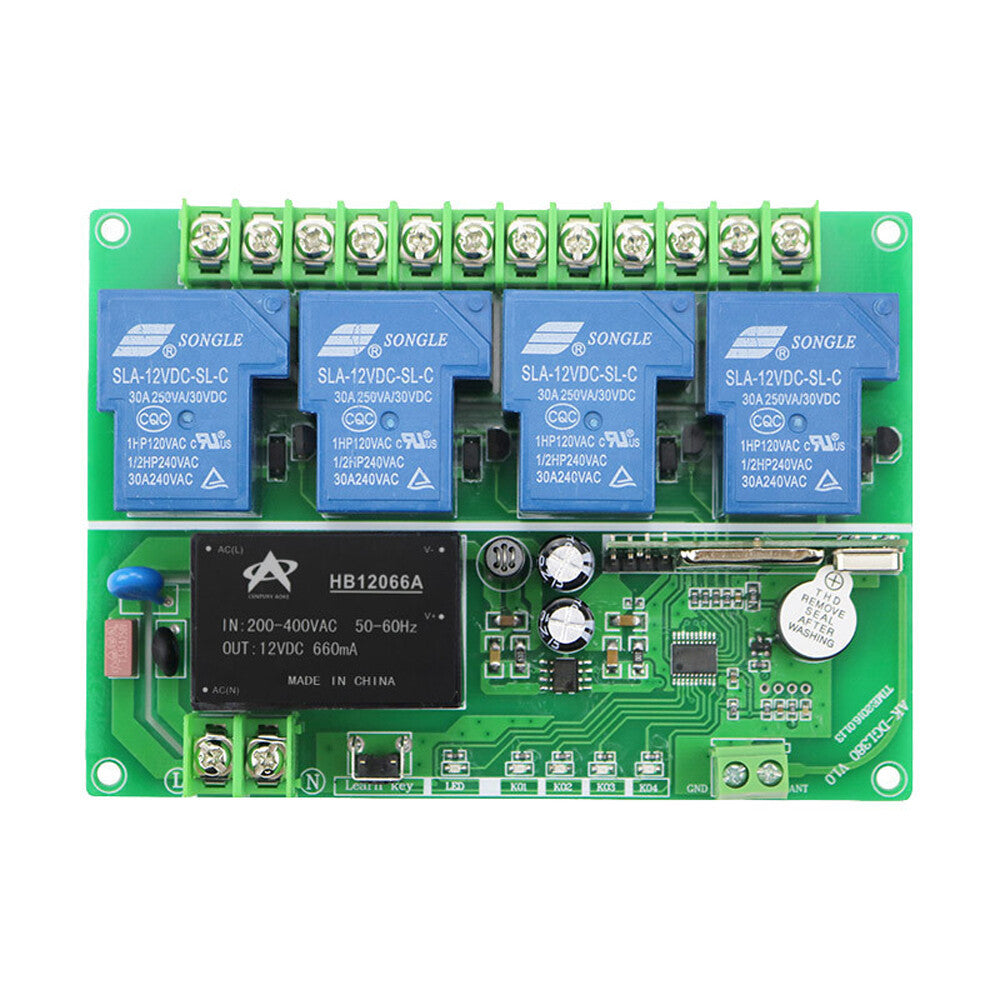

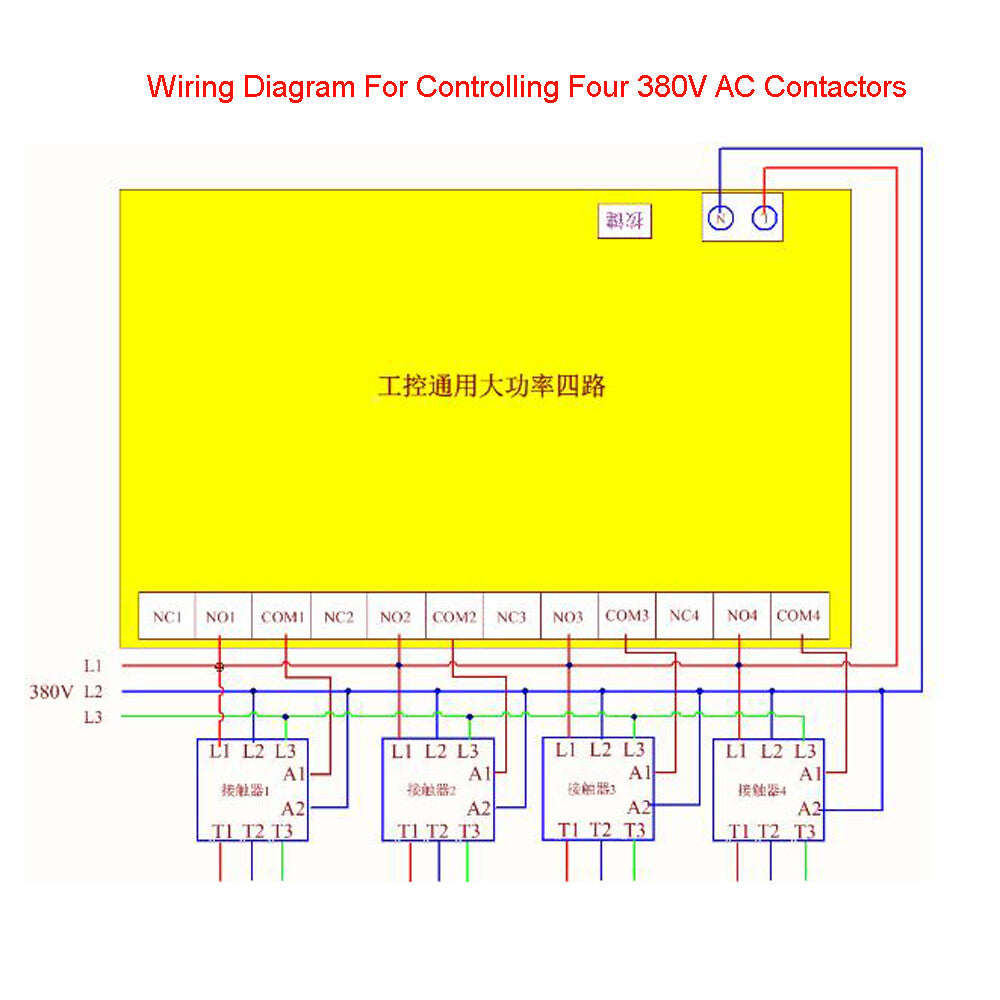

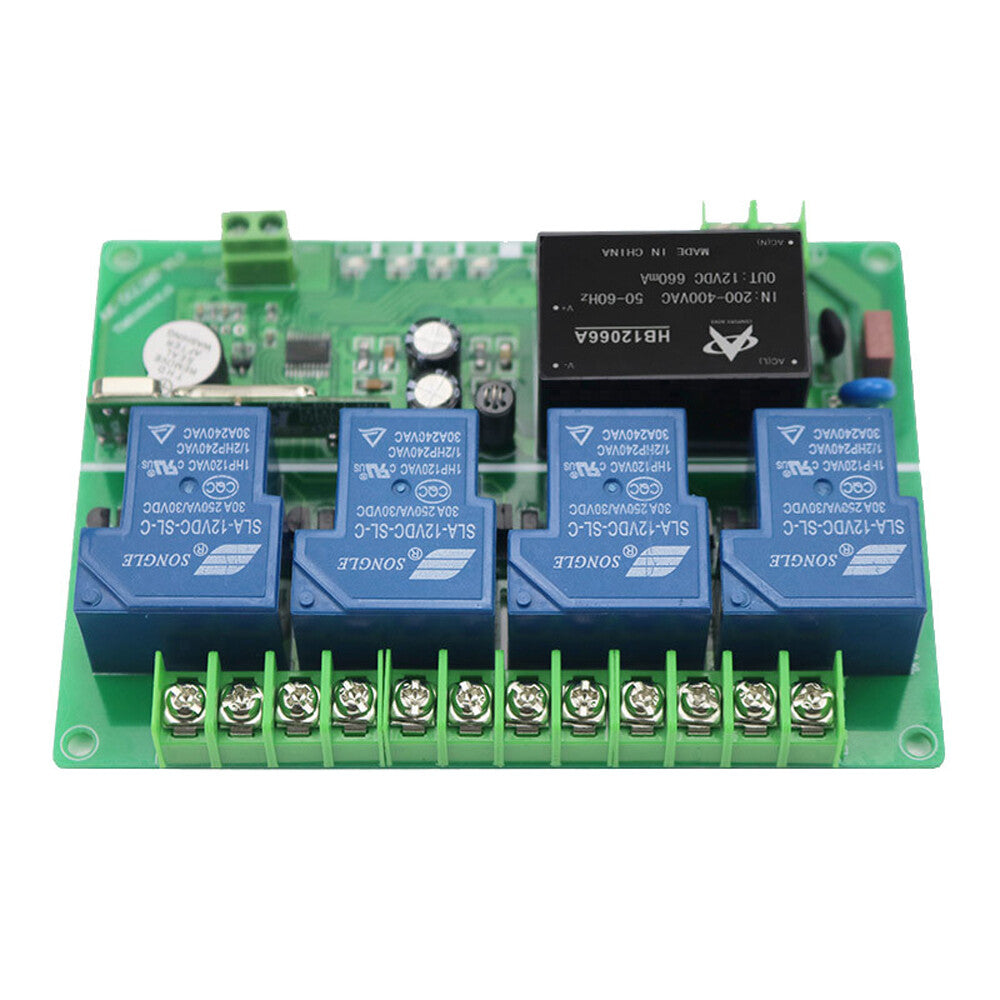

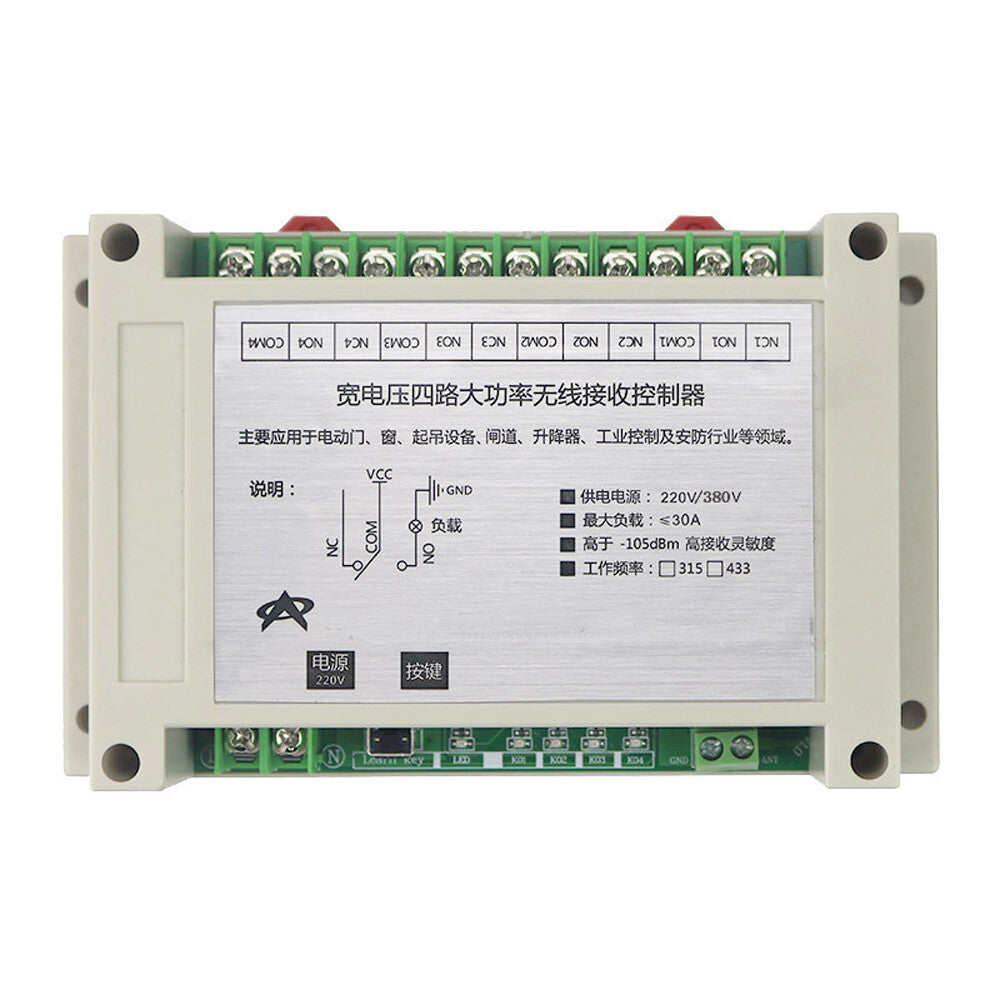

Circuit board Size: 122x87x17 (mm) with case: 144.8x91x40 (mm)

Output method:
Press the A (data bit 1000) key to learn, and the controller jogs;

Press the B (data bit 0100) key to learn, the controller is interlocked;

Press C (data bit 0010) to learn, and the controller will lock itself;

Press D (data bit 0001) key to learn, control relay (1, 2) jog + relay (3, 4) self-locking;

Remote control A (data bit 1000) controls relay 1;

Remote control B (data bit 0100) controls relay 2;

Remote control C (data bit 0010) controls relay 3;

Remote control D (data bit 0001) controls relay 4;

Learning methods and steps:
1. Press the receiver learning button-the light is on, indicating that it has entered the learning state,

2. Press any key on the remote control-the light flashes three times slowly, indicating that the learning has been successful.

Clear stored information: Long press the receiver learning button until the LED light flashes five times quickly and then goes out, indicating that the stored information has been successfully cleared.

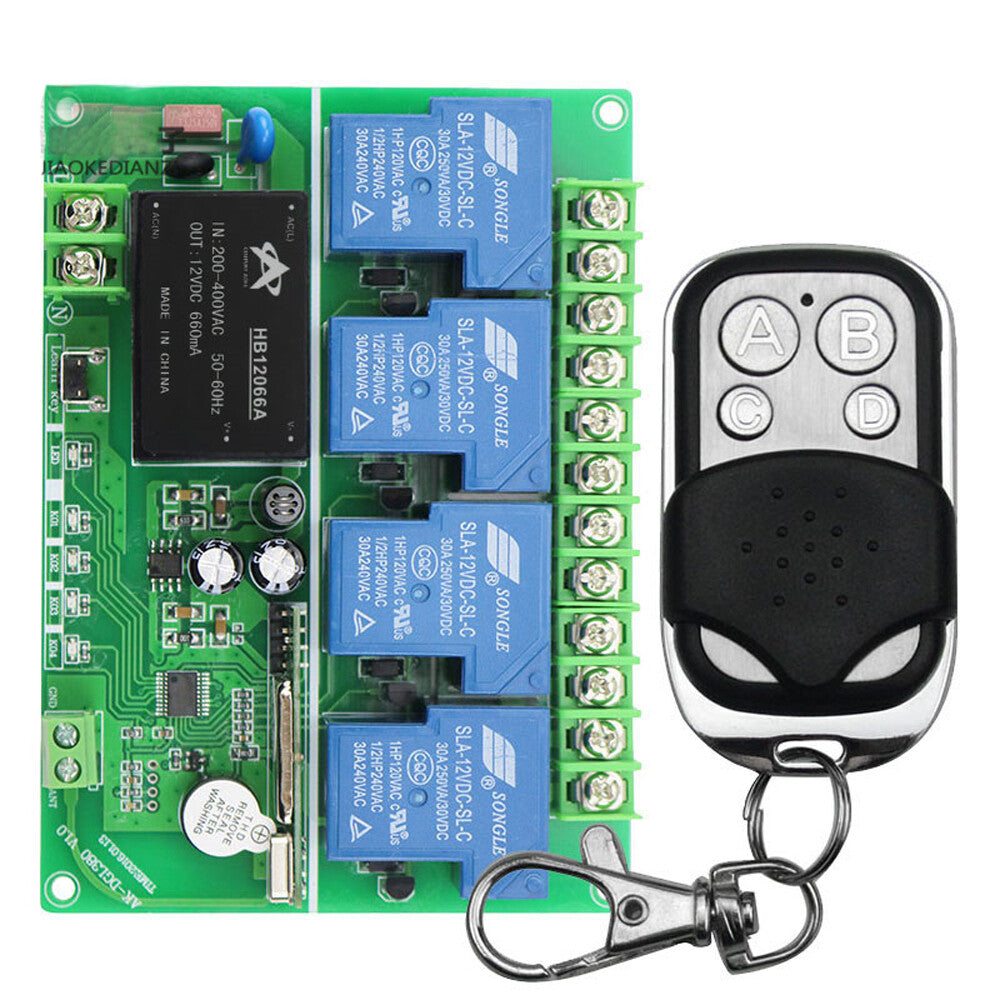

Wireless remote control (AK-SF04)
specifications: Operating frequency: 315MHz or 433MHz(Optional)

Commonly used coding IC: SC2260, EV1527.

Commonly used oscillation resistance: 1.5M, 330k

Launch distance: 50-100 meters. (open environment)

Shell color: black.

Number of keys: 4 keys

Mainly used in: home and shopping mall anti-theft alarms; electric vehicles, automobiles, motorcycles alarms; various door control systems and other intelligent controllers.

Package:

1*Four-way remote control switch

1*Wireless remote control (without battery)
