35mW 685nm 680nm Red Light Laser Diode Single Transverse Mode Laser Diode

35mW 685nm 680nm Red Light Laser Diode Single Transverse Mode Laser Diode

$22.00
$24.00 $22.00
Sale Sold out
Shipping calculated at checkout.
35mW 685nm 680nm Red Light Laser Diode Single Transverse Mode Laser Diode

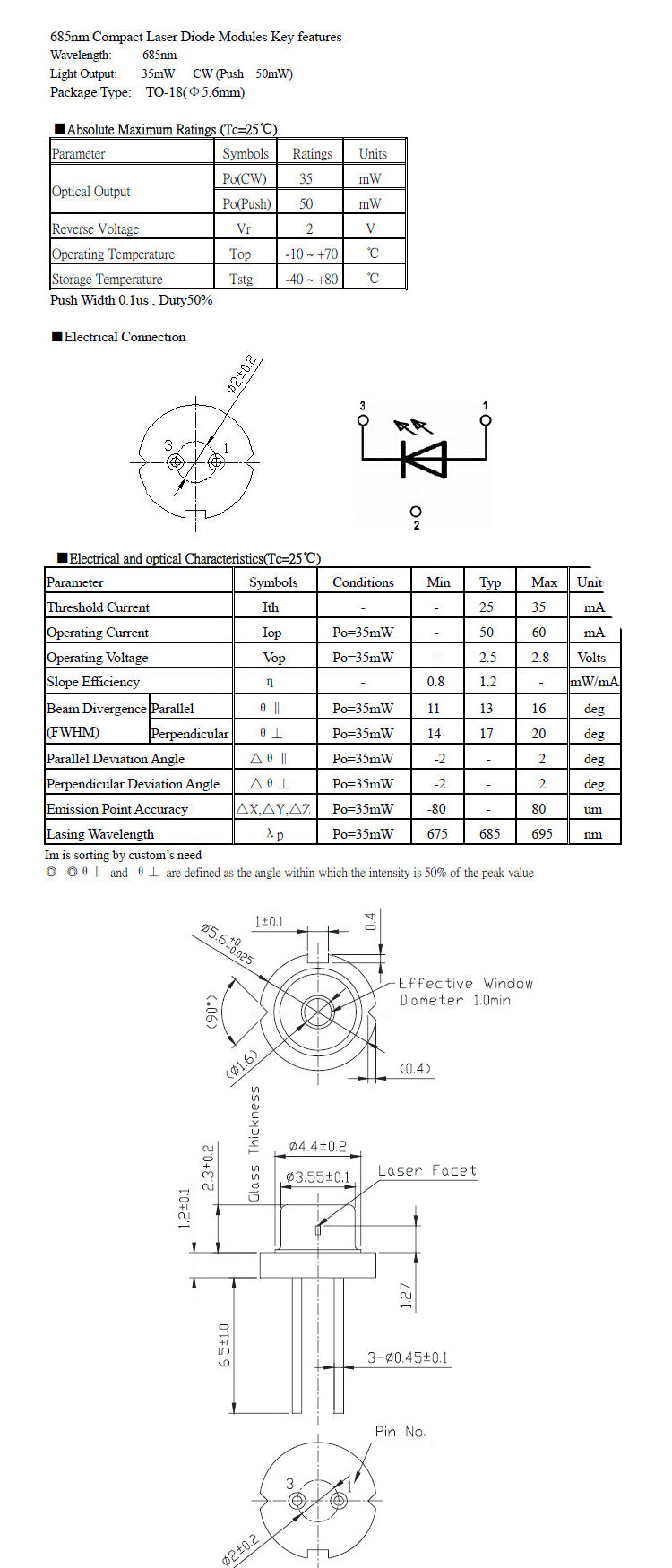

Specifications:
685nm Compact Laser Diode Modules Key features
Wavelength:：685nm
Light Output: 35mW CW Push 50mW)
Package Type:TO-18(Φ5.6mm)
Optical Output：35mW
Reverse Voltage：2V
Operating Current：50mA
Operating Voltage :2.5-2.8V
Operating Temperature：-10~+70℃
Storage Temperature：-40~+80℃


Package：
1 * 35mW 685nm 680nm Red Light Laser Diode Single Transverse Mode Laser Diode
