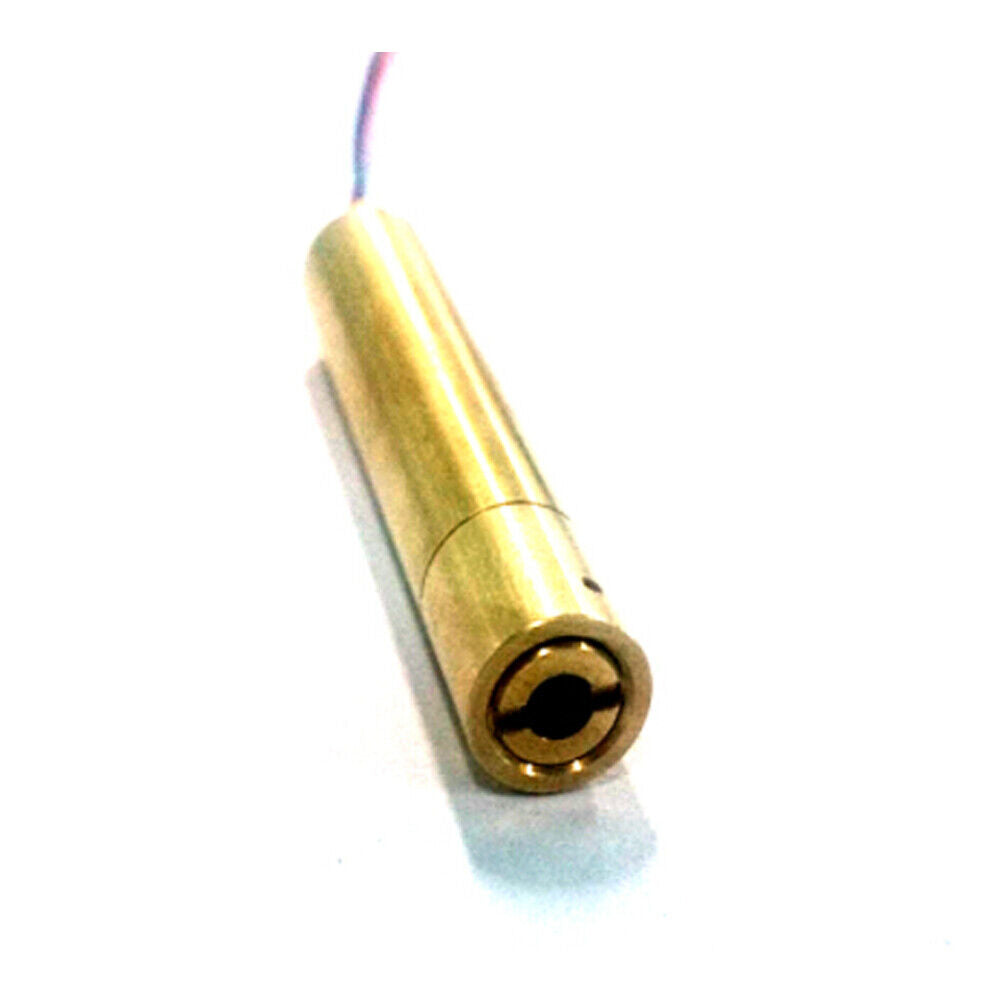

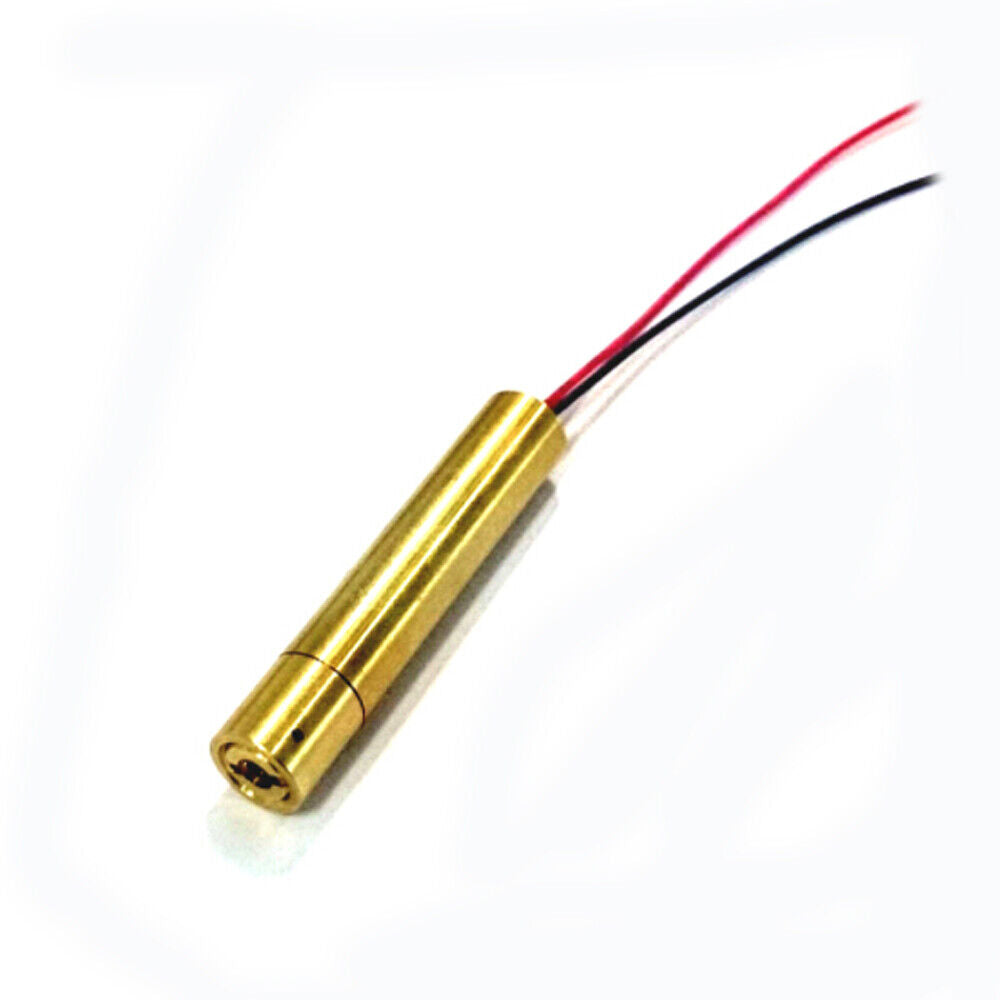

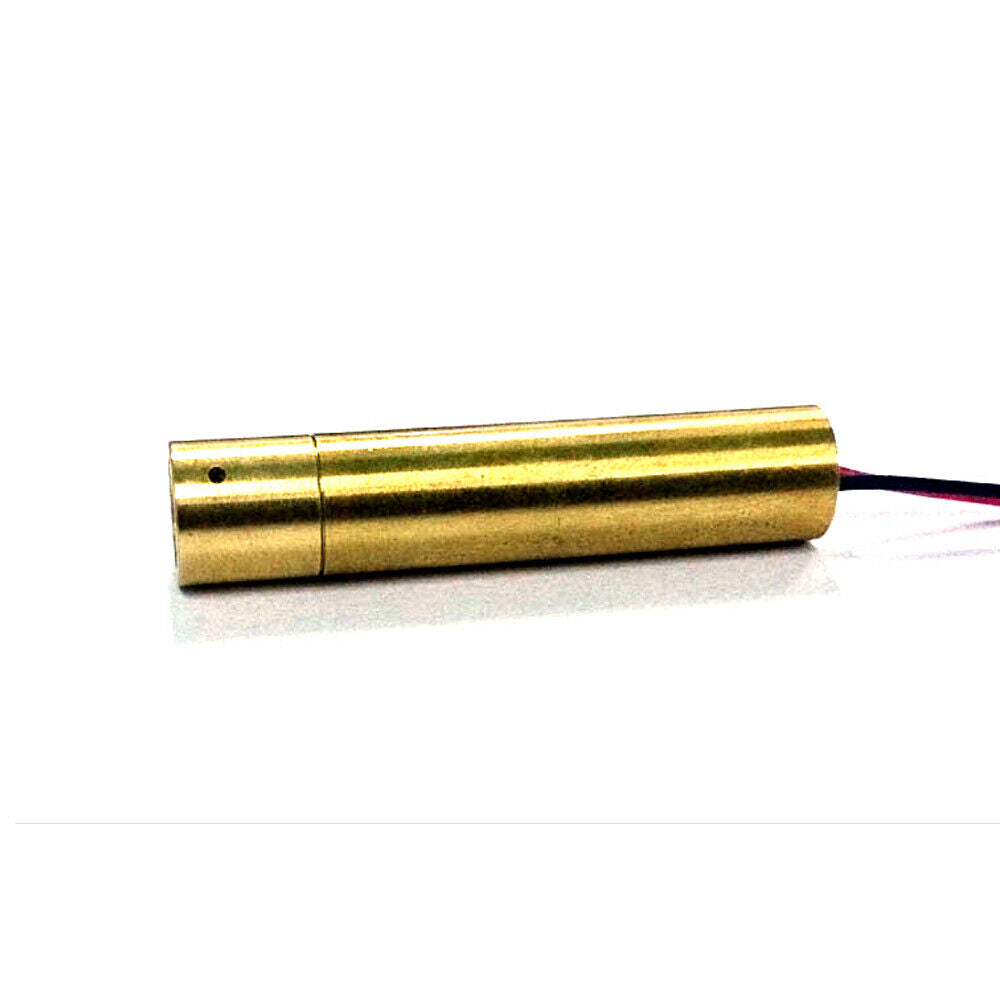

3V 520nm Laser Module 8mm Green Laser APC Circuit Drive Positioning Laser

3V 520nm Laser Module 8mm Green Laser APC Circuit Drive Positioning Laser

Specification:

Circuit Mode: CW

Wavelength: 515nm

Lens: Glass

Output Power: <20mw

Working Voltage: 2.5-6.5v

Working Current: <280mA

Spot: <10m Less Than 10X12mm

Laser Rating: Class IIIb

Working Temperature: -10 ° C ~ +50 ° C

Storage Temperature: 40 ° C ~ +85 ° C

Shell Material: Environmentally Friendly Aluminum

Module Life: >8000 hrs

Product Description:

New imported diodes, imported lenses, environmentally materials, low-power drive circuit, rigorous testing, advanced electrostatic protection, conformROH CE.

Package:

1* Laser Module
