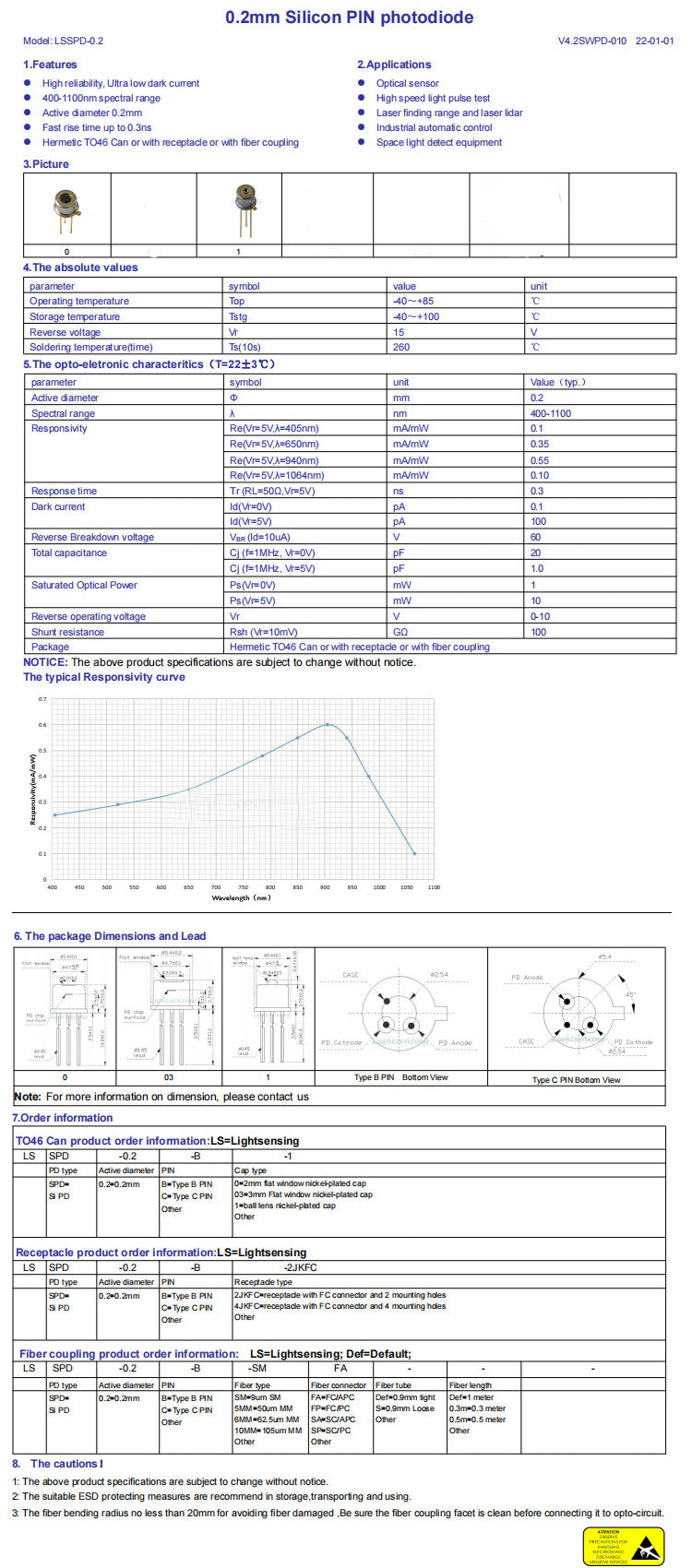

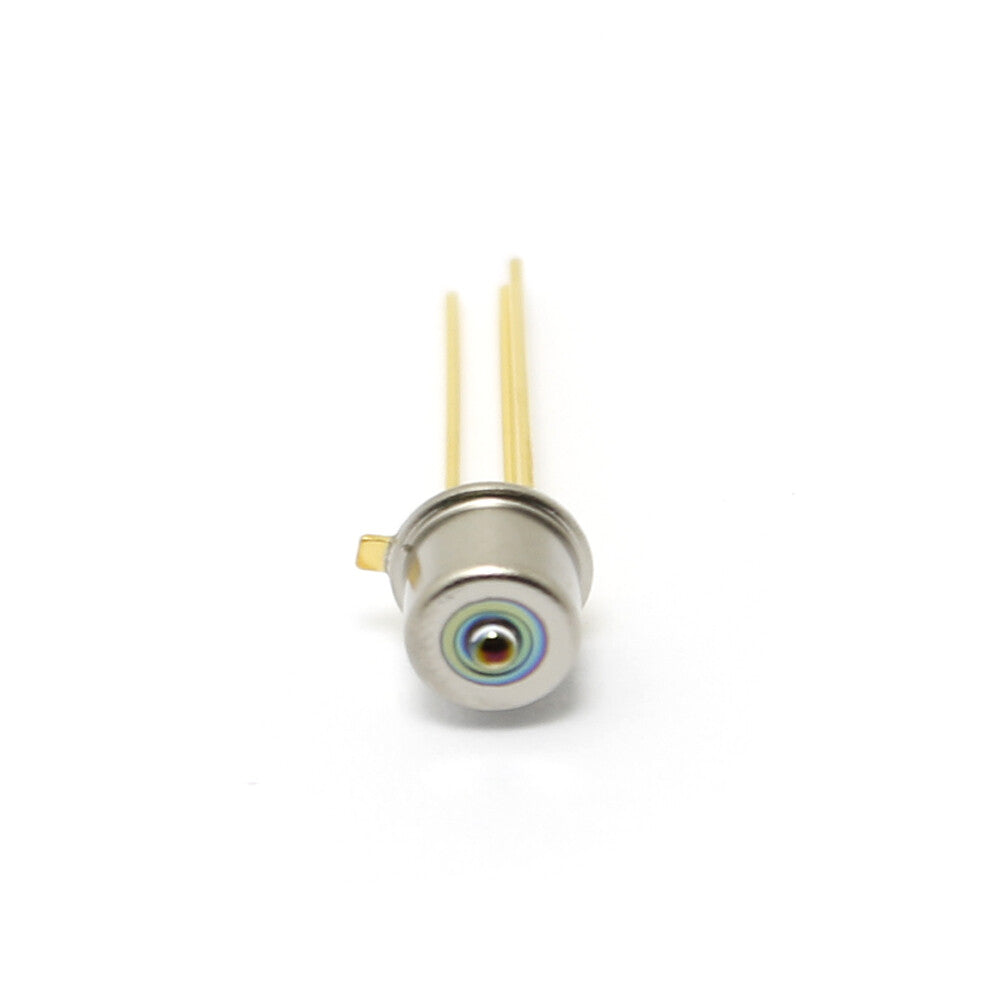

0.2mm Silicon PIN photodiode
Model: LSSPD-0.2
Features
High reliability,Ultra low dark current
400-1100nm spectral range
Active diameter 0.2mm
Fast rise time up to 0.3ns

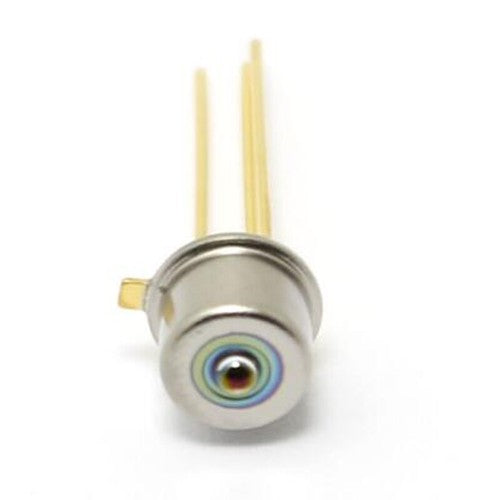

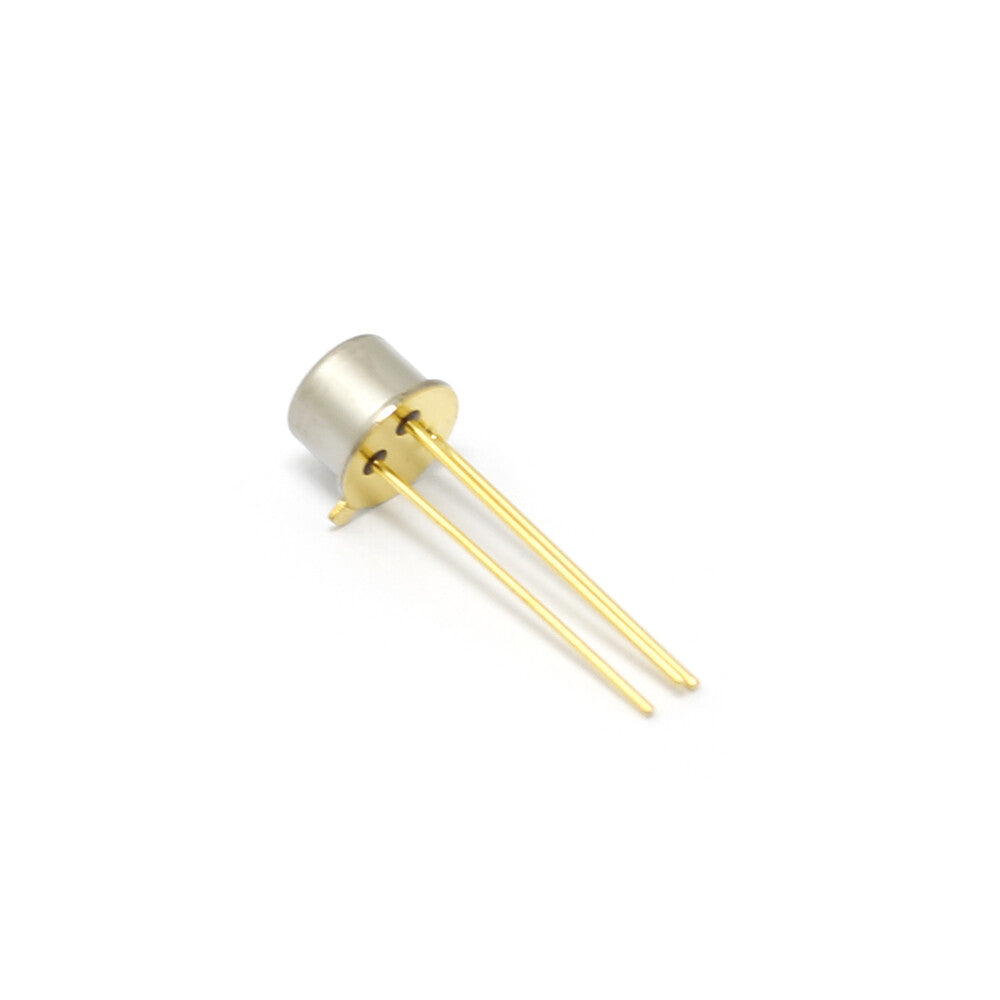

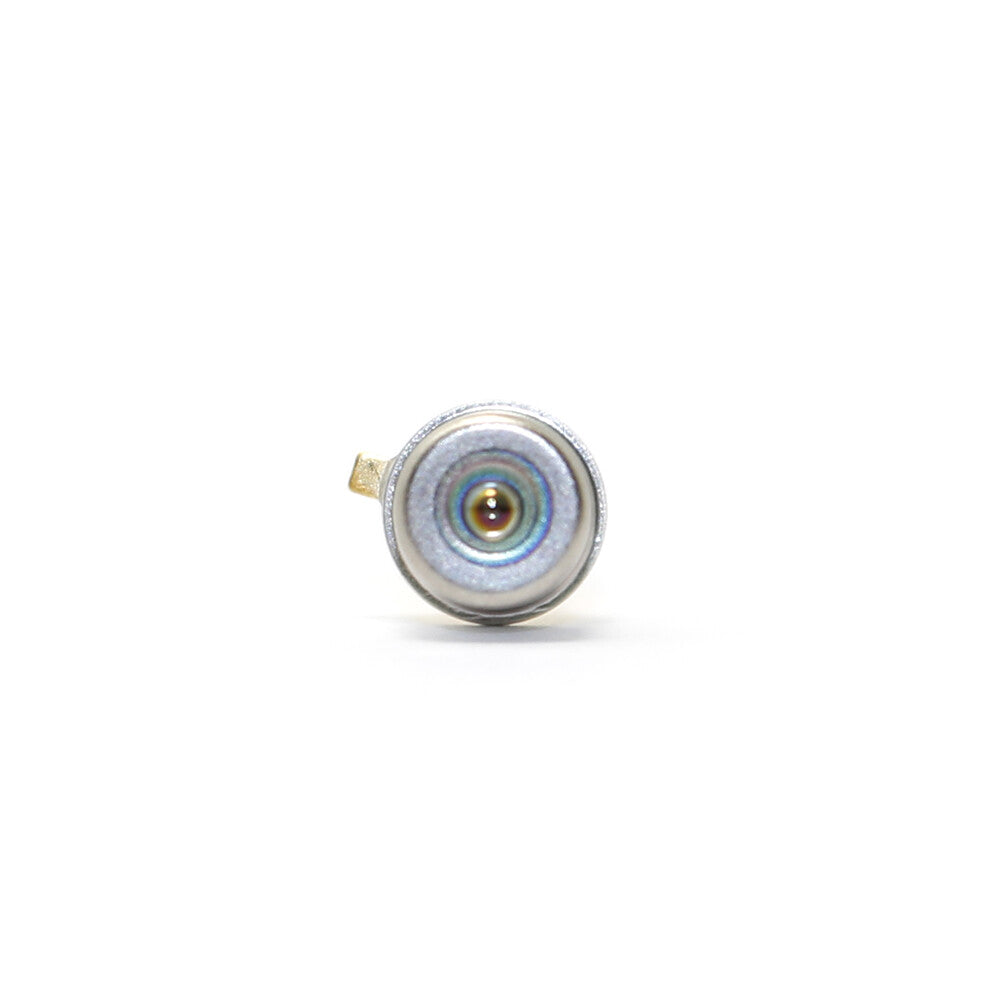

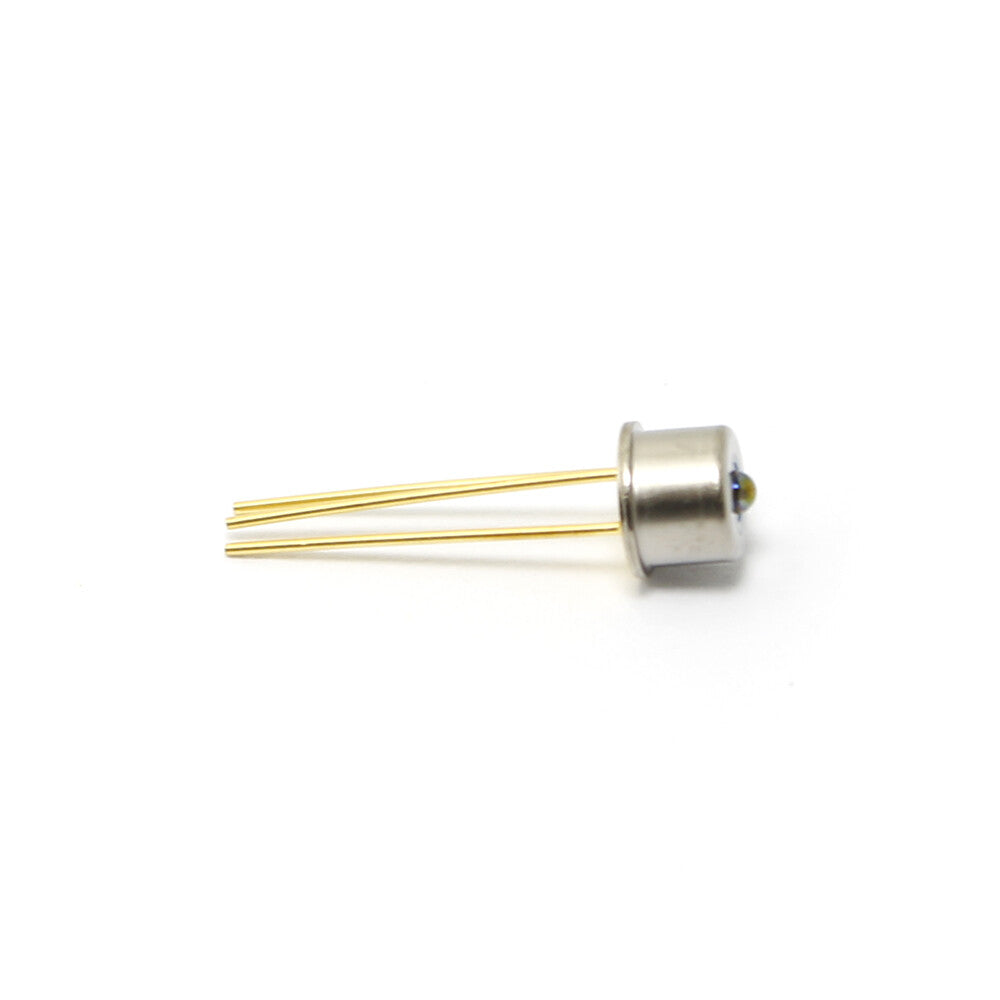

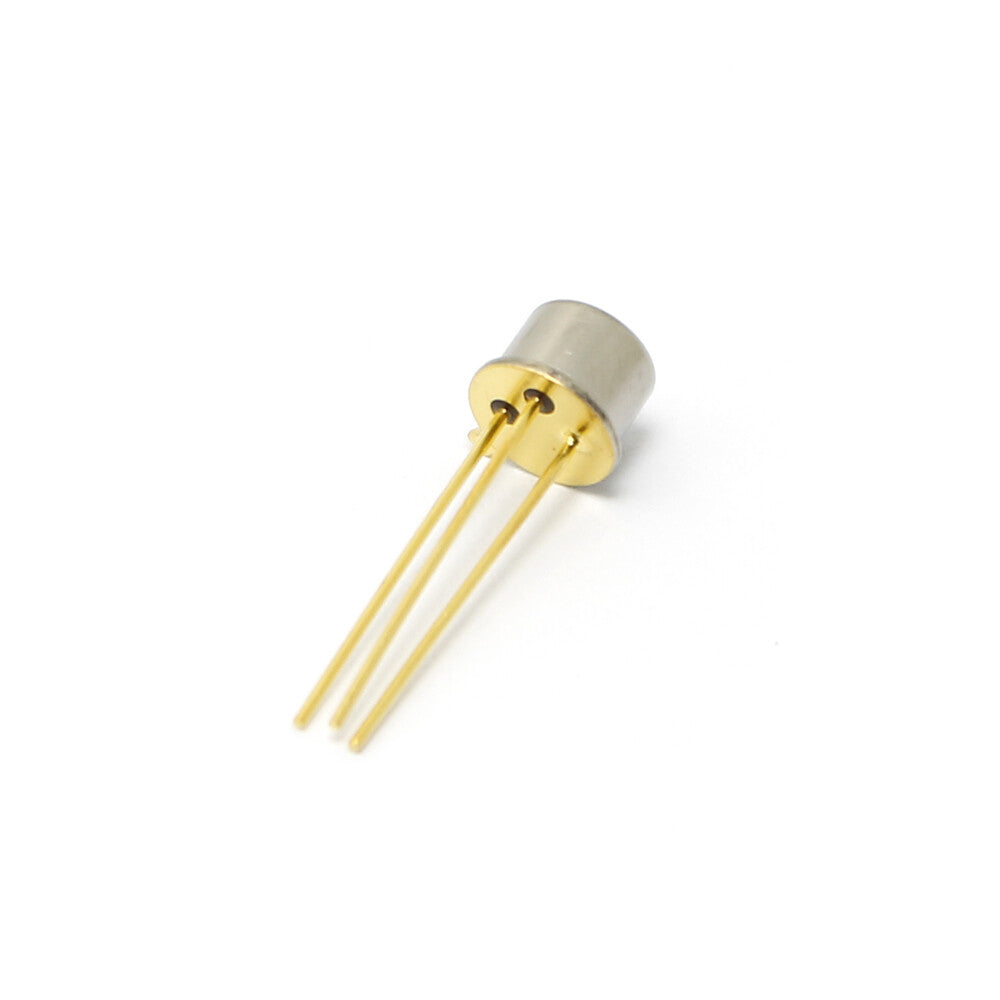

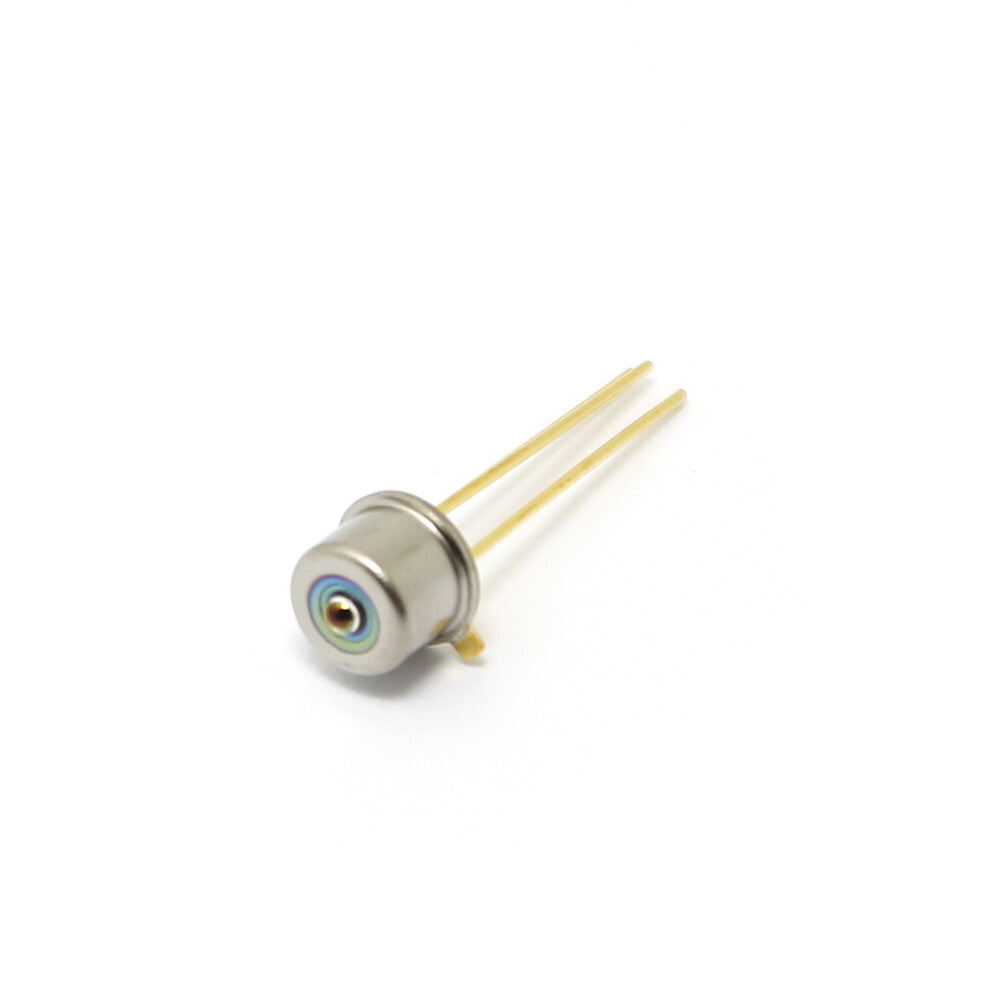

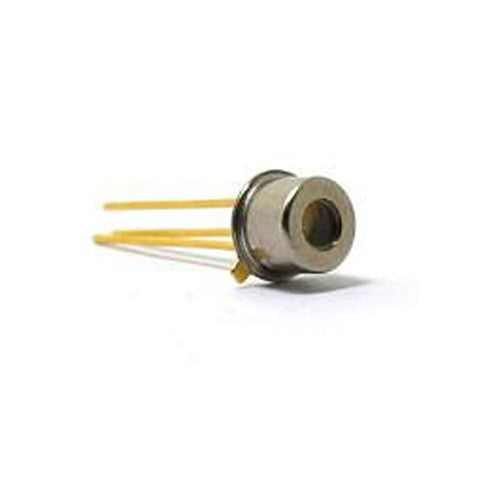

Hermetc TO46 Can or with receptacle or with fiber coupling
Applications
Optical sensor
High speed light pulse test
Laser finding range and laser lidarIndustrial automatic control
Space light detect equipment
Specification:
Operating temperature: -40~+85℃
Storage temperature: -40~+100℃
Reverse voltage: 15V
Active diameter: 0.2mm
Spectral range: 400-1100nm
Responsivity:
Re(Vr=5V,λ=405nm) 0.1mA/mW
Re(Vr=5V,λ=650nm) 0.35mA/mW
Re(Vr=5V,λ=940nm) 0.55mA/mW
Re(Vr=5V,A=1064nm) 0.1mA/mW
Response time: Tr(RL=50Ω,Vr=5V) 0.3ns
Dark current:
Id(Vr=0V) 0.1 pA
ld(Vr=5V) 100pA
Reverse Breakdown voltage:
VBR(ld=10uA) 60V
Package:
1pc 0.2mm Silicon PIN photodiode
