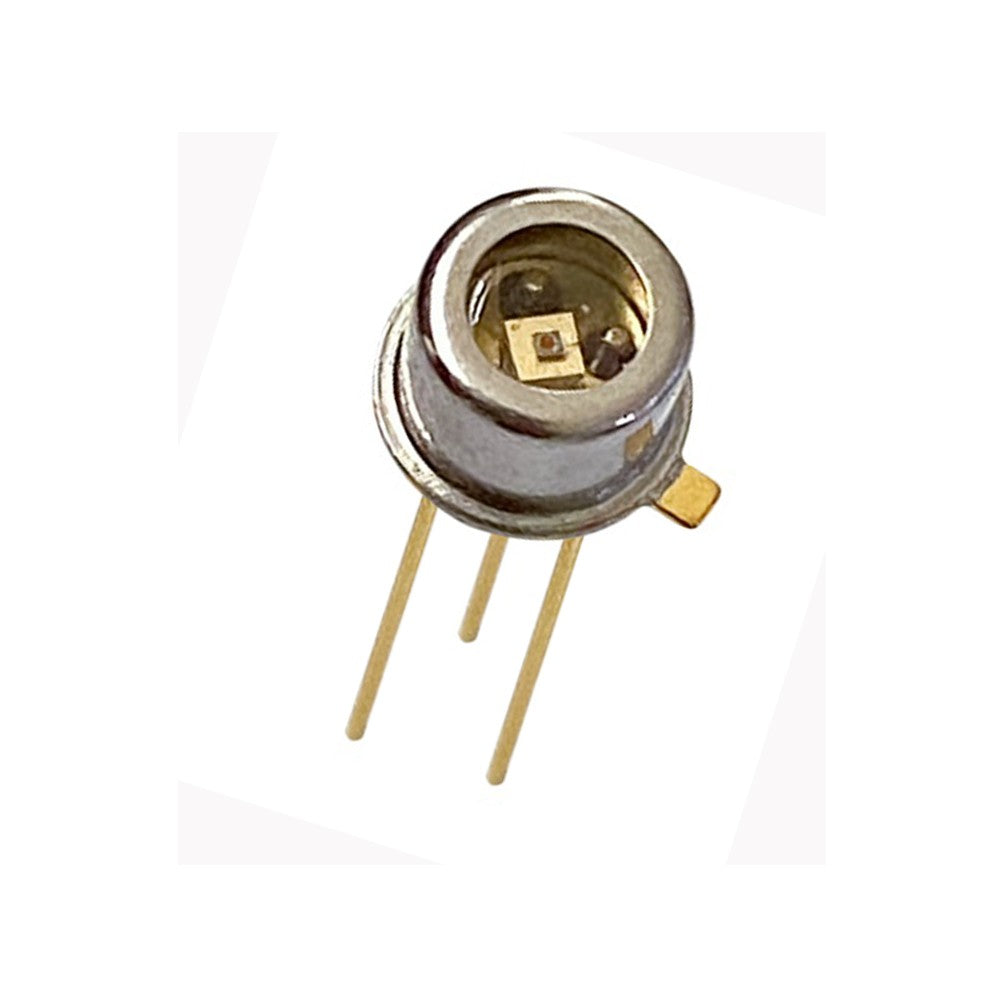

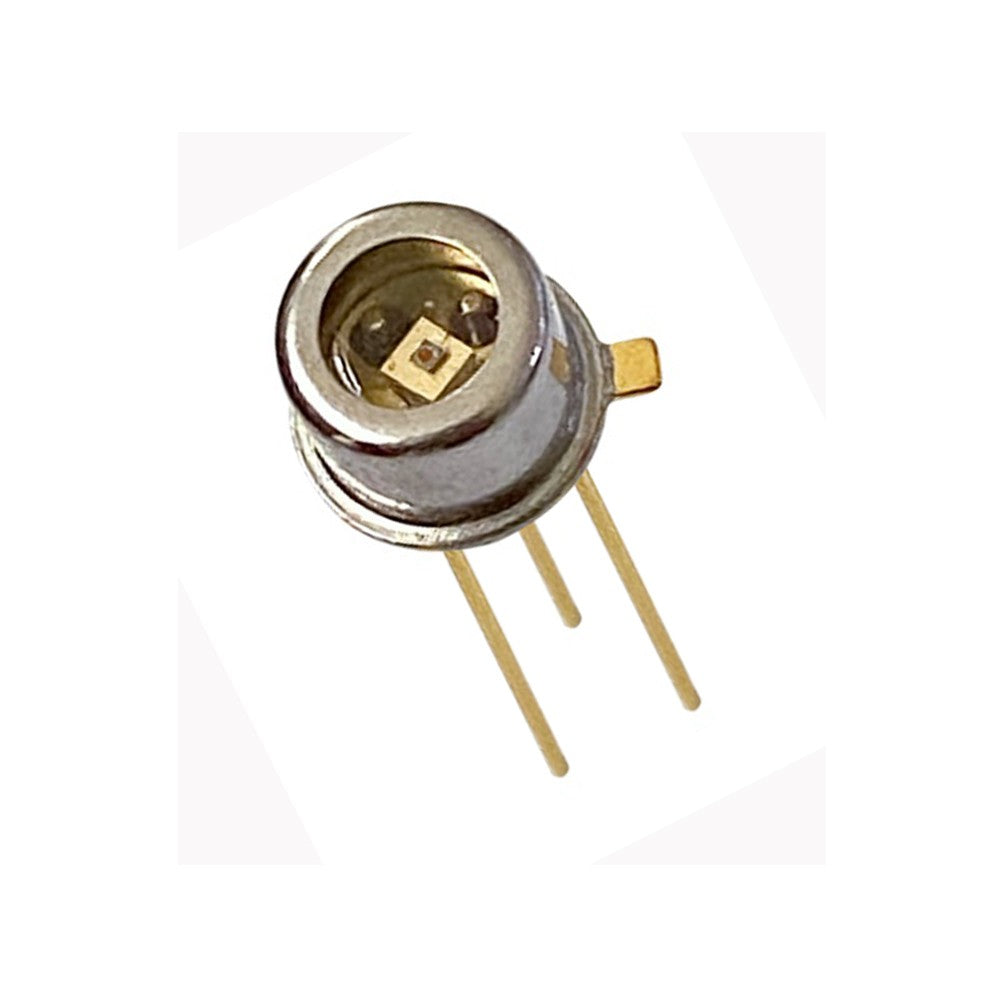

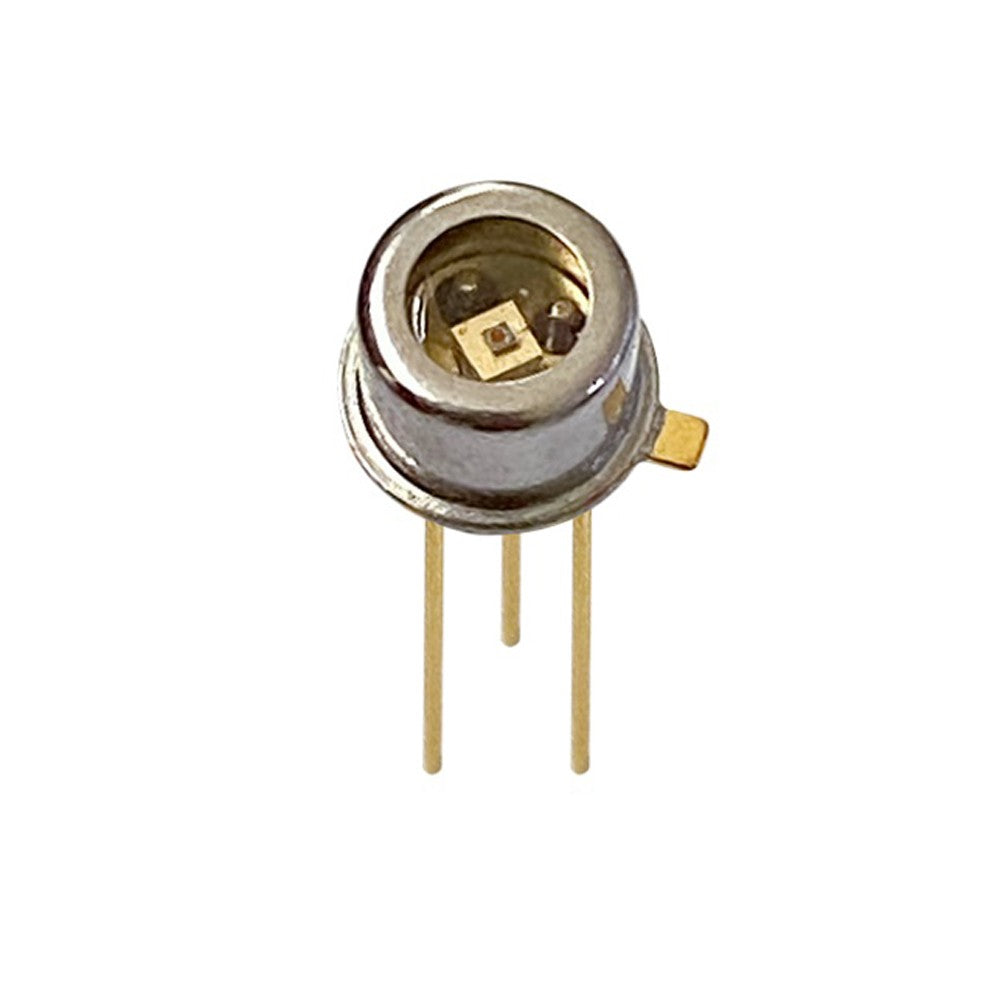

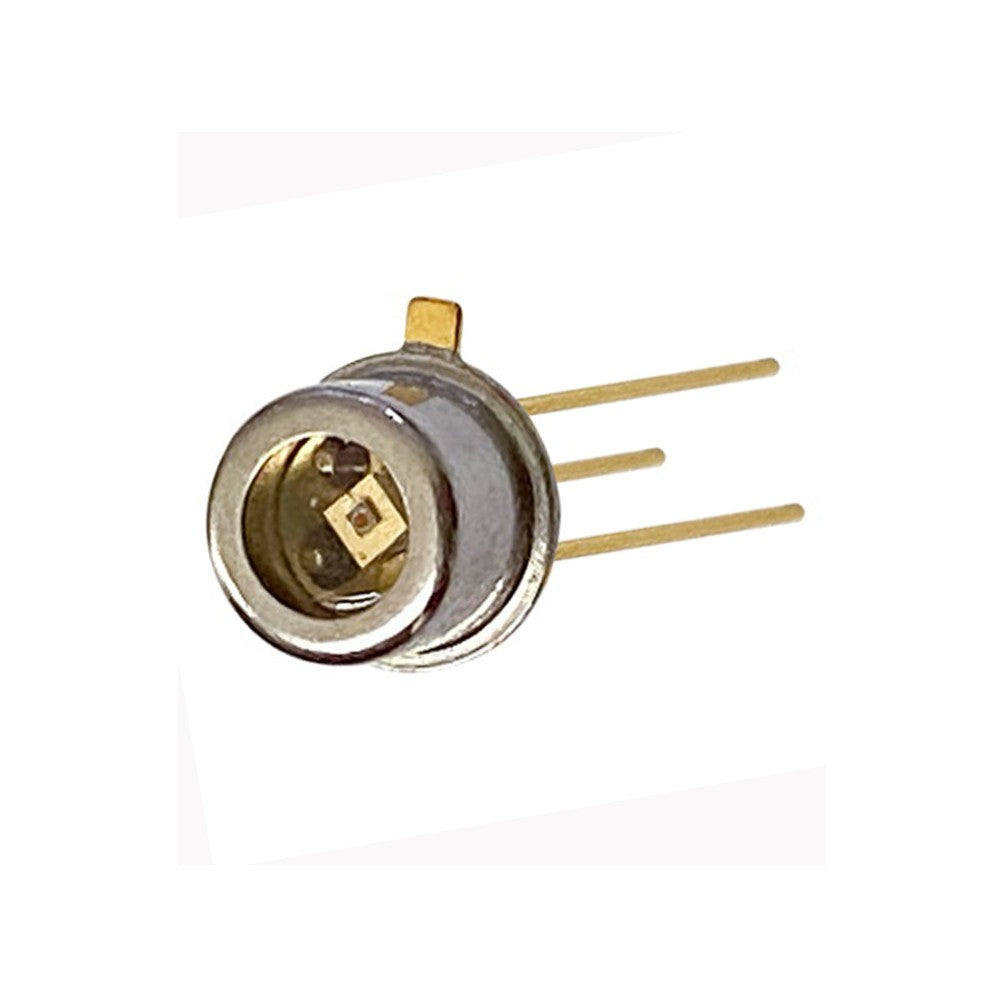

400-1700nm 0.5mm InGaAs PIN Photodiode With 3mm flat Wwindow Package:TO-46
Specifications:
Description：400-1100nm 4.2mm Silicon PIN Photodiode 3 Pin-out TO-5
Package / Case：3mm flat window TO-46
Spectral Range：400-1700nm
Active area：0.5mm
Responsivity：Re(Vr=0V，λ=405nm,1mW)=0.12 A/W
Responsivity：Re(Vr=0V，λ=650nm,1mW)=0.35 A/W
Responsivity：Re(Vr=0V，λ=850nm,1mW)=0.48 A/W
Responsivity：Re(Vr=0V，λ=1550nm,1mW)=0.90 A/W
Dark Current(Typical)：Id(Vr=0V)=0.05 nA
Dark Current(Typical)：Id(Vr=5V)=0.5 nA
Saturated Power：Ps(Vr=5V)=4 mW
Operating temperature：-40~+85℃
Package：1* 400-1700nm 0.5mm InGaAs PIN Photodiode<br>
