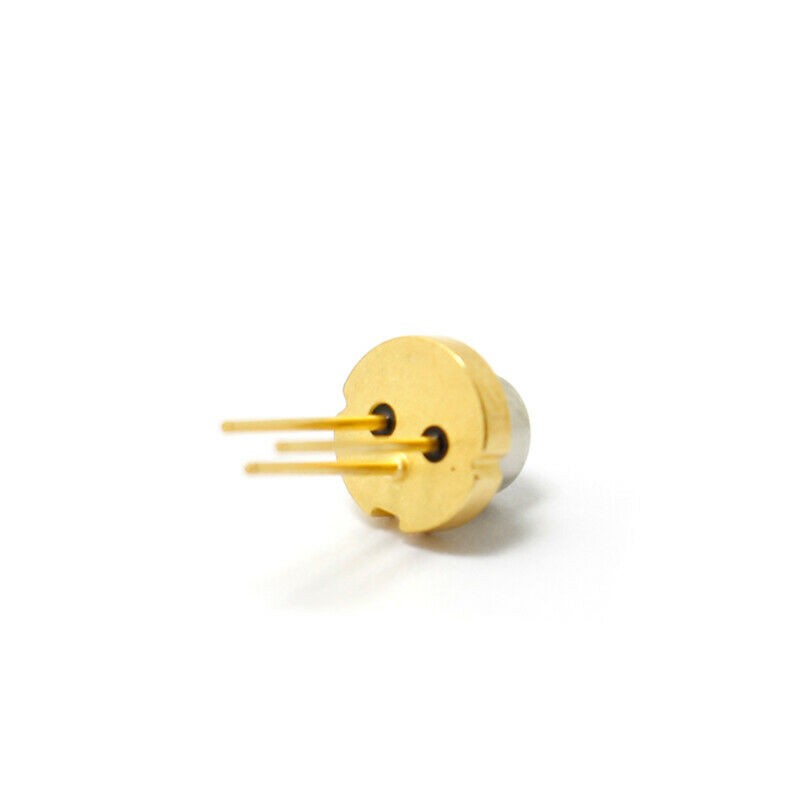

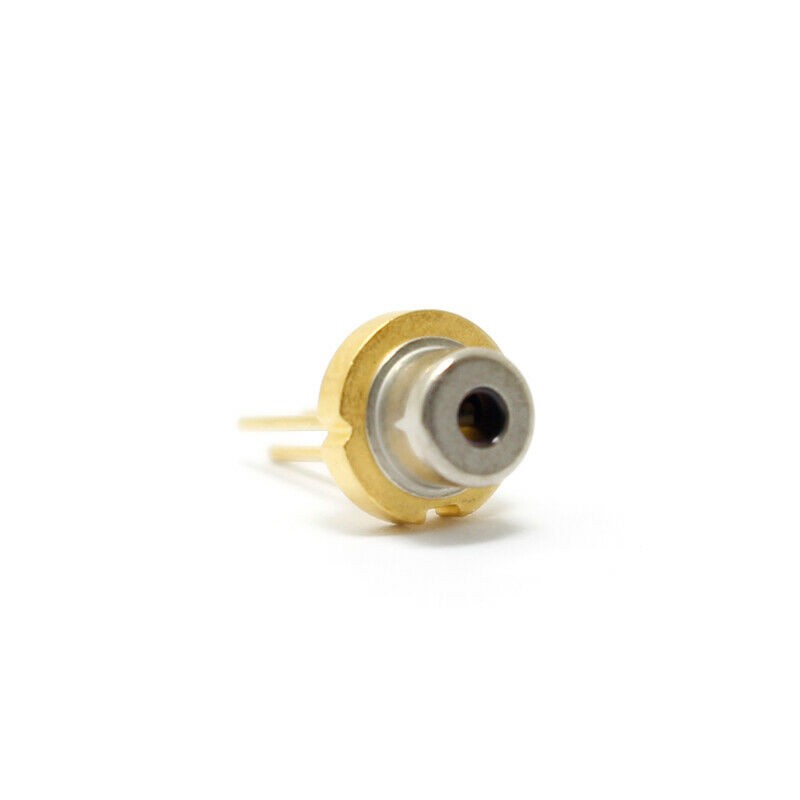

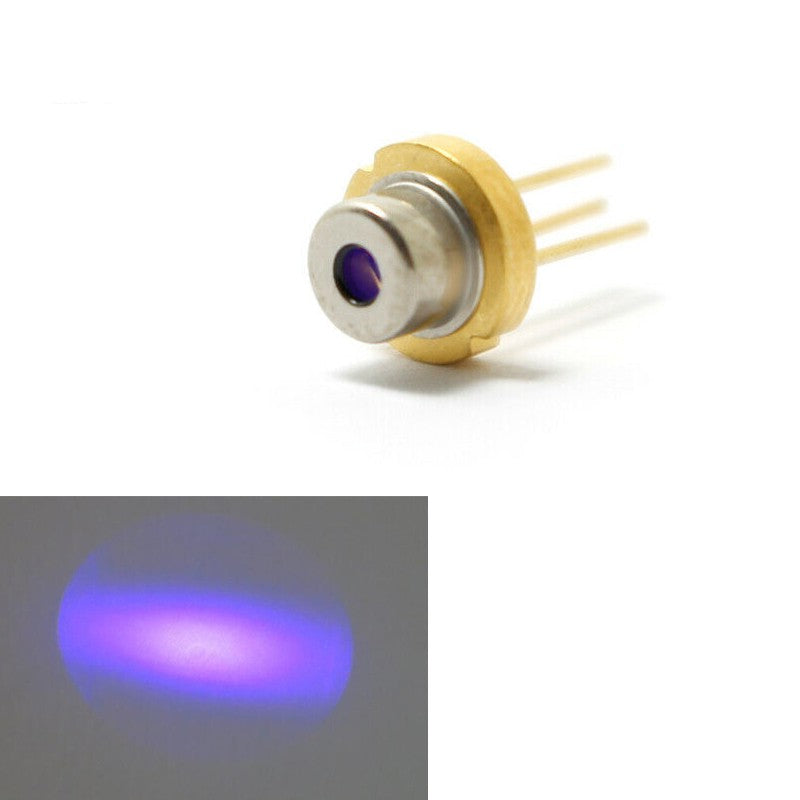

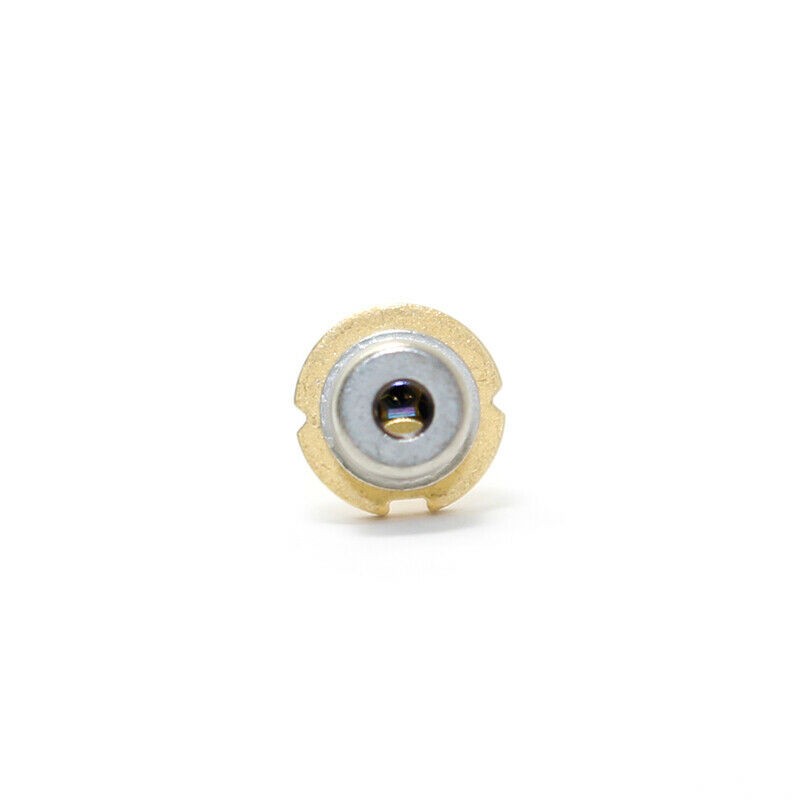

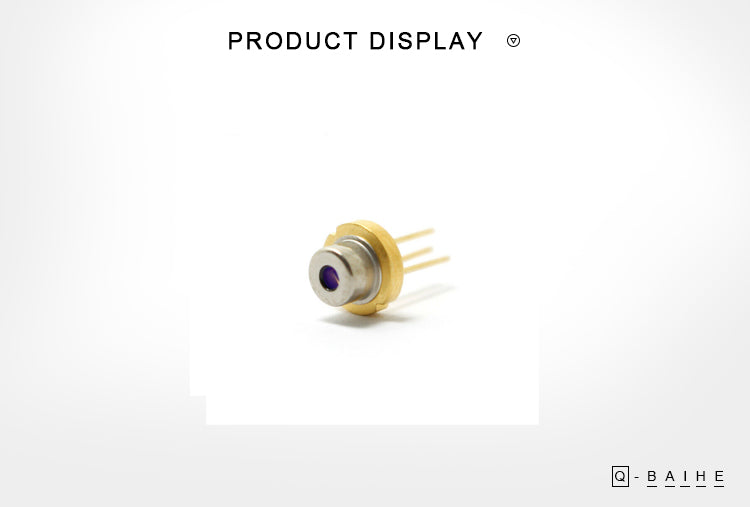

405nm 20mW SLD3134VR-31 Purple Diode TO5.6 w/ PD Laser Diode Module Light Source

405nm 20mW SLD3134VR-31 Purple Diode TO5.6 w/ PD Laser Diode Module Light Source

$14.00
$17.00 $14.00
Sale Sold out
Shipping calculated at checkout.
405nm 20mW SLD3134VR-31 Purple Diode TO5.6 w/ PD Laser Diode Module Light Source

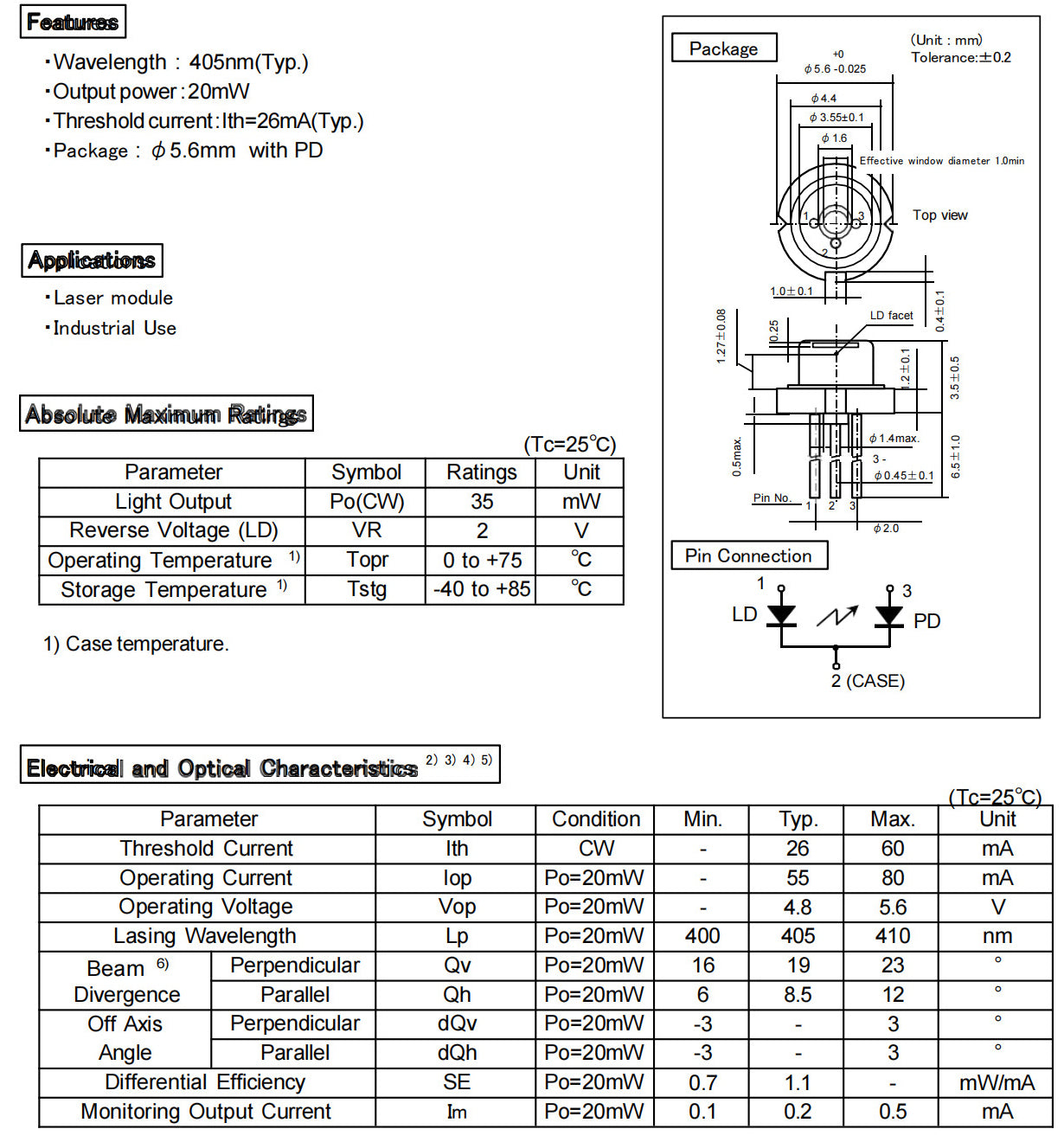

Specifications:
Wavelength：405nm
Output power：20mW
Operating Voltage：4.8V
Operating Current：55mA,80mA(max)
Threshold current：lth=26mA

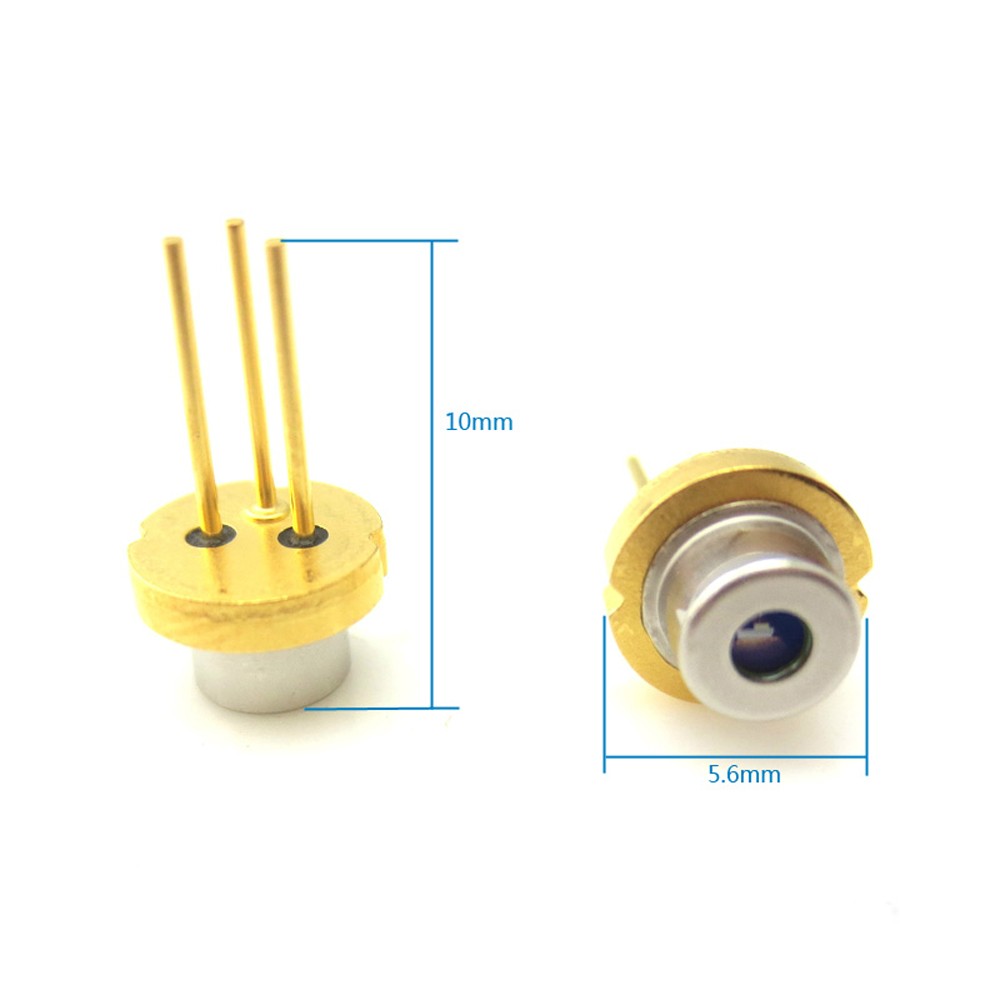

Package： φ5.6mm with PD
Light Output：35mW Po(CW)
Reverse Voltage (LD)：2V
Operating Temperature：0℃ +75℃
Storage Temperature：-40℃ +85℃


Package：

1x 405nm 20mW SLD3134VR-31 Purple Diode TO5.6 w/ PD Laser Diode Module Light Source
