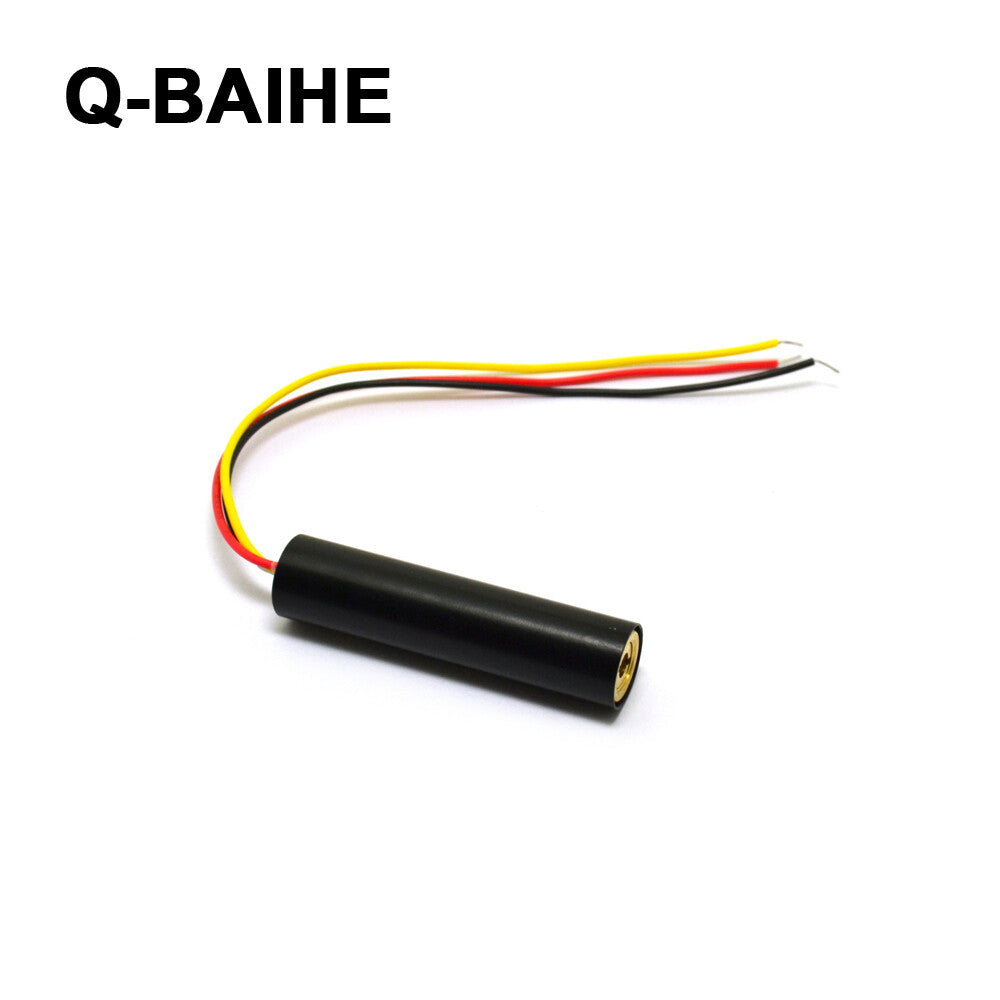

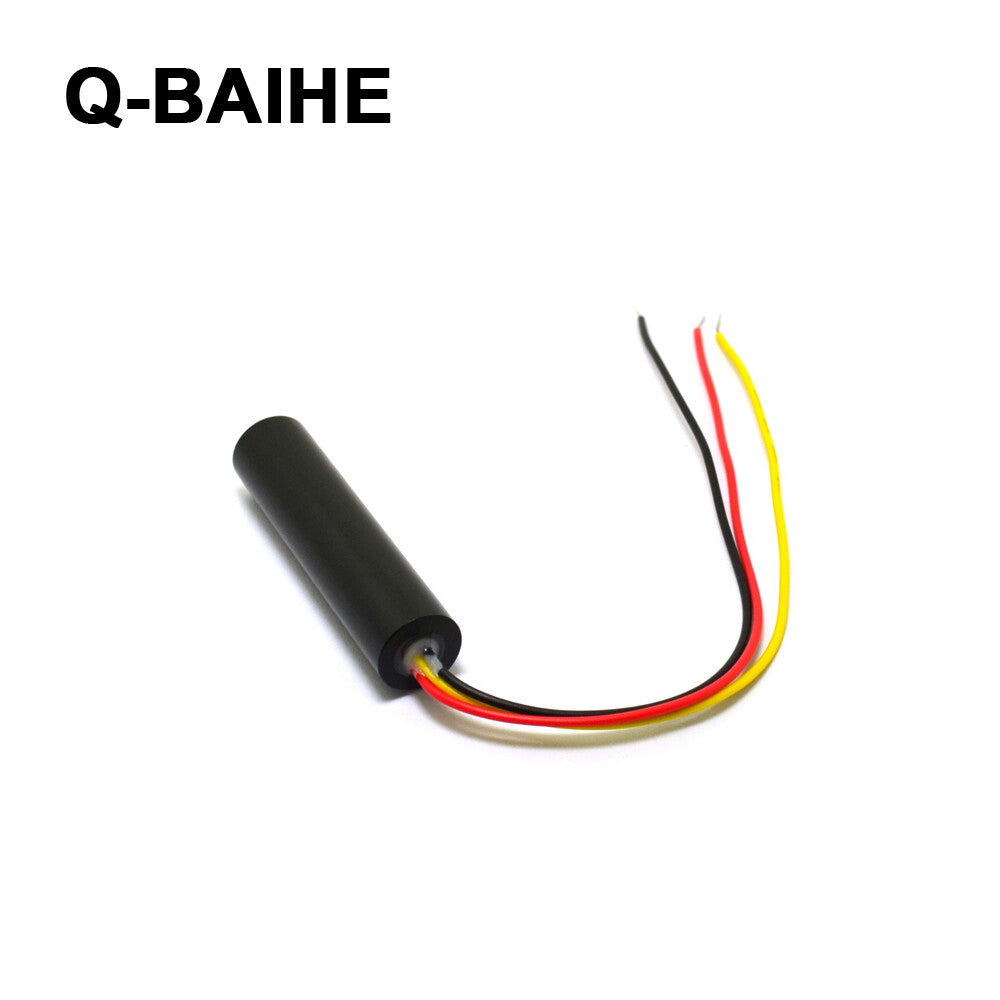

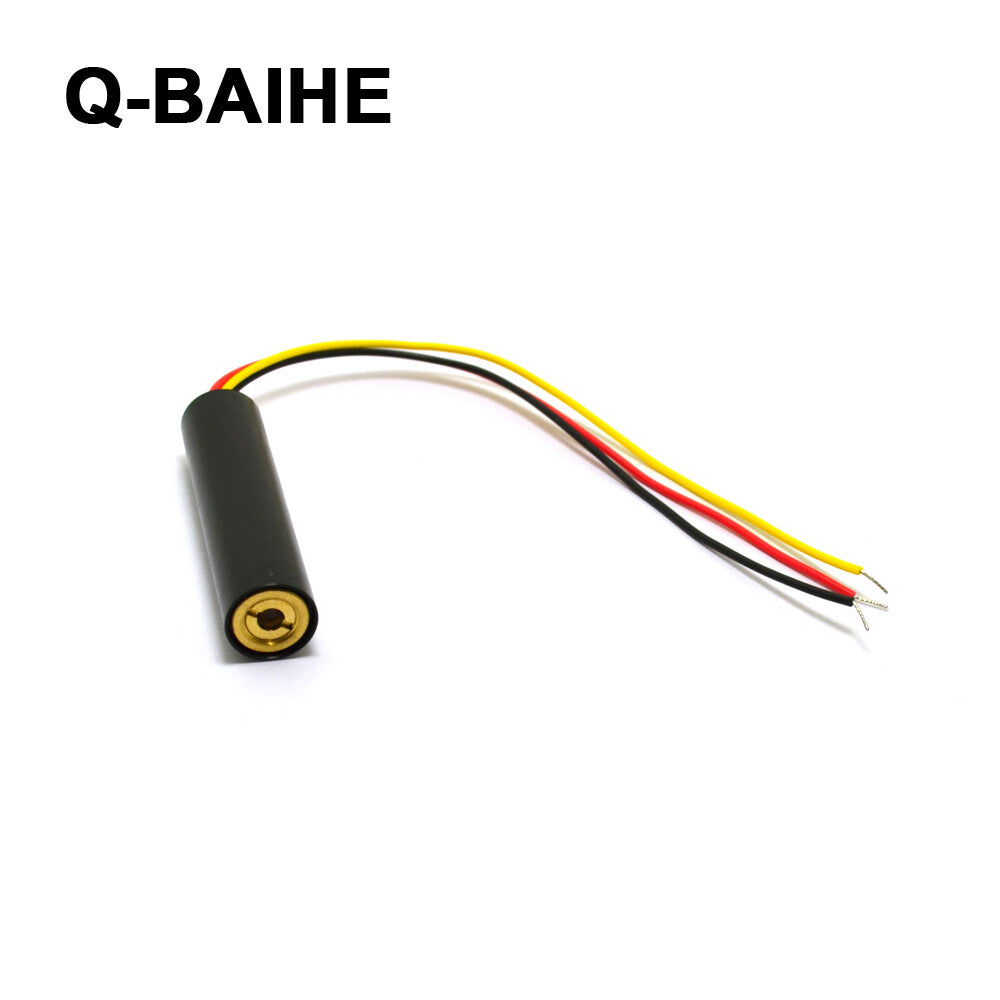

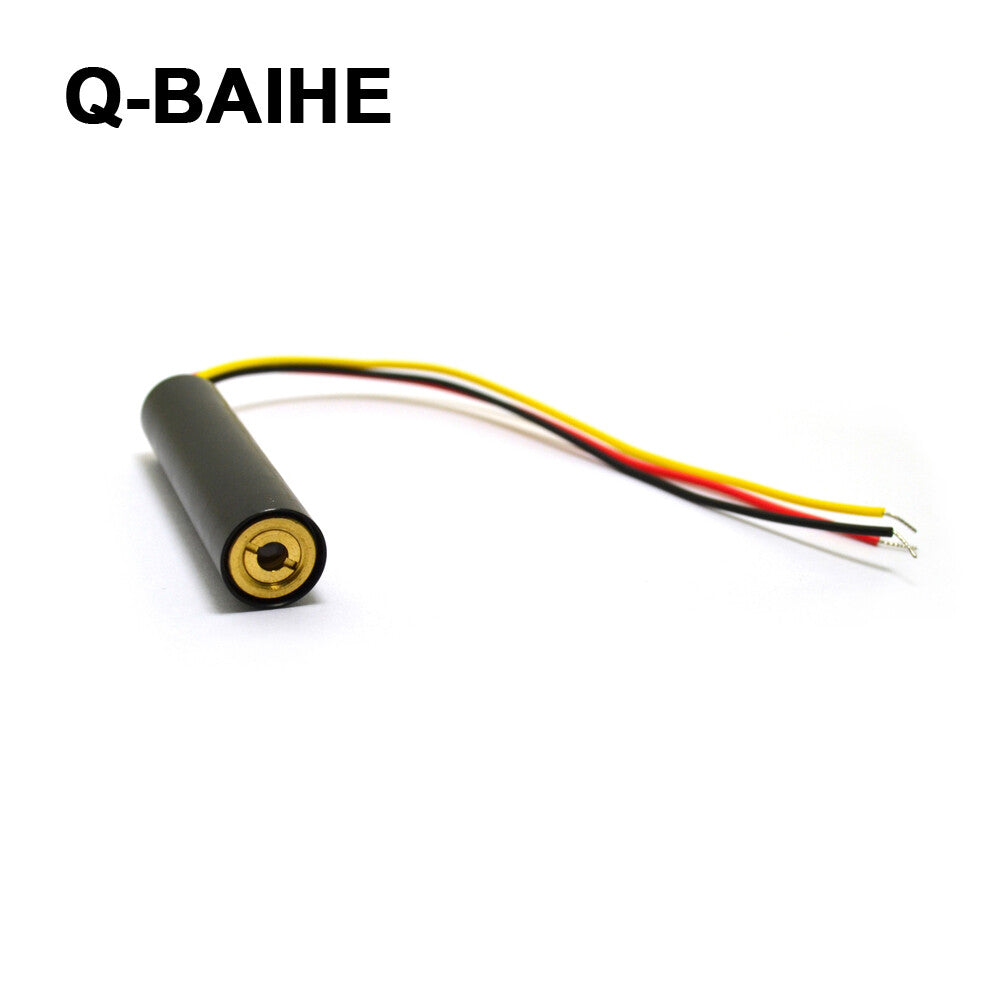

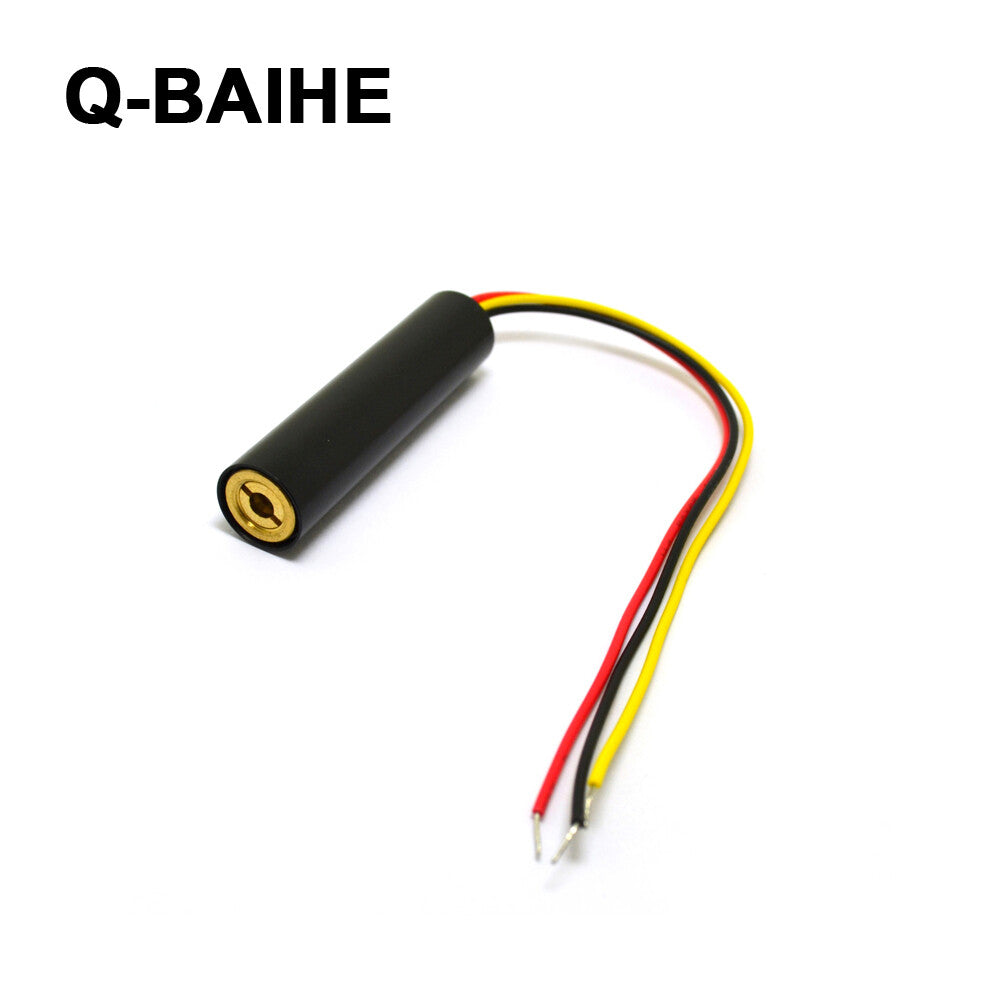

405nm 5mw 20mw 100mw 150mw 200mw TTL Modulated Dot Laser Module Laser

405nm 5mw 20mw 100mw 150mw 200mw TTL Modulated Dot Laser Module Laser

Dimensions: 12*50mm (Can Be Customized)

Working Voltage: DC 2.8-5.2 (V)Can Be Customized

Detailed description:

Power: 5mW

Working current: ≤ 35mA

Light distance:

can play 0-100 meters indoors during the day

Can play 0-20 meters outdoors during the daytime

Can play 0-200 meters in the dark environment

Power: 20mW

Working current: ≤ 70mA

Light distance:

can play 0-150 meters indoors during the day

0-50 meters outside during the daytime

Can play 0-300 meters in the dark environmen

Power: 100mW

Working current: ≤ 150mA

Light distance:

can play 0-180 meters indoors during the day

0-60 meters outside during the daytime

Can play 0-350 meters in the dark environment

Power: 150mW

Working current: ≤ 200mA

Light distance:

In the daytime, you can play 0-200 meters indoors.

0-70 meters outside during the daytime

Can play 0-400 meters in the dark environment

Power: 200mW

Working current: ≤ 300mA

Light distance:

can play 0-250 meters indoors during the daytime

0-80 meters outside during the daytime

Can play 0-500 meters in the dark environment

Advantage:

1. Modulation frequency range 0—50KHZ (can be customized)

2. The spot size can be adjusted from 1mm to several centimeters to meet your different usage requirements.

3. The outer casing is aerospace aluminum-plated insulating varnish, which can fully dissipate heat and shockproof and anti-static

4. Laser diode direct illumination, high stability, can be turned on 24 hours a day

5.IC's intelligent driver board can be 2.8-5.2V ultra-wide range power supply (other voltage can be customized)

6. High temperature resistant Corrosion resistant DC plug wire Suitable for all-weather use

7. Wavelength Power Wire length Working distance Spot effect, etc. can be customized according to customer requirements

Package:

1*405nm Laser Module
