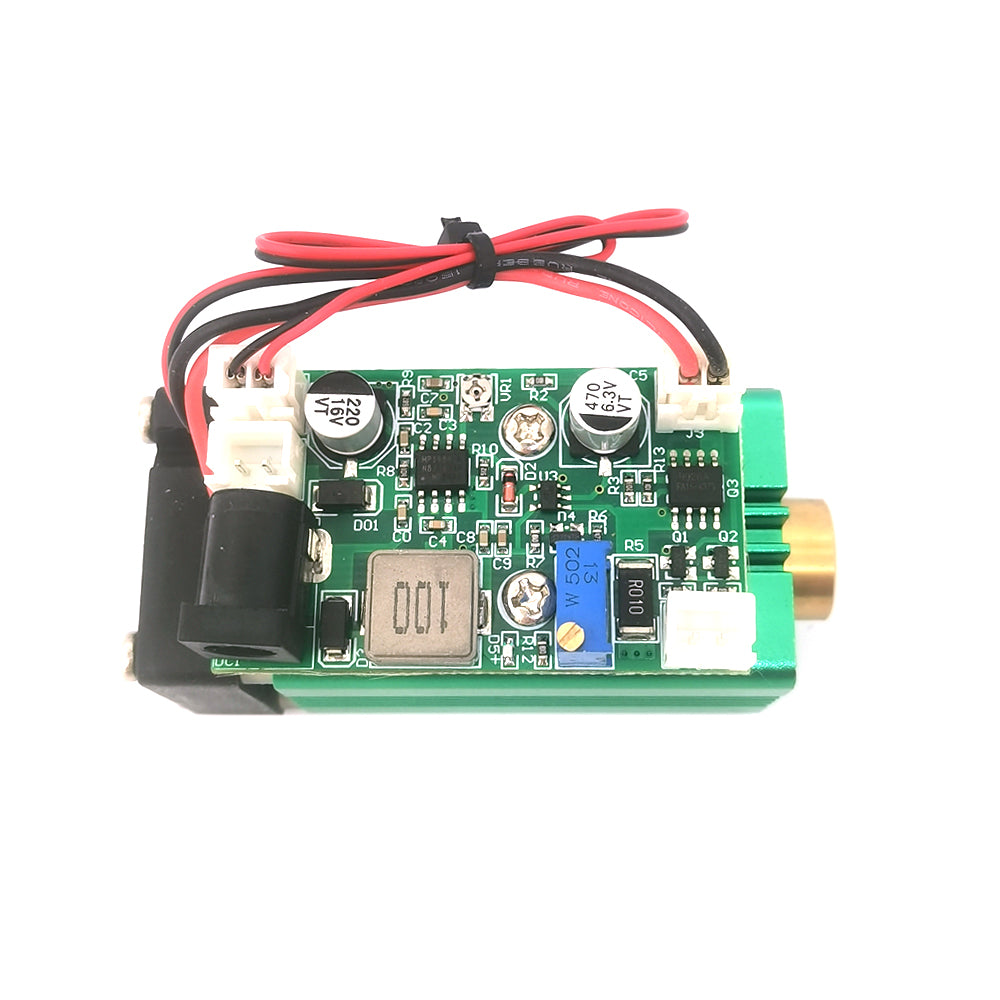

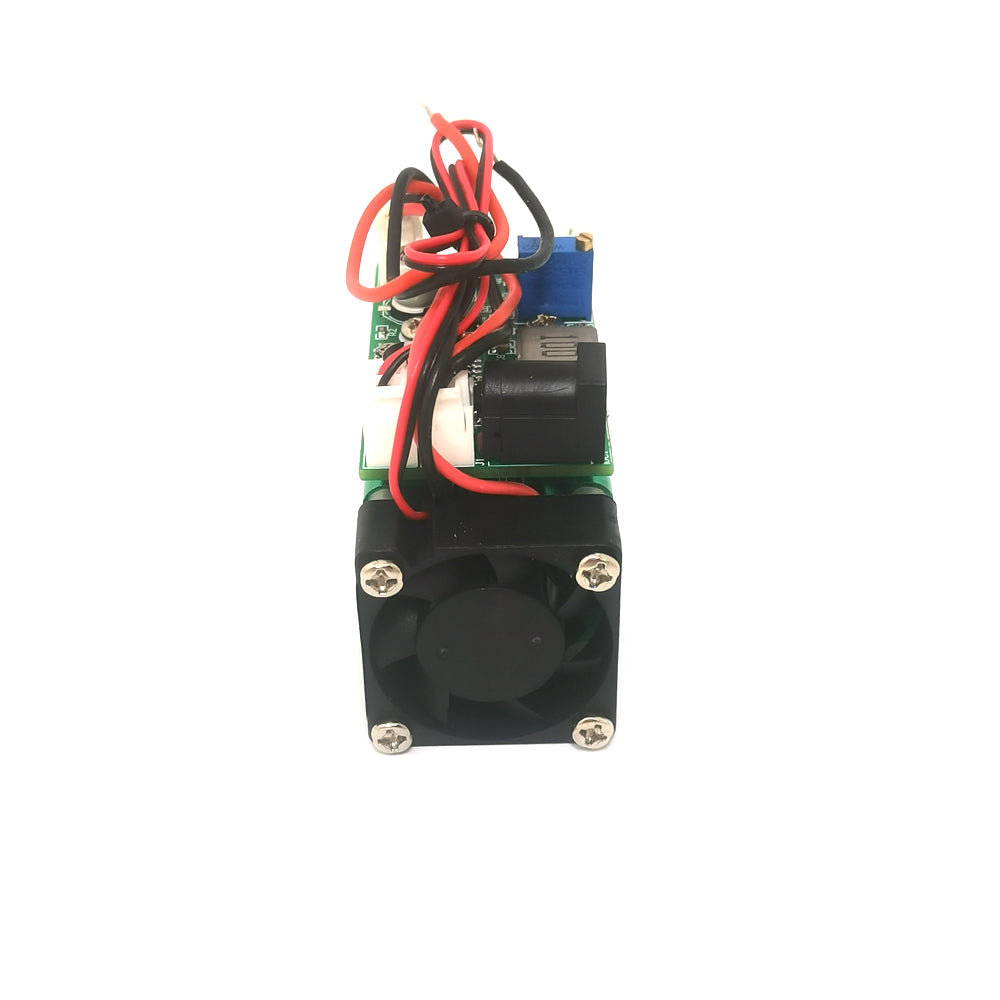

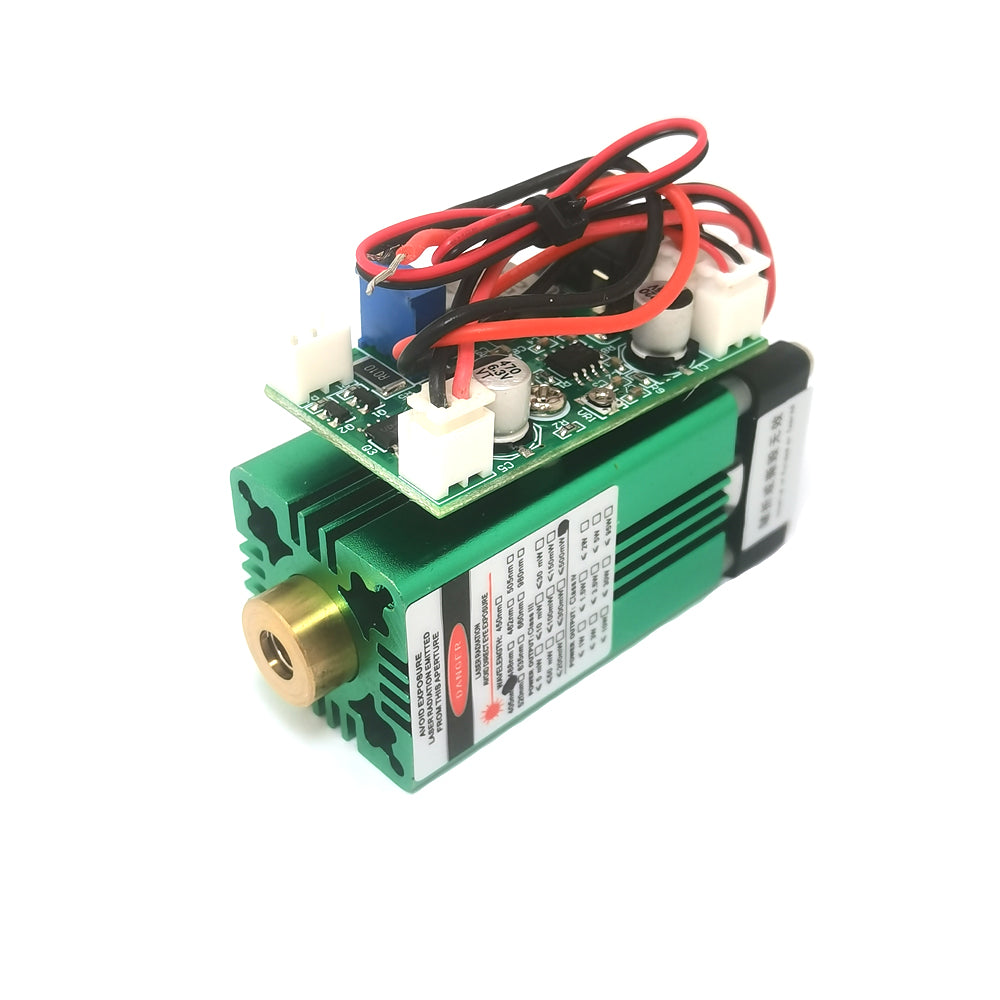

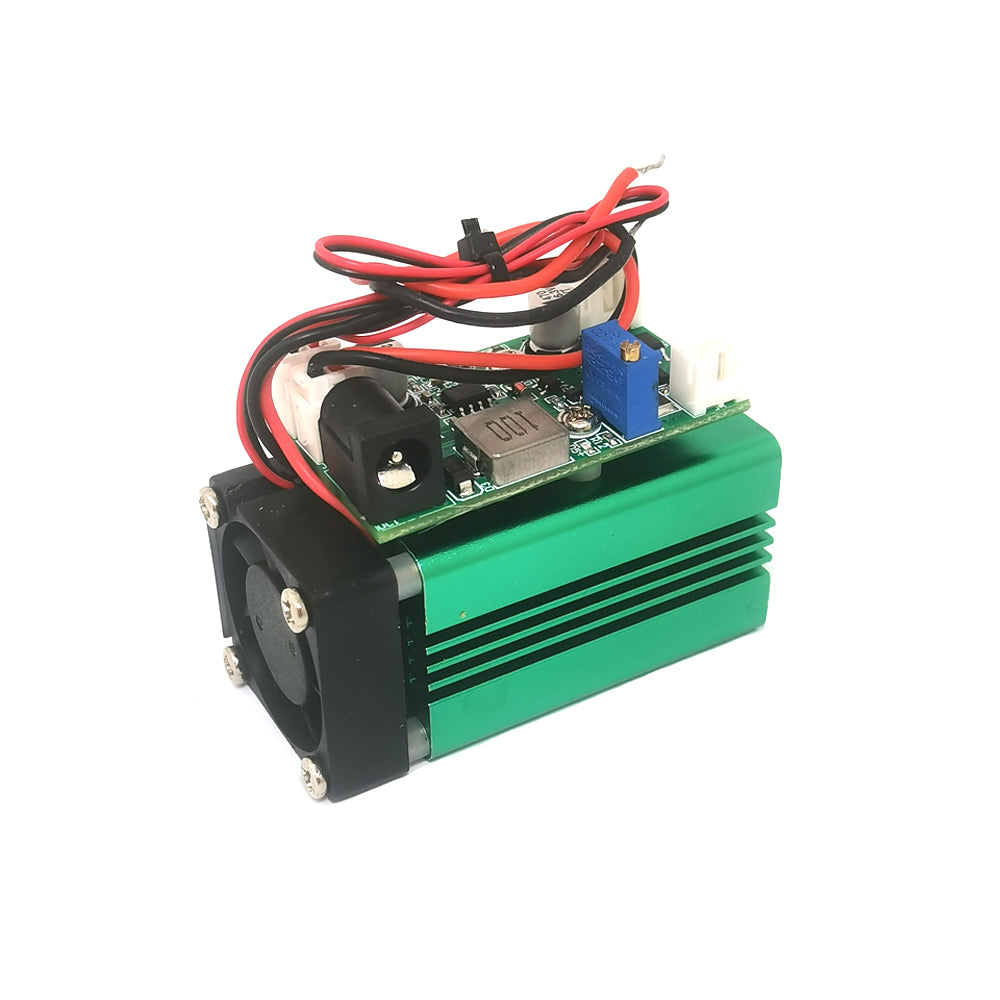

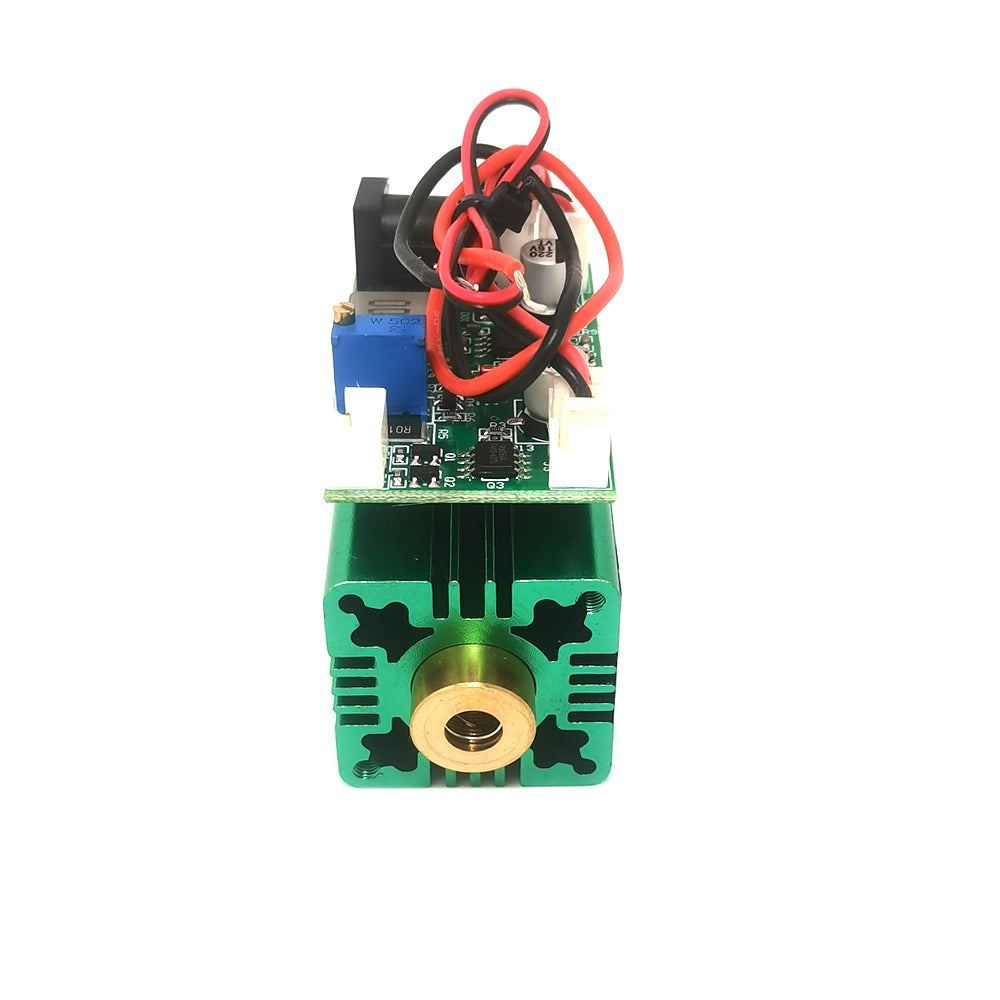

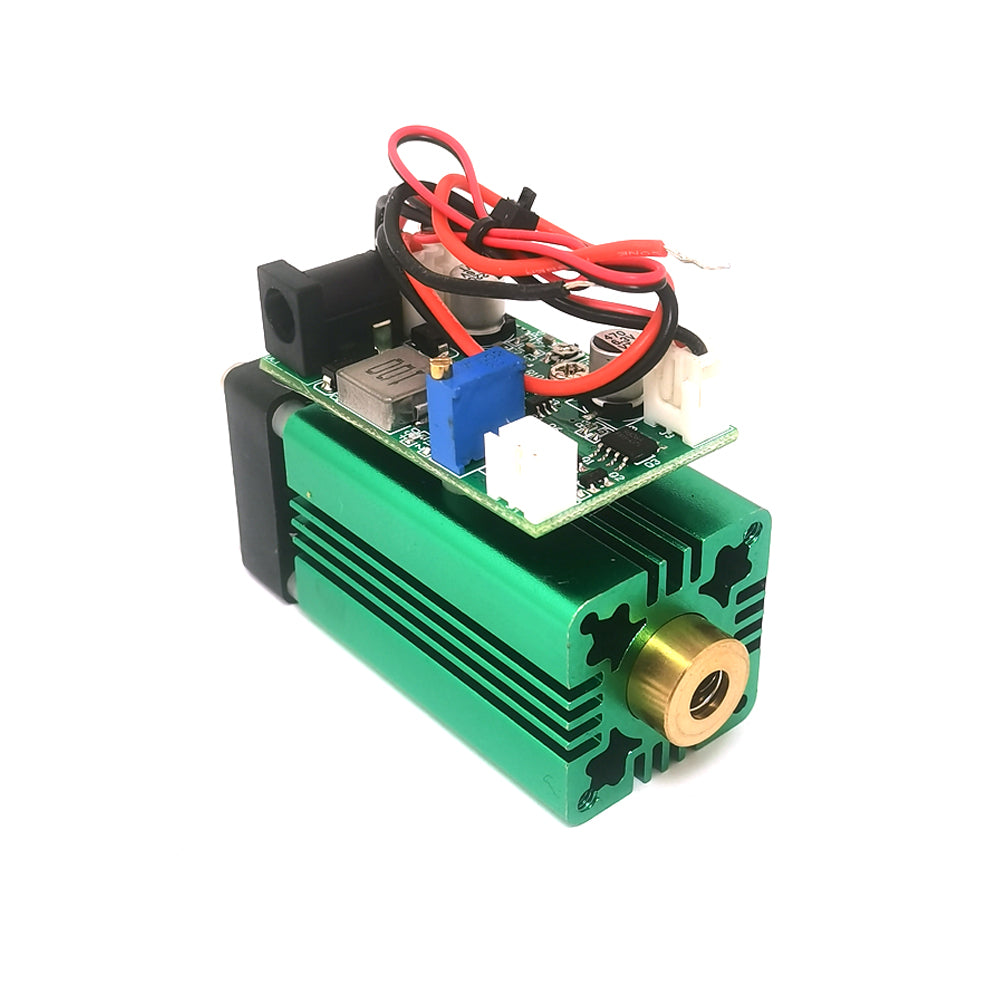

405nm 12V Blue Violet Laser Moudle 300mW 500mW 800mW Can Work for a Long Time, Stage Laser Light with TTL
Specifications:
Host size: 30x30x50mm
Driver board size: 50x30x18mm
Output wavelength: 405nm
Output power: 300mW/500mW/800mW (optional)
Cooling method: air-cooled
Modulation frequency: TTL 1-20KHz
Modulation voltage: 0-5V
Job characteristics: Can work continuously
Surface treatment: Green
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic identification of positive and negative poles
Working voltage: DC=12V
Working current: 100mA
Preheating time: none
Working temperature: -10 ° C~+40 ° C
Storage temperature: -10 ° C~+40 ° C
Structural features: laser tube+lens+heat dissipation shell
Note: The power supply and laser head are separate, and the laser head is equipped with a fan for cooling
Special reminder: Input voltage is 12V, overvoltage can cause instantaneous damage to circuits and modules!
Package：
1x Blue Violet Laser Moudle
